Bambu Lab P1 & X1 Series 3D Printer Chute System

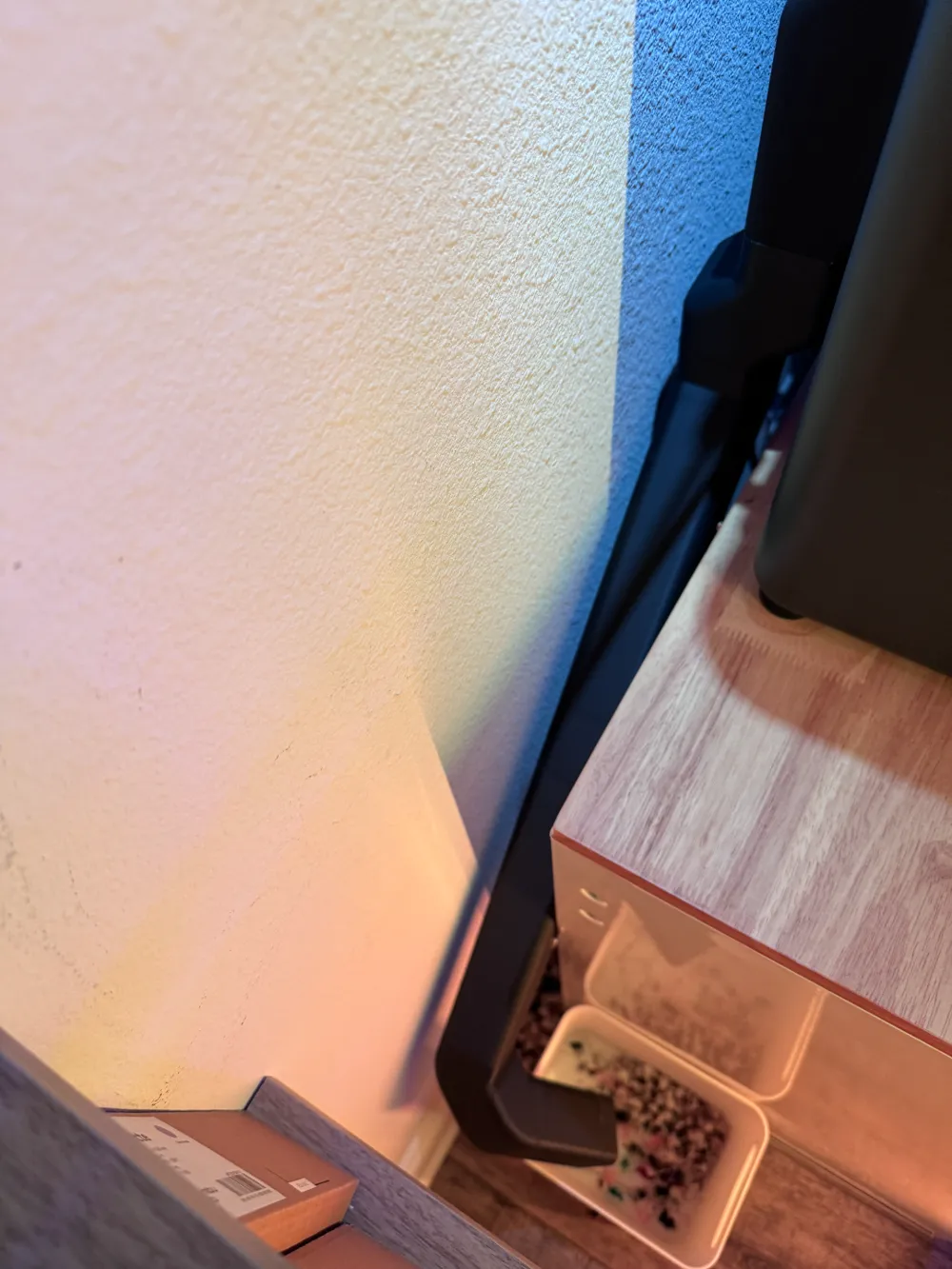

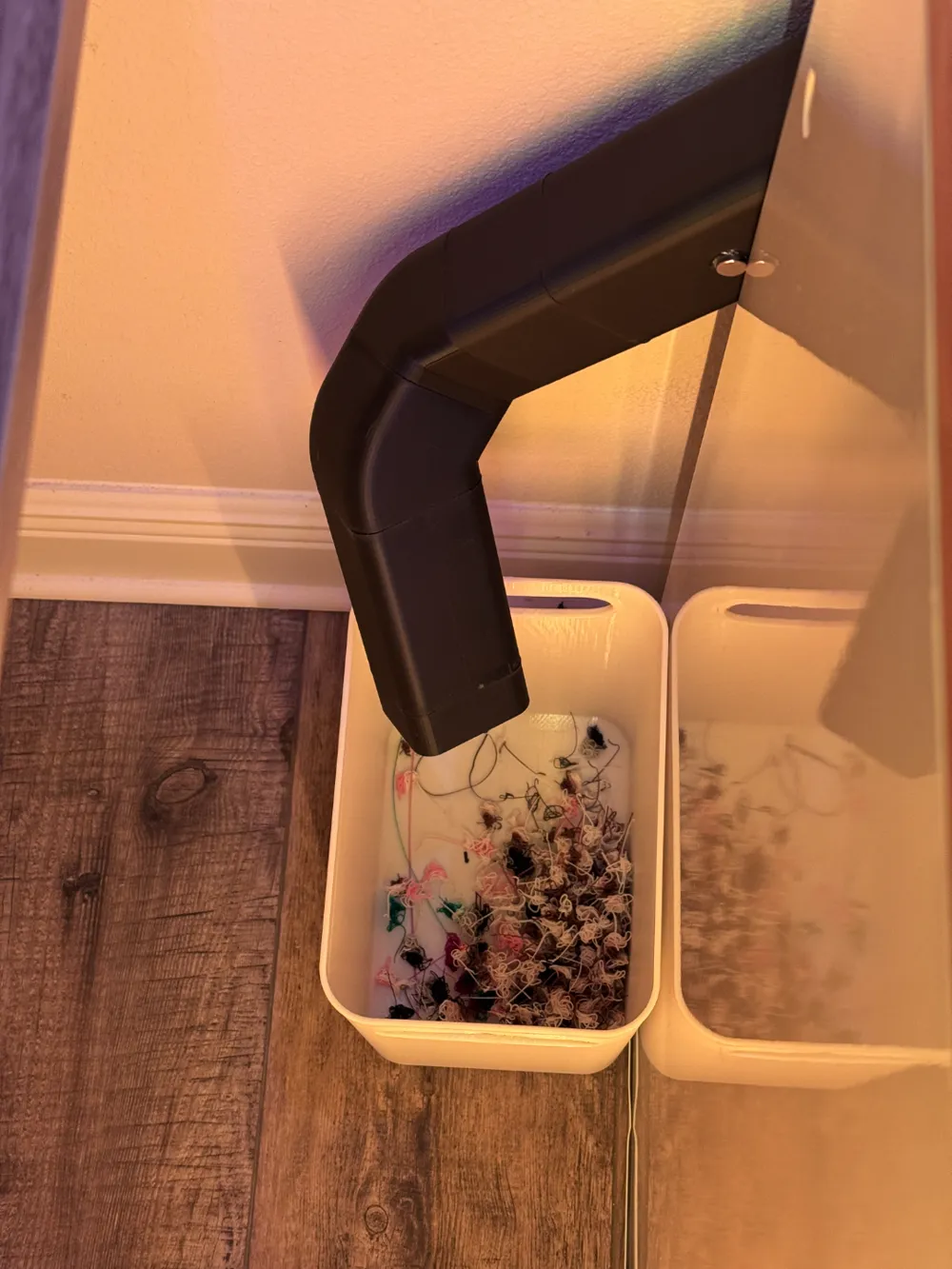

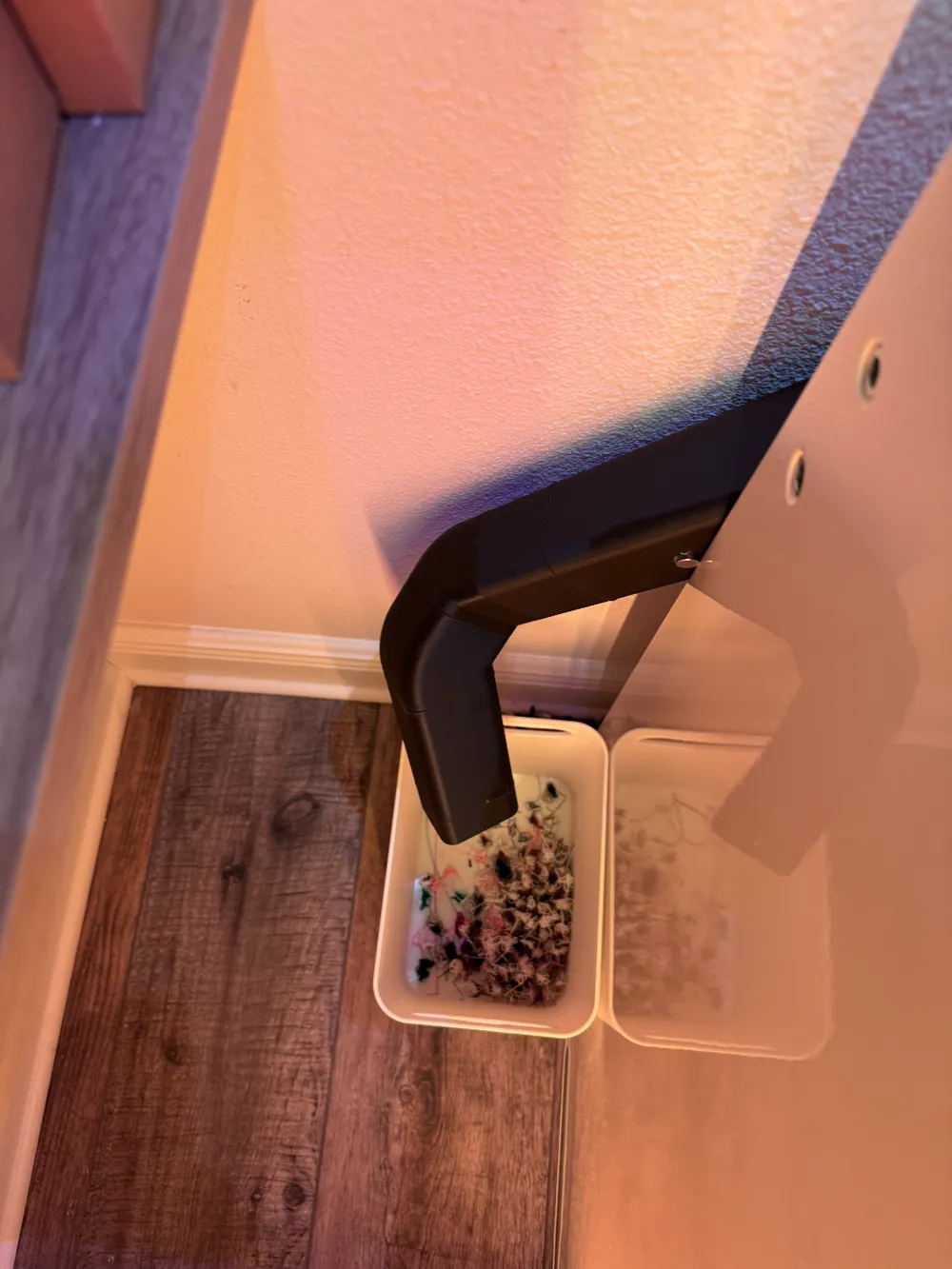

Streamline your 3D printing process with the innovative Chute System designed specifically for the Bambu Lab P1 and X1 series printers. This expertly crafted system ensures clean, efficient purging by directing excess filament from the rear of your printer, guiding it through the chute, and into a trash can or bucket. Whether you're printing with filament that needs to be discarded or cleaning your nozzle, this chute system makes purging a breeze.
Key Features:

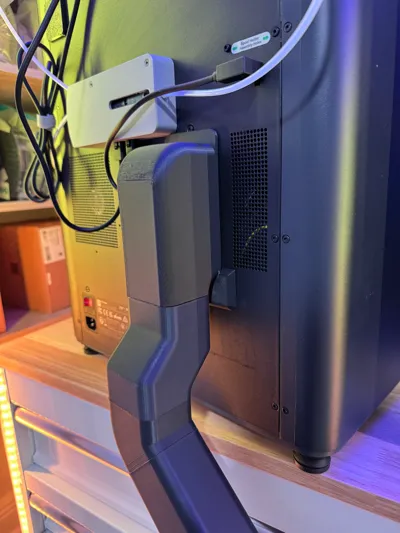

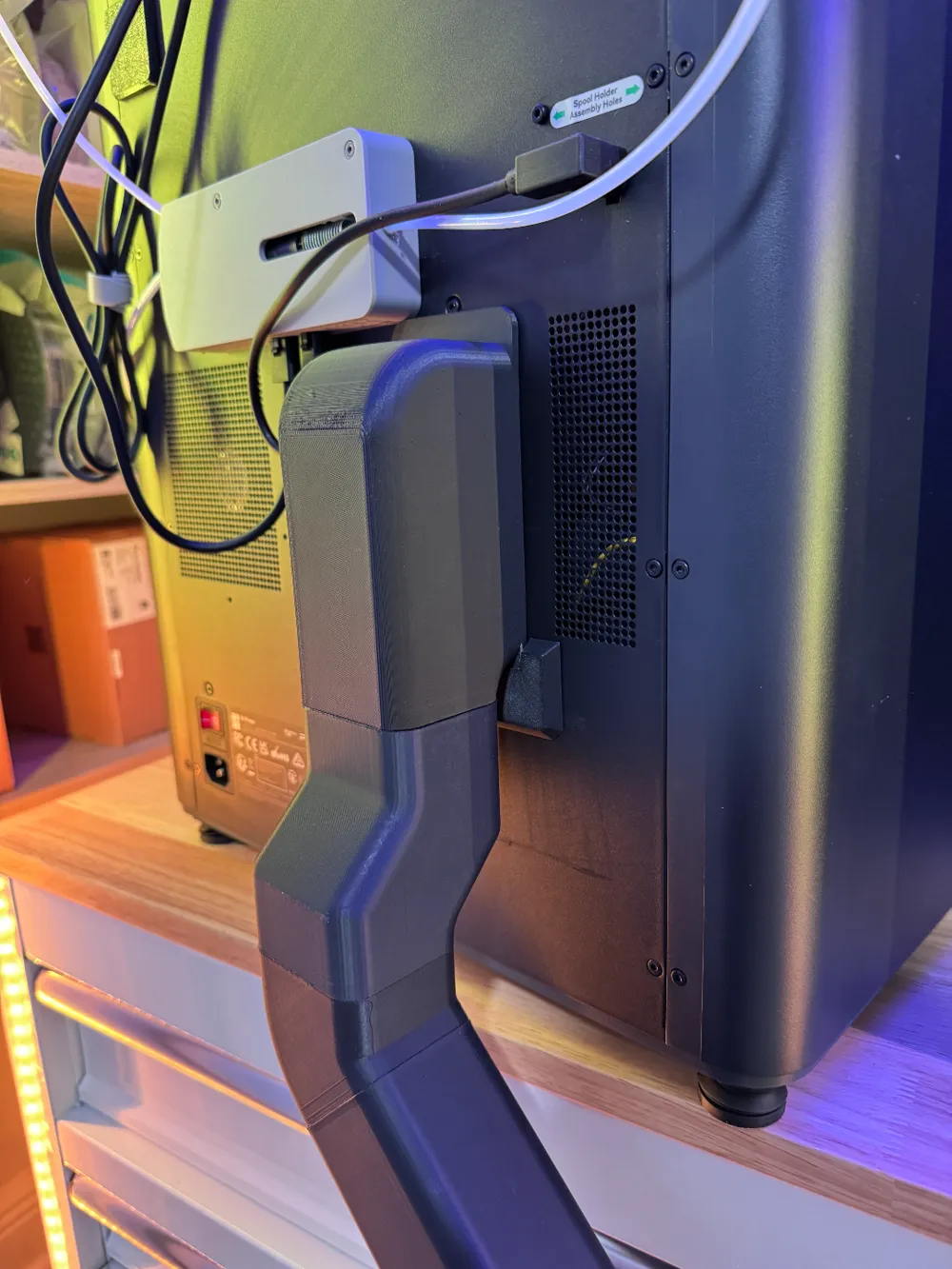

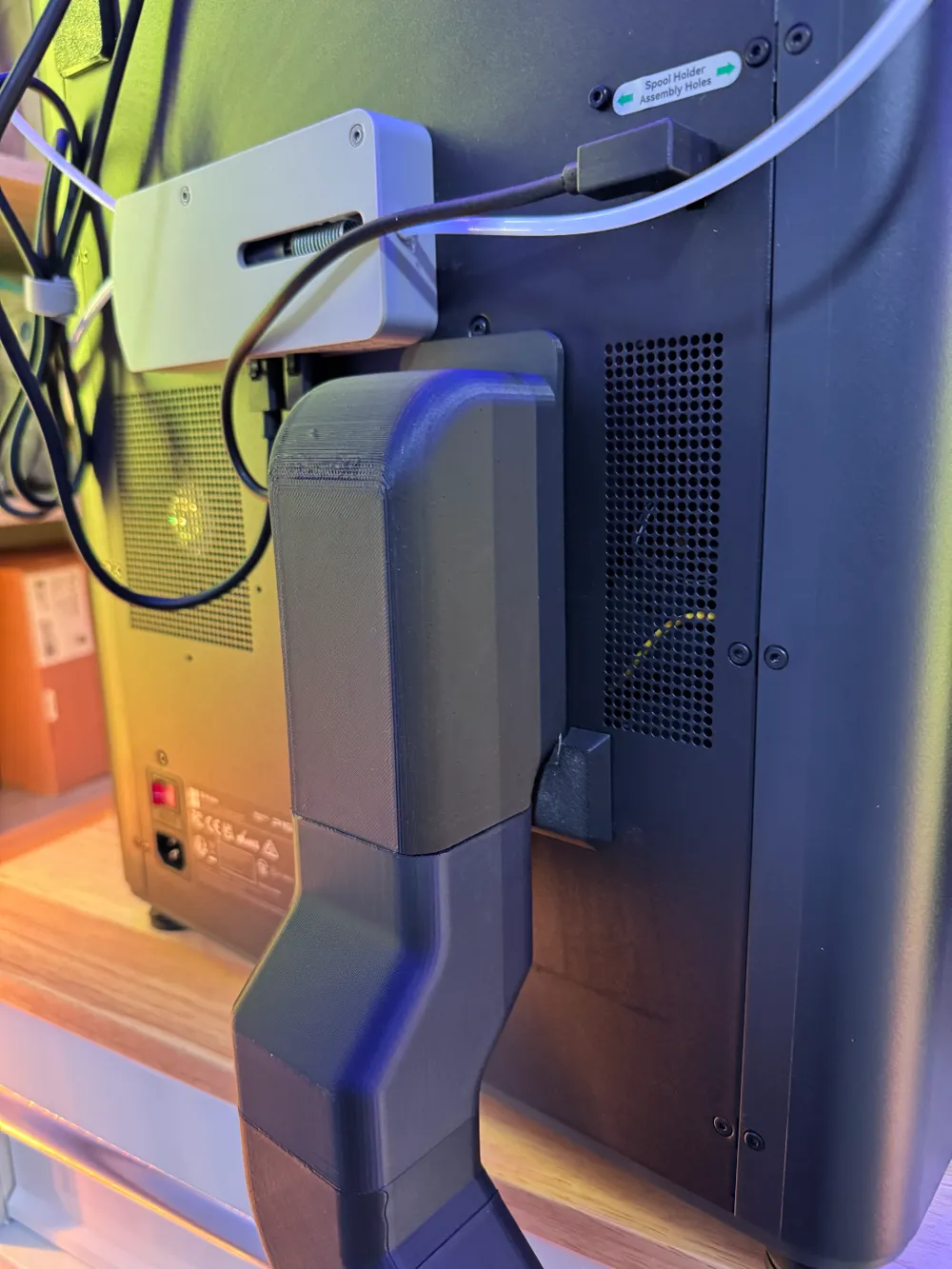

- Chute Inlet – Features four D8x2mm magnet insert locations for a secure attachment to the back of your Bambu Lab P1 or X1 printer.

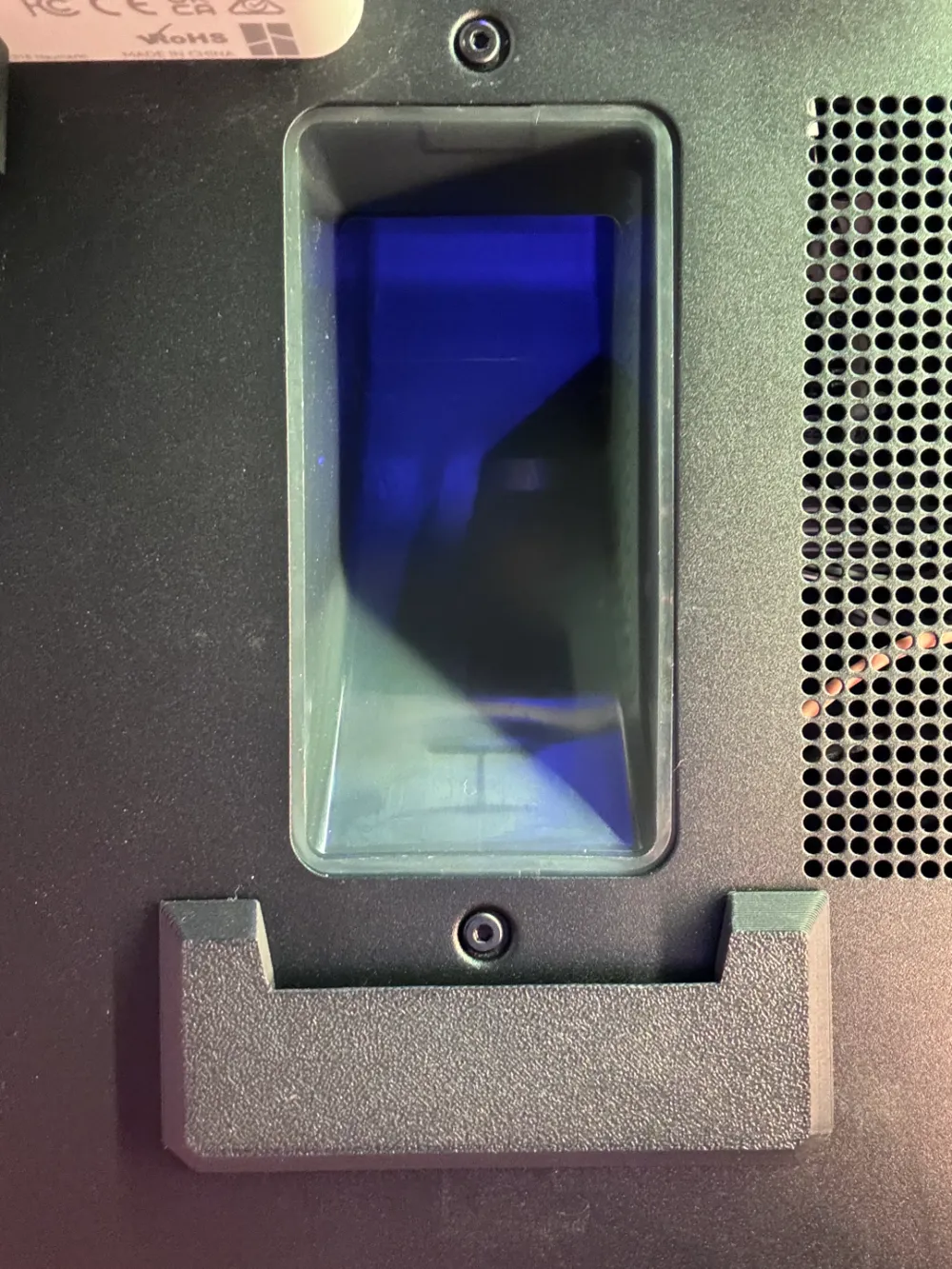

- Inlet Support Bracket – Includes three recesses for applying double-sided adhesive strips, ensuring stability and support to hold the weight of the chute beneath the purge outlet.

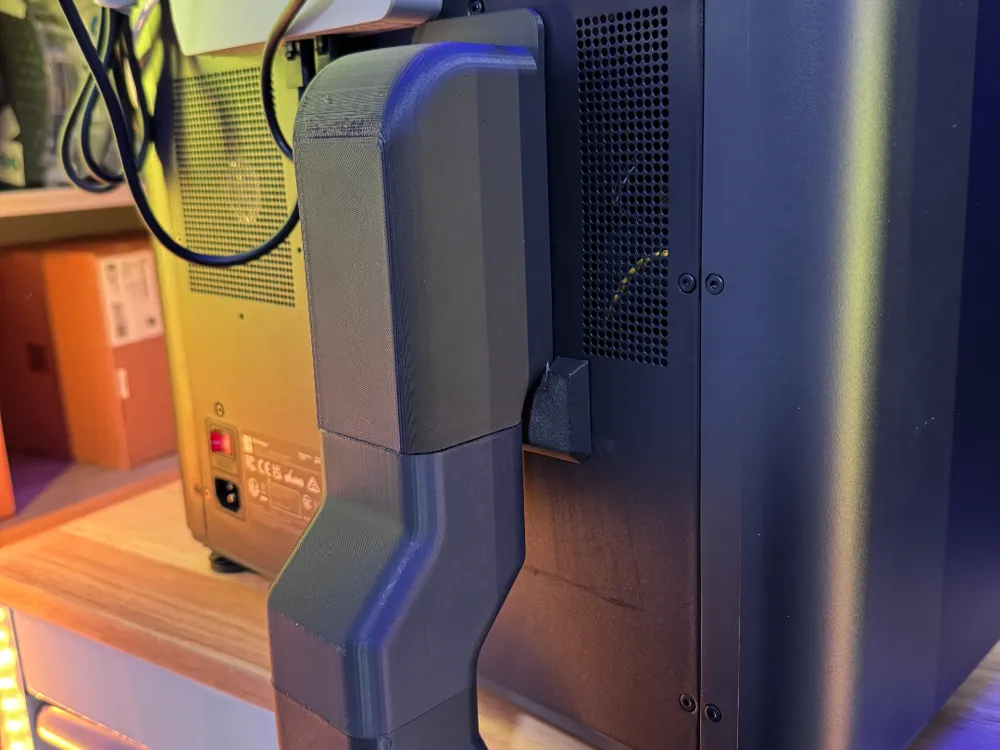

- S-Curve – Facilitates smooth offsets.
- 45° Elbow – Helps guide filament around corners, maintaining a clear path for purged material.
- 45° Bend – Offers flexible direction change.
- 50mm Straight
- 100mm Straight
- 150mm Straight
- 200mm Straight
- 220mm Straight
- End Cover - To clean up the appearance.
Compatibility: This chute system is designed to integrate with the Bambu Lab P1 and X1 series 3D printers, offering a reliable and customizable solution for purging filament.
Installation: Place the Chute inlet over the printer’s purge chute and align to best cover the opening. Once in place, adhere the support bracket to the printer body. Add chute pieces to your desired lengths and bends. It is recommended to dry fit the chute to your required specifications, first. Once satisfied, glue the chutes together. Add magnets or double sided tape to the outside of the chute and secure to your desk or bench for best support.
Recommended Magnets: https://amzn.to/4ikYe8p
Recommended Double-Sided Adhesive: https://amzn.to/3XkoYxC
H2D Version: https://makerworld.com/en/models/1658122-the-purge-for-h2d#profileId-1753775
