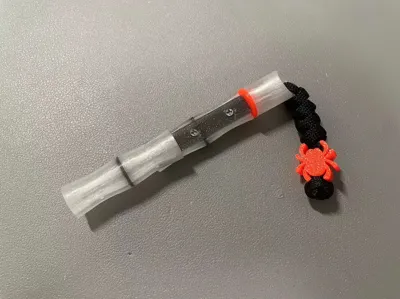

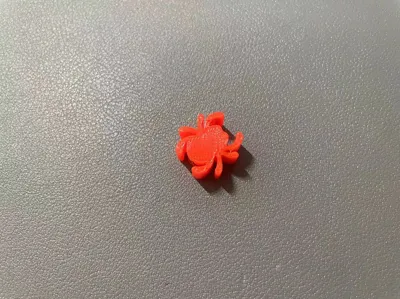

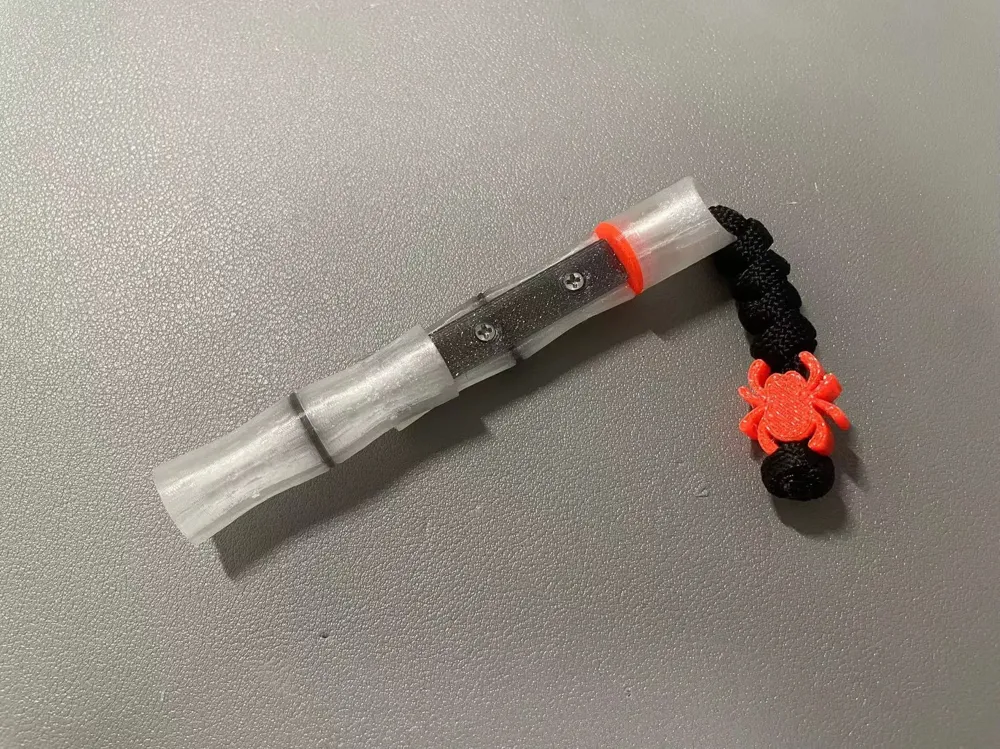

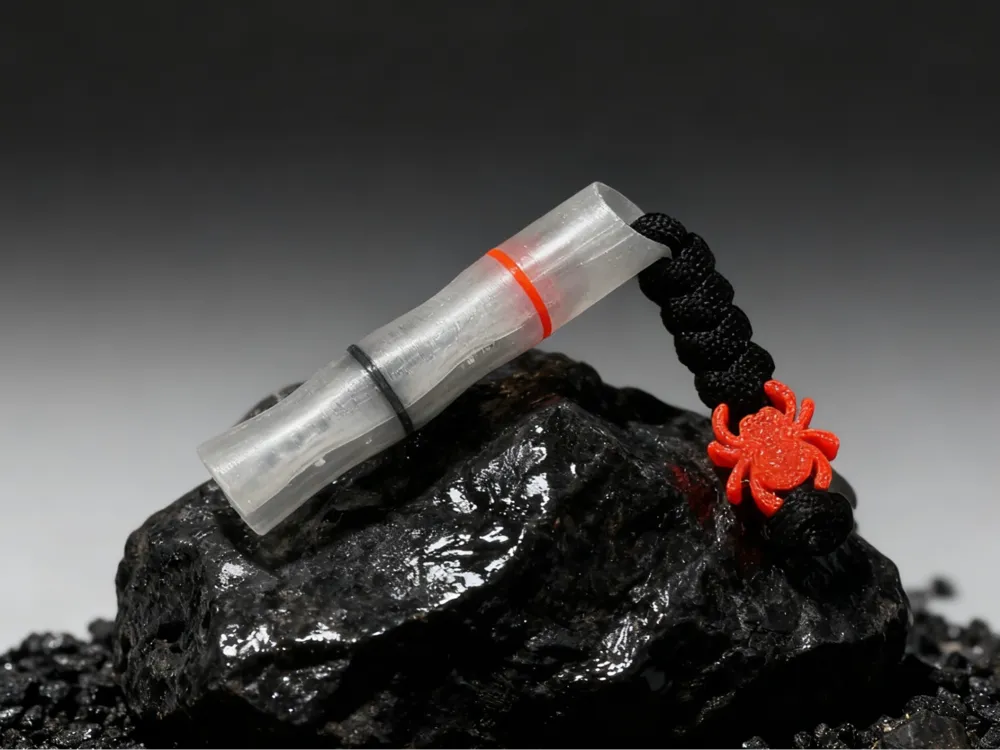

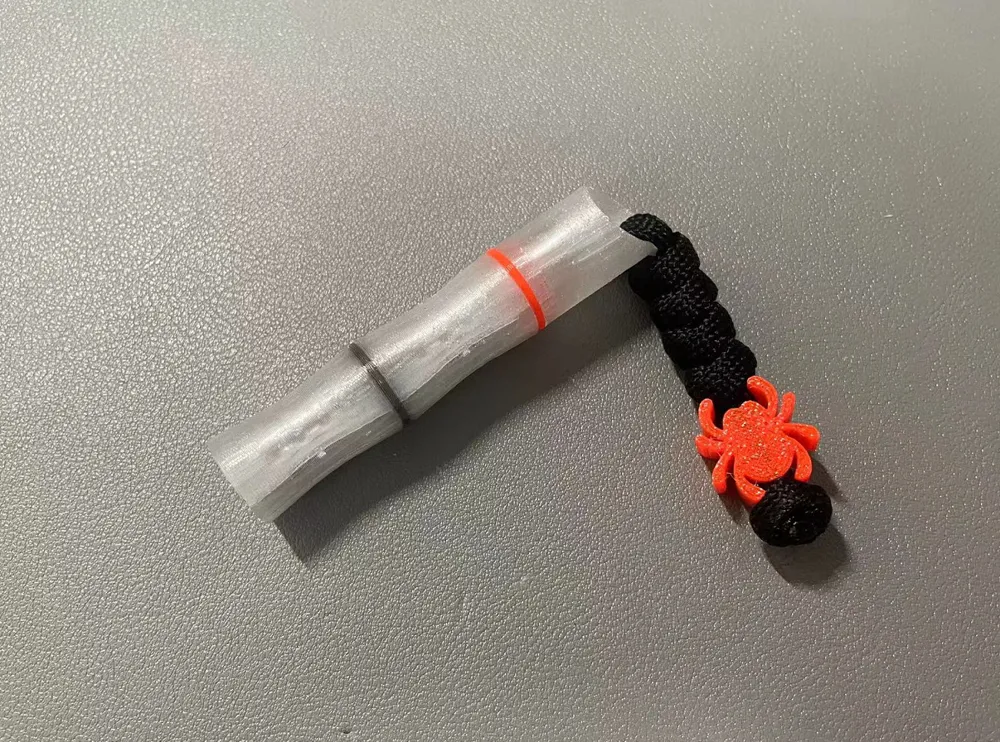

Fidget EDC Mechanical Zhú Push Card + Zhizhu Changle Pendant

Personal Collection No. 36, Difficulty: ⭐⭐⭐

Original Author: Chenyu EDC & YEDC Collaboration

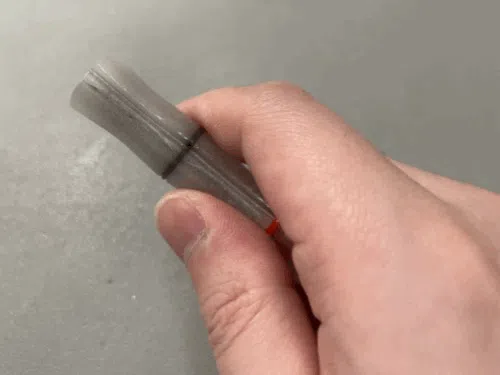

Mechanical Fidget Slider, the structure has been optimized for 3D printing. It is compact and portable, the more you use it, the smoother it gets; you won't want to put it down

Regular printing plate 1-3. If you have AMS, you can print plate 4. I usually don't use AMS, but it really doesn't look good without it 😁

For PETG printing, you must use glue spray, otherwise, it is highly likely to fail!

• Accessories needed:
  • 2 M2*4 screws
  • 2 M2*8 screws (M2*6 screws should also work)
  • 1-2 3mm glass beads

  • 1-2 0.3*3*5 or 0.25*3*5 springs, adjust according to personal preference

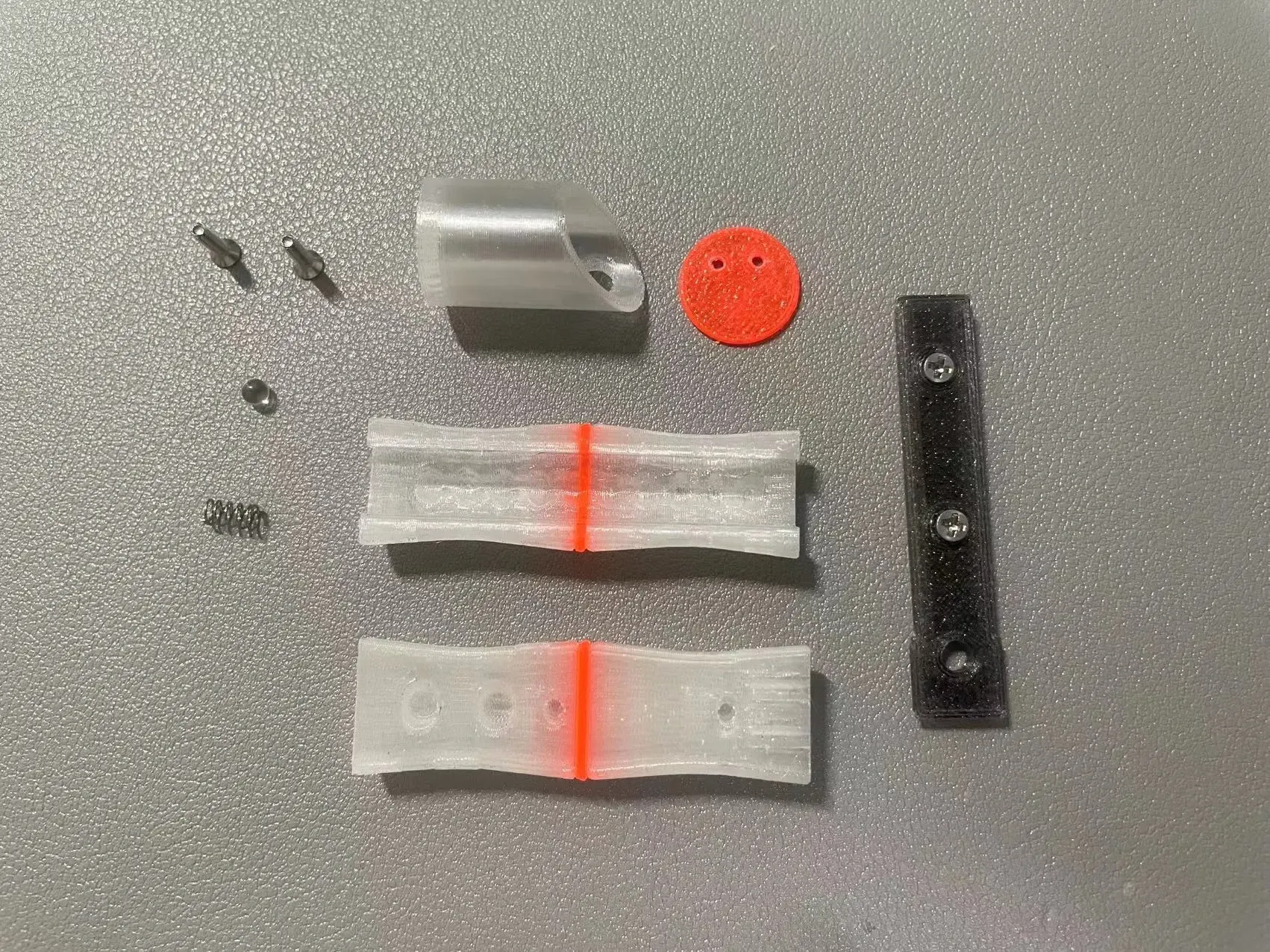

• Parts overview:



• Assembly steps:



  ① Use M2*4 screws to connect the backplate and the limit plate (Single hole recommended, double hole was made but not tested, you need to adjust the feel yourself)

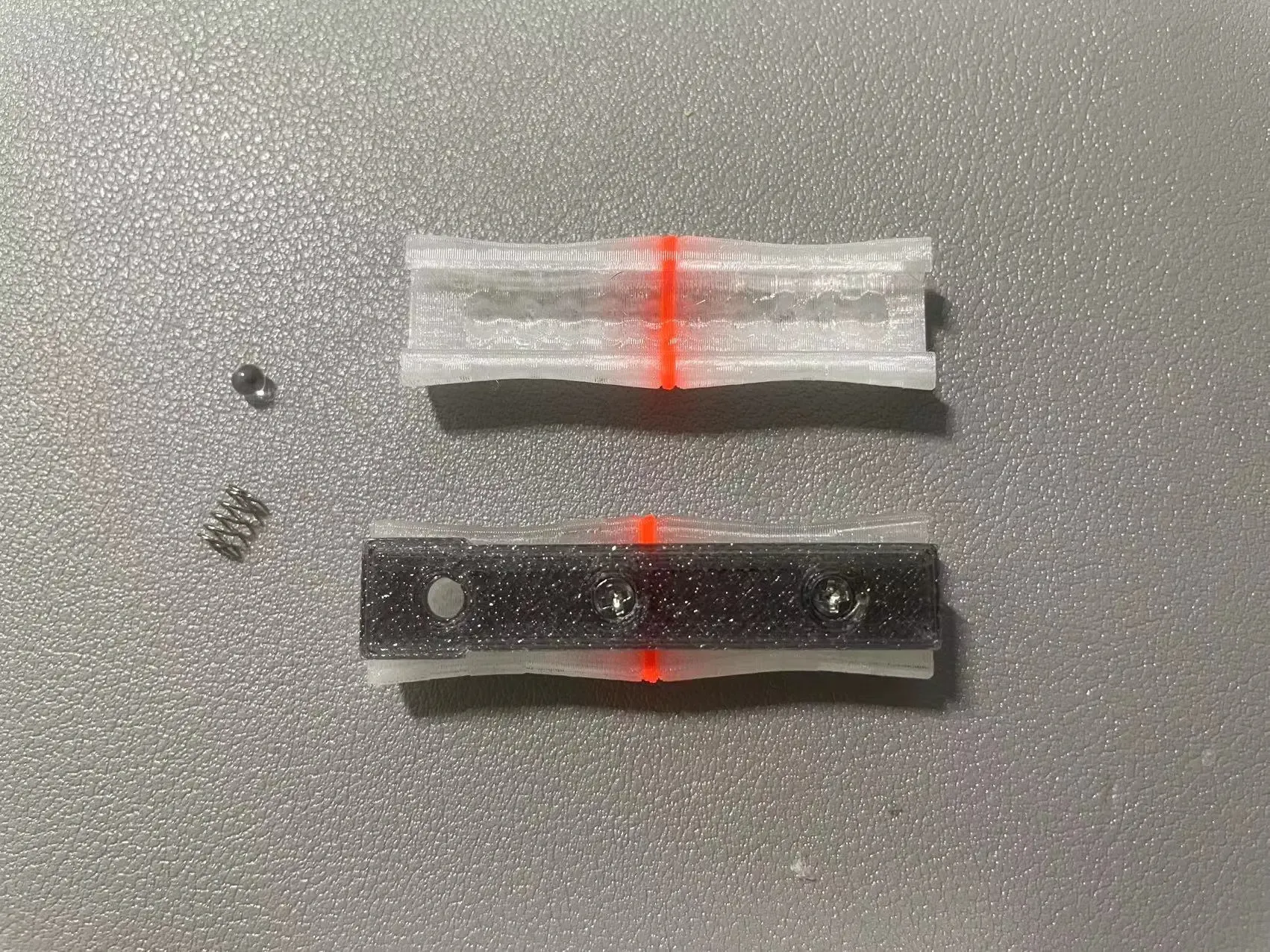

  ② Insert the forward slider with the bead groove, then place the spring and glass beads

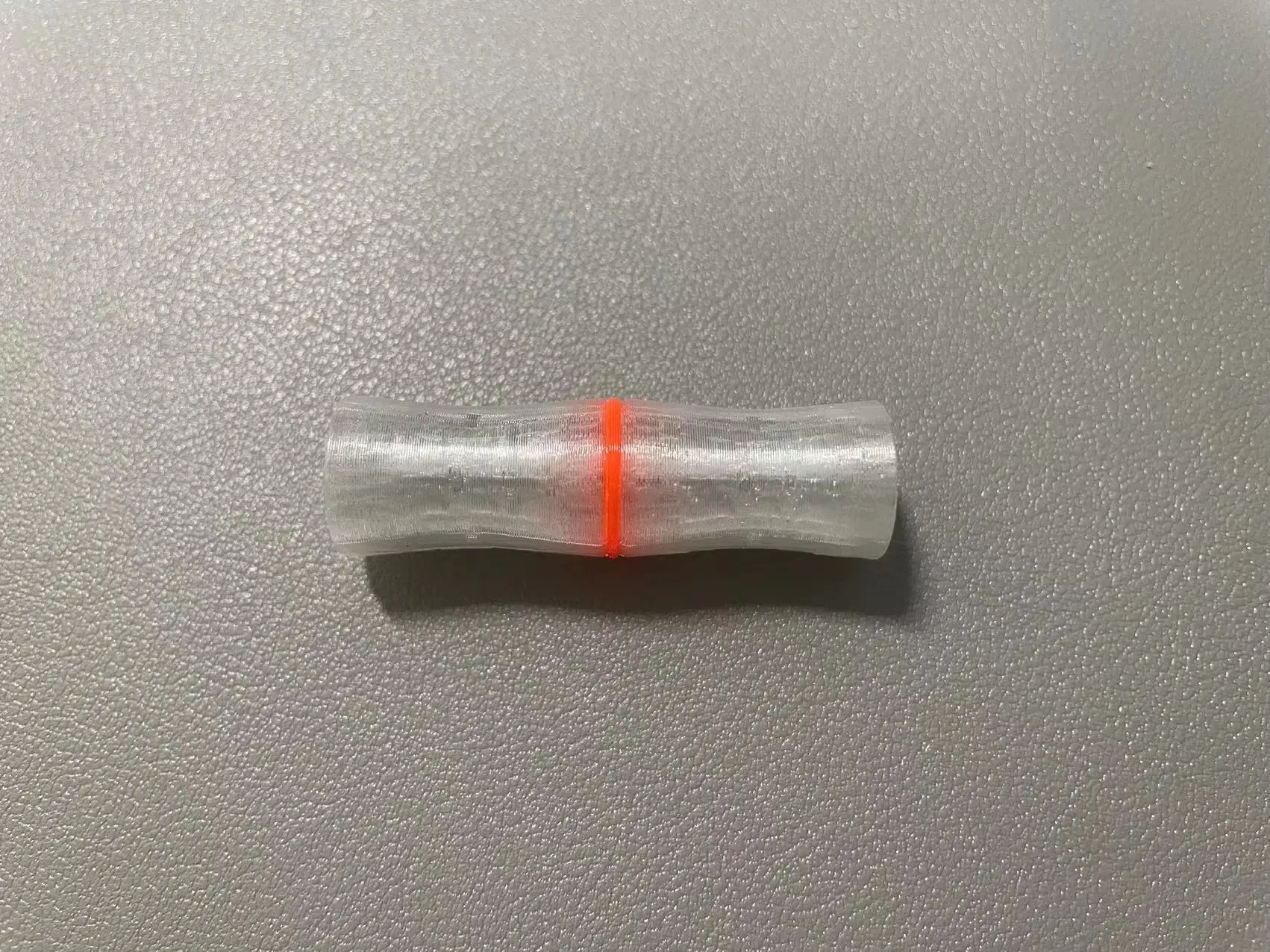

  ③ Snap the glass bead into the bead groove to form a barrel-shaped slider

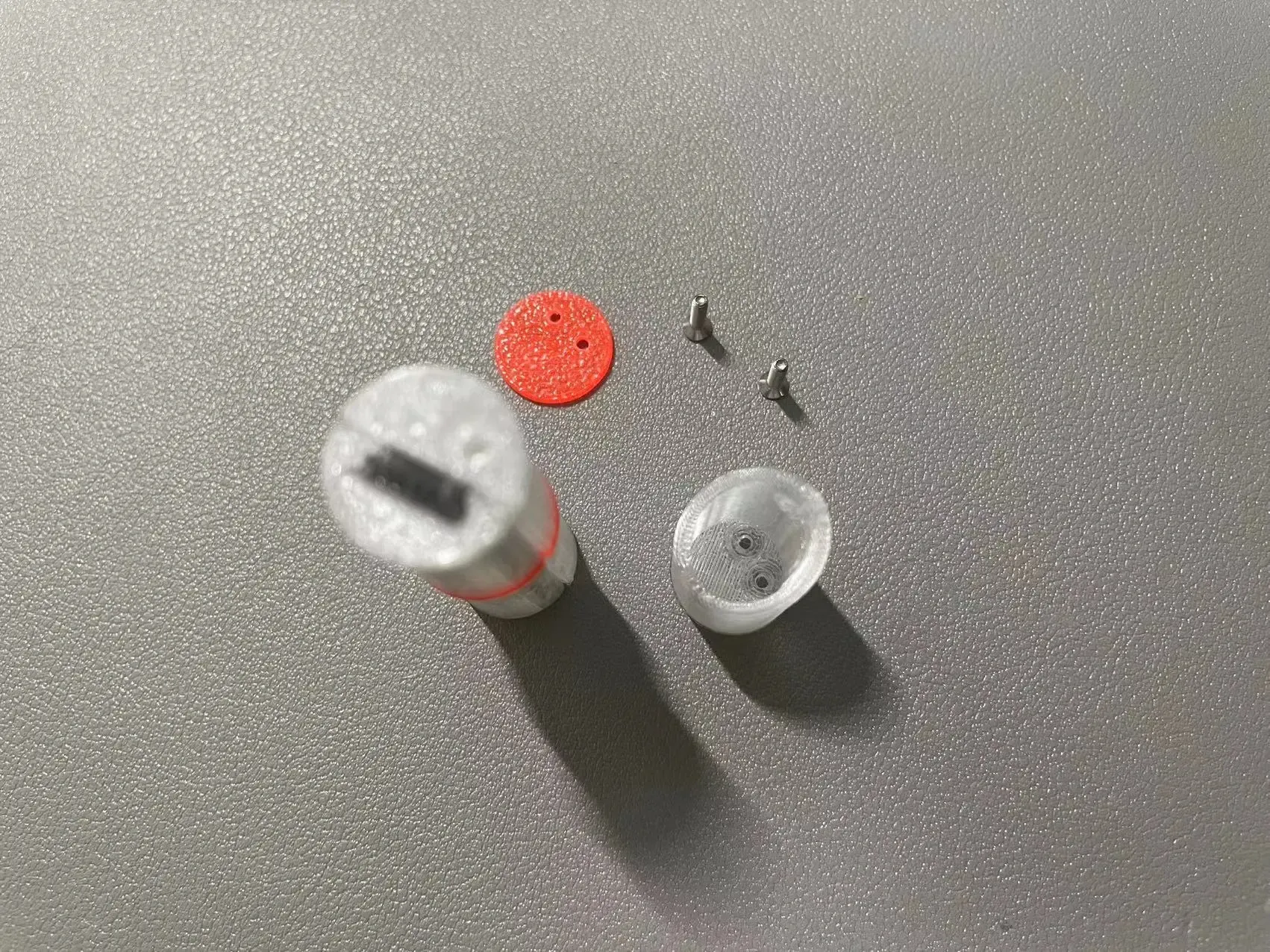

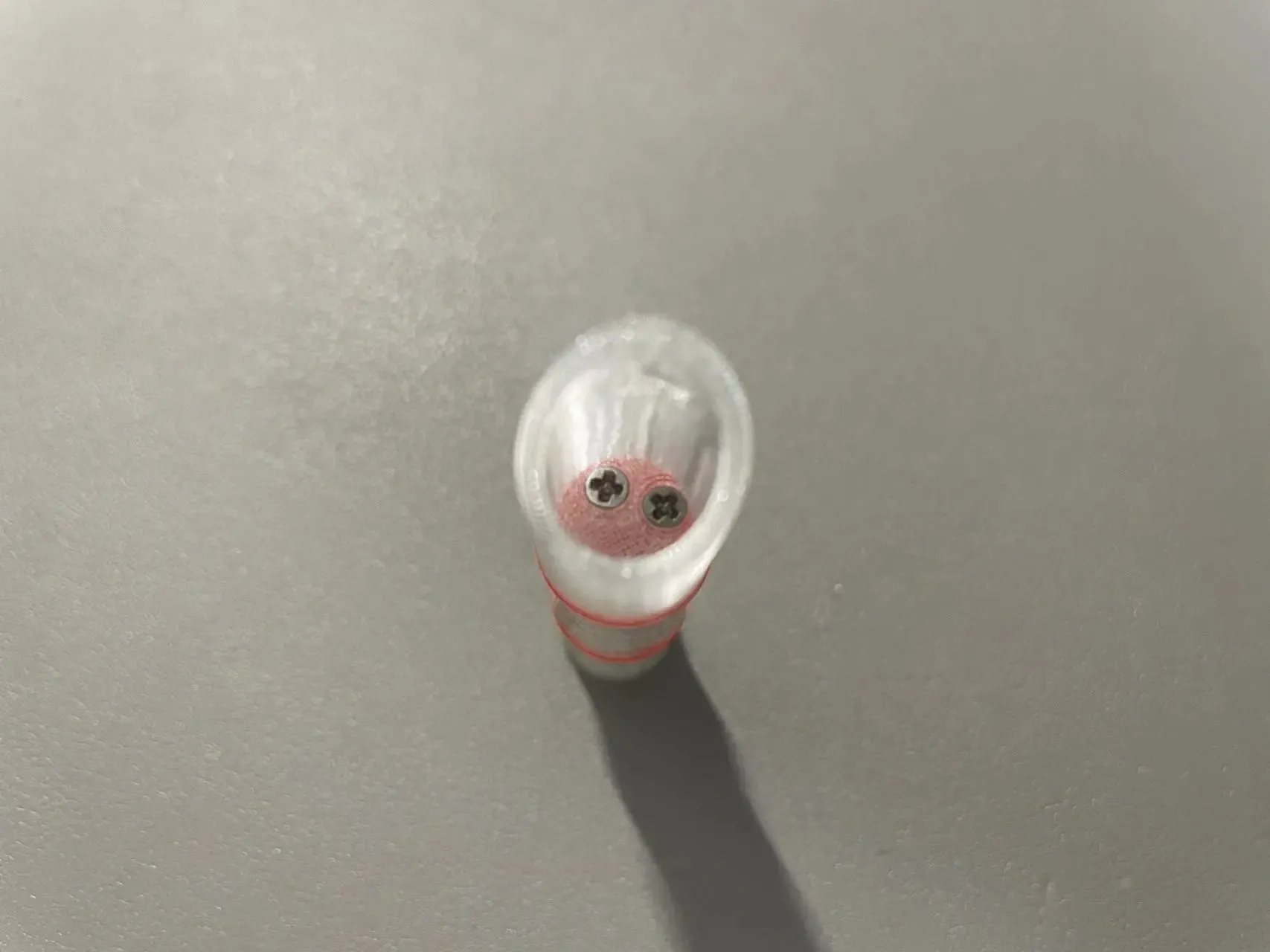

  ④ Flip the main body and use M2*8 screws to connect the top limit accessory

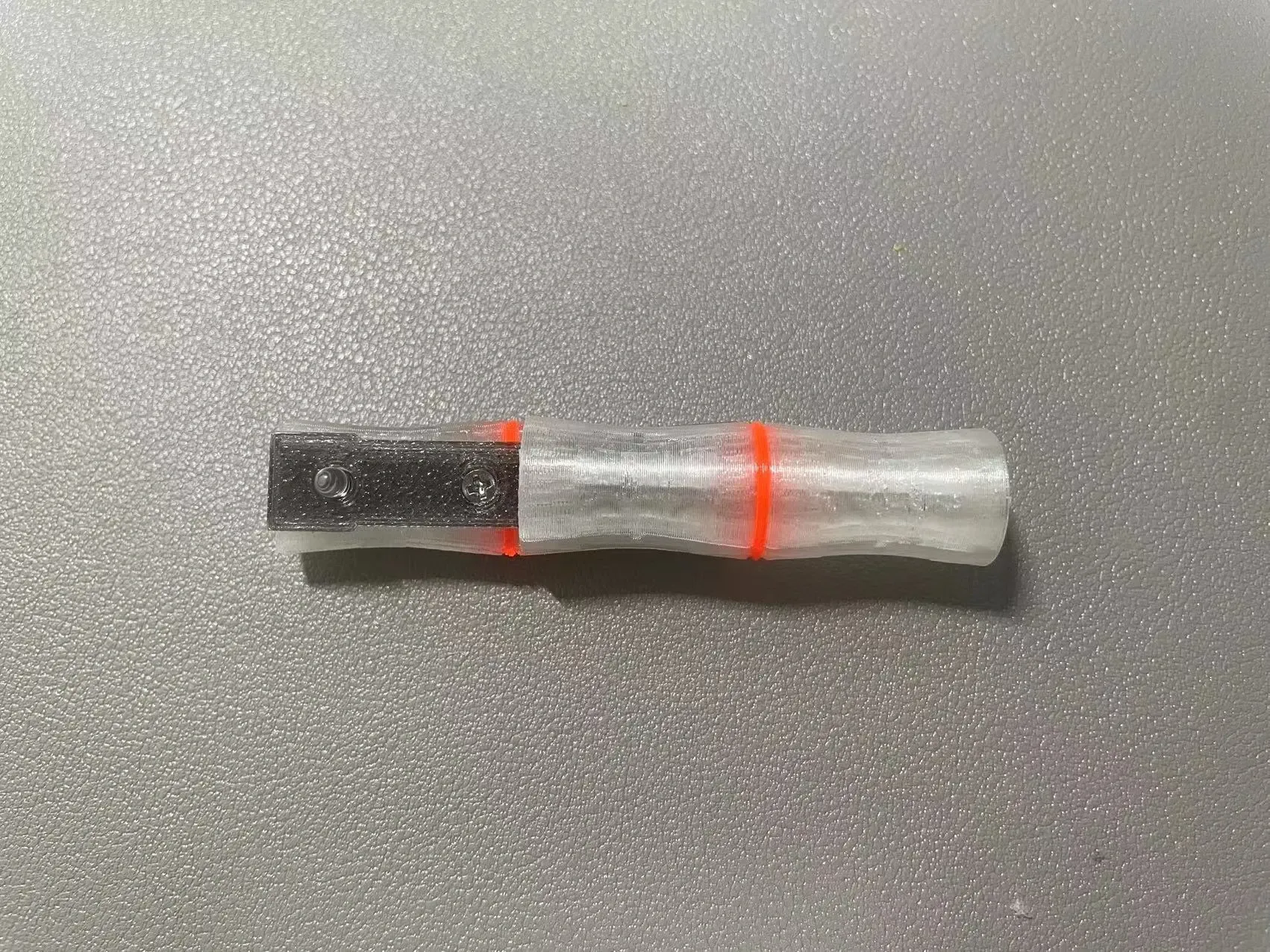

  ⑤ Done!!
