Fishing Lure for Trout NR.3 (one piece!)

Print Profile(2)

All
A1 mini
H2D Pro
P1P
X1
P1S
H2S
X1 Carbon
X1E
H2D
A1
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 100% infill
0.2mm layer, 2 walls, 100% infill
Designer
29 min
1 plate
4.9(8)

0.2mm layer, 2 walls, 100% infill
0.2mm layer, 2 walls, 100% infill
29 min
1 plate
4.8(6)

Open in Bambu Studio
Boost
260
516
30
15
487
318
Released

Description

Summary

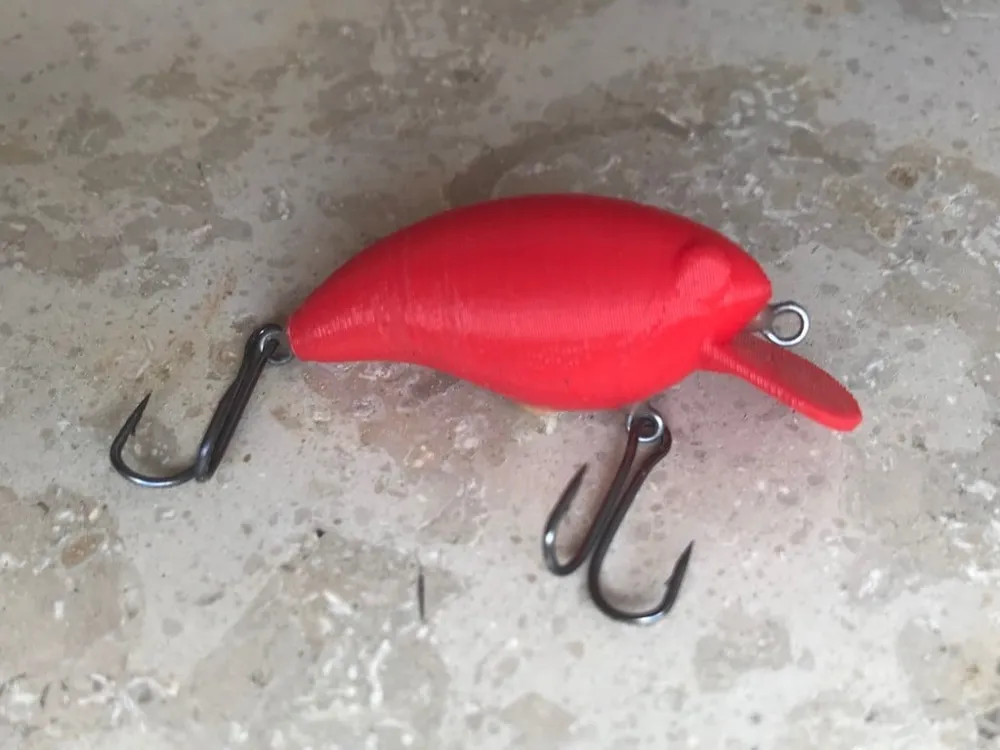

I don´t like the concept of the 2 piece lures, so i designt my owne. It is about 5cm (2 inch) long. Perfect lure for trout in small rivers.

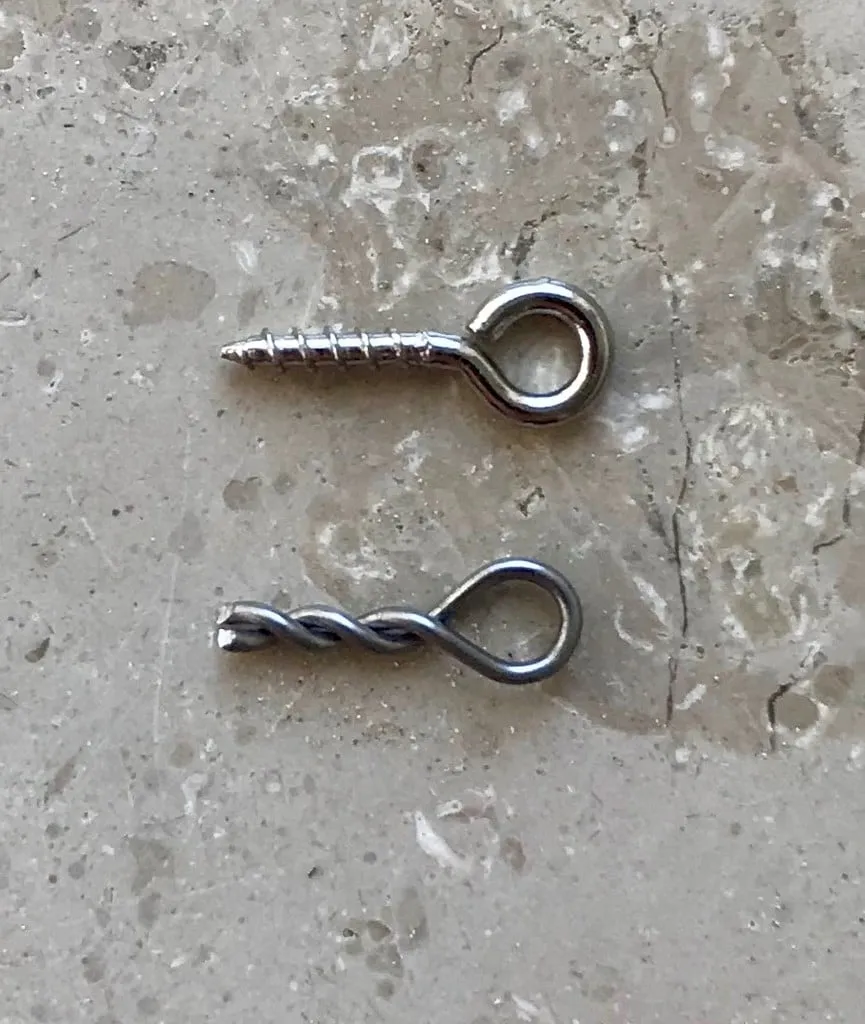

The hook hangers are made of 0.6mm wire or m1 eyed screws (https://tinyurl.com/y7khpsse) and simply glued in with 2-component epoxy (mine hold more weight than the hooks, so dont worry!)

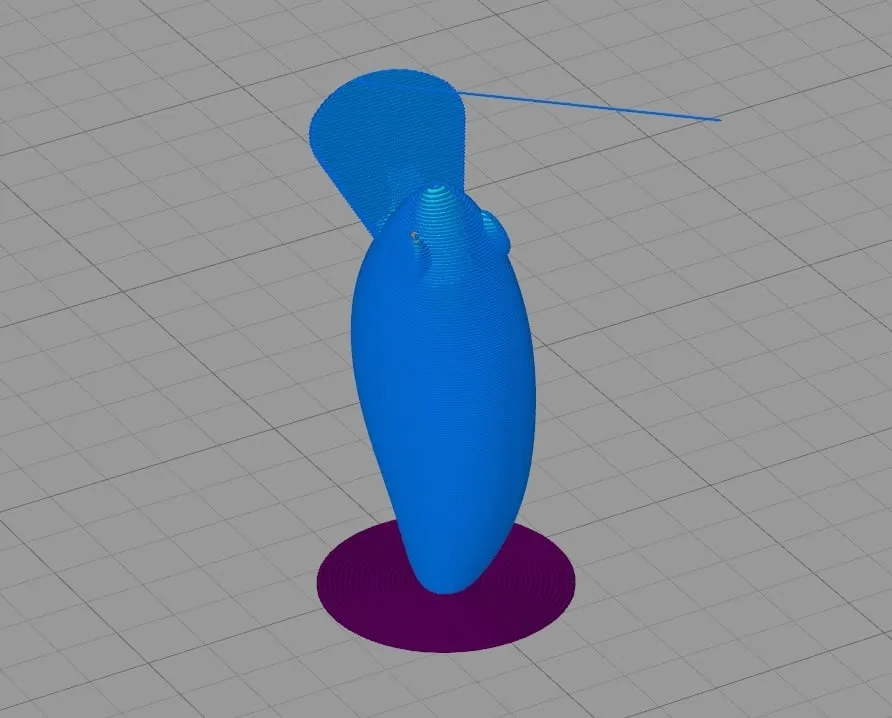

It is waterproof without epoxy!!! Print orientation like on picture 4.

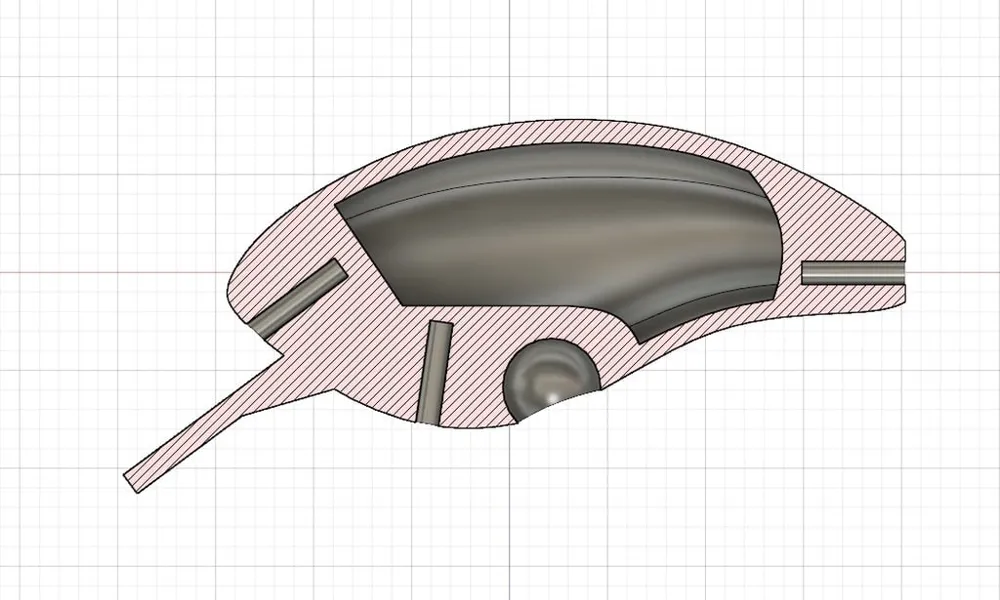

Add a 4,5mm bb or a round lead in the big hole.

Print settings:
100% infill
big Brim!
2 outer walls
0.2mm layer height
no support!



If you want to support me, check out my other lures i sell:
https://cults3d.com/en/users/Domi1988/3d-models



Print Settings

Printer:

Anycubic I3 Mega



Rafts:

Yes



Supports:

No



Resolution:

0.2



Infill:

100
