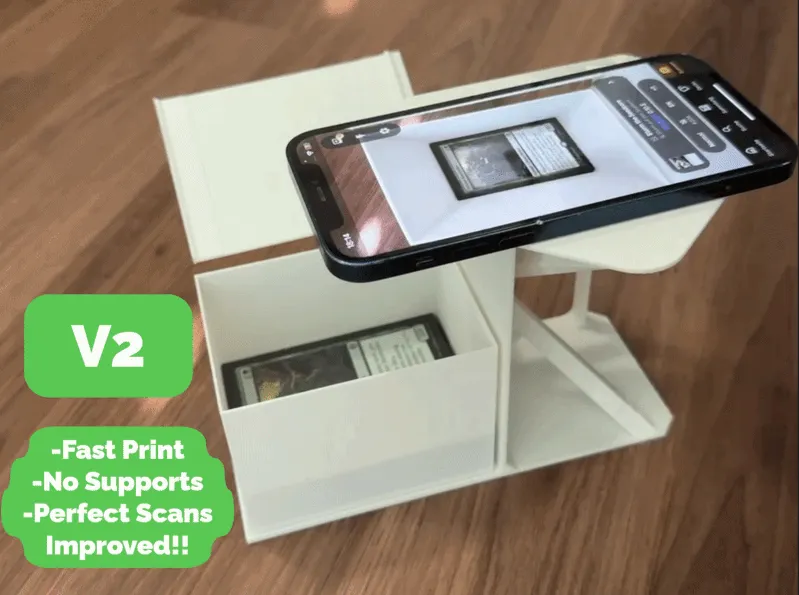

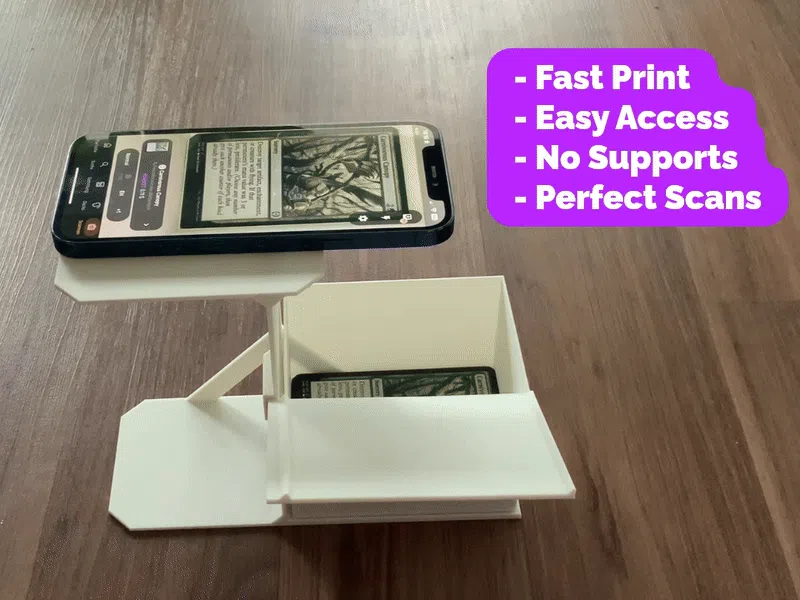

Card Scanner FAST PRINT (MTG/Pokemon)

This is my original Design of a simple universal Standard Card Scanner

VERSION 2 is now out:

Card Scanner FAST PRINT -VERSION 2-- (MTG/Pokemon) - Free 3D Print Model - MakerWorld

Features :

• Fast Print Time
• Low filament consumption
• Easy Accessible Card Box with finger cutout
• Perfect scans
• No Supports
• Improved Stability and Fitting

• Compact Form,  easy to take apart


  It is recommended to use white filament or a bright filament color to get good bright, scans. Don't Auto Orient the parts because the

  slide has to be printed on the side the avoid wobble.



• The original Print profile is only for unsleeved or thin sleeved cards.

• The second profile is for sleeved cards, (Dragon shield or cheap Amazon sleeves)



  App used: Manabox (For this App the Phone has to be laid down so that the border of the Box is NOT visible, if so it works like a charm)



  Quick Tipp: The cards always slide and fall straight if you pull them slightly against the left rim of the slide.



  Update1: Added small pillar under the Phone rest to improve stability.

  Update2: As requested, i added Printprofile with a model file for sleeved cards. The Box and slide inner measurement is 69x94mm for

  that profile.

  Update3: I noticed the width of the slide for the sleeved cards version was not quite right, it now should be wide enough for better sliding. If you had already printed the sleeved cards version and you have problems with sliding, i recommend just printing the new slide again.



  Pictures of your Makes would be great :D


  If you like this Design leave a Thumbs Up, or Boost it.

YOU ARE NOT ALLOWED TO SELL COPIES OF THIS MODEL OR PHYISICAL PRINTS WITHOUT PERMISSION.

For commercial Usage i am offering a membership option.
