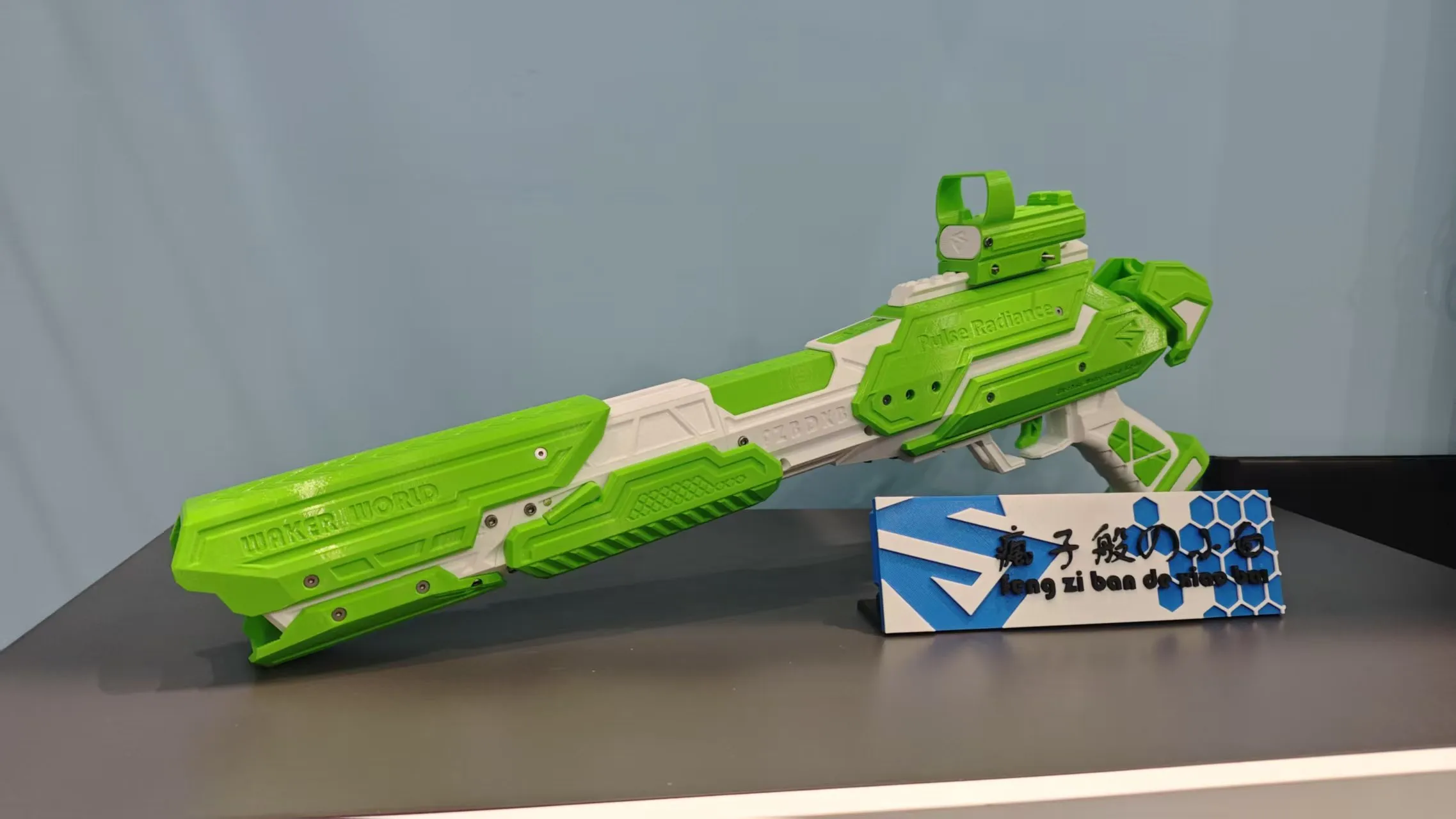

Pulse Radiance—An electric water gun toy, self-priming, with expandable water tank, compatible with Electric Spray Kit 01
Print Profile(3)

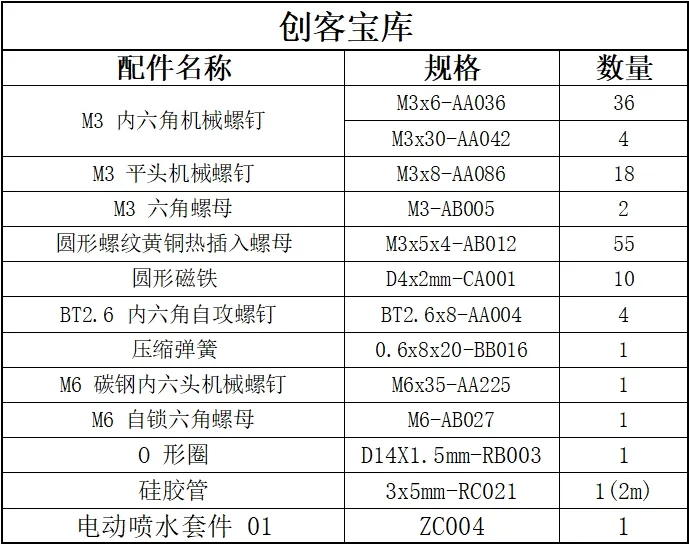

Bill of Materials
- O型圈 x 1: D25x1.5
Description
The model utilizes Electric Water Spray Kit 01

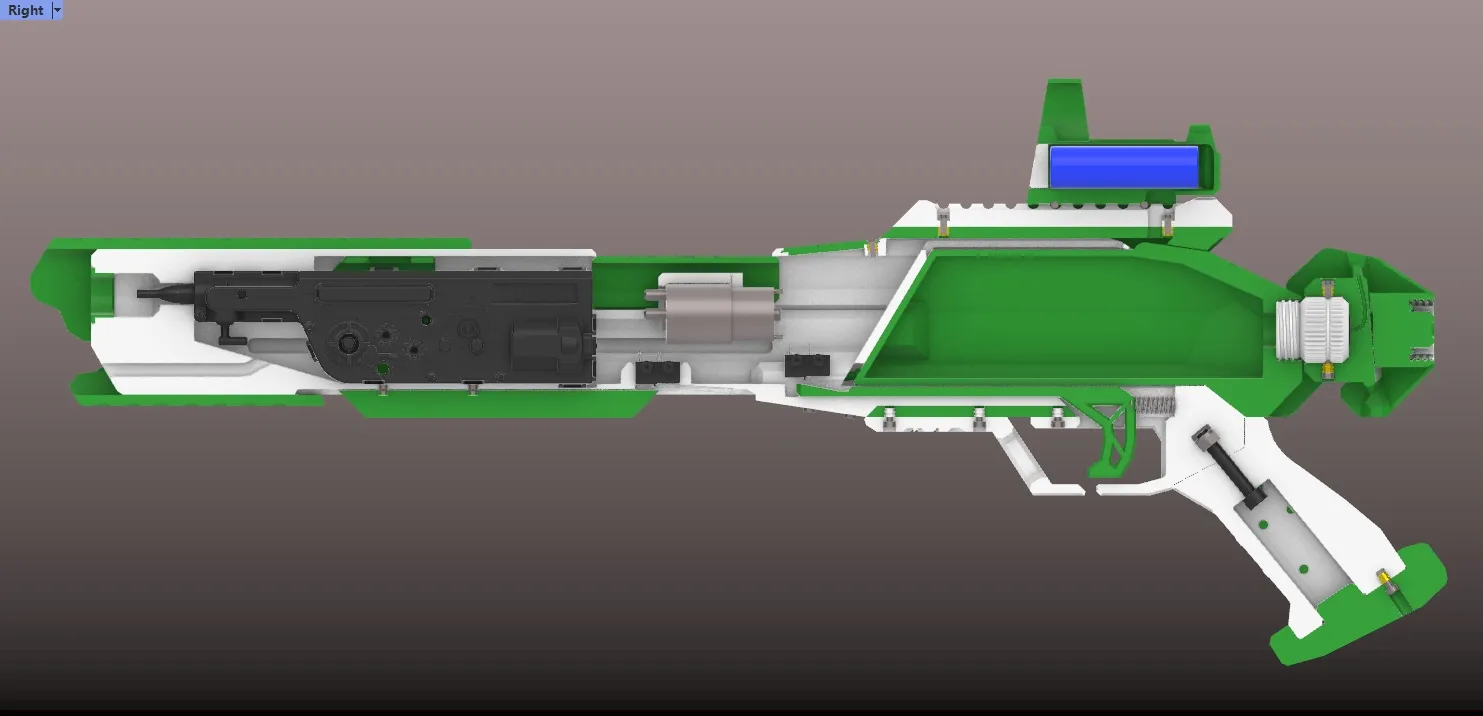

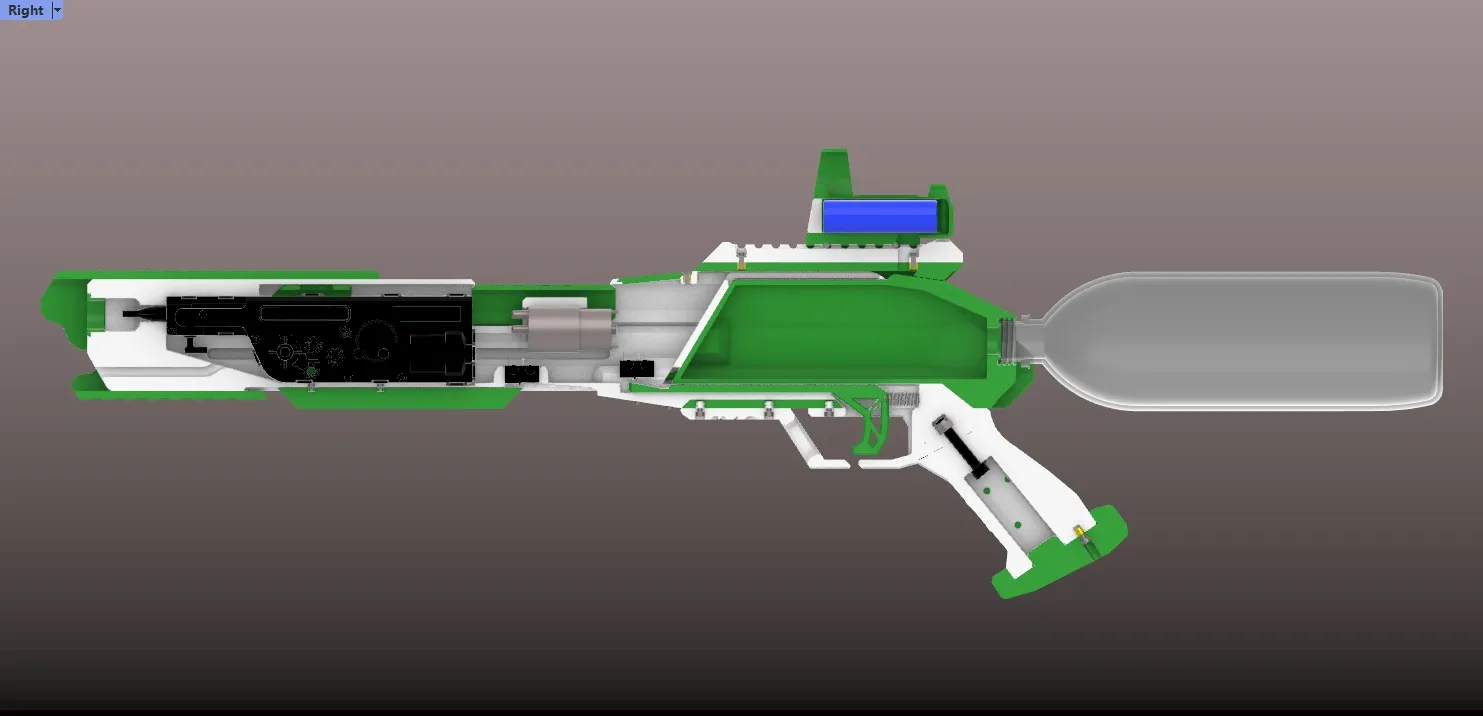

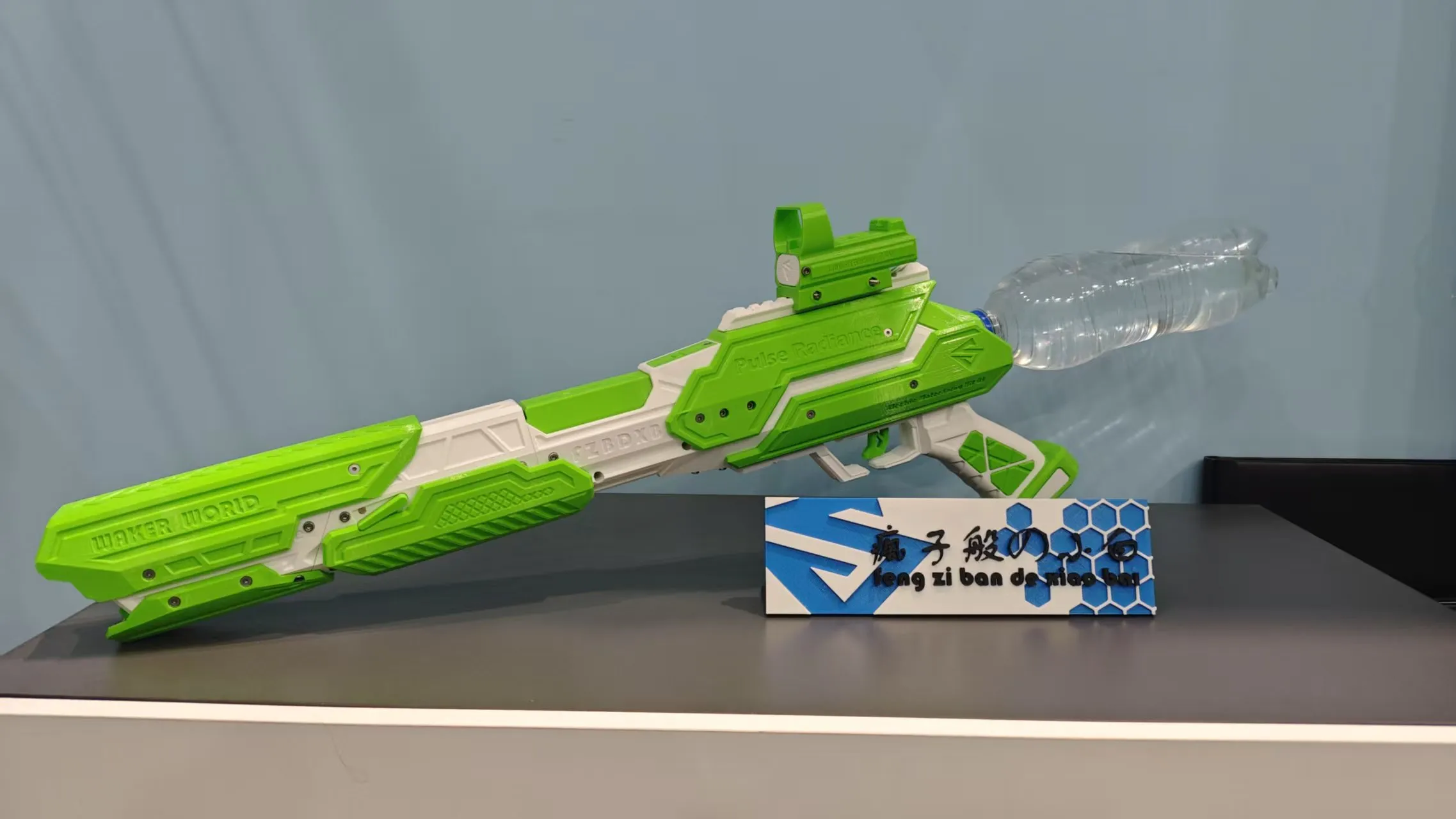

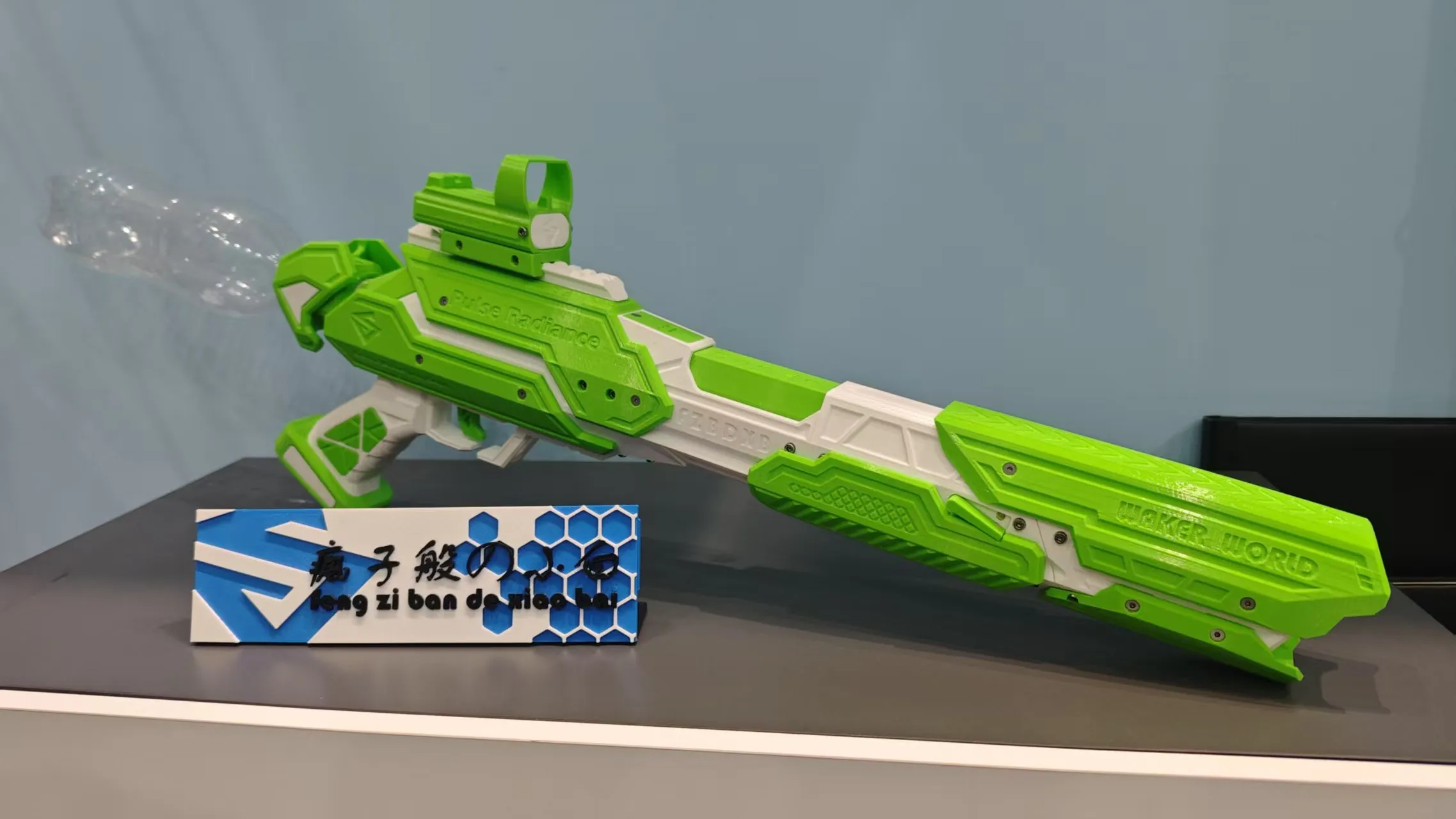

The motorized water gun mechanism allows for continuous firing; pulsing water jets with sustained trigger depression. The toy incorporates a realistic bolt action feature. A built-in pump eliminates the need for disassembly to refill; drawing water from an open source into the reservoir. The gun features an integrated water tank; to mitigate range anxiety, the rear can be expanded with a soda bottle as an auxiliary reservoir, significantly increasing capacity.
Besides the electric water spray kit, the model requires numerous additional hardware components.
Therefore, this model presents a moderate assembly challenge; however, a detailed installation video is available for reference.
Note:

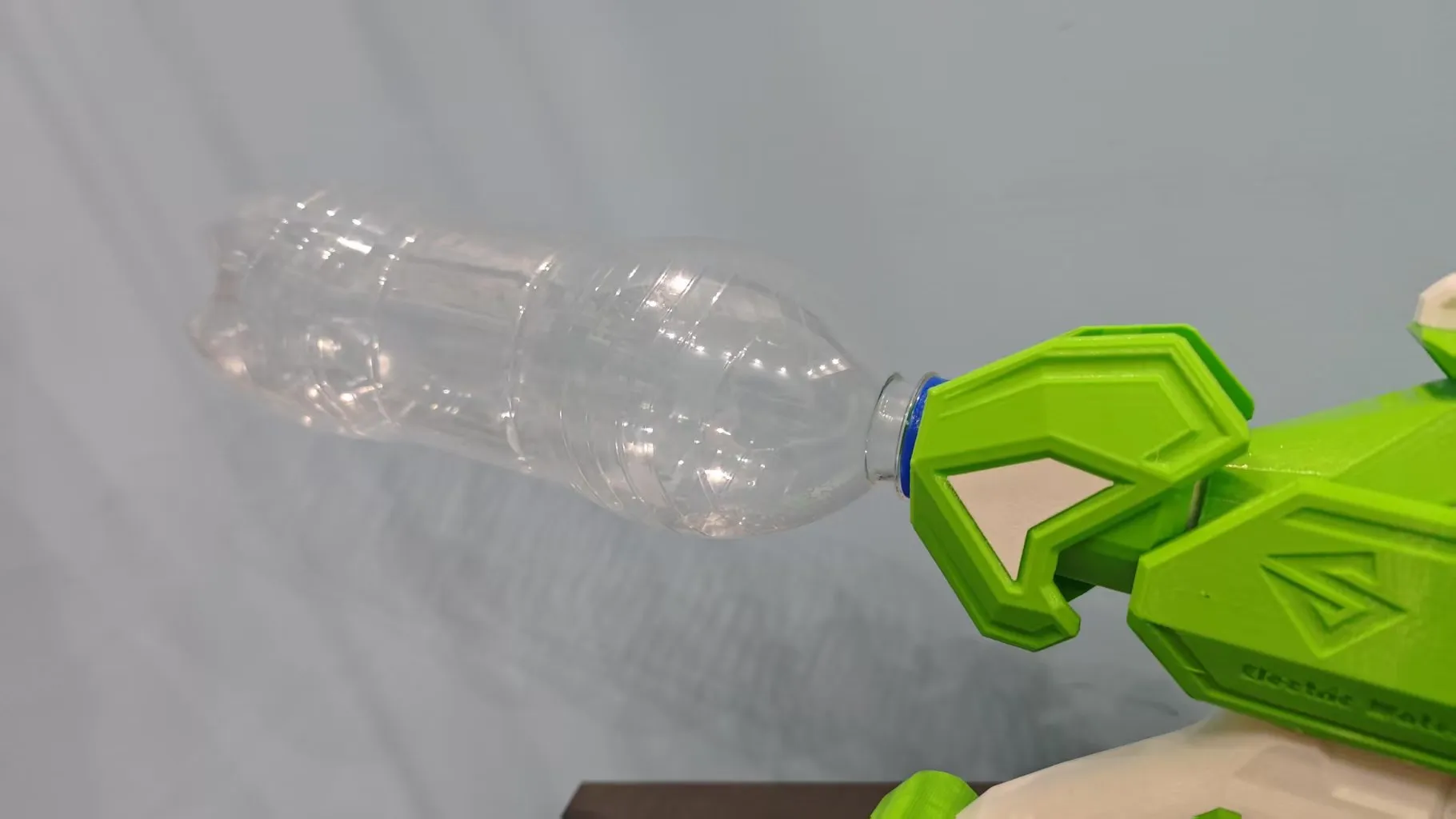

When expanding the rear with a bottle, to address leakage at the interface, simply insert a 25mm OD, 1.5mm ID O-ring. A vent hole must be punctured in the bottle's base to equalize internal and external pressure.
