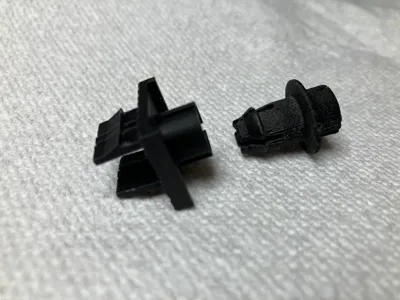

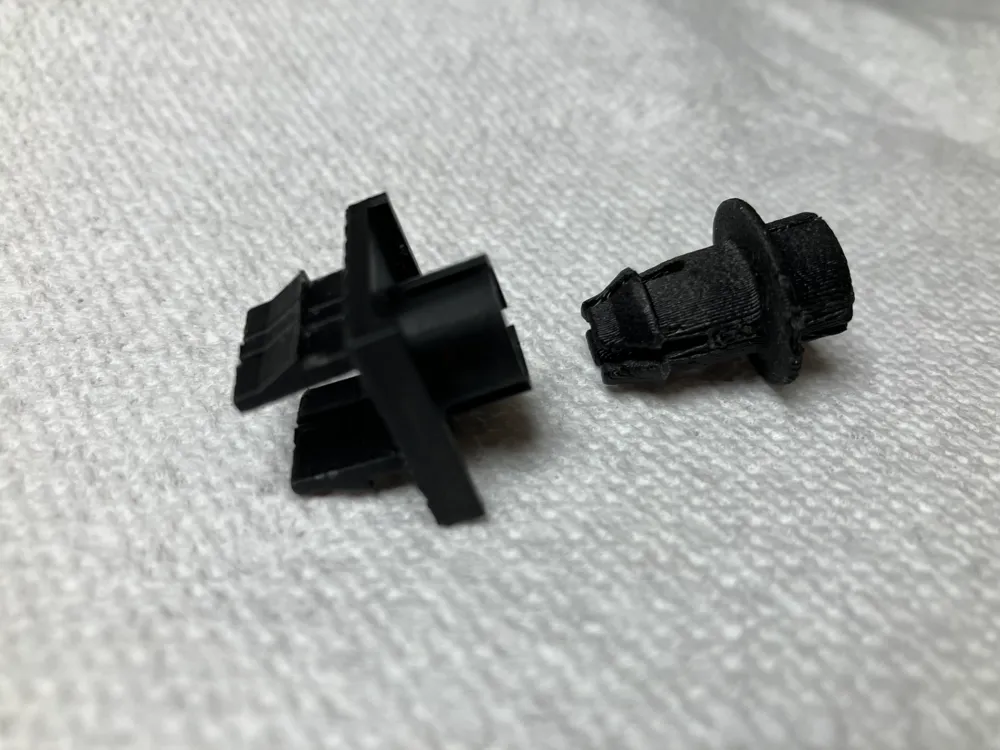

I was frustrated trying to find good headlight mounting clips for my 1994 Jeep Grand Cherokee so I made my own.
I printed these out of carbon fiber reinforced PLA but I believe that a PC blend or tough filament will also work.
To fully seat the circular clips, it may take a light tap on the back. It doesn't take a lot.
If you find any errors or have suggestions for improvements, please let me know.

  • Notes:

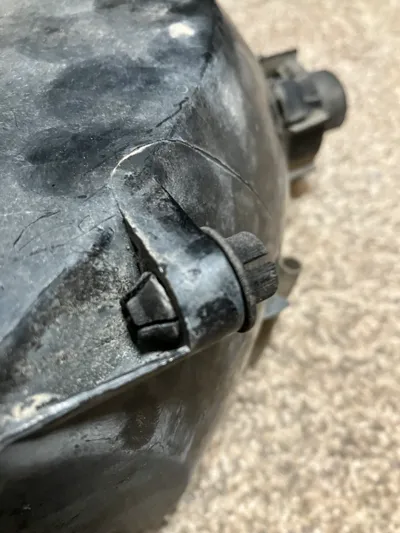

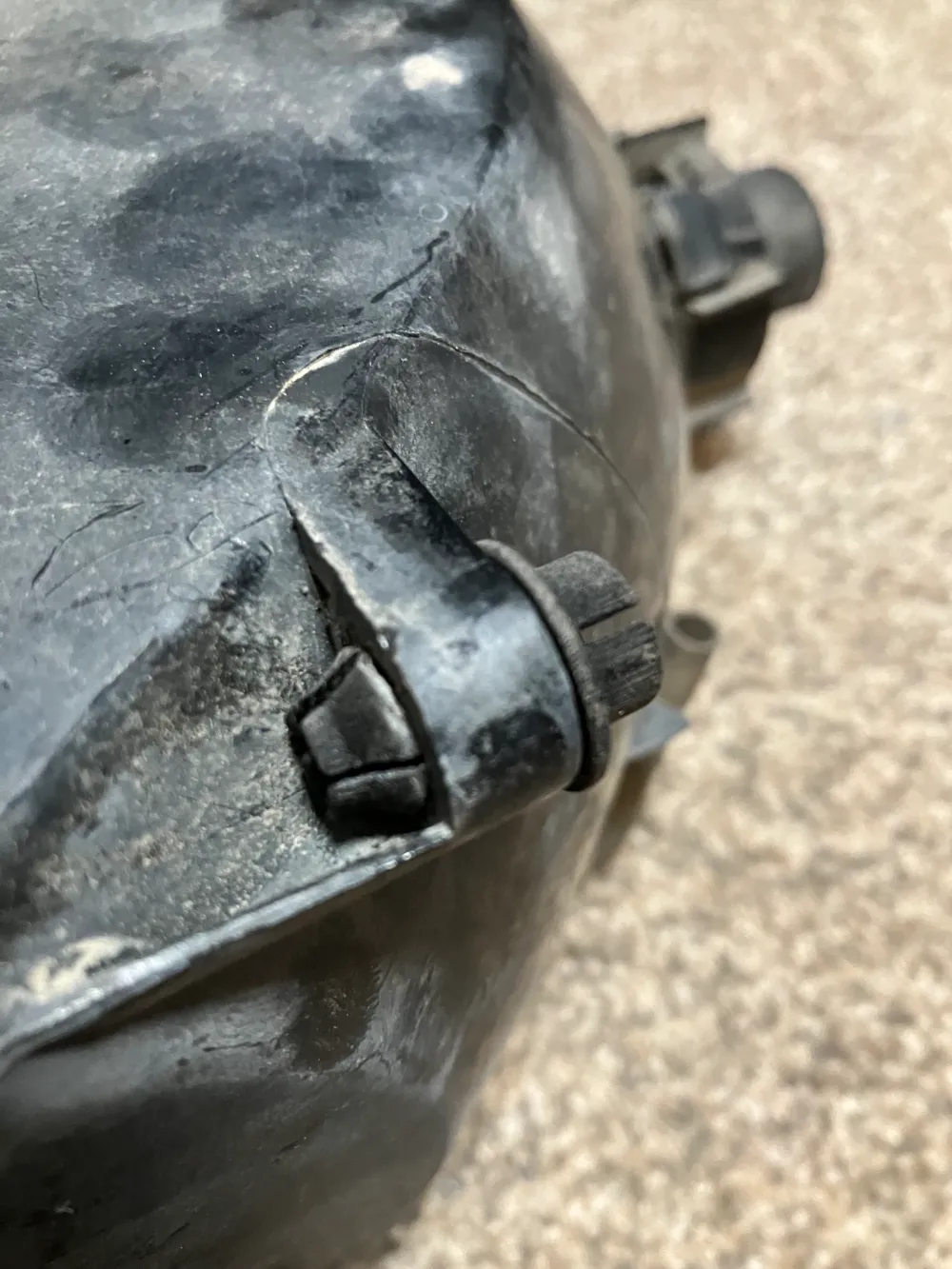

    Print the circular support on its side so the layer lines run through the centerline of the part. Otherwise the ends will break off when pressing it into the mounting hole on the headlight.

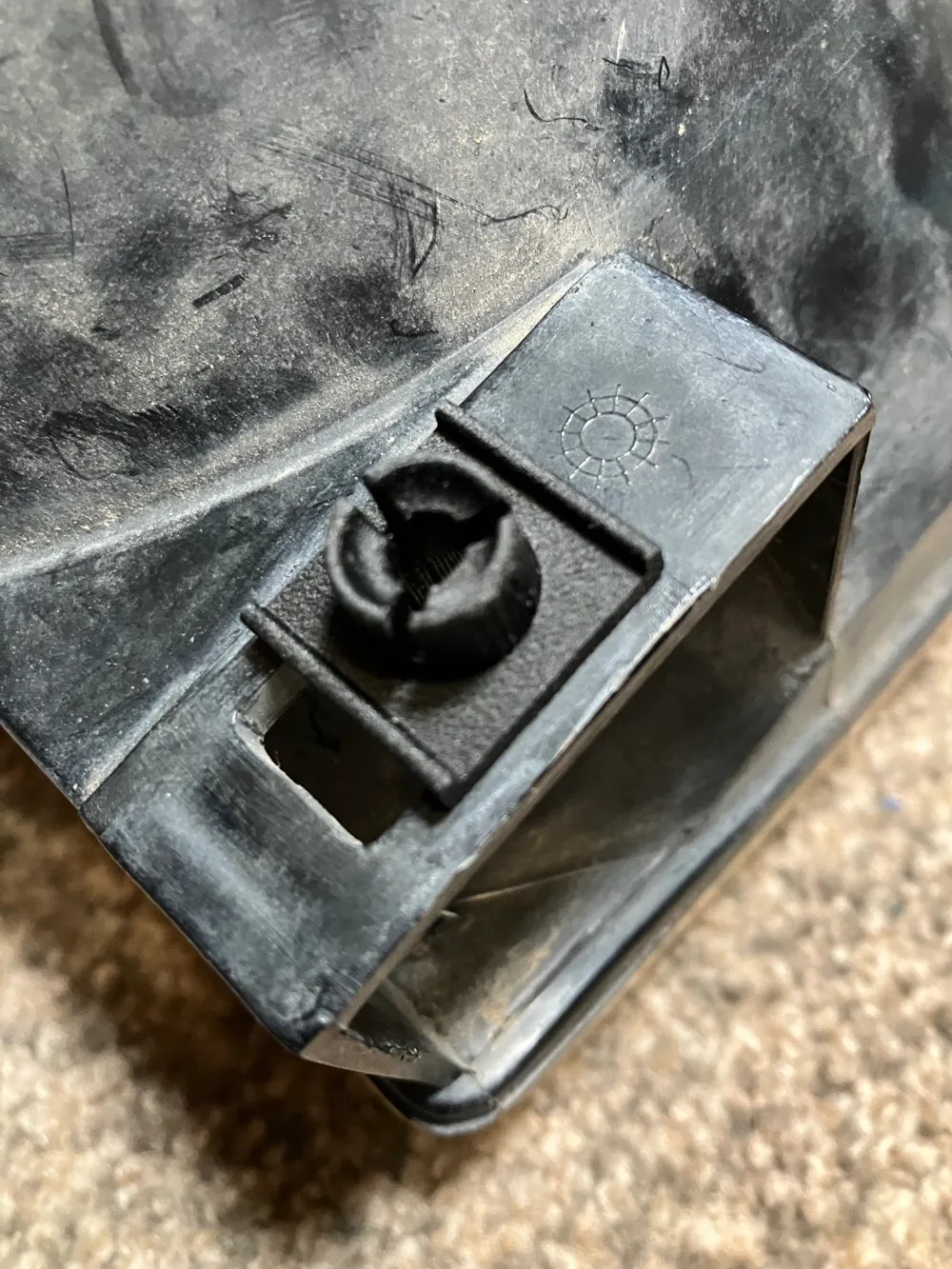

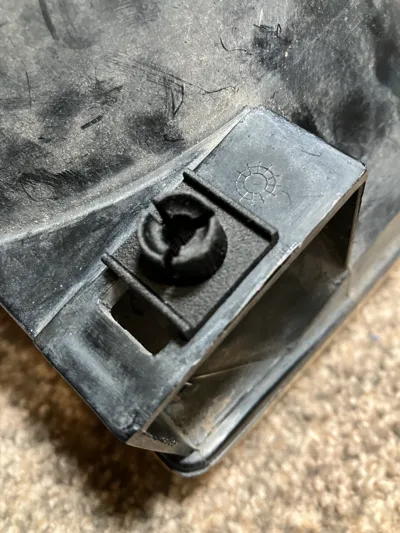

    Print the square support with the center hole parallel to the build plate, similar to the way the circular clip is printed. The idea is to keep the layers constant through the flexible clip pieces so they don't break.

    Use tree supports to limit the amount of post-processing work.
