Working Solenoid Engine Electric| Twin Cylinder
Remixed by
IP Report
Print Profile(4)
BlackParts 0.2mm layer, 3 walls, 15% infill
Designer
1.3 h
1 plate
BlueParts 0.2mm layer, 4 walls, 25% infill
Designer
50 min
1 plate
Flywheel 0.2mm layer, 6 walls, 25% infill
Designer
48 min
1 plate
Tubes 0.2mm layer, 4 walls, 15% infill
Designer
59 min
1 plate
Open in Bambu Studio
Boost
52
80
1
4
51
15
Released
Description

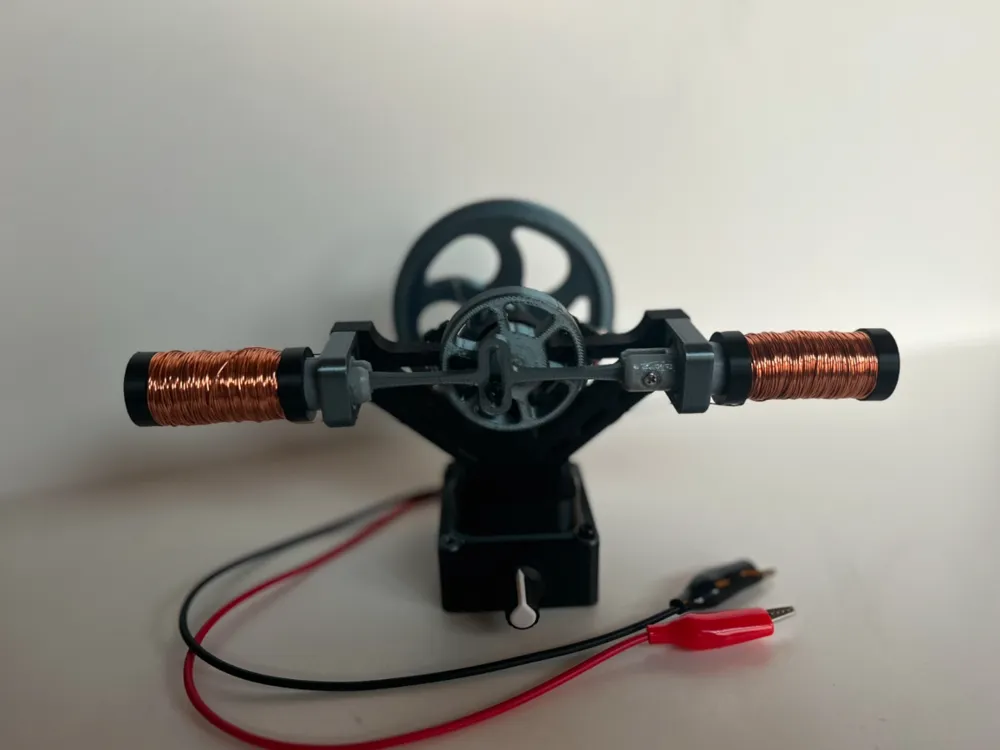

I remixed the model by making the side-base, crank, and cam able to fit the components I had and including a printed flywheel. I am also making a much simpler way to get the files, print, and assemble this.
Video Link: (https://www.youtube.com/watch?v=fXiu3rHCQCohttps://www.youtube.com/watch?v=fXiu3rHCQCo)
Parts Needed:
- 5mm steel rod (~55mm long but can be slightly shorter or a lot longer) https://a.co/d/i9PcLPT
- Copper wire 0.5mm (4 layers of winding per coil) (~100g needed for both coils) https://a.co/d/8sGAtHW
- (2) 16x5x5mm bearings https://a.co/d/6BE9lIB
- Cylindrical magnets -either (6x 10x10mm cylinders) or (20x 10x3mm https://a.co/d/1pj4dlN)
- (2) Limit Switches https://a.co/d/0hFRVpu
- Various Small Screws

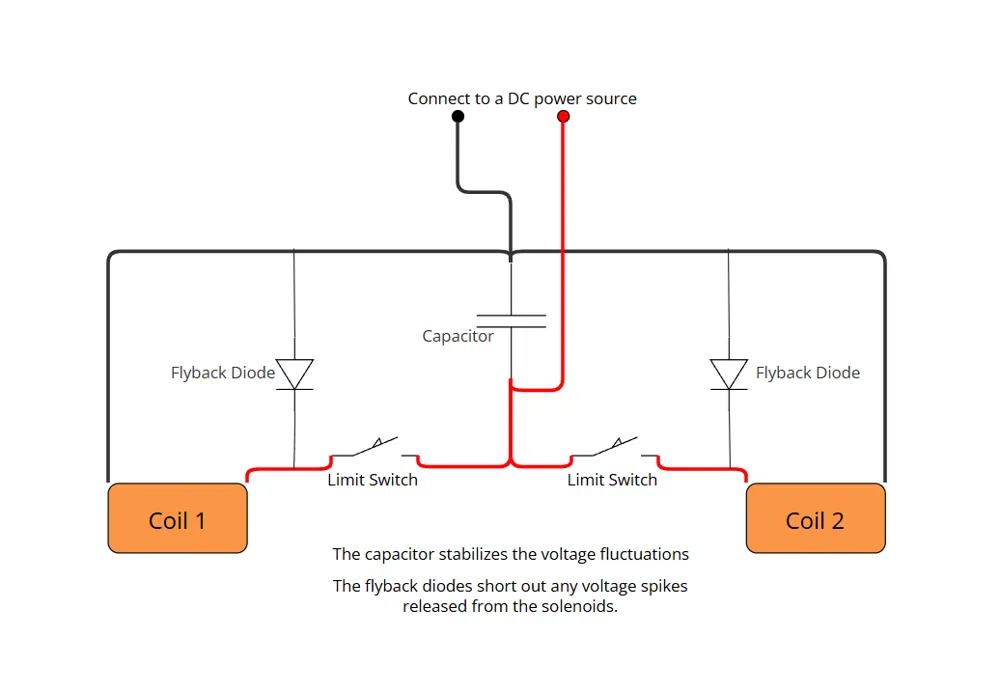

- (1) capacitor at least 25v and high capacitance https://a.co/d/7JtPDyL
- (2) Diodes at least 25v 5A rating https://a.co/d/hw464Bk
Can be powered at as low as 6v 1.5A
I usually power it at 10v 3A.
