Various Holders/Trays/Hooks for Acoustic Panels
Print Profile(1)
Description
+++ NEW MODELS +++
I have designed several holders, trays, and hooks for our acoustic panel, which is used as a headboard.
NEW:

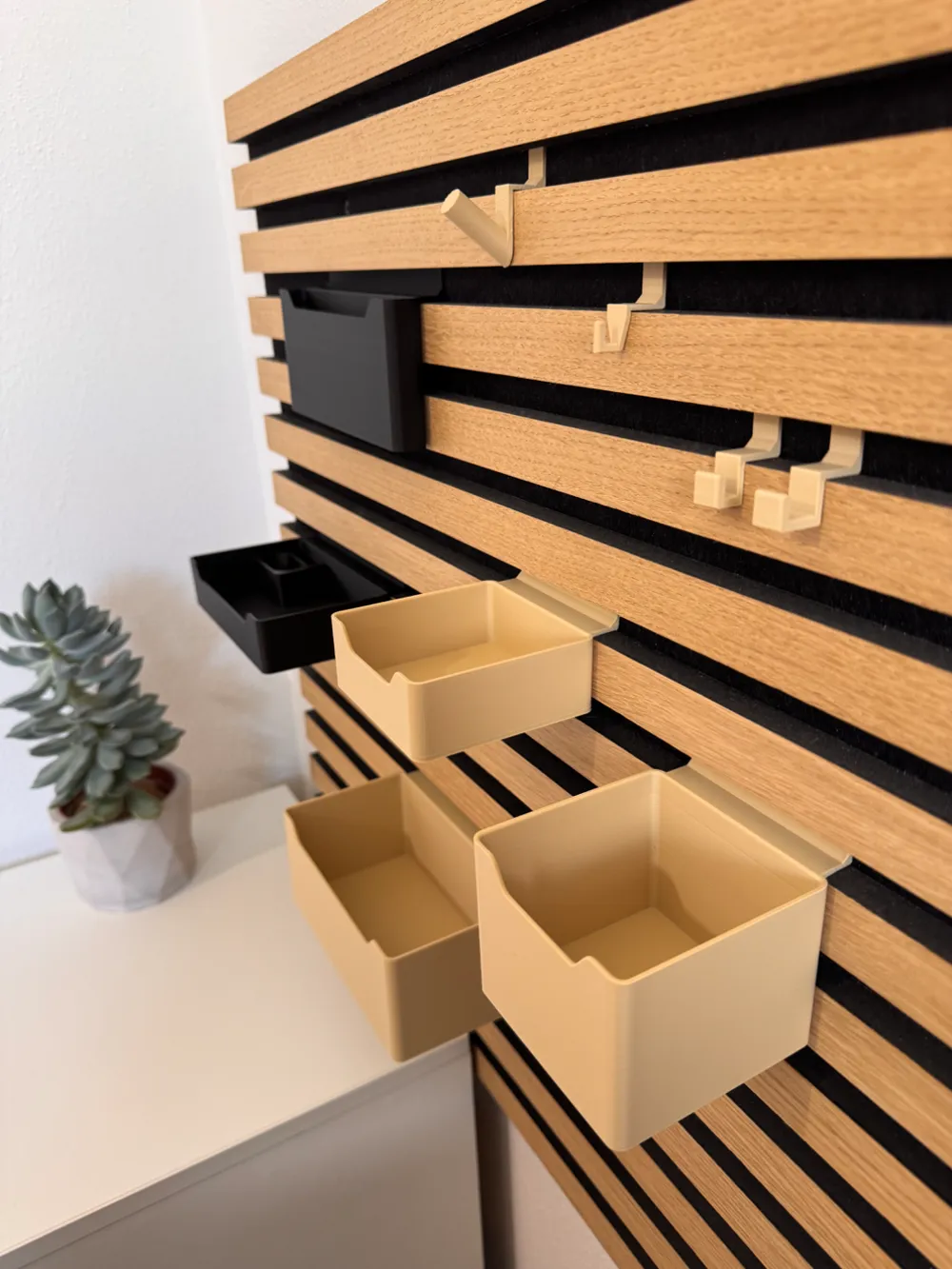

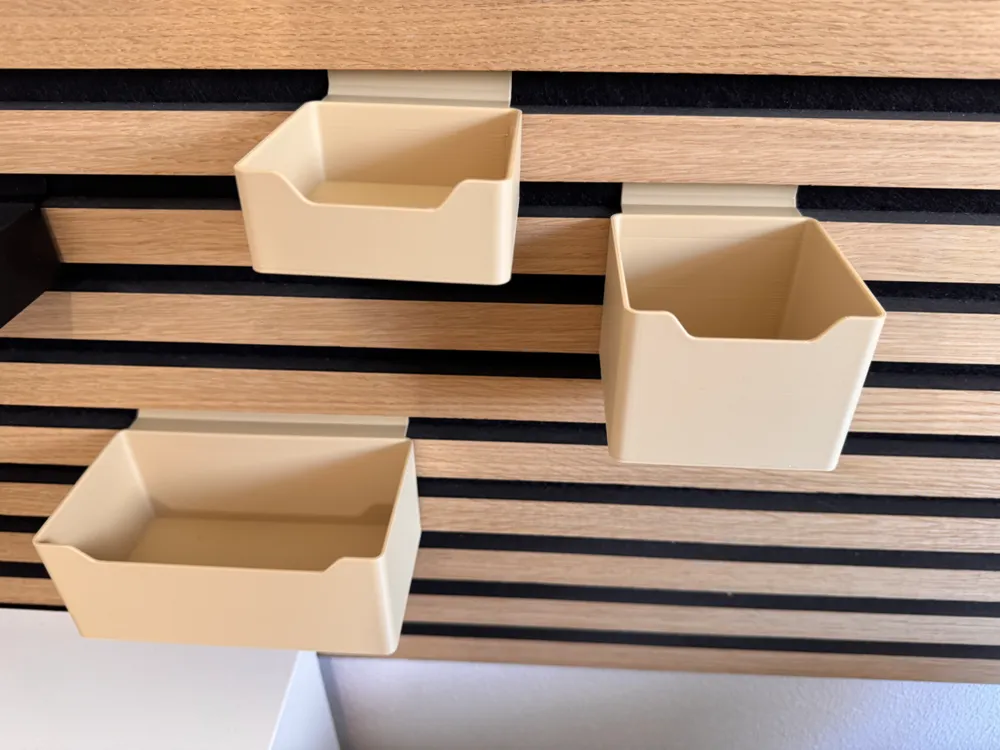

- large deep tray 151x80x62
- small shallow tray 80x80x32 - for example, pens
- small deep tray 80x80x62 - for example, sticky notes

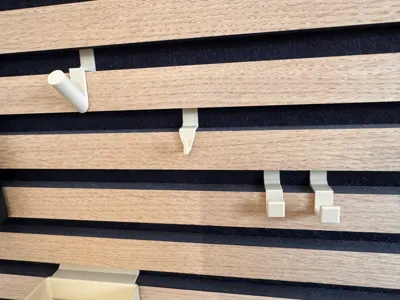

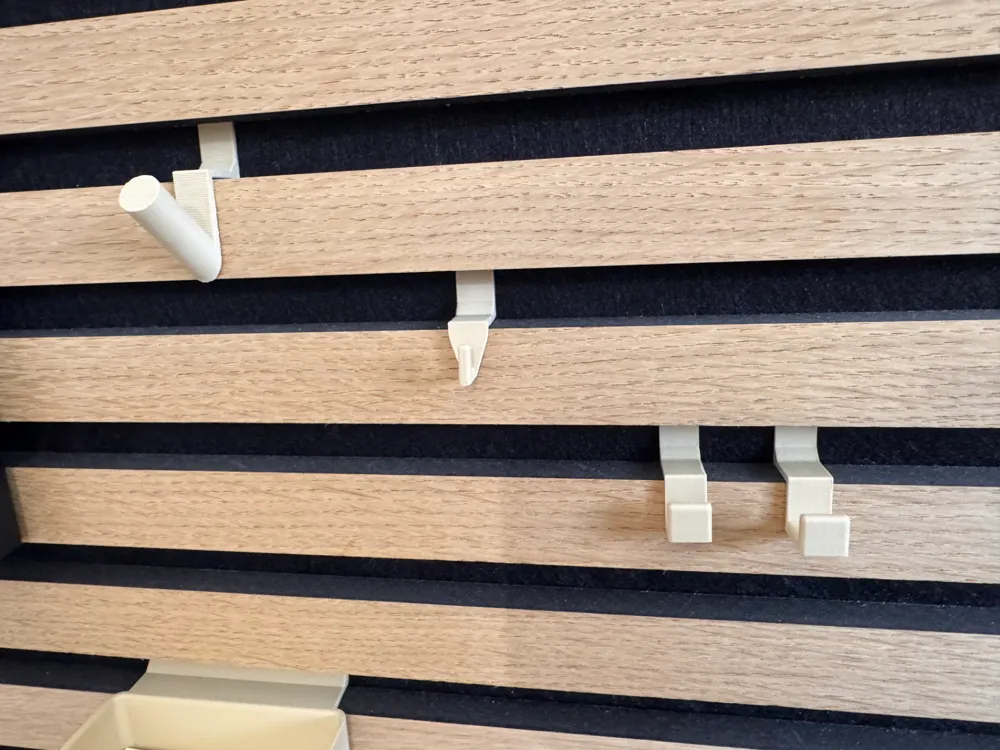

- various hooks - for jewelry, towels, jackets, etc.
Proven and tested:

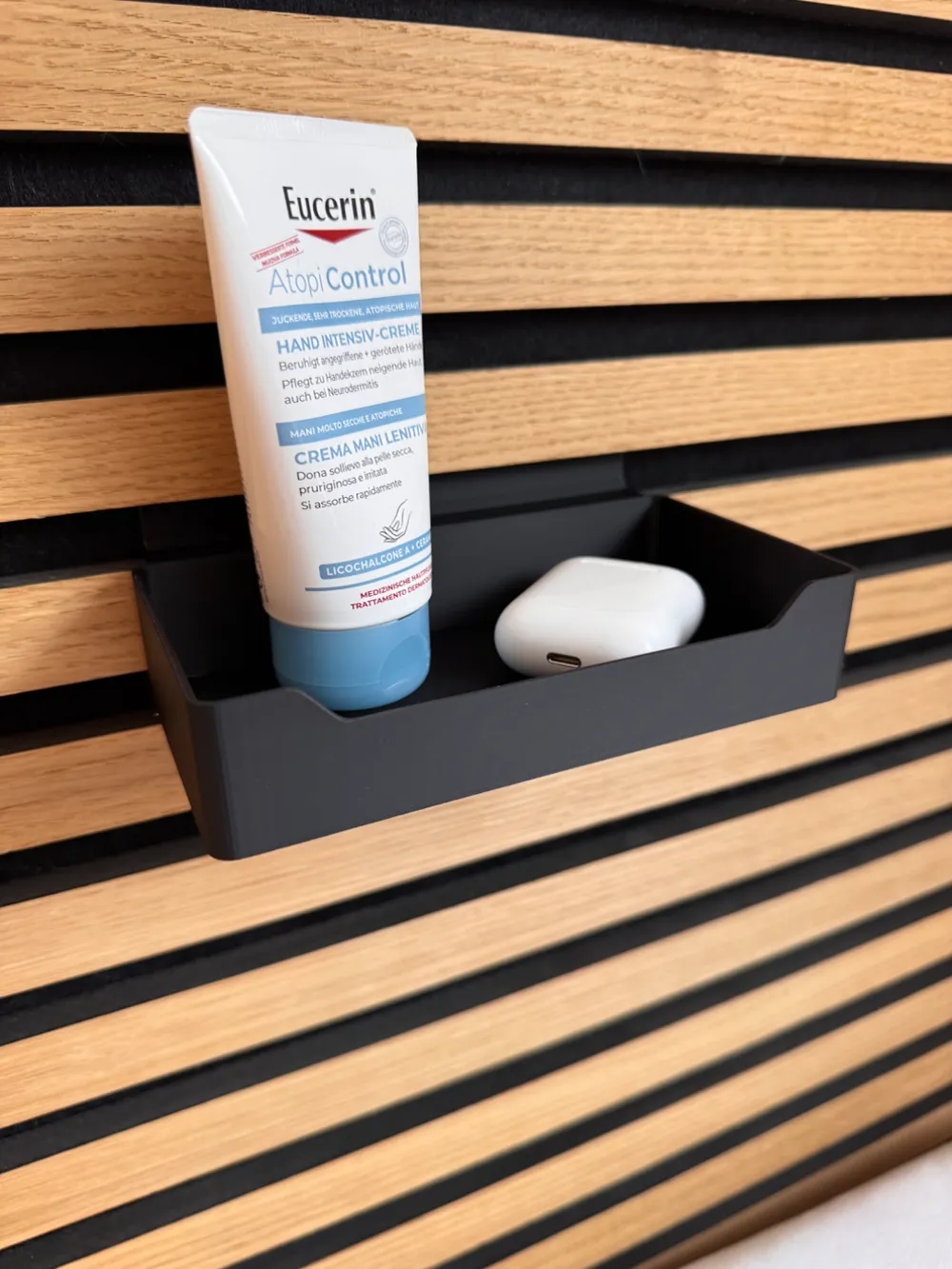

- large shallow tray - 151x80x32mm

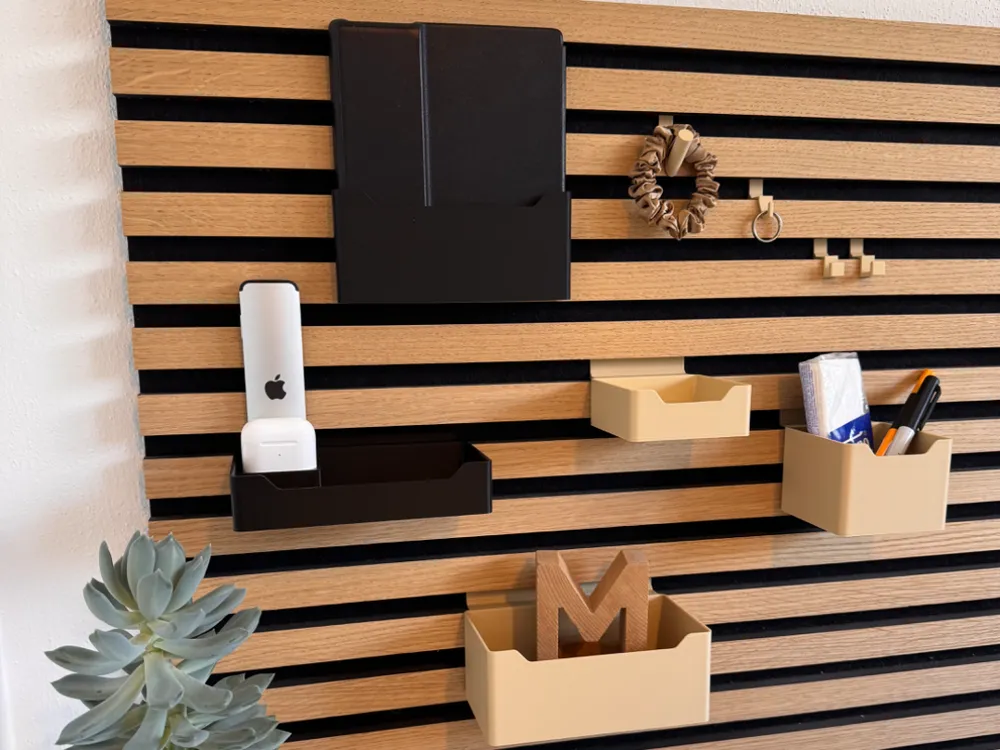

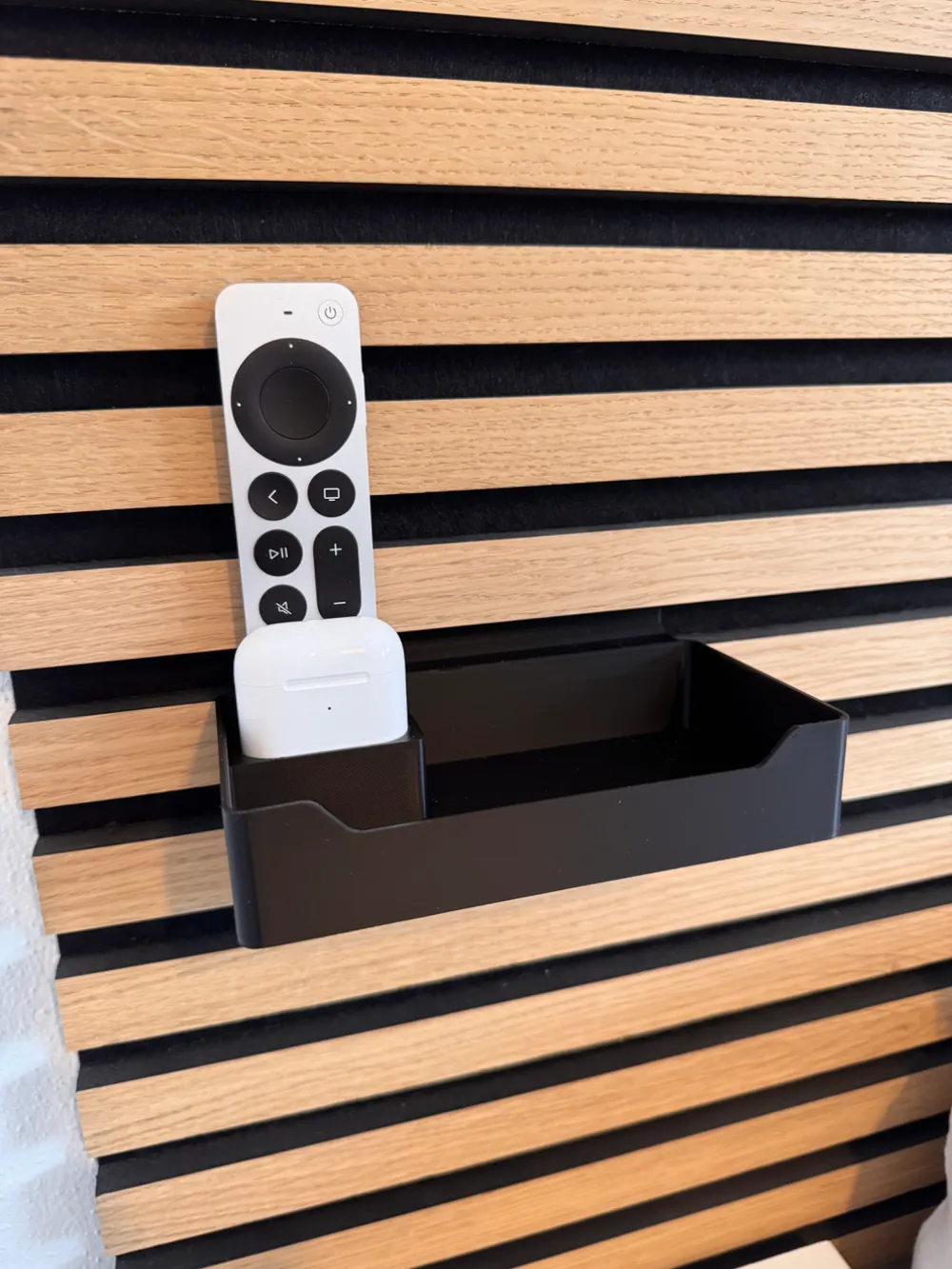

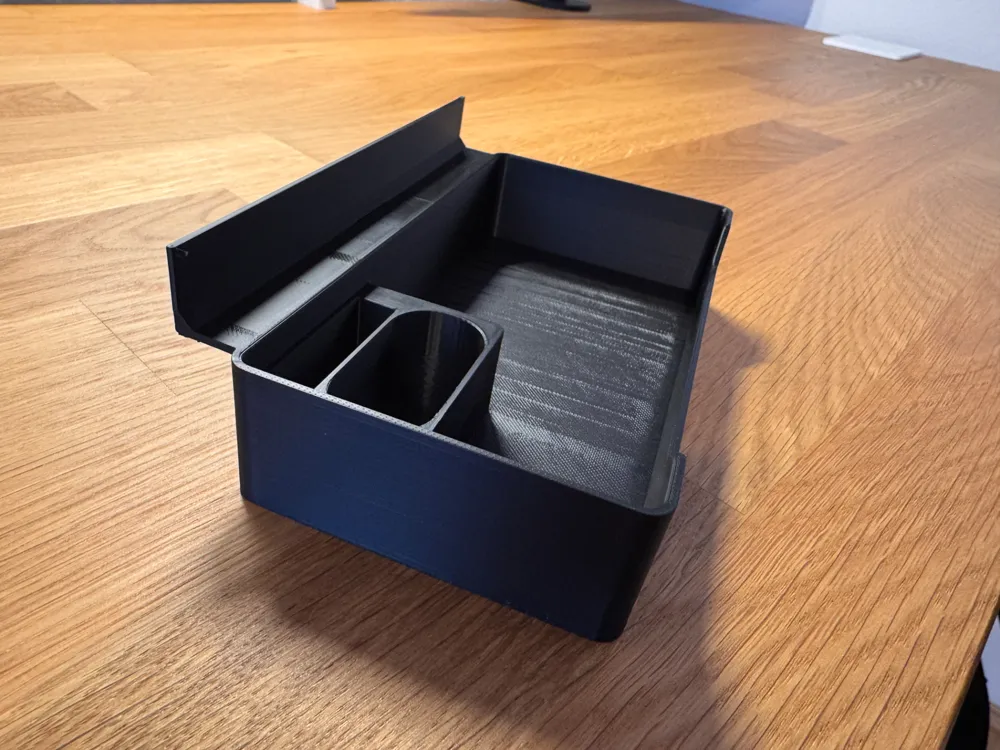

- large tray with Apple TV Remote and Airpods compartment - 151x80x32mm

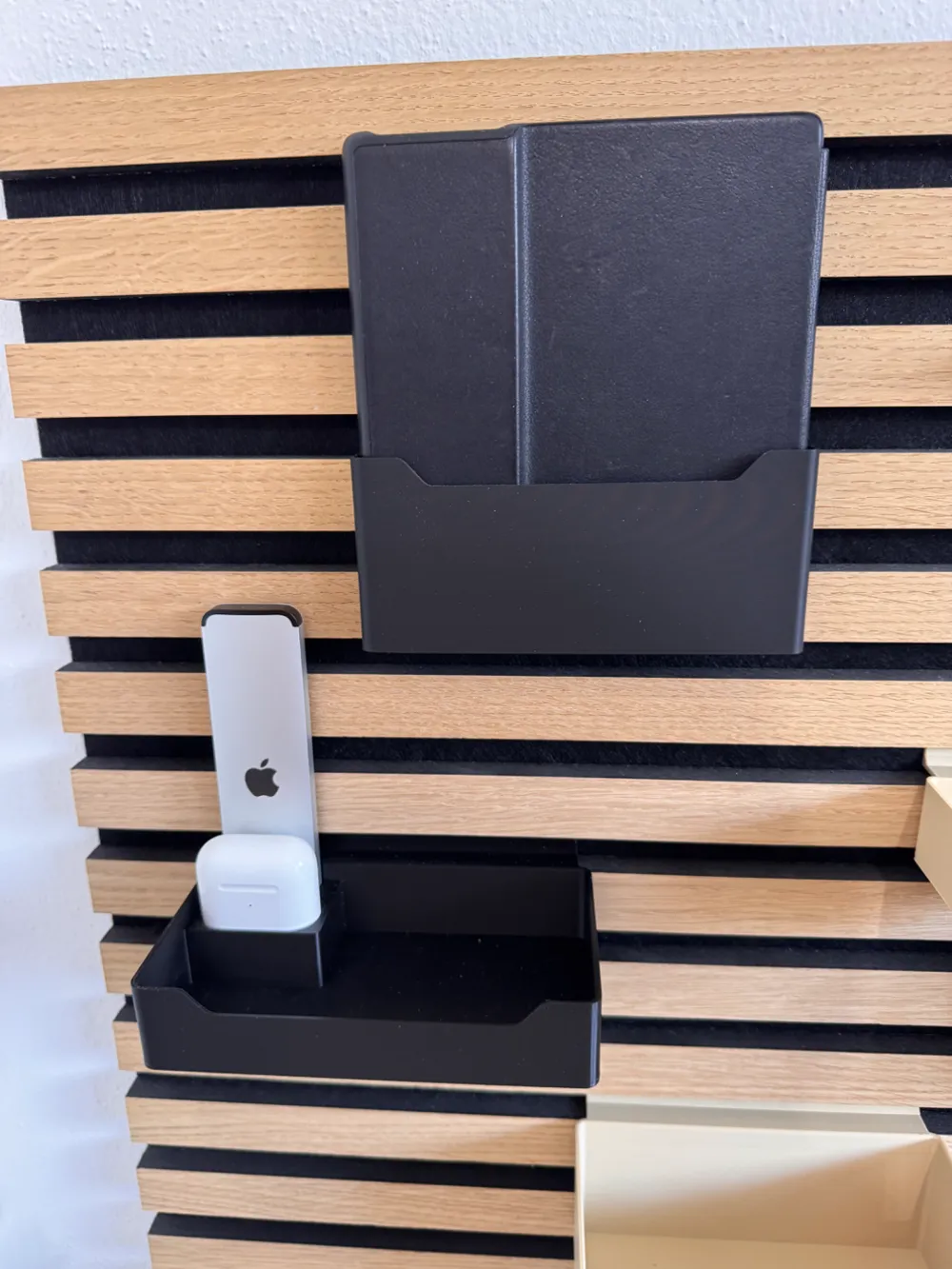

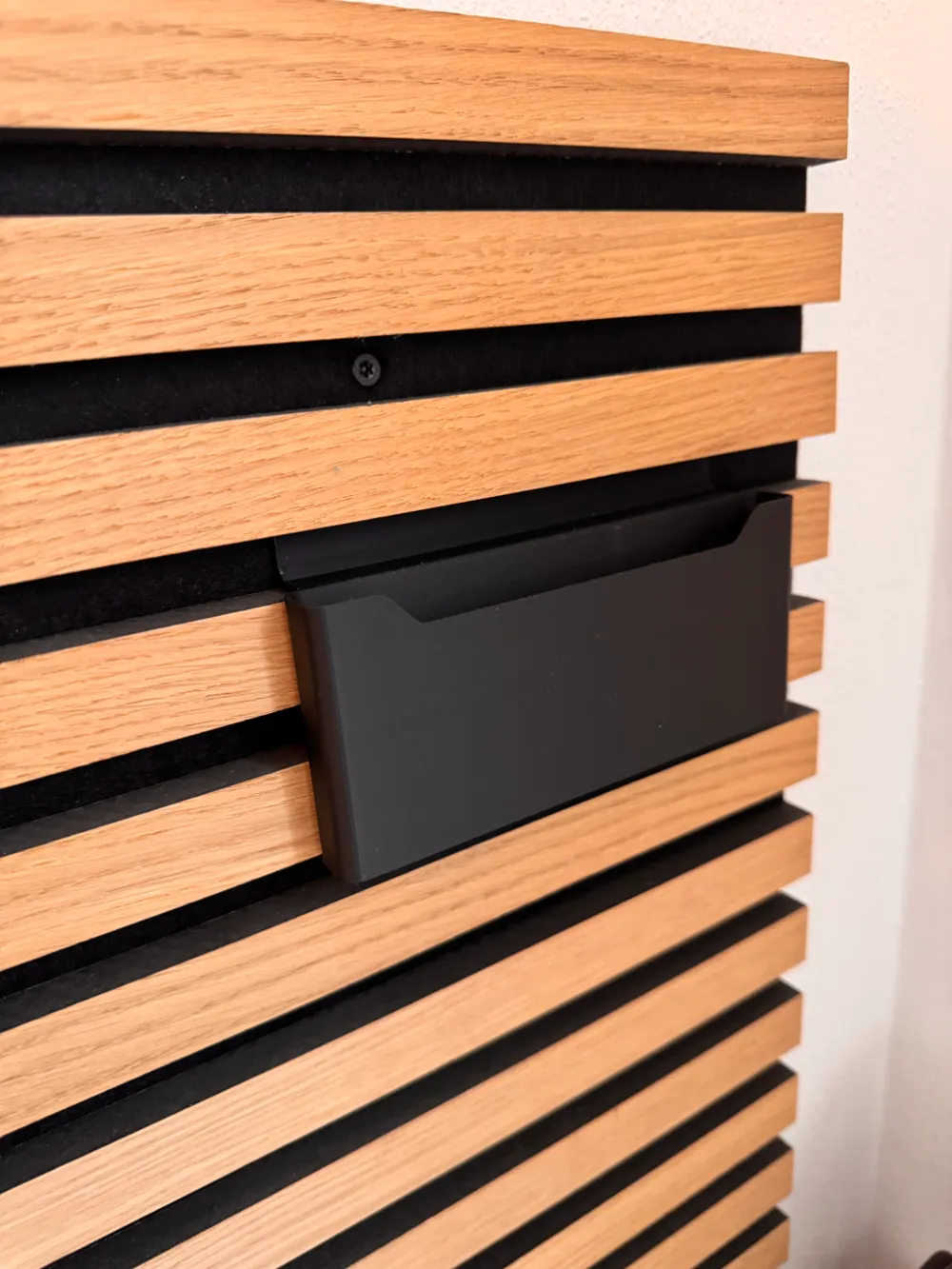

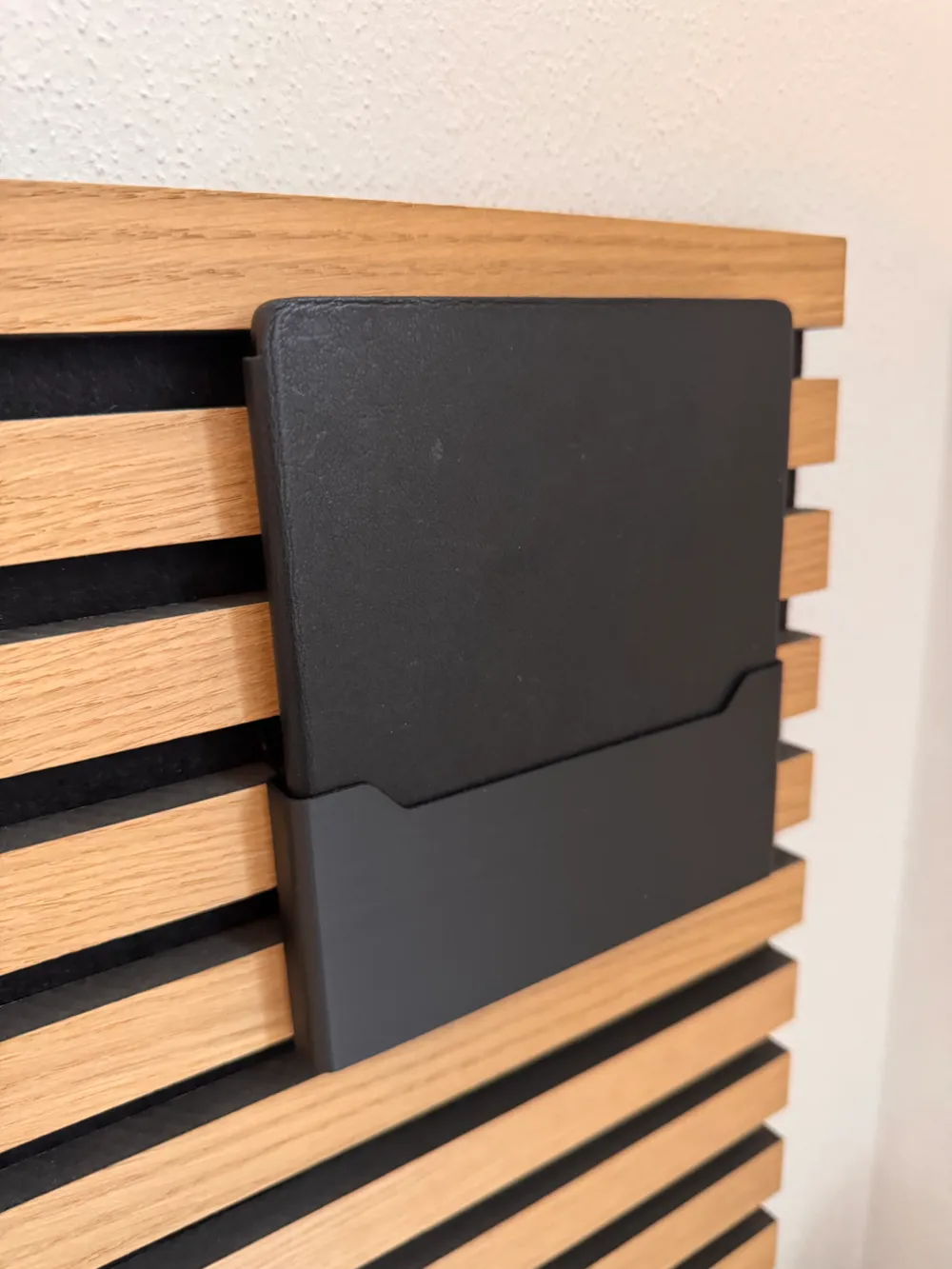

- holder for Kindle Oasis - 151x18x67mm
They are not hung from below like many simple ones, but are slid in from above and are therefore stable yet easy to print.
The holders are designed for 12mm deep acoustic panels, but can be adjusted by me if needed.
Due to the stability, please print the trays upright, as shown in the profile, as well as the hooks.
Printing at a 0.2mm layer height with 2 walls and 15% Gyroid infill worked well for me.
Please use tree-like supports, then the holders that are inserted into the wall will also print well.
