Tea Bag Dispenser (44g) (Optional: Lid, Base)
Print Profile(3)
Description
Hi,
this is my first uploaded model. A dispenser for tea bags.
There are already many of these, but I would say that mine deserves its place.
First of all, this is not a remix, I modeled it myself in Fusion 360, but I was inspired by the design of the model “Skadis / Skådis Tee-Spender” by Manicken.se.

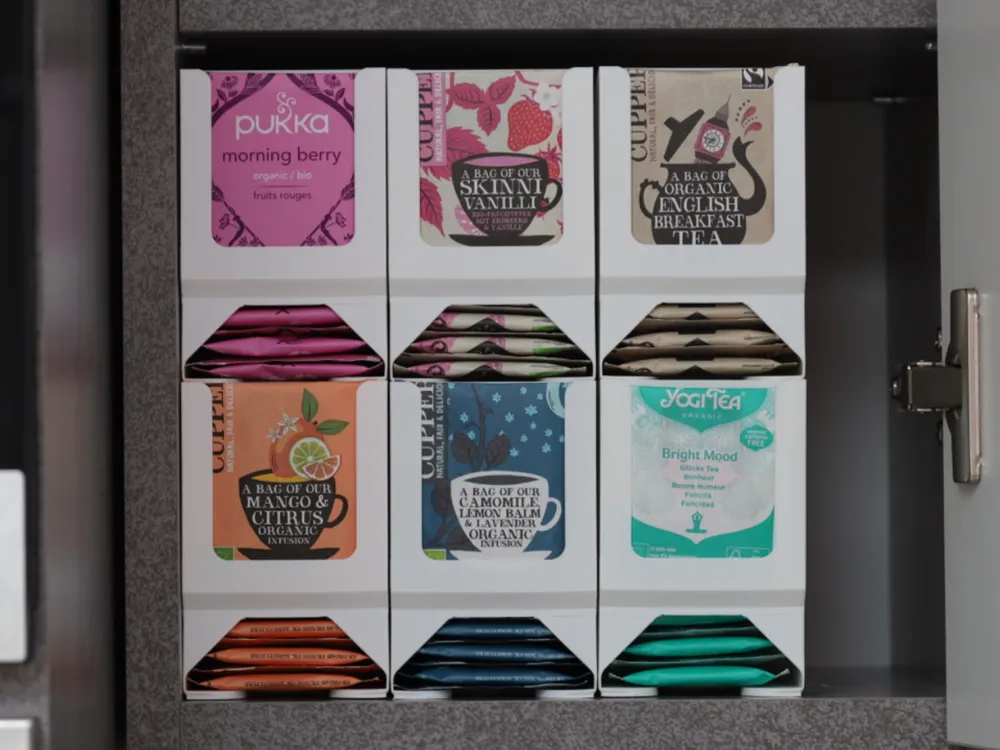

I modeled my own dispenser because the other dispensers used too much material, which I was too stingy for, and because the others are too tall to stack two in my cupboard.

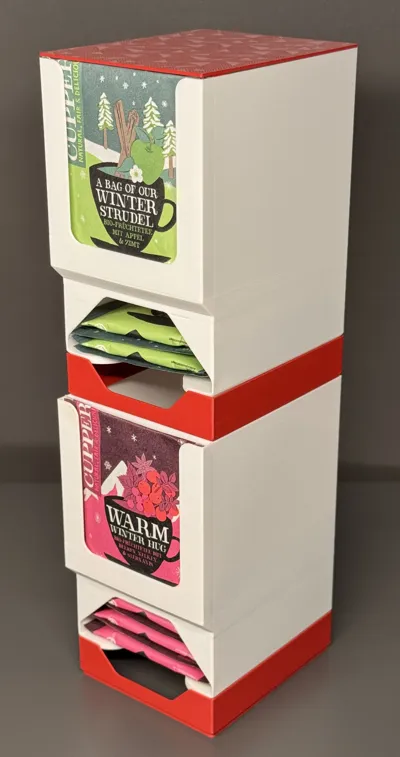

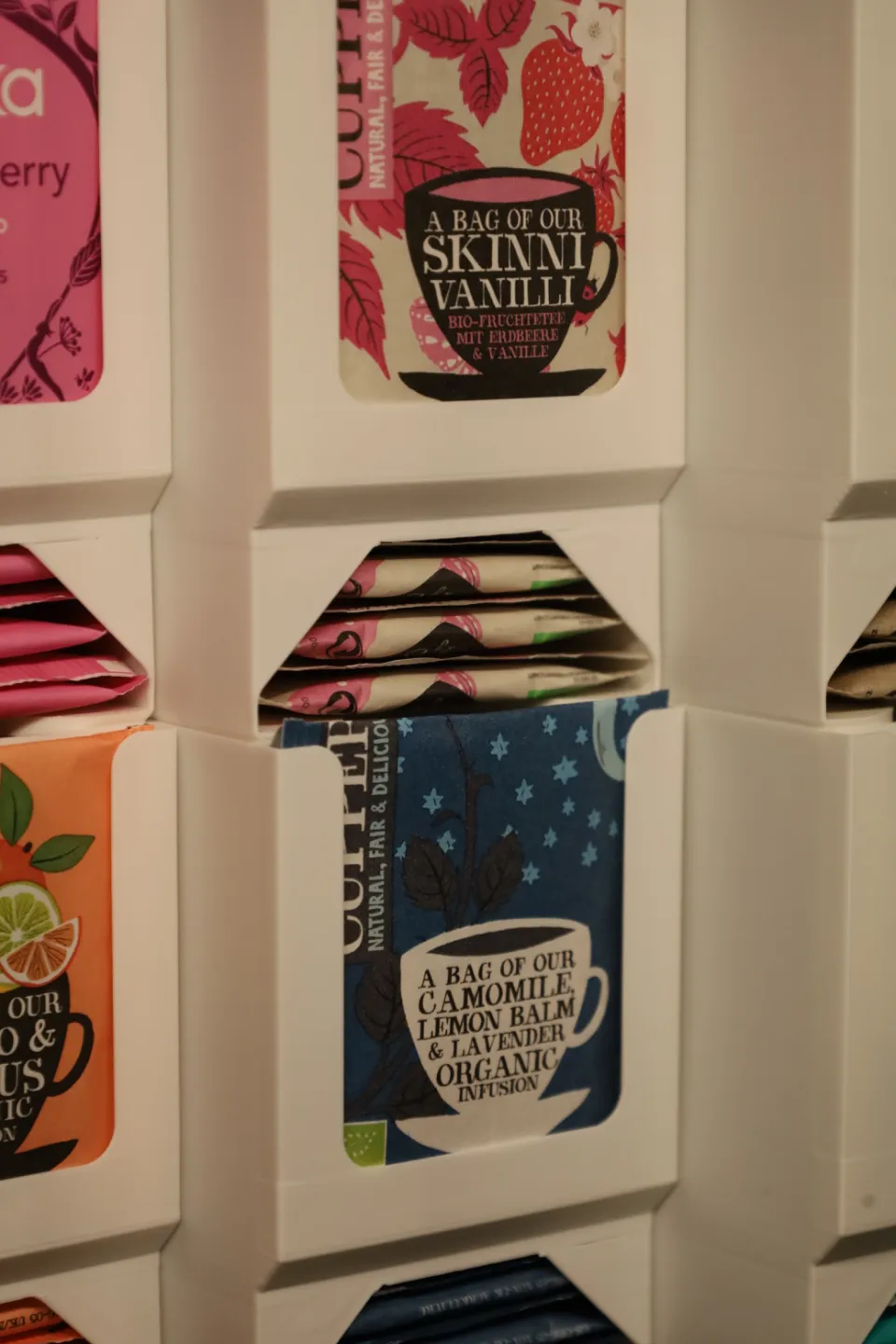

My dispensers are very easy to stack on top of each other
It uses 43g (57g with lid and base), is, to my knowledge, the most material-saving and also the most compact.
It holds approximately 22 tea bags if stacked to save space.
Dimensions without lid and base in cm
(Height x Width x Depth):
10.7 x 7 x 8.6
UPDATE 1

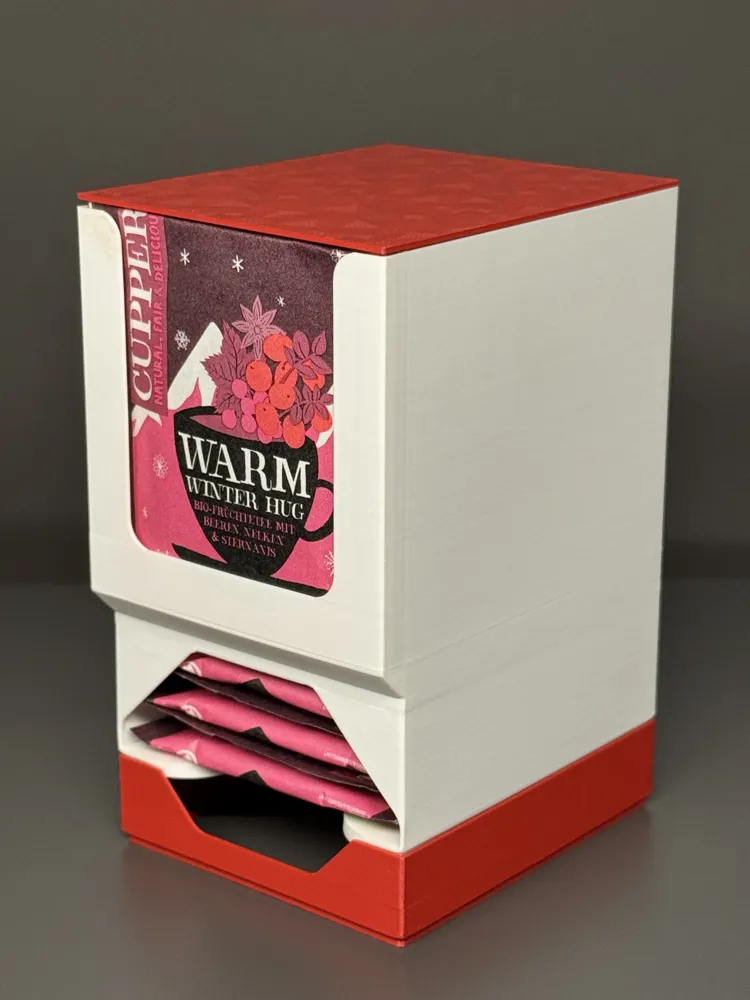

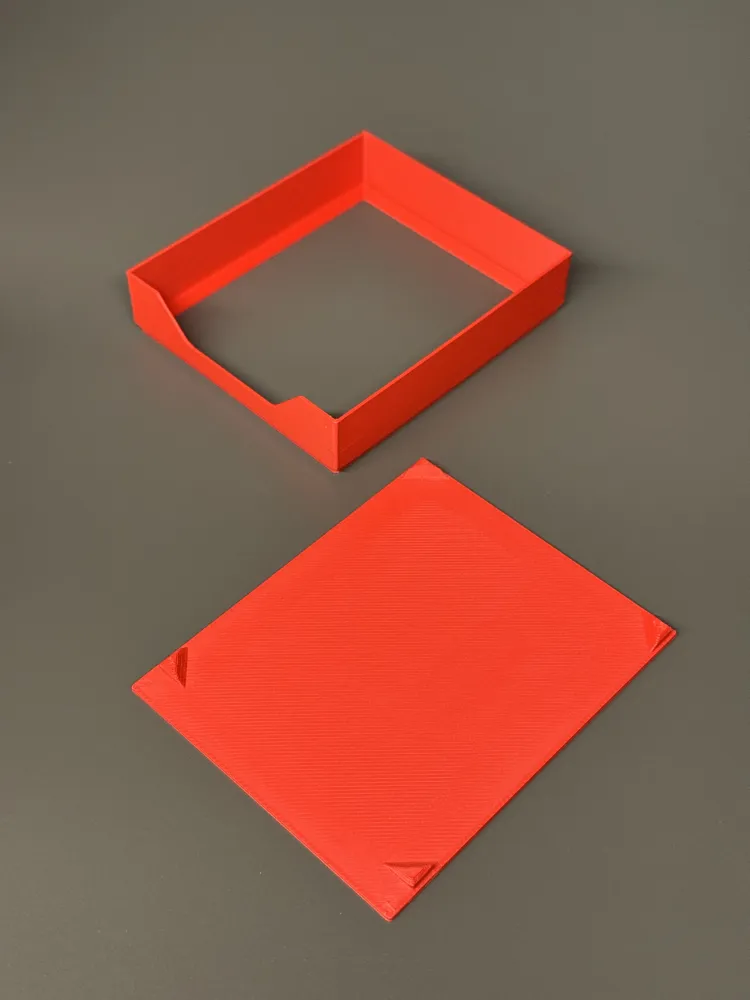

Now with optional printable lid and base.
Height with lid and base: 12.5 cm
Material consumption: 57g
UPDATE 2
A new print profile with cutouts for wall mounting, for example, using two screws.
The cutouts/holes are 30mm apart (center to center).

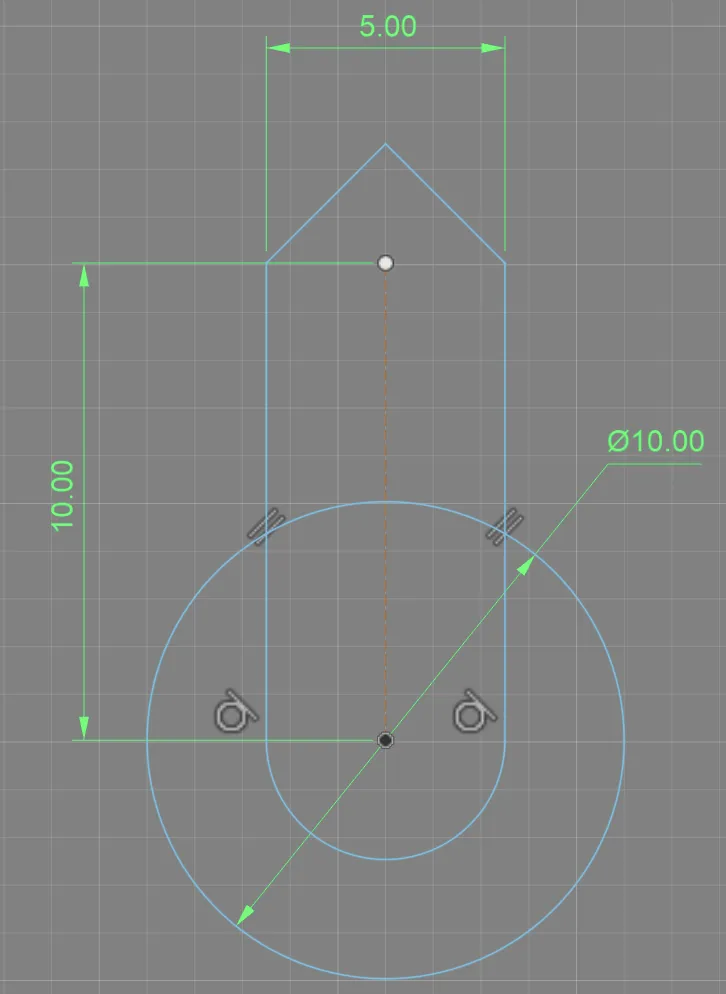

The dimensions can be taken from the image:
Diameter of the screw shank <5mm and diameter of the screw head <10mm.
I am still looking into parametric adjustment to allow full flexibility.
If the cutout does not fit, feel free to adjust it yourself or send me a message :)
If any problems arise, please let me know, and of course, I would appreciate your feedback :)
