FESTOOL MFT/3 Corner, Edge & Surface Gap Fills

BACKGROUND / DESIGN CONCEPT

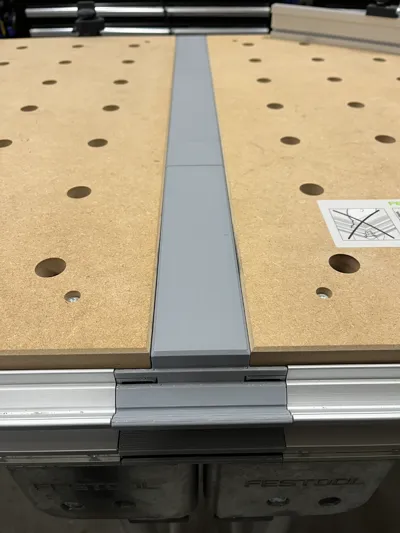

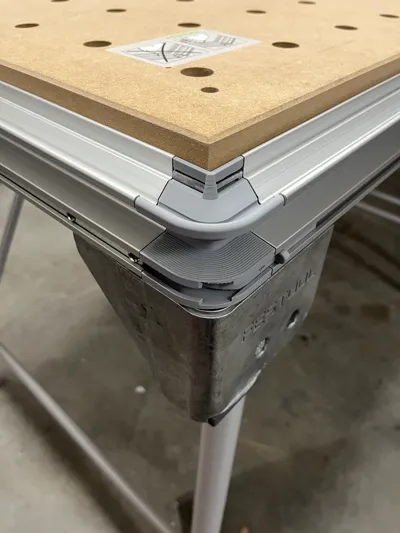

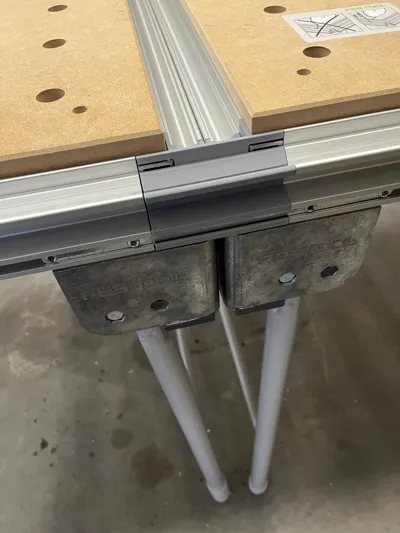

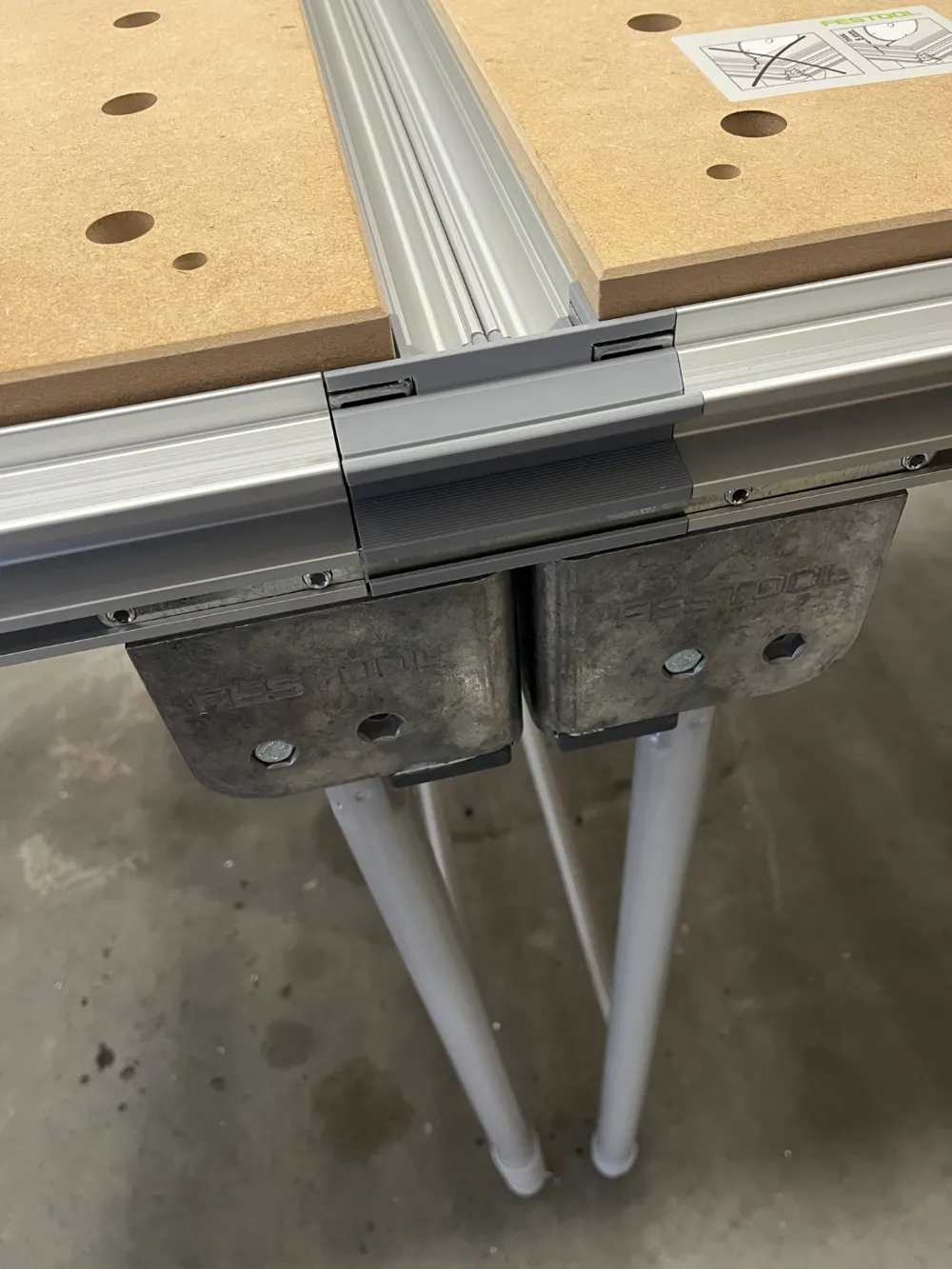

This is a set of models designed for use with the FESTOOL MFT/3 worktable, addressing the gaps in the cast aluminum edge extrusions at the corners and the joint gaps when two worktables are connected.

While the models are entirely original, they were inspired by FabianT* on MakerWorld who created a nice corner cover for the same worktable (and helped me learn about heat-sink inserts).  Credit must also go to Ian McFetridge who generated the template for the FESTOOL MFT/3 edge rail extrusion and posted it on GrabCAD.

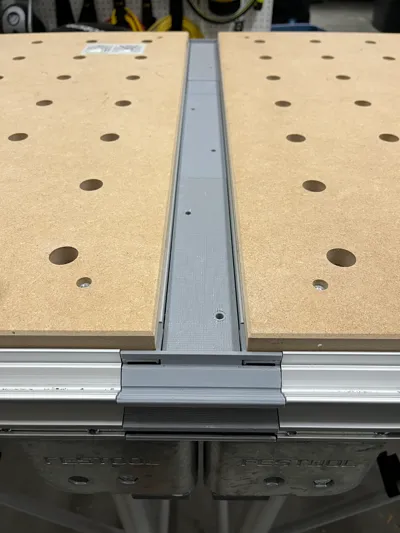

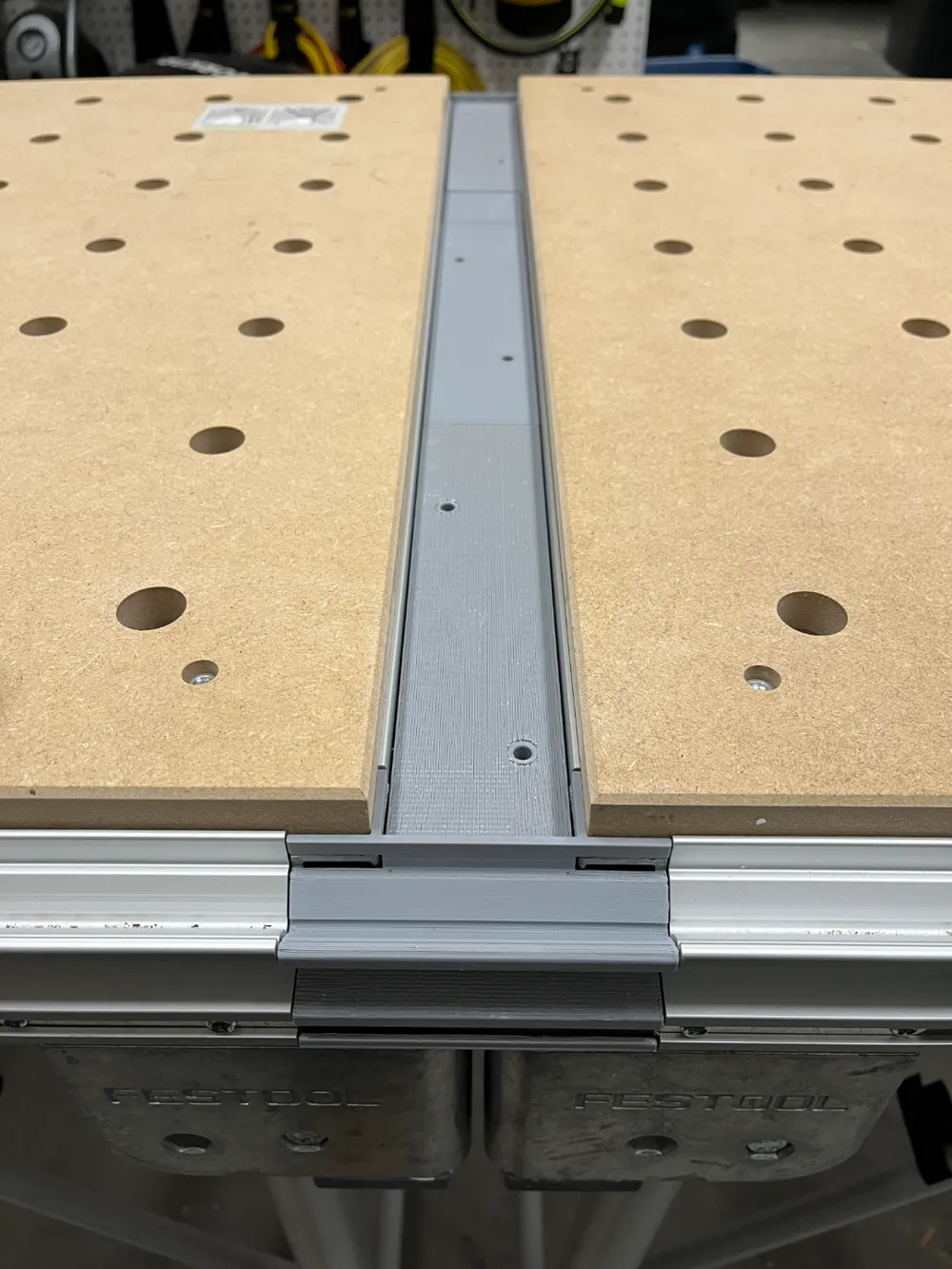

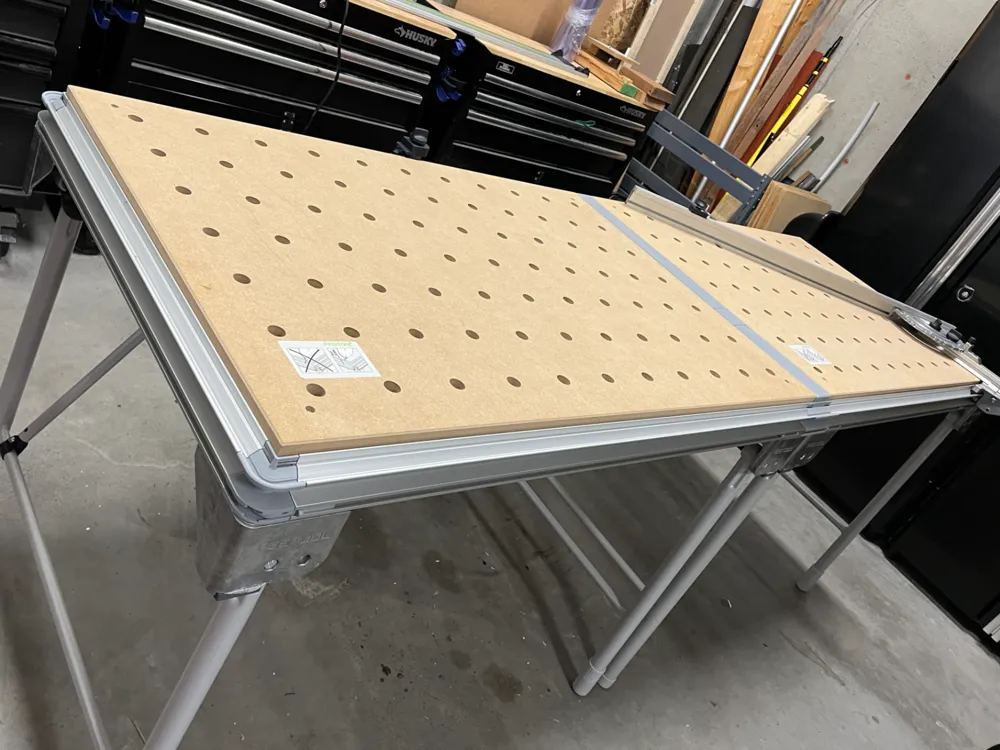

This set of models will work for just a single worktable (where only the corners are required) or when connecting two tables; either side-to-side (long side) or end-to-end (short side).  The concept is to use only 3D printed parts, printable on a Bambu X1 Carbon printer and only deviates from this in Group 3 where non-3D printed elements can be incorporated by a maker.

Full model documentation is included in the attached PDF file.

SAFETY & LEGAL DISCLAIMER

These designs are neither FESTOOL nor third-party safety checked, approved or certified in any way and need to be used with due care and attention.

No FESTOOL or third-party clamps or attachments should be attached to the parts included in this model as they are purely for comfort and aesthetics and have limited structural value.

Caution must be used if these designs are used in conjunction with any potentially dangerous equipment as their design only contemplates a simple worktable application.  It is possible that they could introduce an unforeseen hazard.

These designs are provided free of charge without any implied guarantee or warranty of any kind.

These designs shared with the only requirements being that the original designer be referenced in any subsequent transmissions and that no direct commercial value is secured as part of this sharing.  Subsequently, they can be shared with anyone, provided they honour these same agreements.
