Compact Clip For Pegboard Hooks

Compact clip to hold metal hooks straight on peg board.

Designed for 1" pegboard, with ¼" holes.

The hooks that come with pegboards have nasty habit of falling out as soon as you bump them, or remove a tool from them.

This model allows the hooks to be held in place so they no longer fall out.

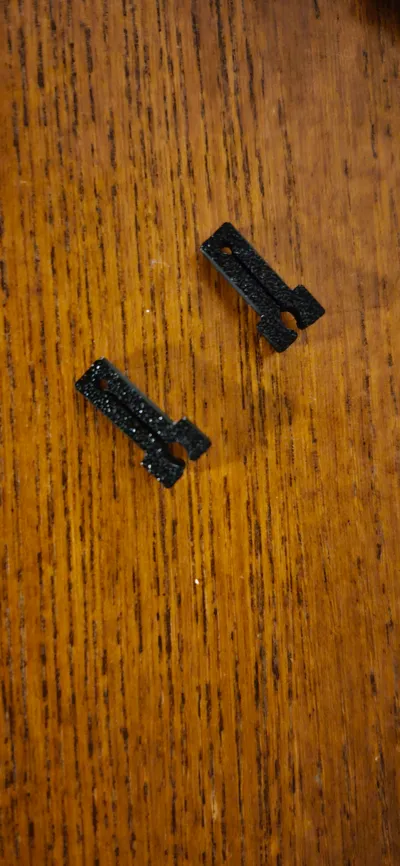

The clip pushes though the pegboard and the metal hook then presses in to the end of the clip.

It can be quite hard to press in, but once it pops in, he clip splays out to help hold it in the pegboard.

Most other hook clips take up 3 holes, meaning hooks need to be spaced wide apart or staggered.

This design allows hooks to be placed side by side, 1" apart.
Designed for hooks made from 3.7mm wire.

Hole sizes can vary between brands, model comes with 3 hole size options, 6.0mm, 6.5mm, 7.0mm.
Pick the best size.

Printed in PLA.

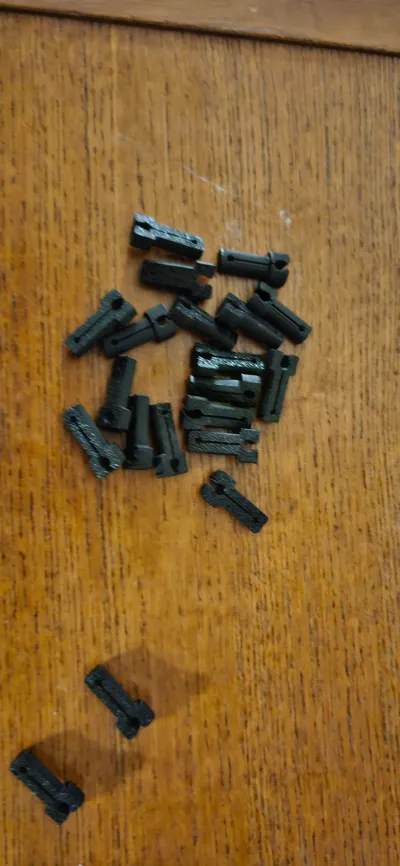

Note: The parts are small, ensure the build plate is clean, I had to wash the plate to prevent the odd one detaching during printing. Once cleaned, 21 printed with no issues.
