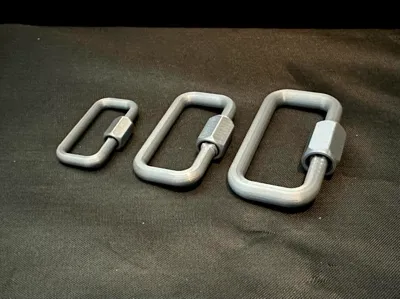

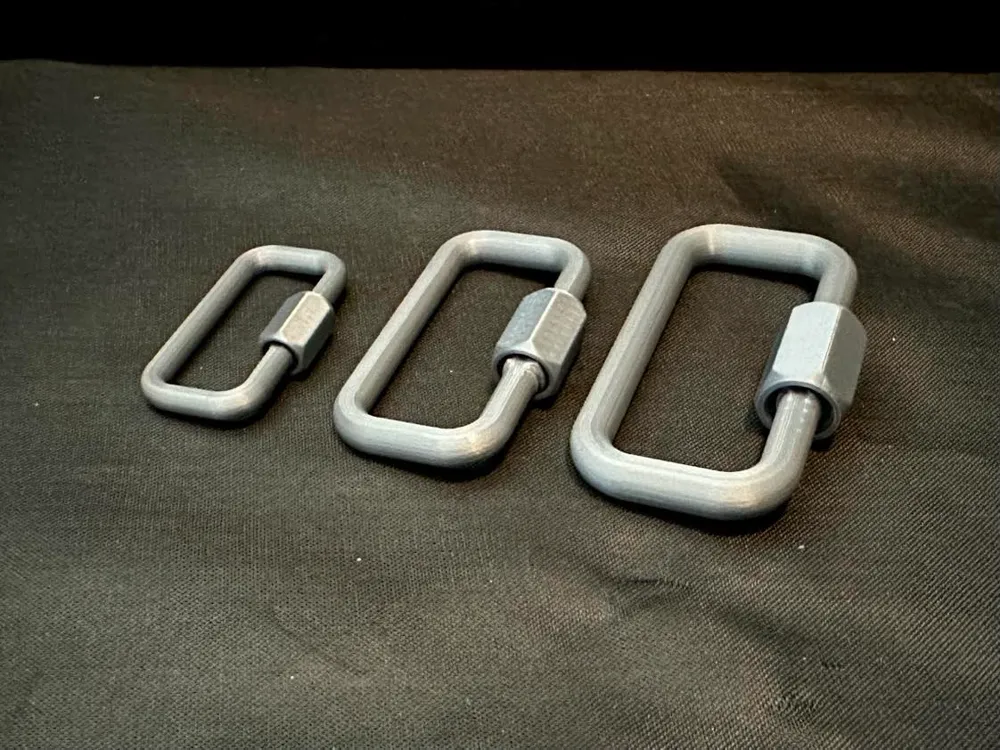

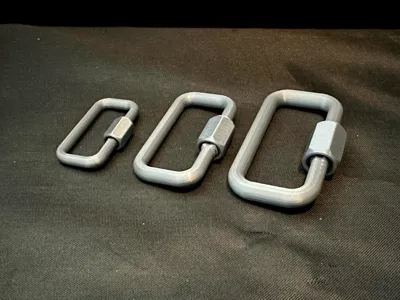

Threaded Quick Links - 3 Sizes - Locking Carabiner

3 sizes of handy threaded quick links. Quite durable PLA+.

Print in PLA+ MINIMUM.

Small: 45mm Long - 24mm Wide

Medium: 50mm Long - 26.5mm Wide

Large: 72mm Long - 38mm Wide

Easy grip hex nut makes threading easy. Twist the link to thread on the nut (see video) then you are good to go!

Examples printed in Elegoo Rapid PLA+ and showed remarkable strength.

Comment & Rating (20)

@helmick2003

Very strong and great design. I tested the large quick link until failure. I printed it in PETG HF white. I tested in 10 degree F weather. Held 100lb static weight without issue (ran out of weights to put on it). Held my 160 lb weight statically. I jumped up in down on it for about 10 seconds and it finally broke (like a jump rope). It looked like the nut split in two when it finally broke. Probably stronger than a double ended snap, I'll test them over longer duration and in the elements.

@user_1002584260

Print Profile

SMALL QUICK-LINK - 0.12mm layer, 4 walls, 100% infill

can not thread both ends with the nut

@Lordgames87o

Print Profile

SMALL QUICK-LINK - 0.12mm layer, 4 walls, 100% infill

muy bien

@user_1345521787

Print Profile

SMALL QUICK-LINK - 0.12mm layer, 4 walls, 100% infill

Very stable and cleanly printed

Show original

@user_1197811168

Print Profile

SMALL QUICK-LINK - 0.12mm layer, 4 walls, 100% infill

It functions properly

Show original

@Segway_Bro

Boosted

I really like the look of these!

@Segway_Bro

Boosted

Print Profile

MEDIUM QUICK-LINK - 0.12mm layer, 4 walls, 100% infill

Works as advertised and looks really cool! Almost accidentally rated low, but I fixed it. 5 stars

@MAGRE_Philippe

Print Profile

SMALL QUICK-LINK - 0.12mm layer, 4 walls, 100% infill

No printing issues, assembly was somewhat challenging, but it's surprisingly robust for its size, thank you for sharing

Show original

@user_3542410069

Print Profile

MEDIUM QUICK-LINK - 0.12mm layer, 4 walls, 100% infill

Quick print and it is strong. Thanks!

@nicoscialpi

Print Profile

LARGE QUICK-LINK - 0.12mm layer, 4 walls, 100% infill
