Simracing Throttle pedal
Print Profile(1)
Bill of Materials
- simplayer hydraulic piston x 1: https://es.aliexpress.com/item/1005007855616490.html
- pot 14910F0GJSX10103KA x 1: https://mou.sr/41qptbV
- pot arm x 1: https://es.aliexpress.com/item/1005005968010865.html
- Axis Roll Dowel Pin M6_20mmx1 x 1: https://www.aliexpress.com/item/1005004464255387.html
- Axis Roll Dowel Pin M6_30mmx1 x 1: https://www.aliexpress.com/item/1005004464255387.html
- Axis Roll Dowel Pin M8_40mmx1 x 1: https://www.aliexpress.com/item/1005004464255387.html
- 608 bearing x 2: https://www.aliexpress.com/item/1005004765931627.html
- M3 flat head 6mm x 2:
- M3 flat head 20mm x 3:
- M4 flat head 10mm x 3:
- M4 flat head 25mm x 2:
- M5 15mm x 4:
- M3 nut x 4:
- M3 threaded insert x 1:
- M4 threaded insert x 4:
Description

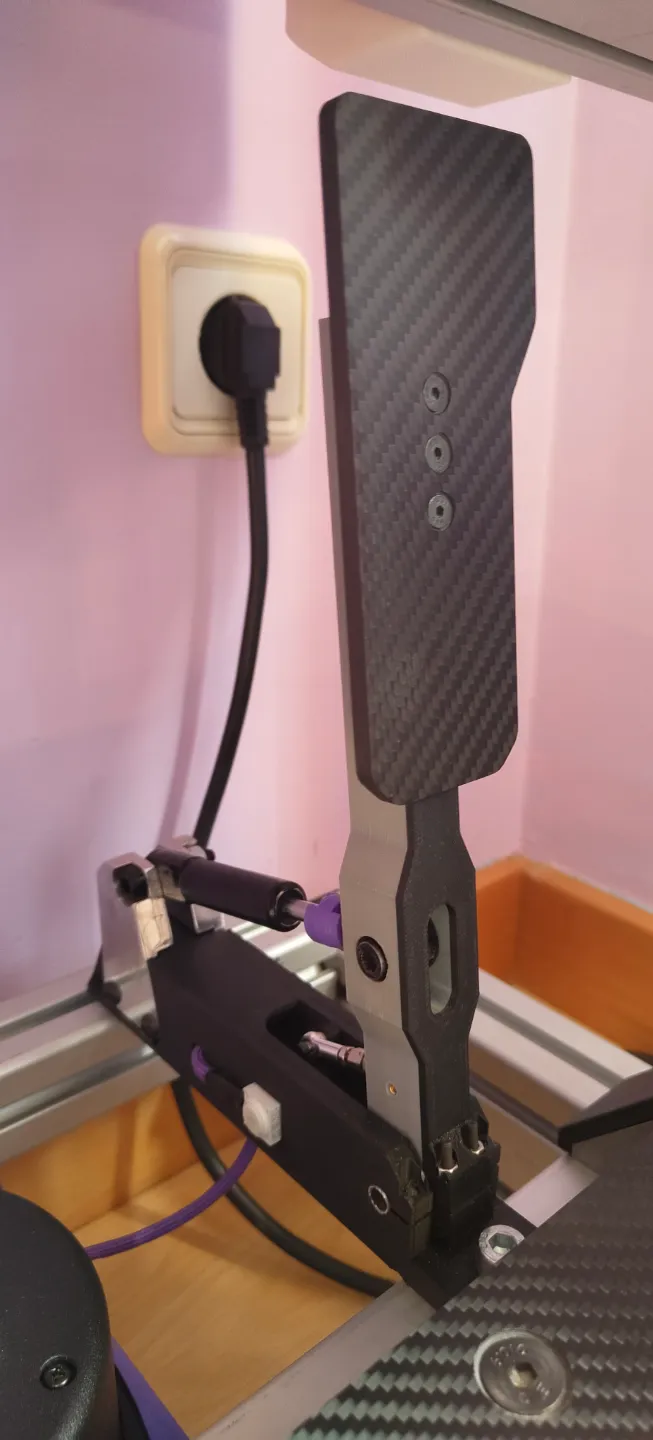

Simracing pedal meant to be used as the throttle. It uses an hydraulic piston for a smooth travel and a potenciometre for accurate reading. All necessary components and parts are included in the files, along with modifiable versions for customization. Tested for more than 50 hours and works flawlessly so I thought I would share it if anyone is interested.
