Gridfinity Bin Collection - 3U to 15U
IP Report
Print Profile(156)
3U Accent Lip - Label, Magnet
Designer
52.9 h
25 plates
3U Accent Lip - Label, No Magnet, Deep
Designer
37.3 h
25 plates
3U Accent Lip - Label, No Magnet, Shallow
Designer
47.3 h
25 plates
3U Accent Lip - NoLabel, Magnet
Designer
50.9 h
25 plates
Click to see more
Open in Bambu Studio
Boost
519
2077
380
196
3.4 k
2.4 k
Released
Description
Gridfinity Bin Collection
Ever found yourself searching for that perfect Gridfinity bin with specific features and dimensions? I created this comprehensive collection to solve that exact problem, offering a wide variety of bin configurations to meet my organizational need. All bins adhere to standard Gridfinity specifications for seamless integration with your existing setup.
Available Configurations
Each bin style comes in multiple size options (3U to 15U) and two design variants:
- Monochrome: Classic single-color design

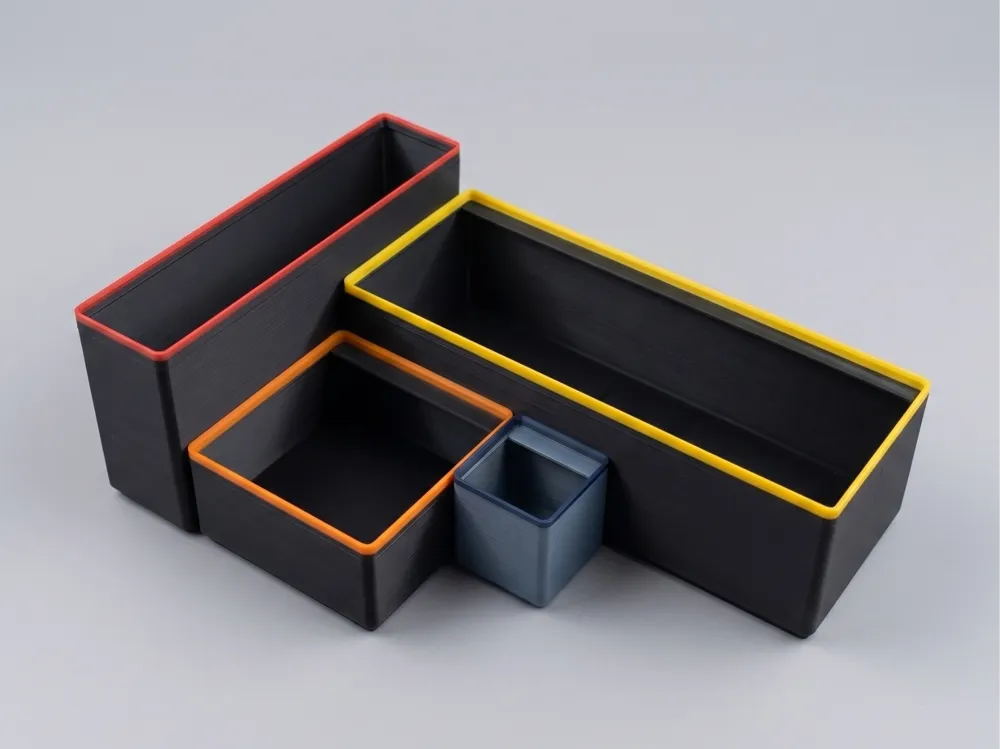

- Accent Lip: Two-tone design with contrasting upper edge
Feature Options
- Label, Magnet
- Includes label tab for easy identification
- Bottom holes for magnet installation
- Label, No Magnet, Deep
- Includes label tab for identification
- No magnet holes
- Deeper interior that utilizes the space where magnets would normally go
- Non-flat interior bottom - key distinction from shallow version
- Reduced filament usage since it doesn't require printing layer upon layer of infill
- Label, No Magnet, Shallow
- Includes label tab for identification
- No magnet holes
- Flat interior bottom - key difference from the deep version
- No Label, Magnet
- No label tab
- Bottom holes for magnet installation
- No Label, No Magnet, Deep
- No label tab
- No magnet holes
- Deeper interior that utilizes the space where magnets would normally go
- Non-flat interior bottom - key distinction from shallow version
- Reduced filament usage since it doesn't require printing layer upon layer of infill
- No Label, No Magnet, Shallow
- No label tab
- No magnet holes
- Flat interior bottom - key difference from the deep version
Links to complete collection:
Each link below leads to a print profile for one of the six feature variations (Label/No Label, Magnet/No Magnet, Deep/Shallow) for that specific size and style combination.
- 3U Accent Lip (25.4mm height)
- 3U Monochrome (25.4mm height)
- 4U Accent Lip (32.4mm height)
- 4U Monochrome (32.4mm height)
- 5U Accent Lip (39.4mm height)
- 5U Monochrome (39.4mm height)
- 6U Accent Lip (46.4mm height)
- 6U Monochrome (46.4mm height)
- 7U Accent Lip (53.4mm height)
- 7U Monochrome (53.4mm height)
- 8U Accent Lip (60.4mm height)
- 8U Monochrome (60.4mm height)
- 9U Accent Lip (67.4mm height)
- 9U Monochrome (67.4mm height)
- 10U Accent Lip (74.4mm height)
- 10U Monochrome (74.4mm height)
- 11U Accent Lip (81.4mm height)
- 11U Monochrome (81.4mm height)
- 12U Accent Lip (88.4mm height)
- 12U Monochrome (88.4mm height)
- 13U Accent Lip (95.4mm height)
- 13U Monochrome (95.4mm height)
- 14U Accent Lip (102.4mm height)
- 14U Monochrome (102.4mm height)
- 15U Accent Lip (109.4mm height)
- 15U Monochrome (109.4mm height)
Note: Height is calculated as (7mm × U) + 4.4mm base height, following standard Gridfinity specifications.
