Rigid Shopvac Floor Tool - 1.75"

Print Profile(1)

All
P1S
P1P
X1
X1 Carbon
X1E
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
3.5 h
1 plate
4.5(4)

Open in Bambu Studio
Boost
49
128
11
10
198
124
Released

Description

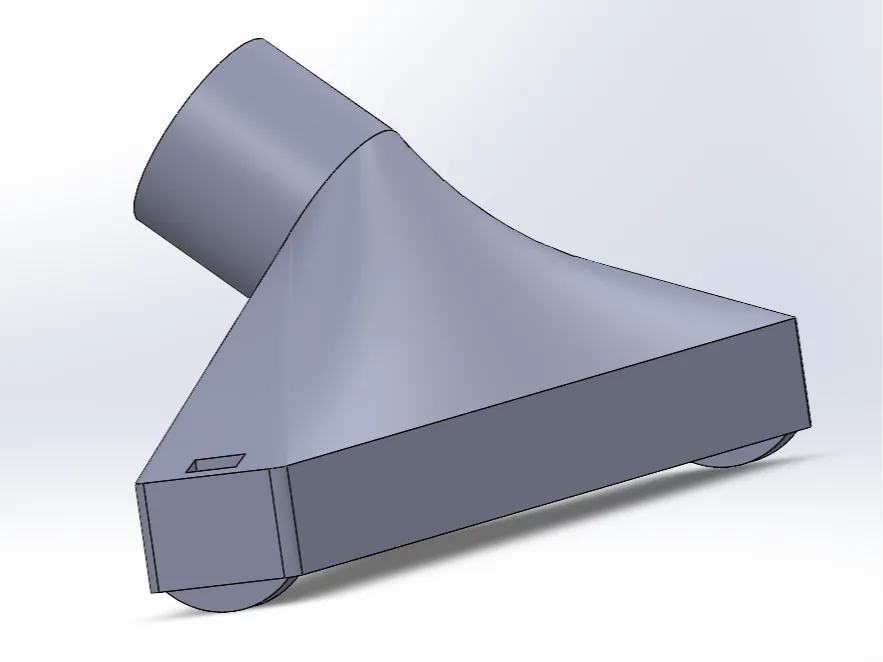

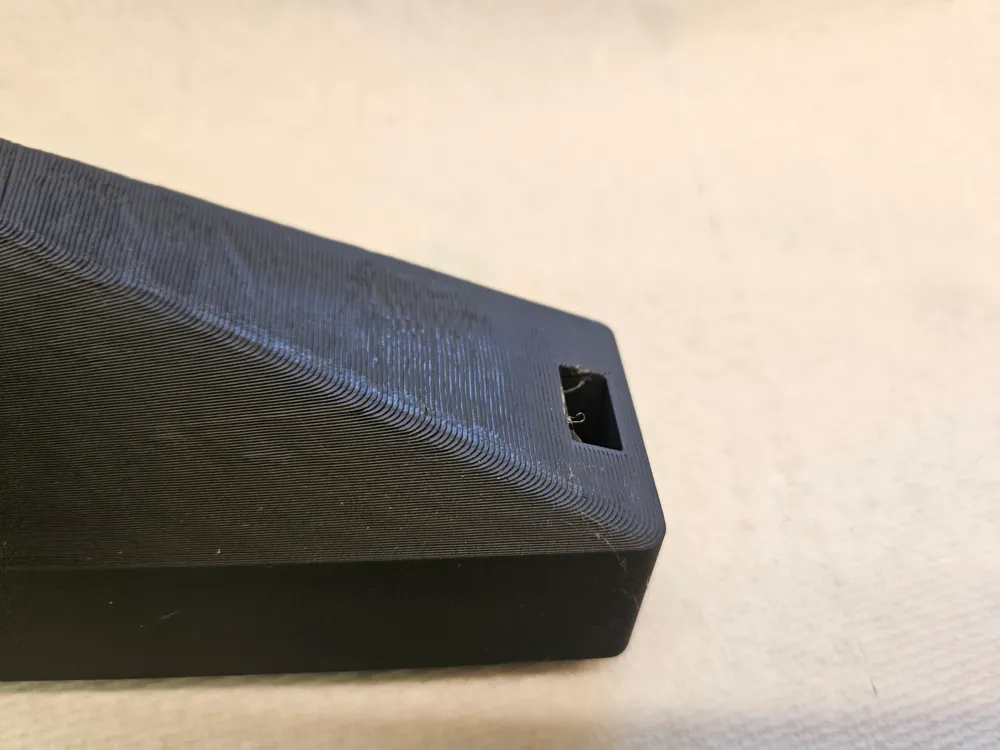

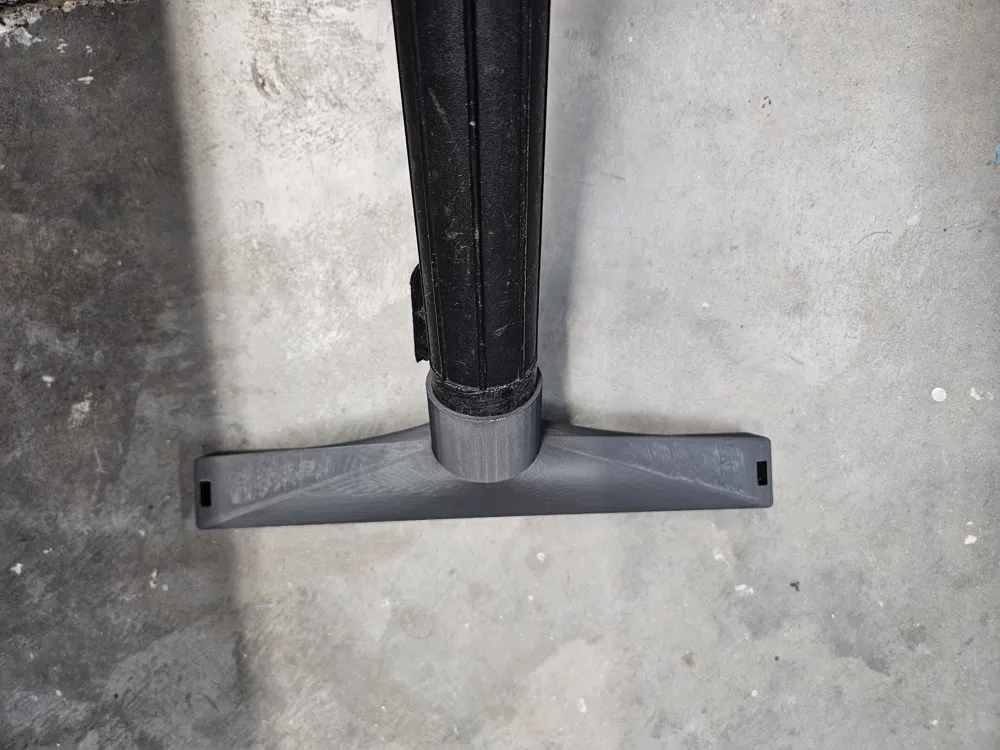

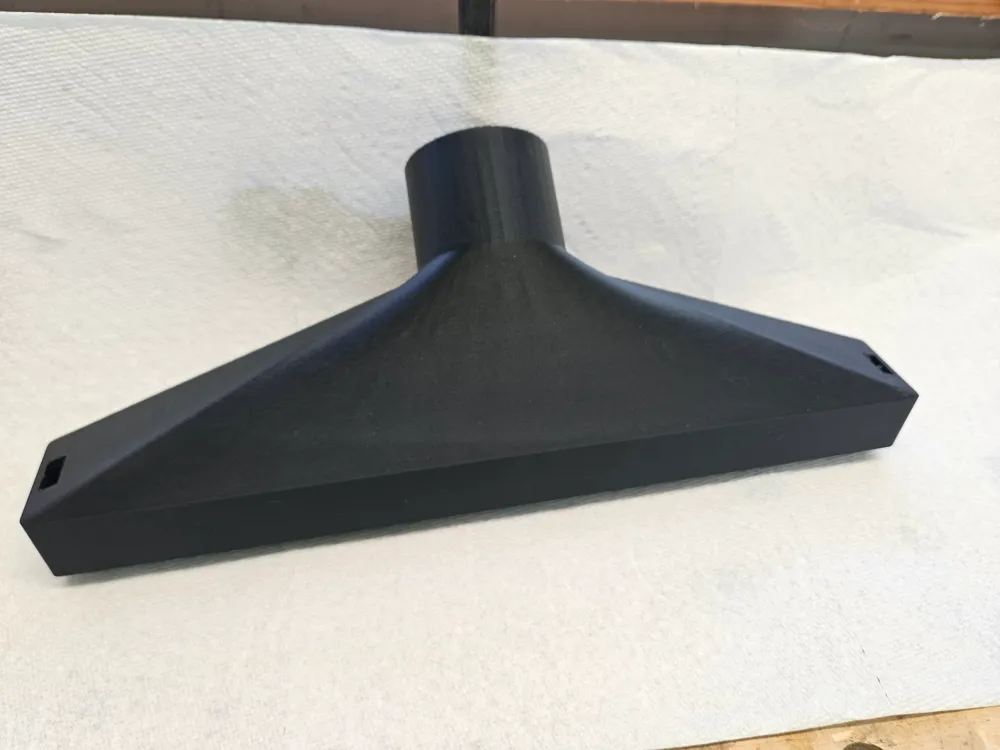

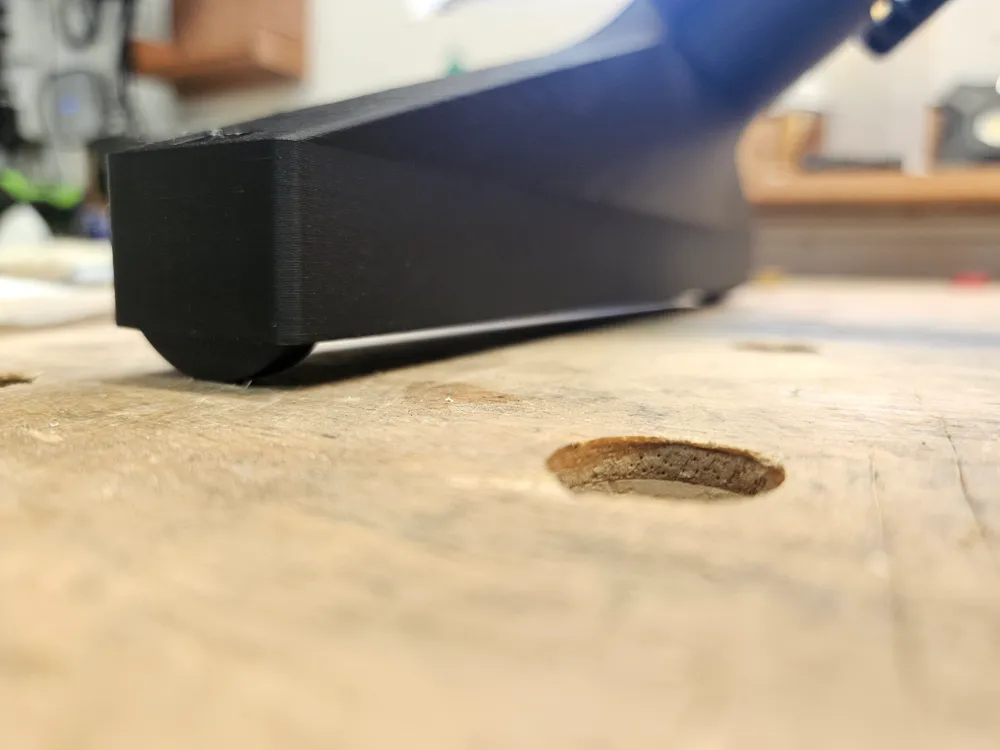

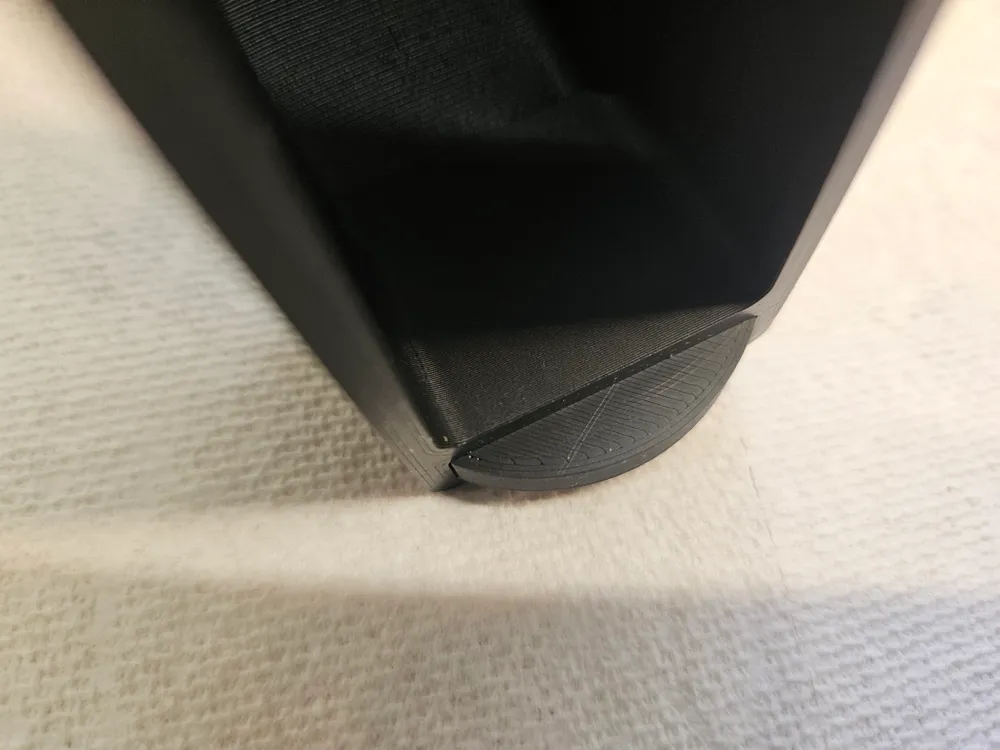

I recently lost the floor tool for my Rigid shop vac. I never like how the floor tool was not very wide.  In looking at existing models, I saw a nice 12" floor tool, but it was for the more standard 2-½" diameter hose.  Rigid shop vacs have a 1-¾" coupler.  I decided to design a nice, thin, wide, and functional floor tool.  Since I usually am vacuuming things like sawdust and metal shavings off the floor, I hated how most vacuum attachments, when flush with the floor, get sucked down to the floor, requiring the tool to be angled.  Plus when this happens, nothing gets sucked in.  So for this design, there are two additional parts, glide feet,  that are printed and inserted in the two recesses.  This provides a cantilevered point to allow the vacuum head to stay off the floor and always provide suction.   Of course these will wear out after a while, so feel free to print more, or better yet make some metal ones (I was also pondering using washers instead.  Perhaps on rev 2. The holes on top are to push the old feet out.

Comment & Rating (11)

(0/1000)

Boosted
Printed great. Because I have the sense of humor of a 15 year old boy, I had to add some text.
The designer has replied
1
Reply
Oh man, I though you did not like it soo much you printed that!!!
0
Reply
Hope it works well. If it needs some modding, let me know.
0
Reply
Boosted
Replying to @kuhnto :
i loved it. I’m sorry. the this sucks was a dad joke towards being a vacuum attachment. the file was great.
0
Reply
made an adaptor for your vac for 1.75in to a 1.5 in with hose barbed fitting
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
maybe add a brim? freshly cleaned plate rarely if ever do I have a print come undone.
Support Issue:add brim for better adhesion please.
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
great print. thanks
0
Reply
Boosted
Thank you! I just used it and it cleaned up all the beads of desiccant I spilled that prompted me to print this. Mission accomplished! lol :)
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
0
Reply
