E*thirteen e*spec Plus Cranks protection bosch CX
Print Profile(1)
Description

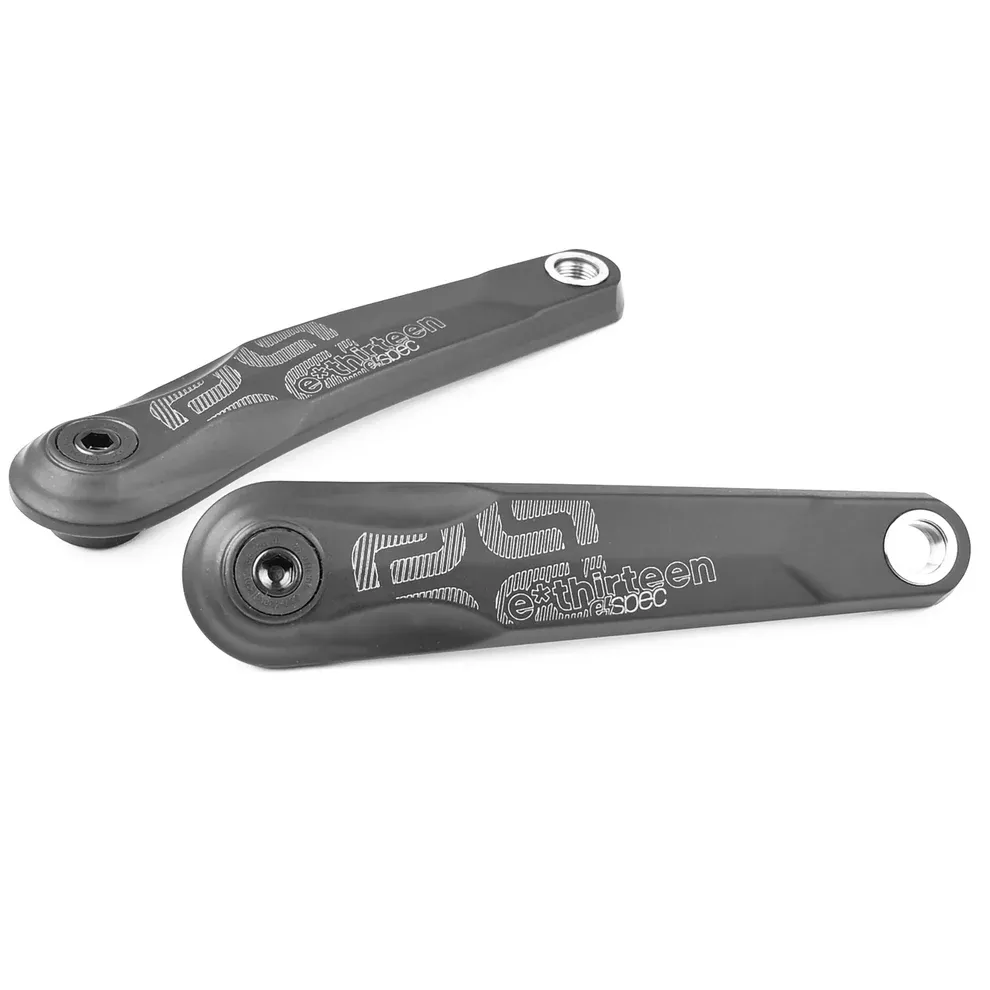

e*thirteen e*spec Plus crank protection for Bosch CX motor.
Note : print only with TPU, I used A95.

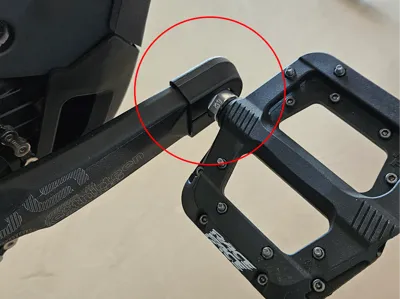

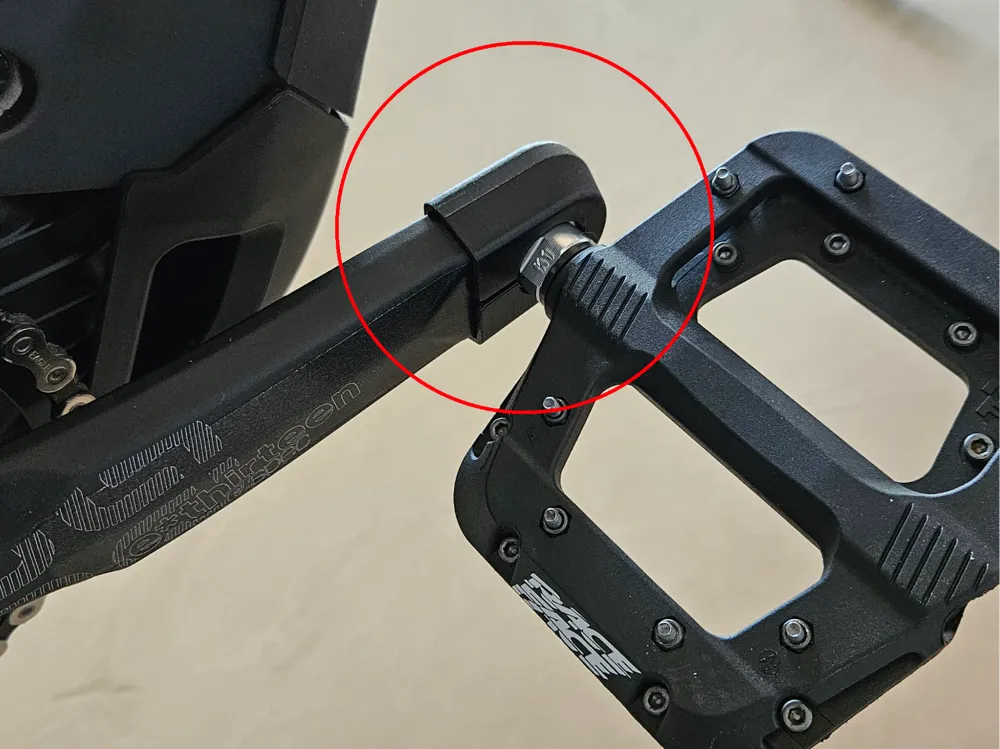

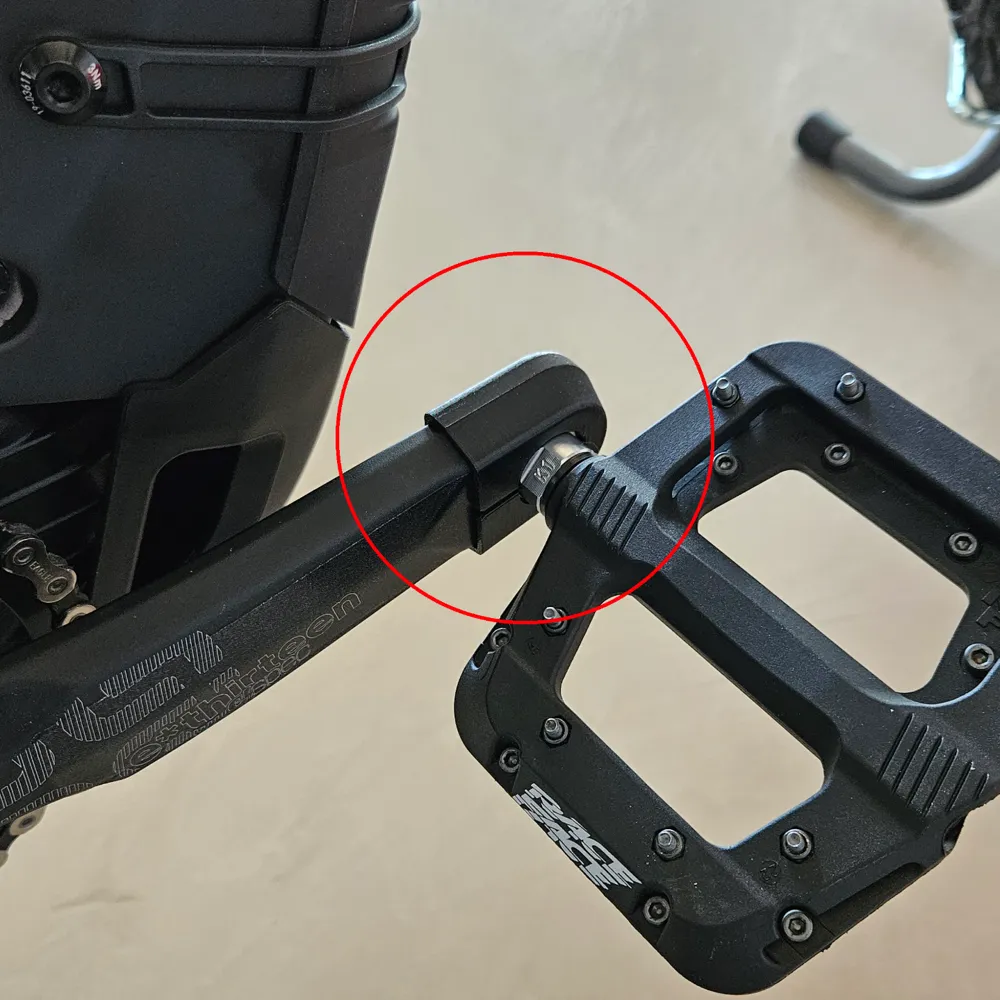

- 1x closed model for installation before pedals
- 1x open model for installation after pedals
Vertical print, no supports.
The flat part on top of the hole facilitates printing and can be removed later if necessary.
Print only with TPU:
- 0.4 mm nozzle
- 0.16 mm layer height
- 2 perimeters
15% infill
