4080 Simjack's UT Angled Plate

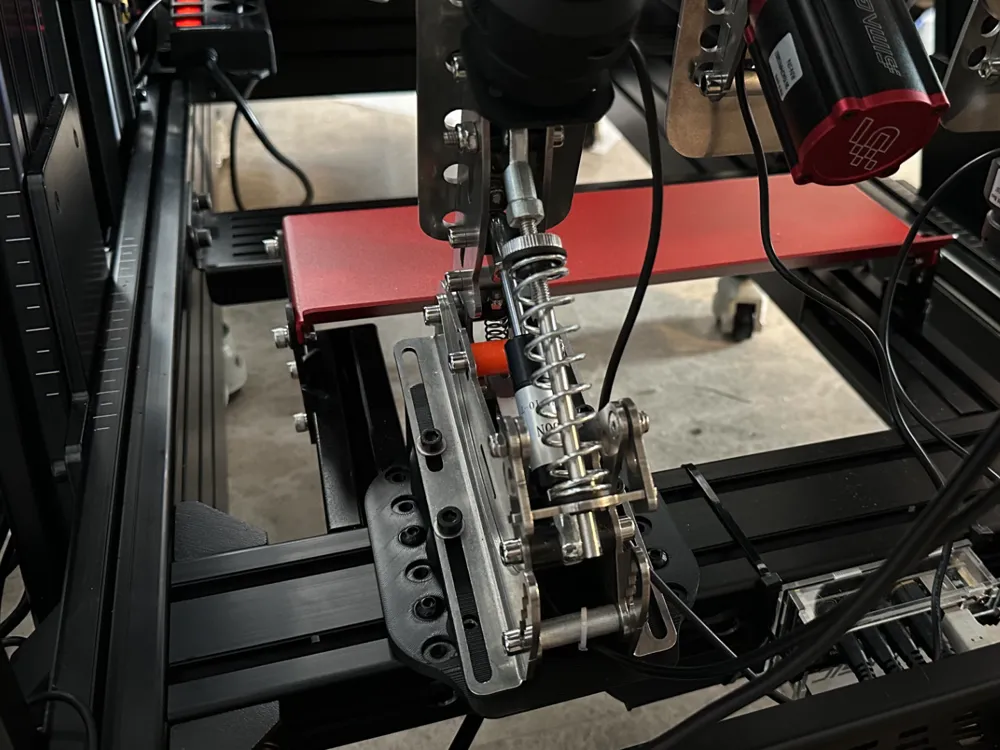

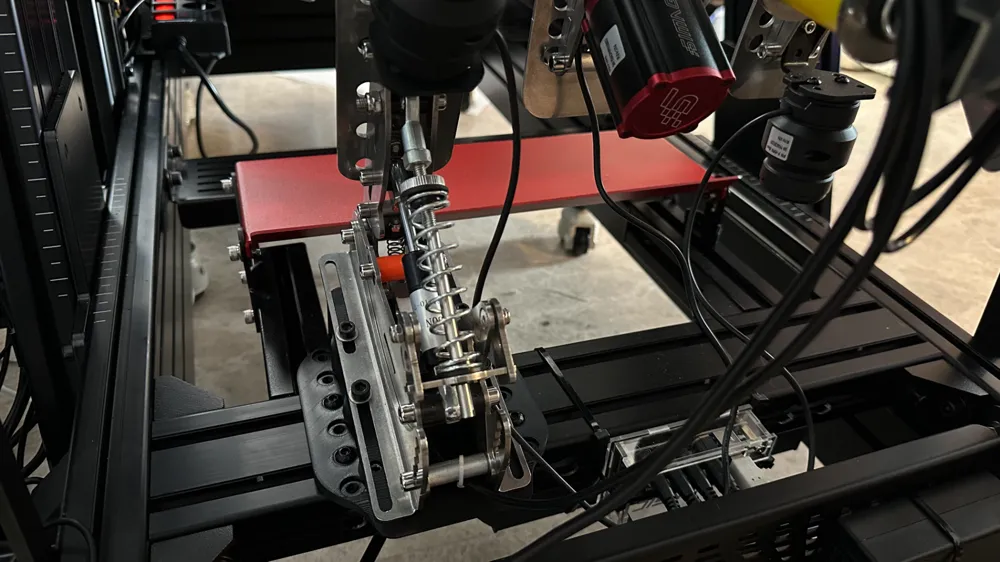

Angled plate for Simjack's UT throttle pedal (15 degrees). Most likely compatible with other similarly designed pedals where the distance between holes is around the 67mm mark.

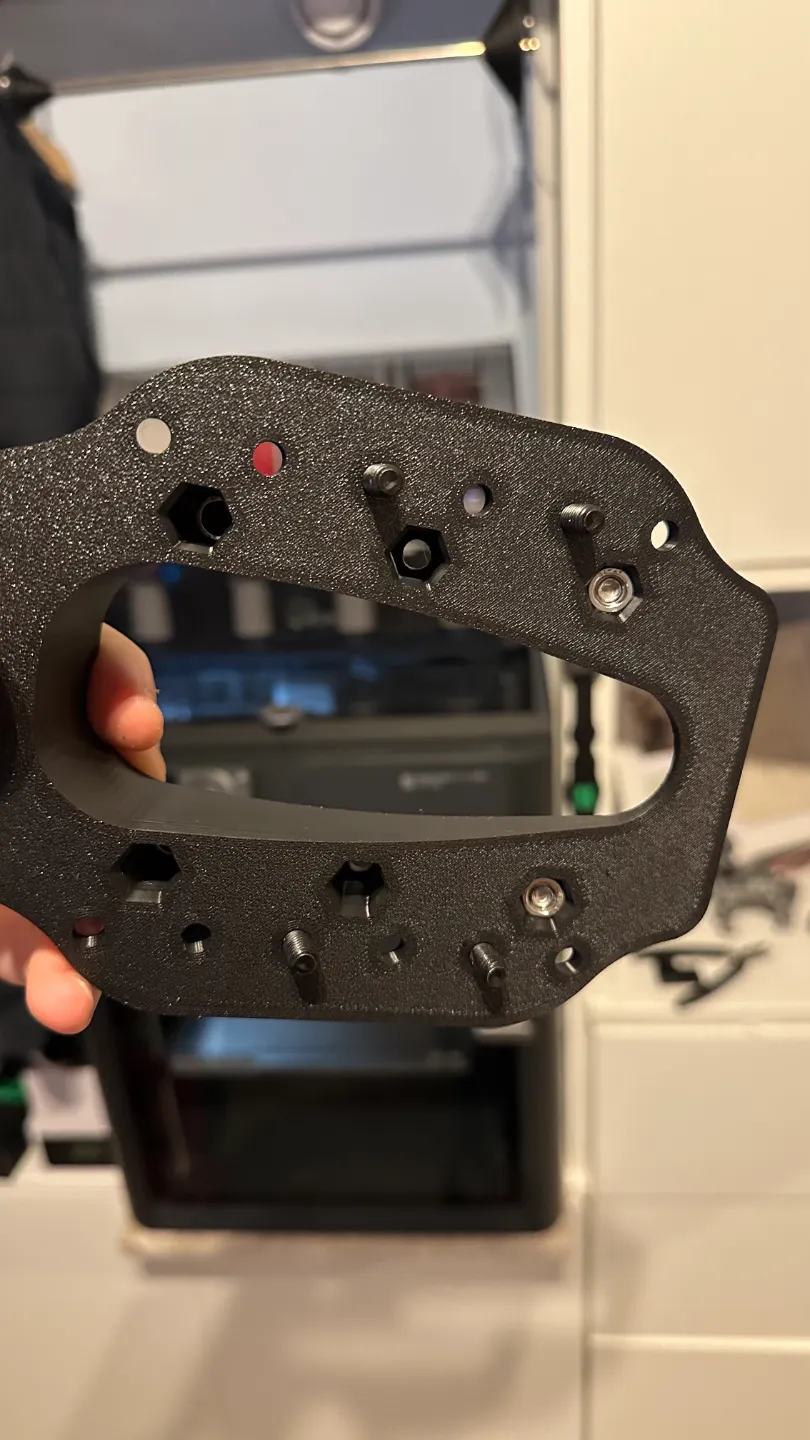

• The pedal side has 6x6mm screws, 40mm apart, with regular nuts on the other side.

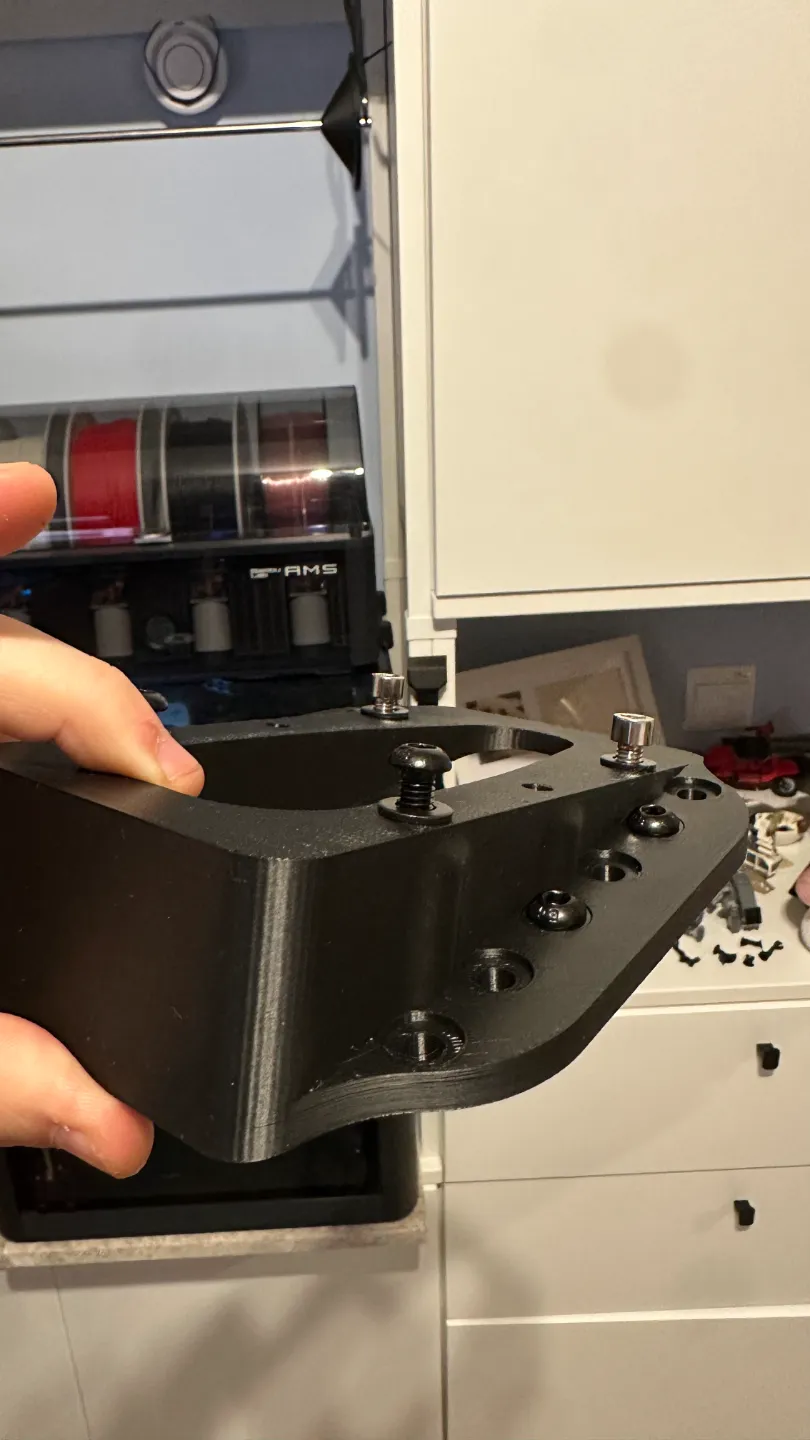

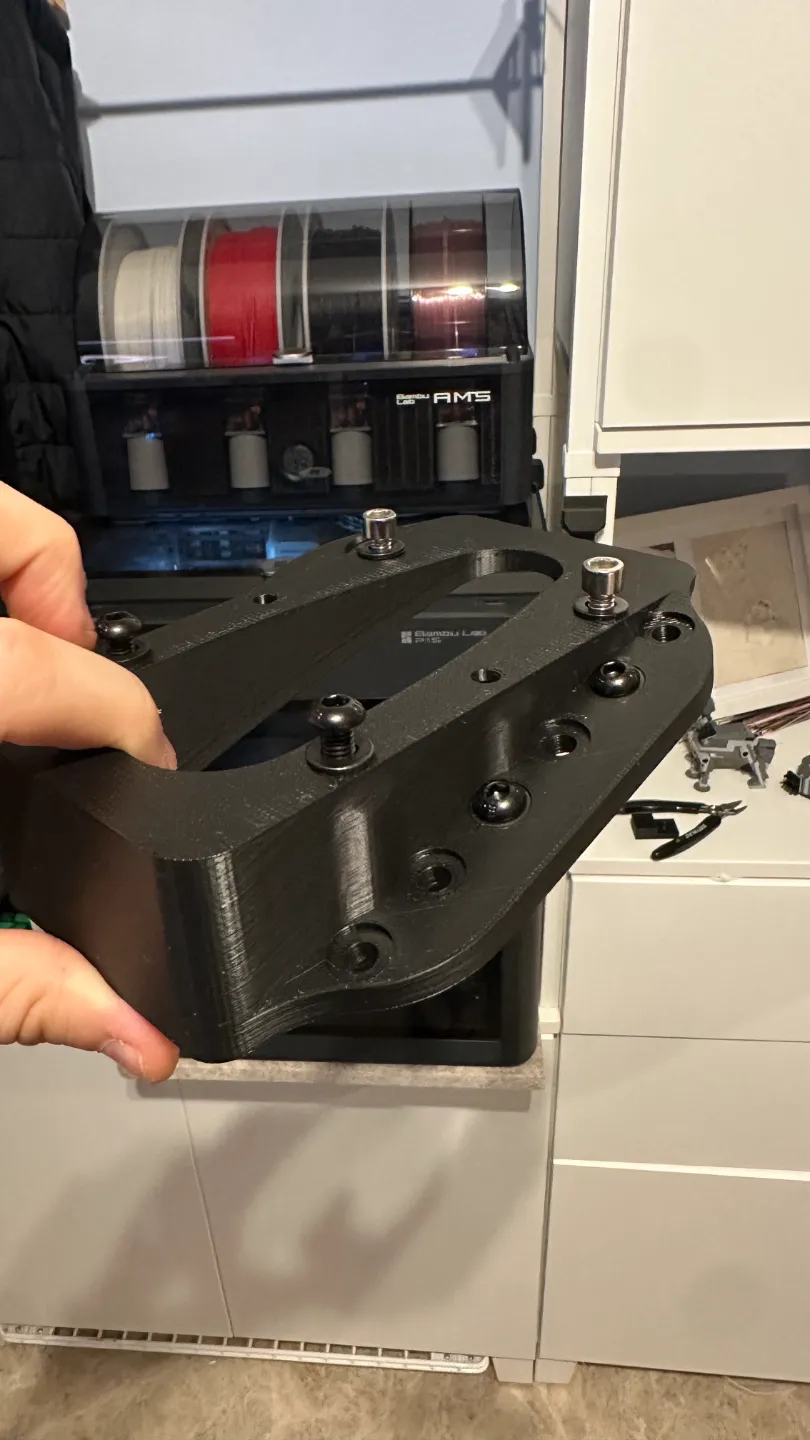

• The rig side has 12x6mm screws, 20mm apart, with 12mm washers.

This is designed to bolt to 8040, but it offers plenty of adjustment options, I'd say the minimum recommended screws on any side would be 4, and I wouldn't use it for anything other than throttle and clutch, it's been running solid so far, but I wouldn't risk it.

PS: Included comes a tolerance check for nuts, washers, and bolts, they all should fit VERY tight, so they don't move, rattle, or distribute the pressure incorrectly… But they should not bend or damage the piece.
