IKEA Metal Plus Cam Hole Cover (Easy Remove) - Free 3D Print Model

Search models, users, collections, and posts

GrizzlyBiz

Household>Other House Models

IP Report

Print Profile(2)

All

P1S

P1P

X1 Carbon

X1E

A1 mini

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

0.2mm layer, 2 walls, 15% infill

Designer

8 min

1 plate

4.5(4)

Longer Phillips base - 0.2mm layer, 2 walls, 15% infill

14 min

1 plate

5.0(2)

Open in Bambu Studio

Boost

Released

Description

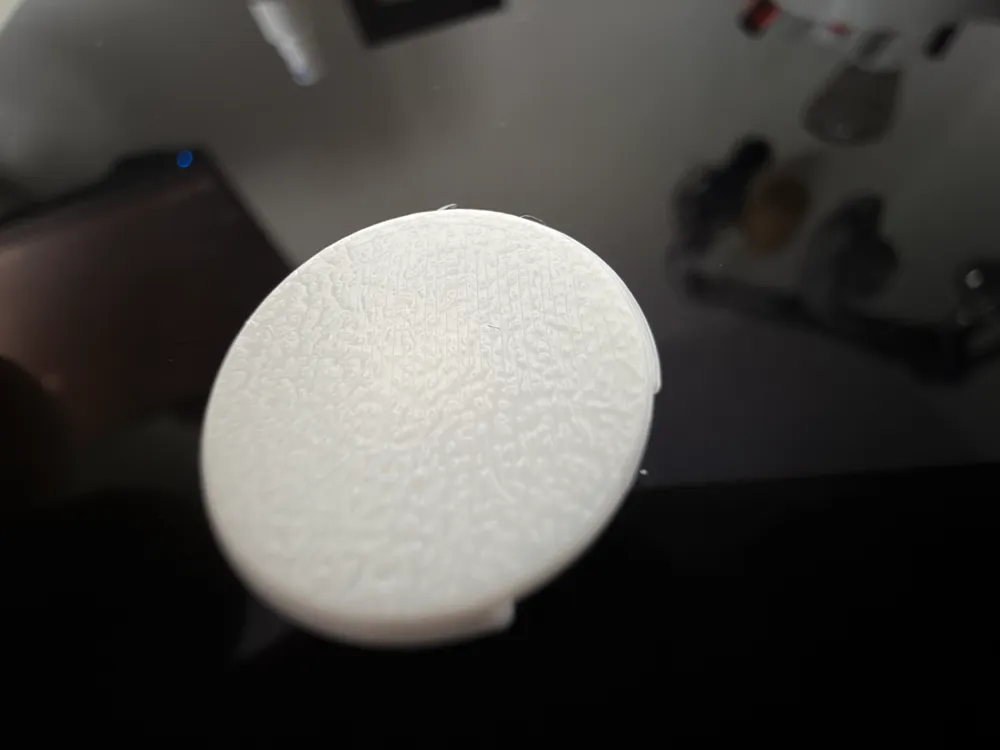

Just a simple IKEA metal cam lock cover. Tolerances should hold it in snug enough not to fall out though if it doesn't hold let me know and I can add some little spikes for pressure. Added a notch to the cover portion for easy removal as I know removal is a big thing for me in case I need to move and want to take it all apart again.

Feedback welcome and appreciated as always!

Comment & Rating (8)

@jonaszM

Print Profile

0.2mm layer, 2 walls, 15% infill

Prints well, does as the job described. Had some issues with the Phillips base being a little shallow so had to extend it to be useful for all Cams including those that are inset a little bit. Will upload profile with longer Phillips base.

The profile uploader has replied

@GrizzlyBiz

Thanks for the feedback and alternative profile! I know I made mine a little shallow because the metal IKEA ones I have are shallower in one direction of the Phillips + than the other. The ones Walmart uses for their stuff are a bit different as well. Either way I hope they helped cover those ugly spots! :P
