Dual Fidget Spinner Ring Collection

Introducing The Dual Fidget Spinner Ring Collection

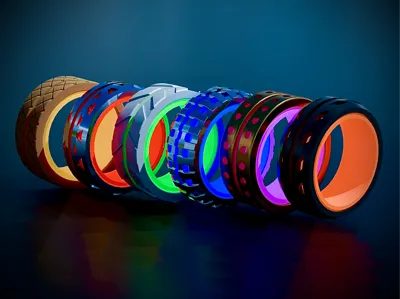

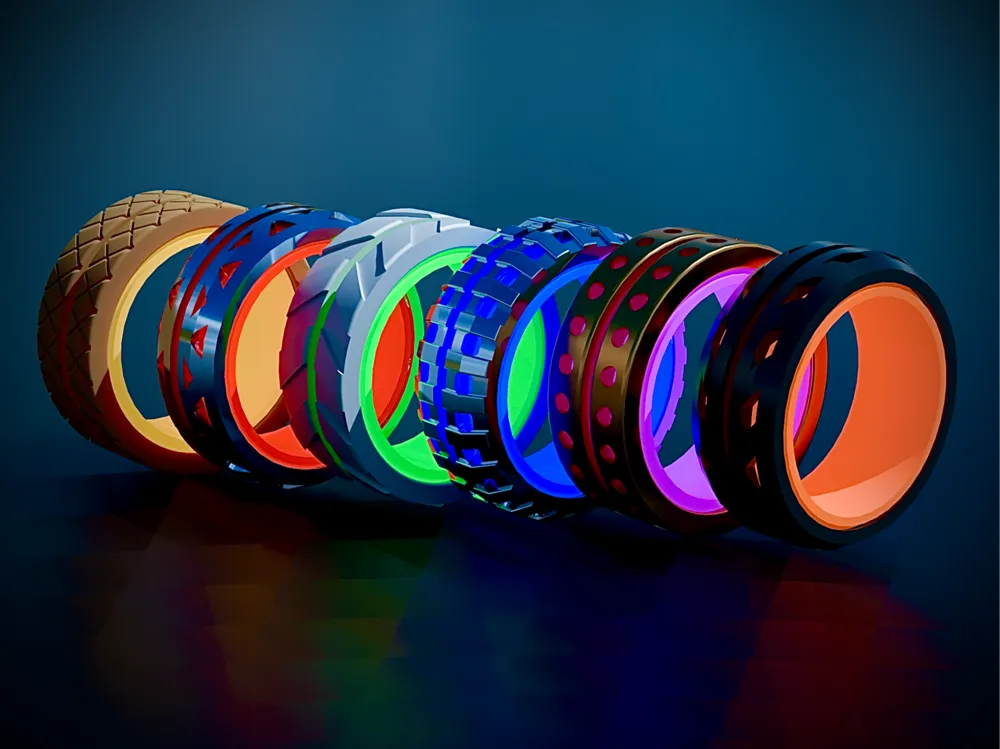

This is a set of 6 Dual Fidget Spinner Rings.

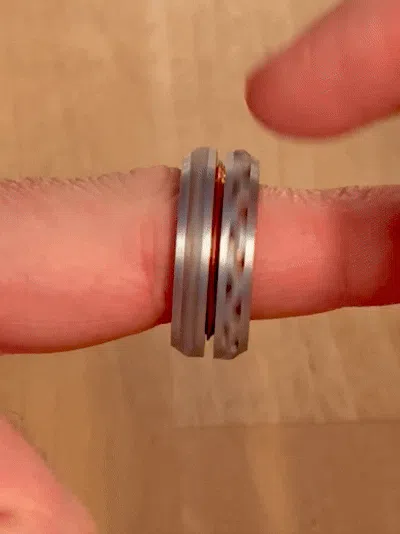

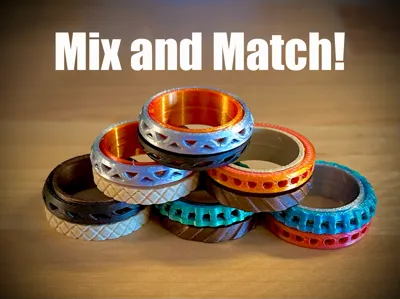

Each ring has 2 independent outer spinning rings. Mix and match to create you own unique ring!

All rings Available in US sizes 5 - 15.

Sizing

US Size | Inner Diameter (mm)

5            | 15.7 mm

6            | 16.5 mm

7            | 17.3 mm

8            | 18.1 mm

9            | 19.0 mm

10          | 19.8 mm

11          | 20.6 mm

12          | 21.4 mm

13          | 22.2 mm

14          | 23 mm

15          | 23.8 mm

Printing

• Print Profiles attached contain all sizes and are pre colored.

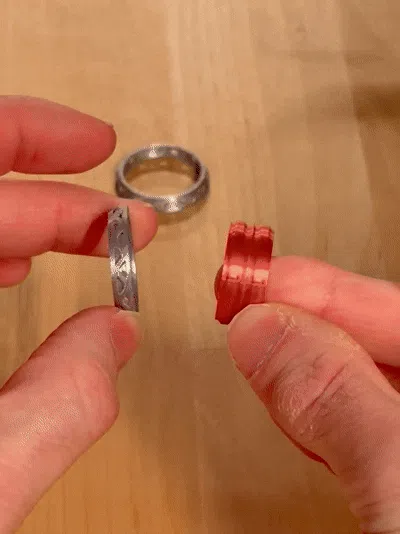

• Rings print in 3 pieces. Easily snap them together as shown in the 3rd image. You should align one side and snap the other side on.
• Do Not force the pieces together if it is taking to much force. Instead realign and try again.
• To disassemble reverse the assembly steps, hold one side firm and remove the outer ring at an angle.
• Print Profiles print each part separately to save time and filament with AMS.
• Create your own colorway by matching different filament to each color group.
• Use your fanciest or shiniest filaments for best results.
• All rings use the AMS for multicolor, but can be made single color or printed separately.
• Rings are designed to be printed at a 0.2mm layer height with a 0.4mm nozzle.
• 0.2mm nozzle not needed, but may give better results at the expense of time.
• Printing times are around 20 minutes (0.2mm layer height with a 0.4mm nozzle).
• Rings may run tight due to interior roughness and print tolerances, be prepared to go up a size if it is too tight.

Improving Your Spin

• To find the best spin you can separate the pieces, rotate/flip the parts, and put them back on. There is usually a combination with the best spin.
• Remove any bumps around the z seems with a knife or deburring tool.
• Fine tune your elephants foot compensation in the the print profile.

Please share your Colorways!
