Emporia Vue Breaker Labels

Emporia Vue 3 Breaker Labels

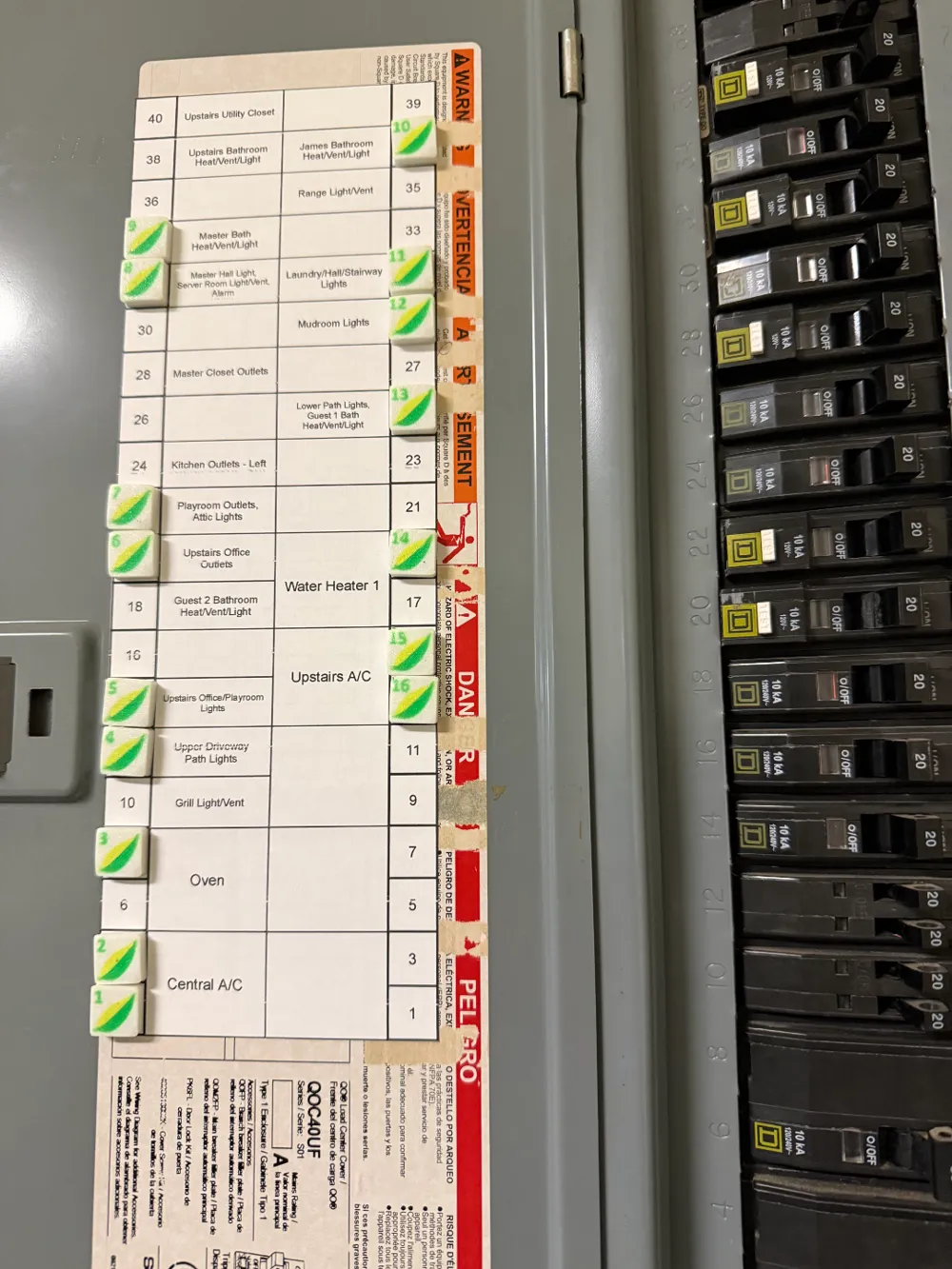

•  Needed a better way to organize and remember which Emporia Vue 3 smart energy monitors were on which breaker

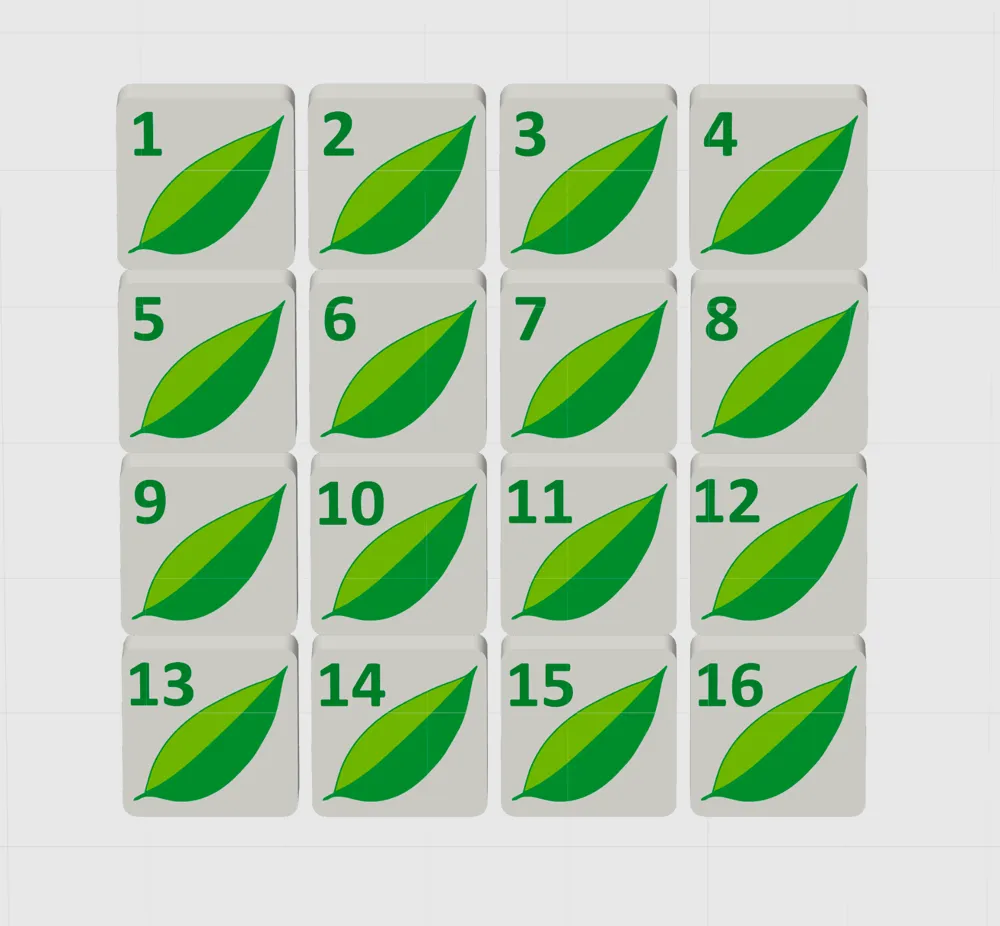

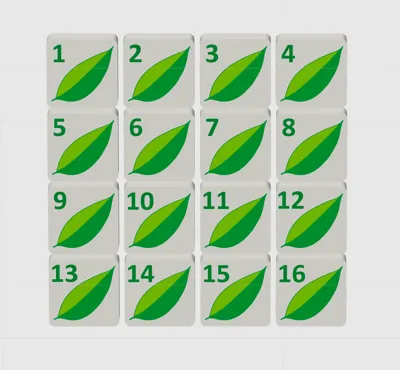

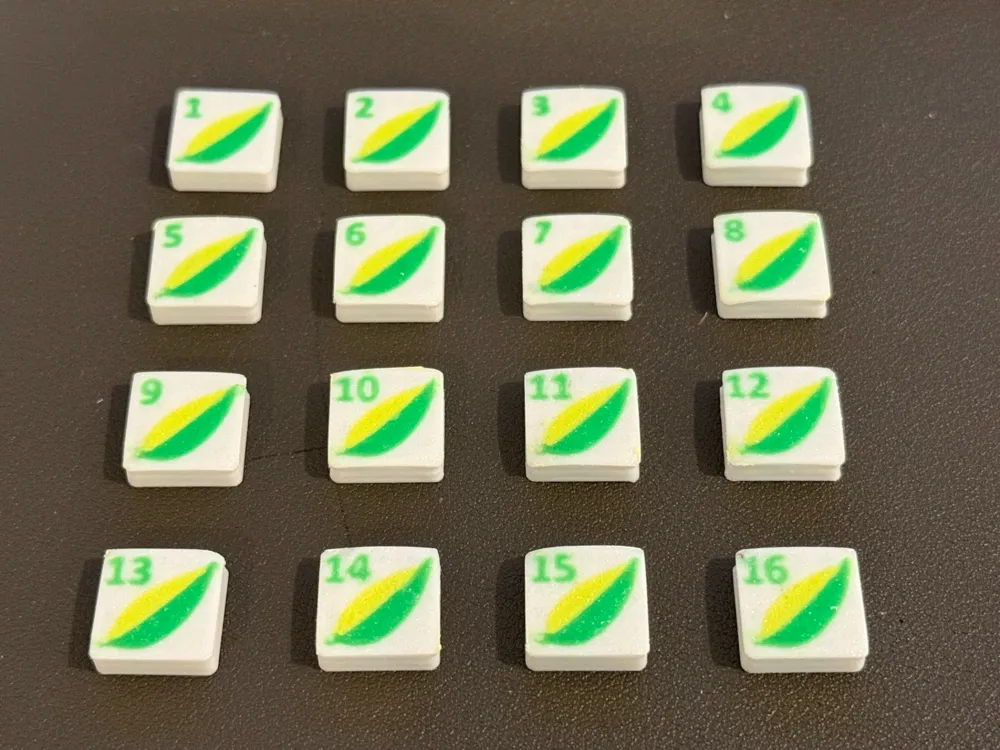

• These are 0.5" x 0.5" labels (Emporia leaf, numbered 1-16) with a posterior magnet that holds well to the breaker panel metal door
• Low profile to be able to close panel door without any interference

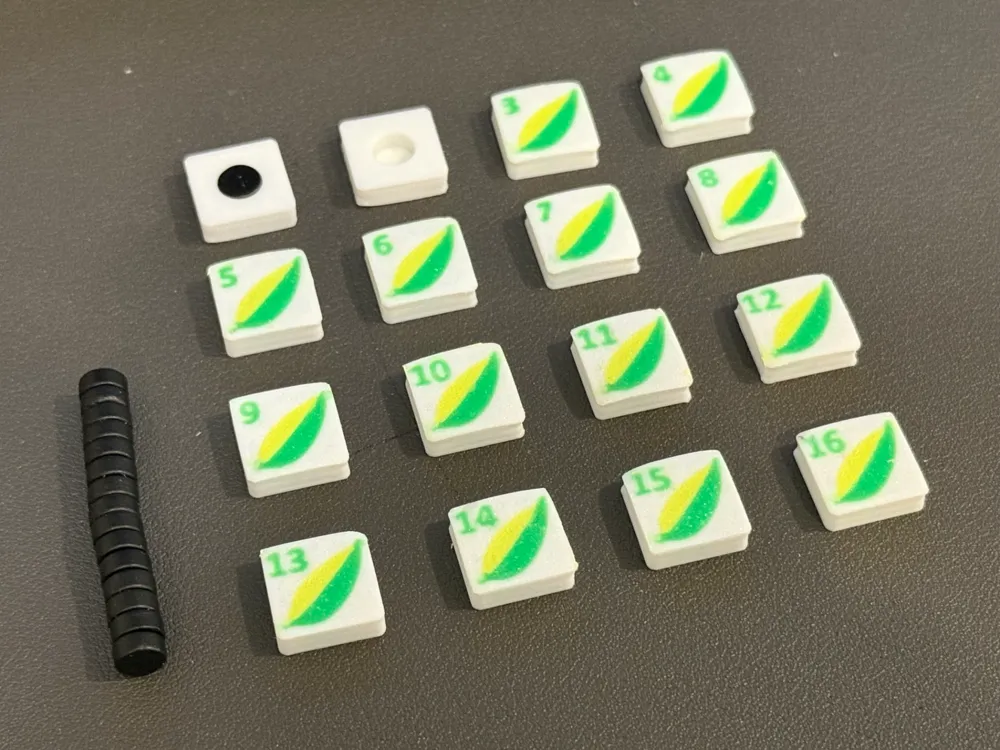

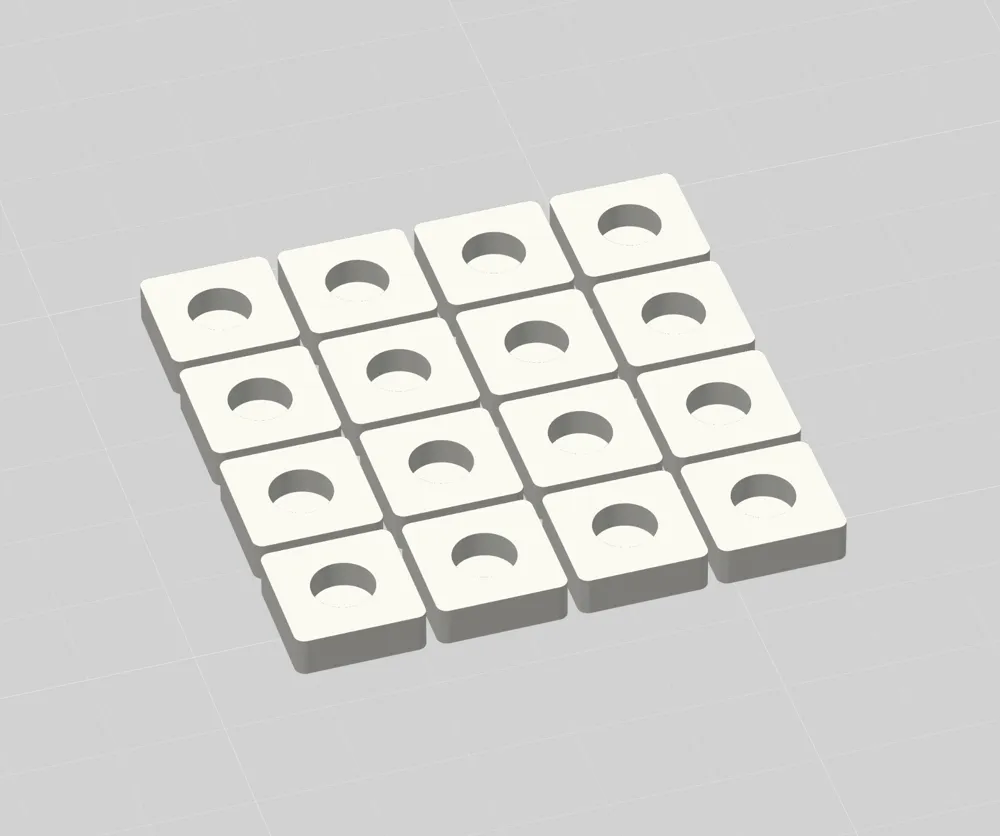

• Uses 6mm x 3mm magnets (link below) that press fit into the back (actual size of my magnets ended up being 6 x 2.75 mm)
• Tested on 0.4mm nozzle - Not recommended, due to the small size of the numbers
• Recommend 0.2mm nozzle - Best results on 0.06mm print profile (decent on 0.08 and 0.12)

Link to 6x3mm Neodymium Magnets:
