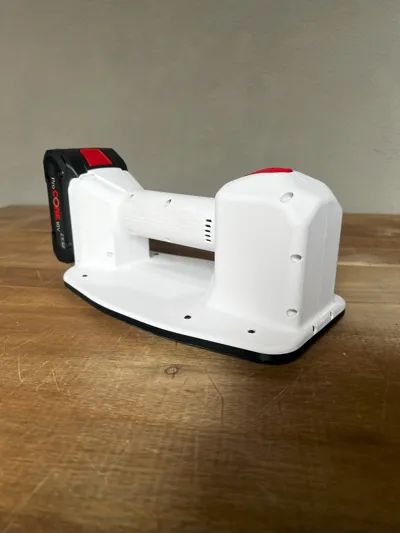

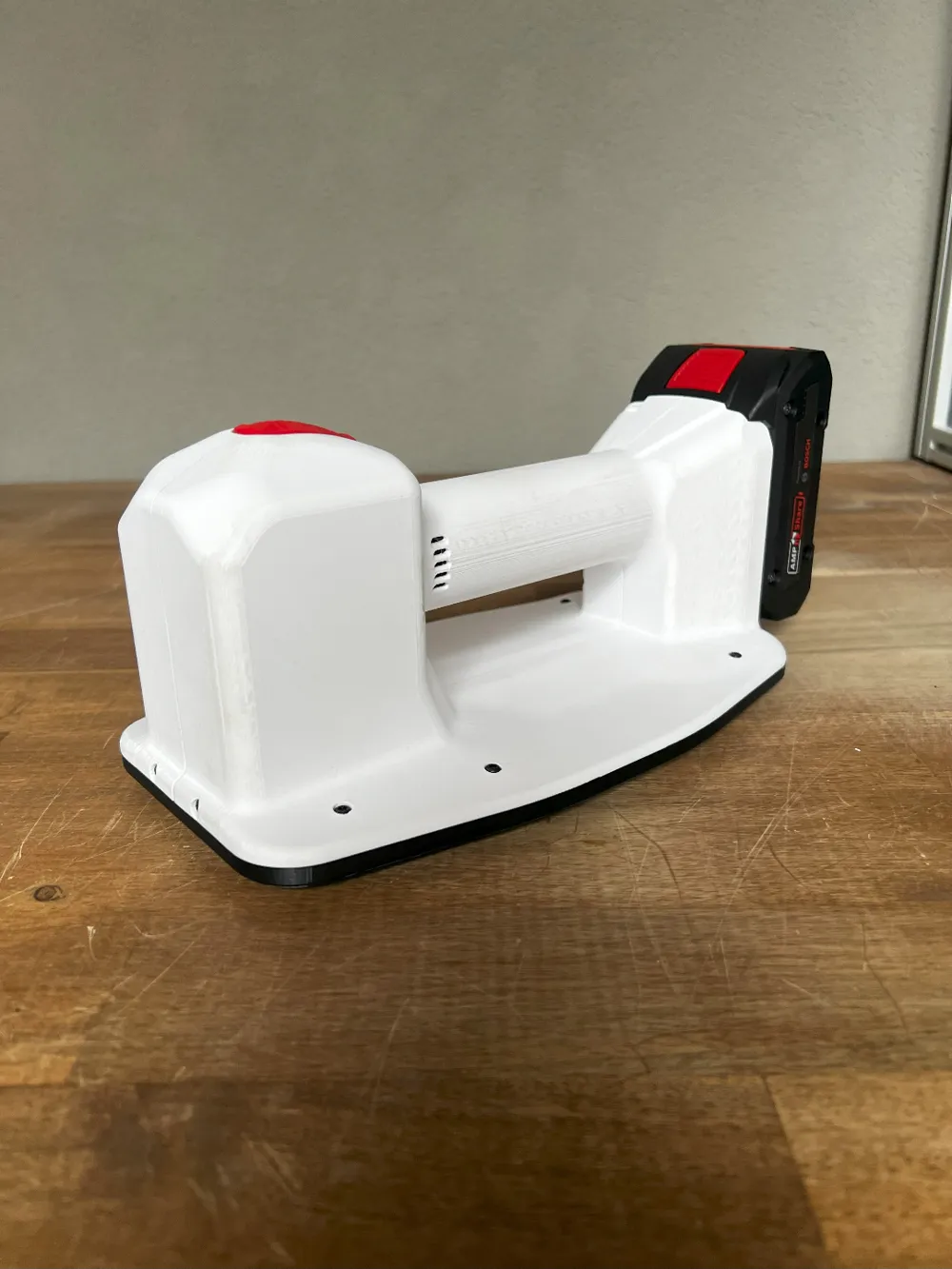

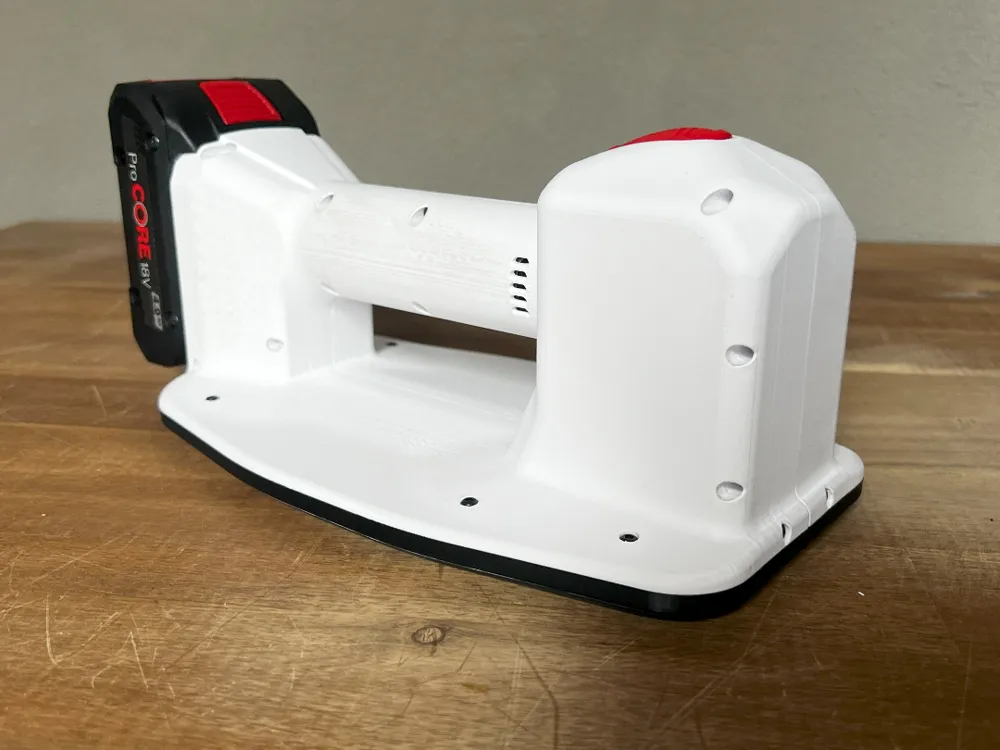

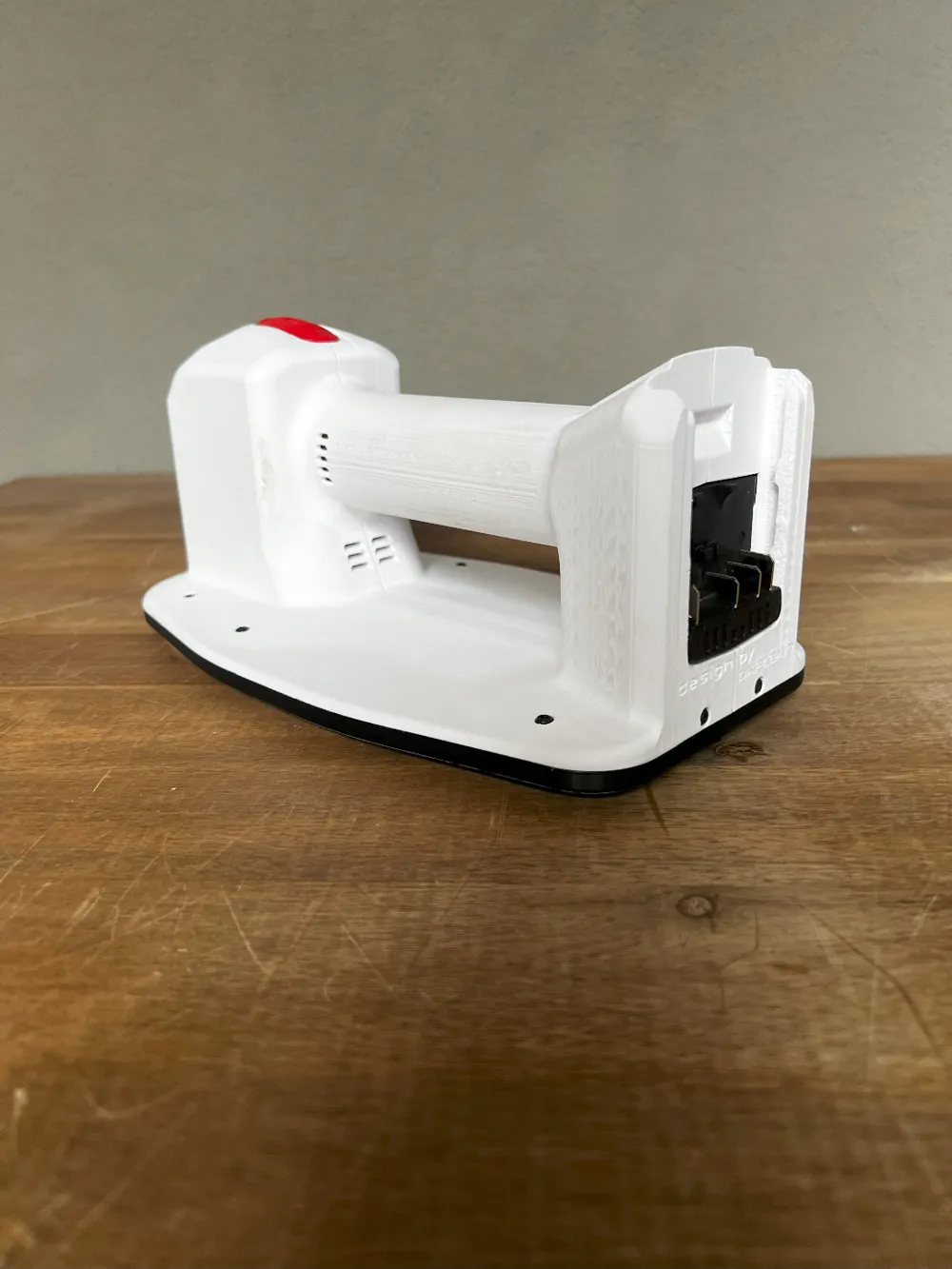

DIY vacuum lifter designed for Bosch Professional Batterys.
→ updated model: https://makerworld.com/en/models/1581104-diy-vacuum-lifter-v2-bosch-professional-compatible#profileId-1664021
The electronics are original Bosch Professional spare parts.

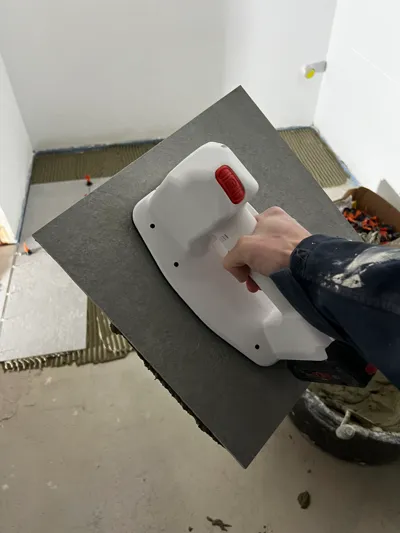

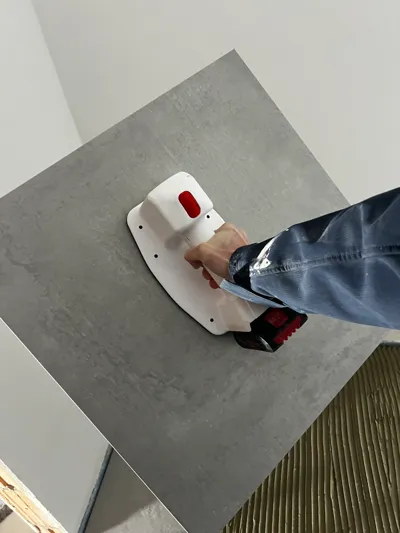

Successfully lifted max. 60 kg in a test. Higher loads have not been tested.
For own slicing i reccomend 7 wall lines and 7 top and bottom layers for airtightness/stiffness
I Used Bambulab HF Petg (black and white) and TPU 95A HF (black)
Weight of vacuum lifter with 4 ah Procore →1.655KG
Weight without battery →1.093KG
Warning: Complex Build Process.
Disclaimer: Build and Use at Your Own Risk
This DIY 3D-printed vacuum lifter is designed for experimental and personal use only. The construction, modification, and operation of this device are entirely at the user's own risk. The creators, designers, or distributors of this design assume no liability for any damage, injury, or loss resulting from its use.
Use with caution:
- Ensure all components are properly assembled and securely fastened.
- Do not exceed the recommended weight capacity.
- Always use protective equipment and follow safety guidelines.
- Regularly inspect for wear, damage, or failure.
By building and using this device, you acknowledge that you assume full responsibility for any consequences that may arise. If unsure, consult a professional before use.
