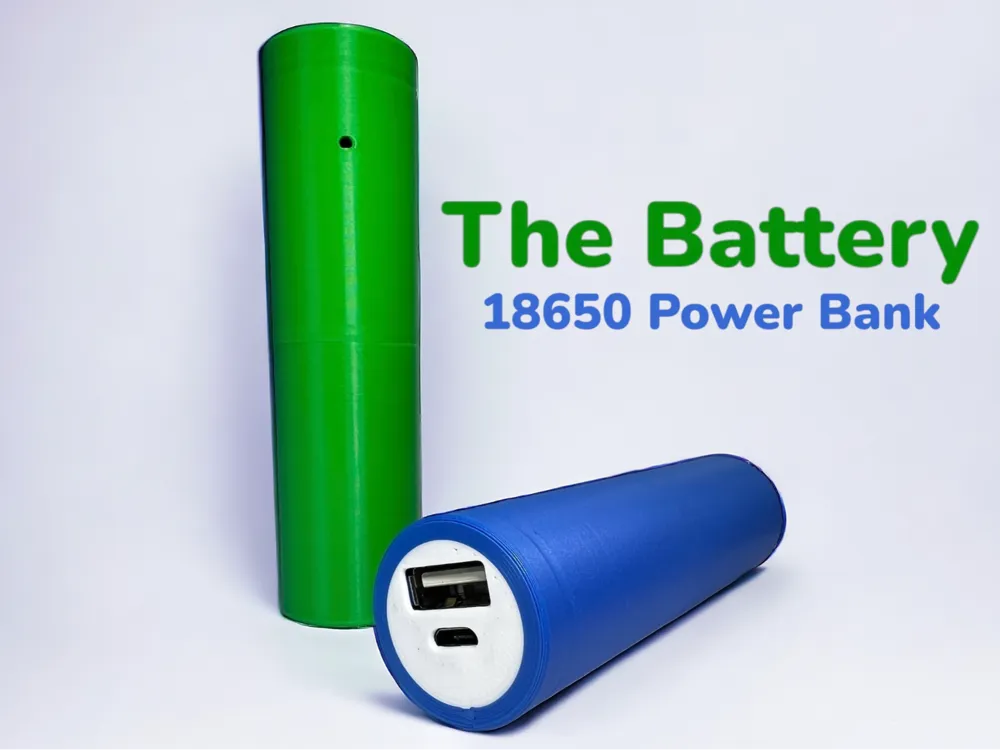

The Battery – 18650 Power Bank USB-C (Micro USB)
IP Report
Print Profile(1)
0.12mm layer, 2 walls, 15% infill
Designer
15.3 h
8 plates
Open in Bambu Studio
Boost
117
230
24
8
228
71
Released
Bill of Materials
List other parts
- 3400mAh 18650 Battery x 1: https://a.aliexpress.com/_oCbWRfQ
- Micro USB 134N3P Module with Soldered Contacts x 1: https://a.aliexpress.com/_omN8wCc
- Micro USB 134N3P Module x 1: https://a.aliexpress.com/_op6PIGG
- USB Type-C 134N3P Module with Soldered Contacts x 1: https://a.aliexpress.com/_oCPyrqh
- USB Type-C 134N3P Module x 1: https://a.aliexpress.com/_oE4tNQp
Description

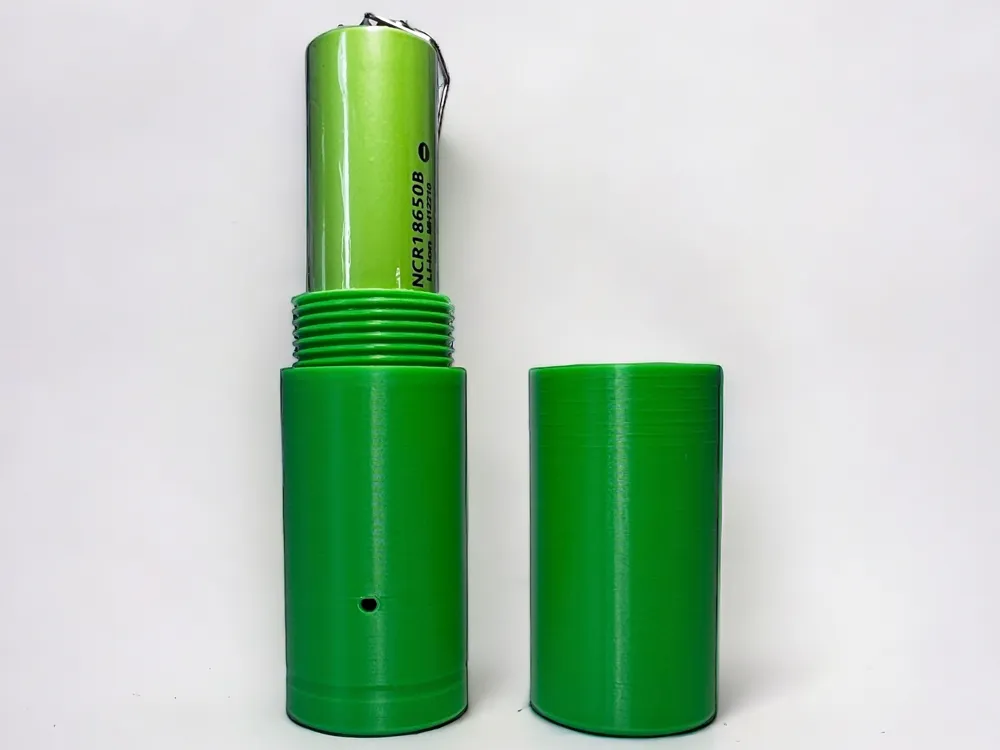

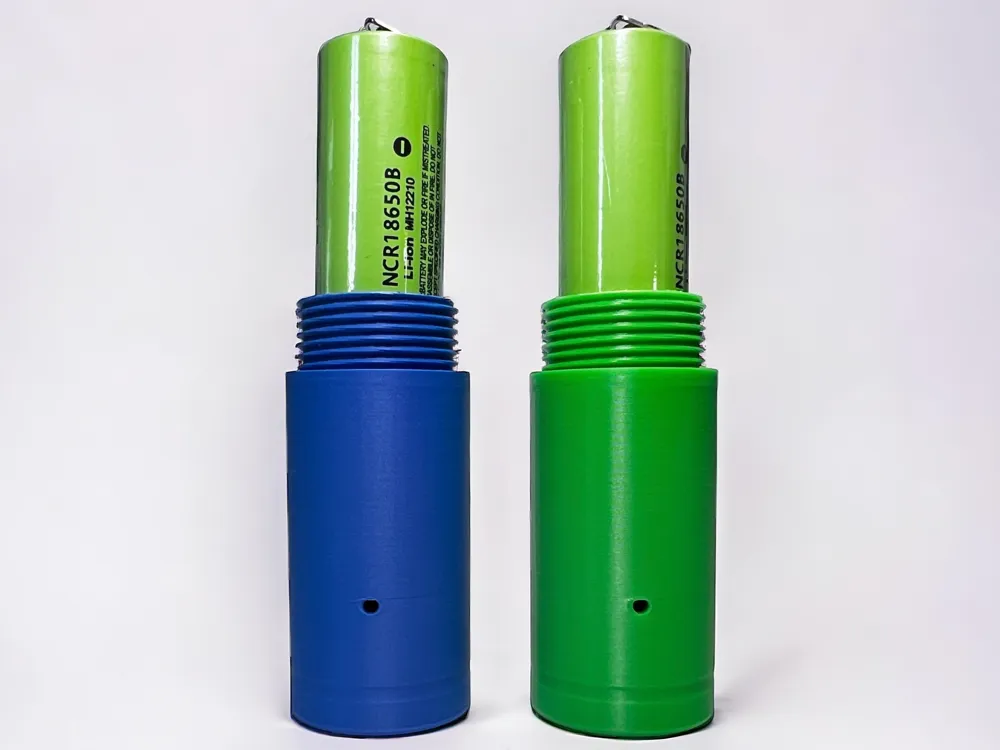

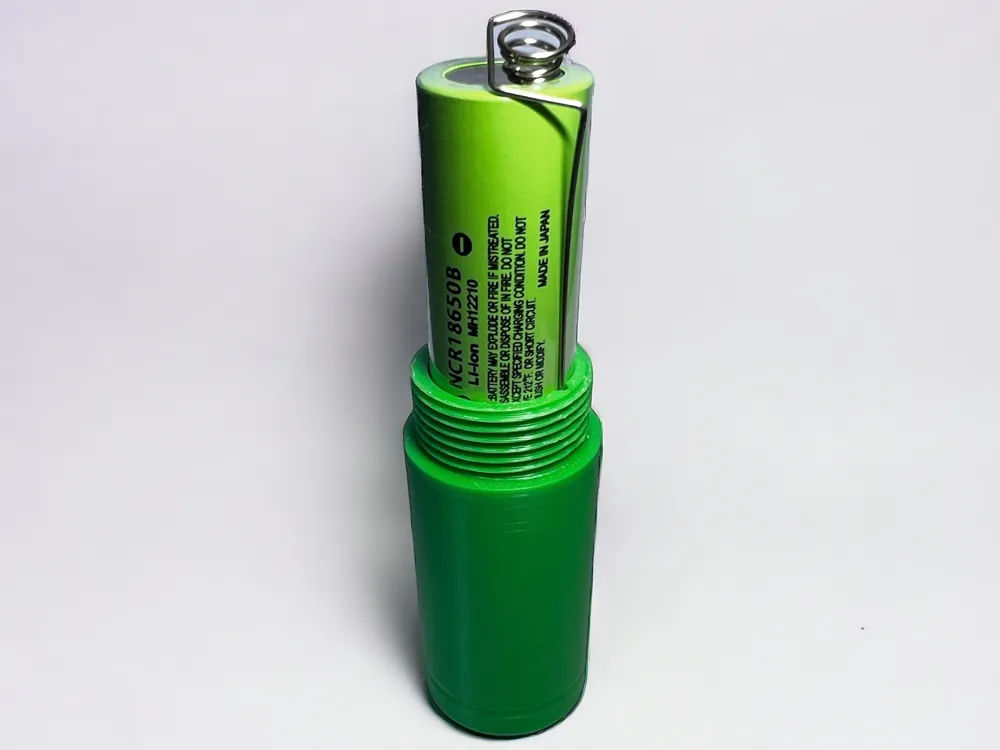

Minimalistic single-cell DIY power bank. No screws, no glue, no soldering design is inspired by the 18650 battery shape. The threaded connection makes it easy to remove the battery and reuse it for other purposes.
Print in 0.12 – 0.16 mm layer height for better thread quality.
Version 2 changes:
- Added 3 new variants: USB-A + USB-C, single USB-C, single USB-C flipped
- Added files without an LED hole
- Significantly improved STL file quality
Note: The USB Type-C versions haven’t been tested yet. Please let me know if they work for you. I’ll be happy to make adjustments if needed.
Components for the no-soldering option:
- 3400mAh 18650 Rechargeable Lithium Battery: AliExpress
- Micro USB 134N3P Module with Soldered Contacts: AliExpress
- USB Type-C 134N3P Module with Soldered Contacts: AliExpress
If you prefer soldering:
- 3400mAh 18650 Rechargeable Lithium Battery: AliExpress
- Micro USB 134N3P Module: AliExpress
- USB Type-C 134N3P Module: AliExpress
- 23 – 25 AWG wires
Please share your makes and feel free to remix my design.
