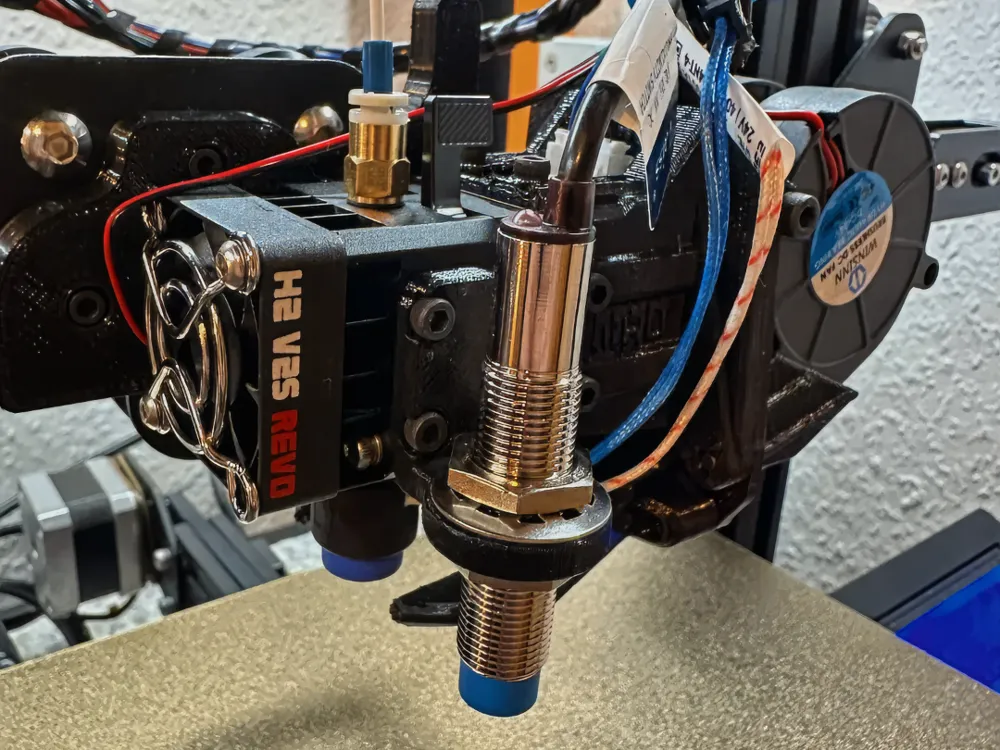

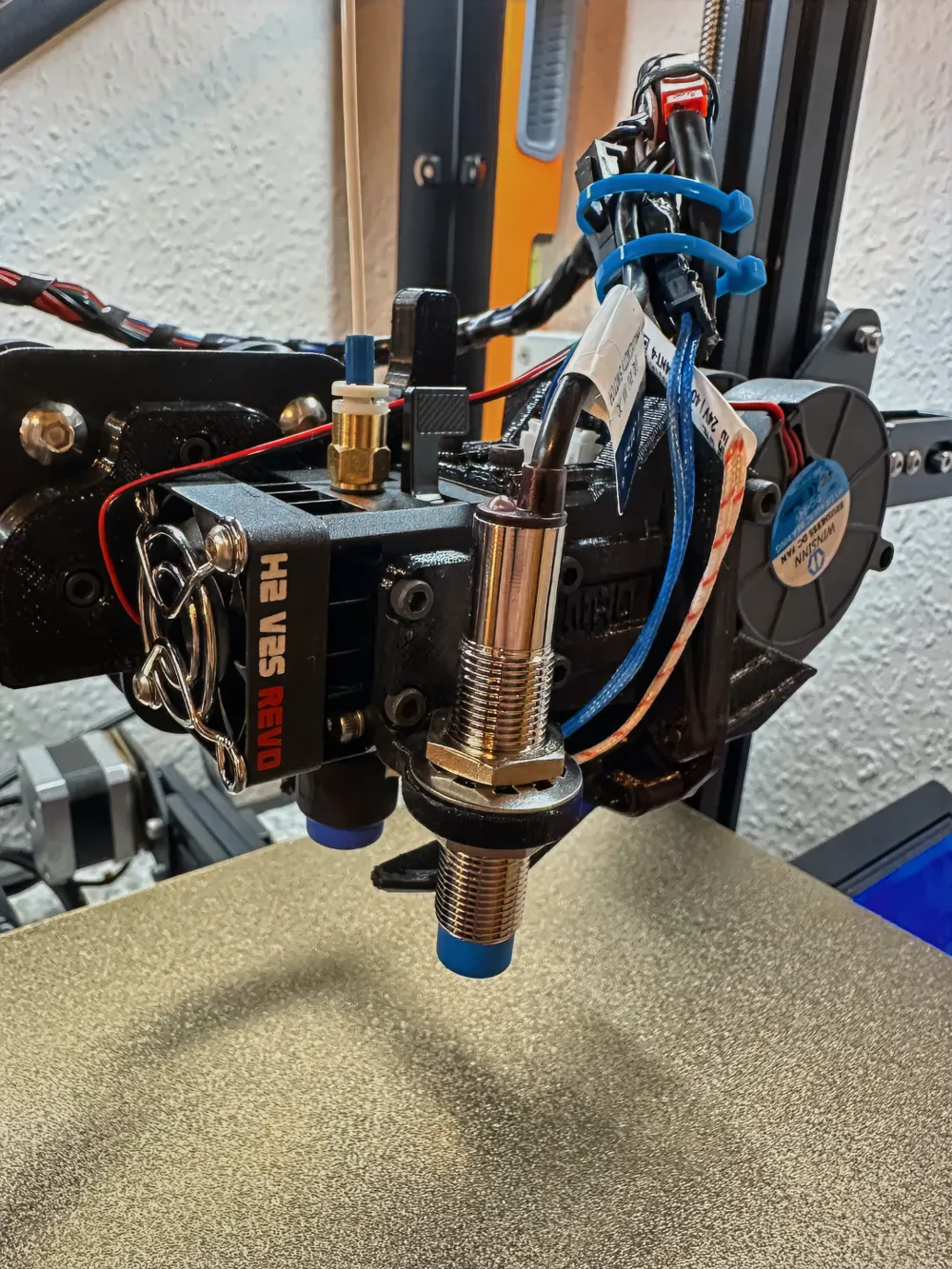

Inductive probe mount for BIQU H2 V2 / V2S / Revo

Supported Hardware

The following versions and probes are supported:

• 8mm: LJ8A3-2-Z/BX
• 12mm: LJ12A3-4-Z/BX
• 18mm: LJ18A3-8-Z/BX

Offsets

• X: 2
• Y: -33

In case you want to preconfigure Marlin using Configuration.h, you can use:

#define NOZZLE_TO_PROBE_OFFSET { 2, -33, 0 }
