ASME Pressure Vessel - Simple
Print Profile(1)
Description

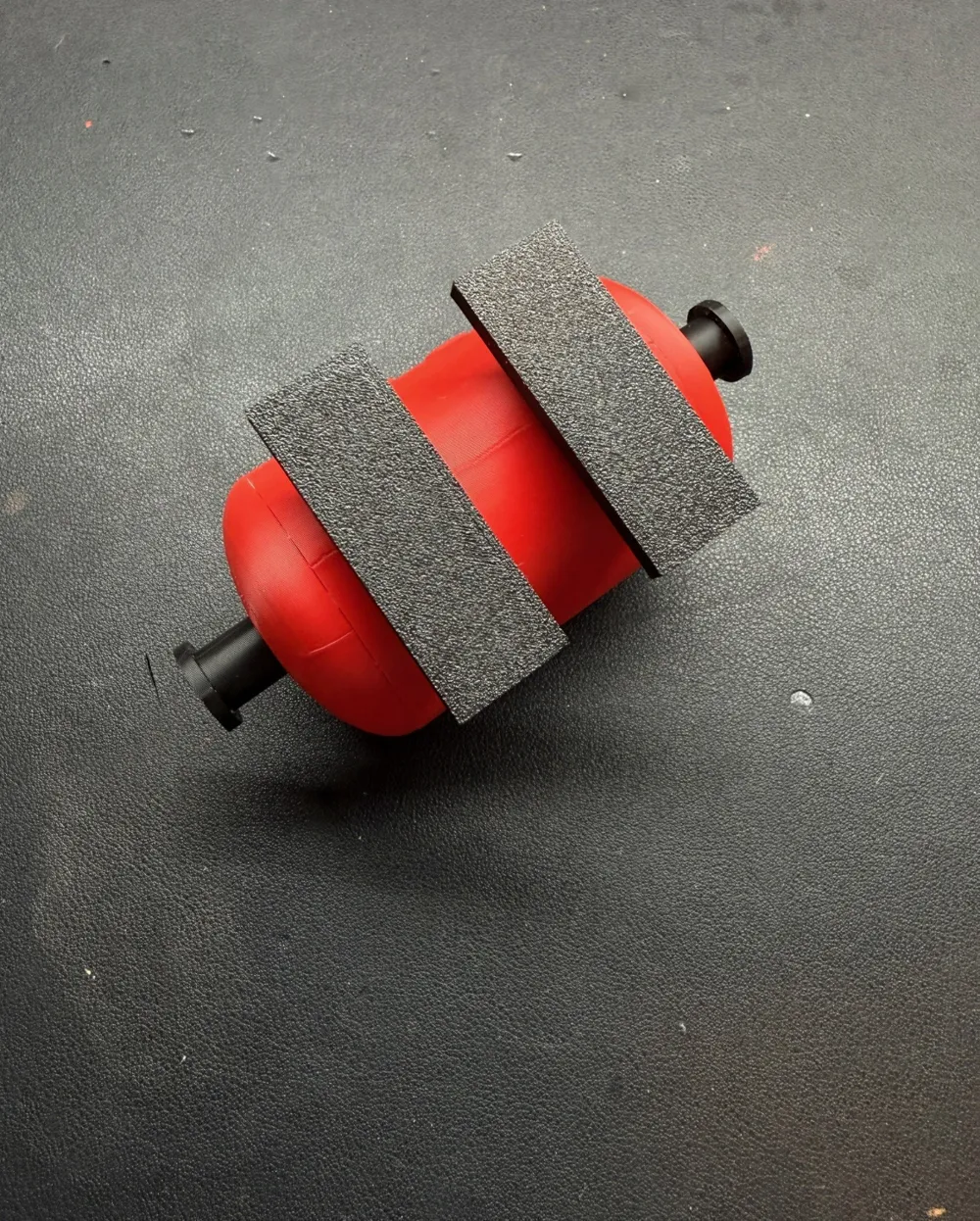

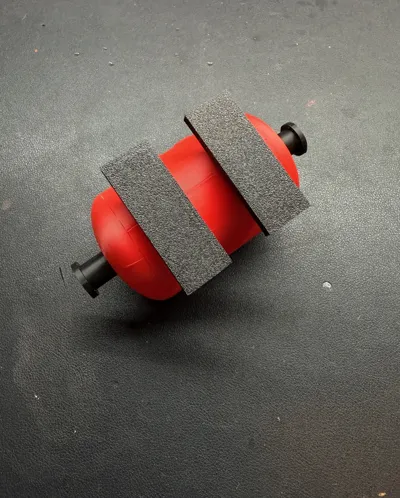

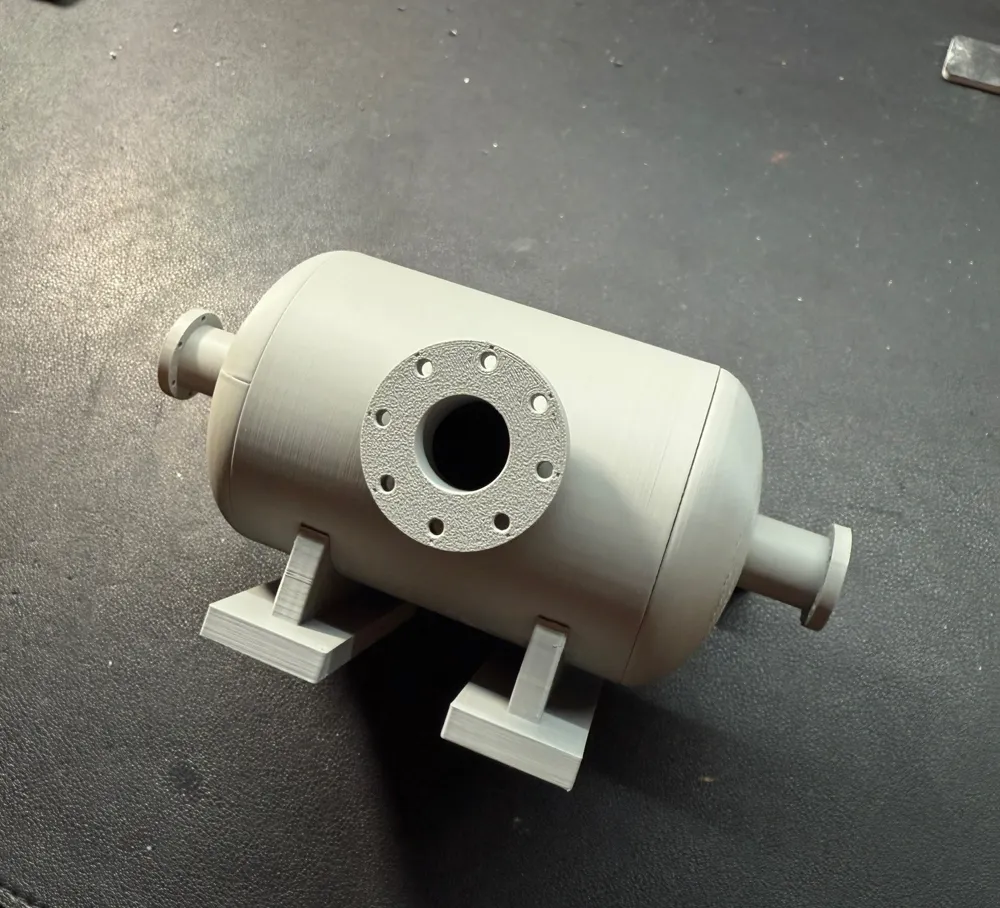

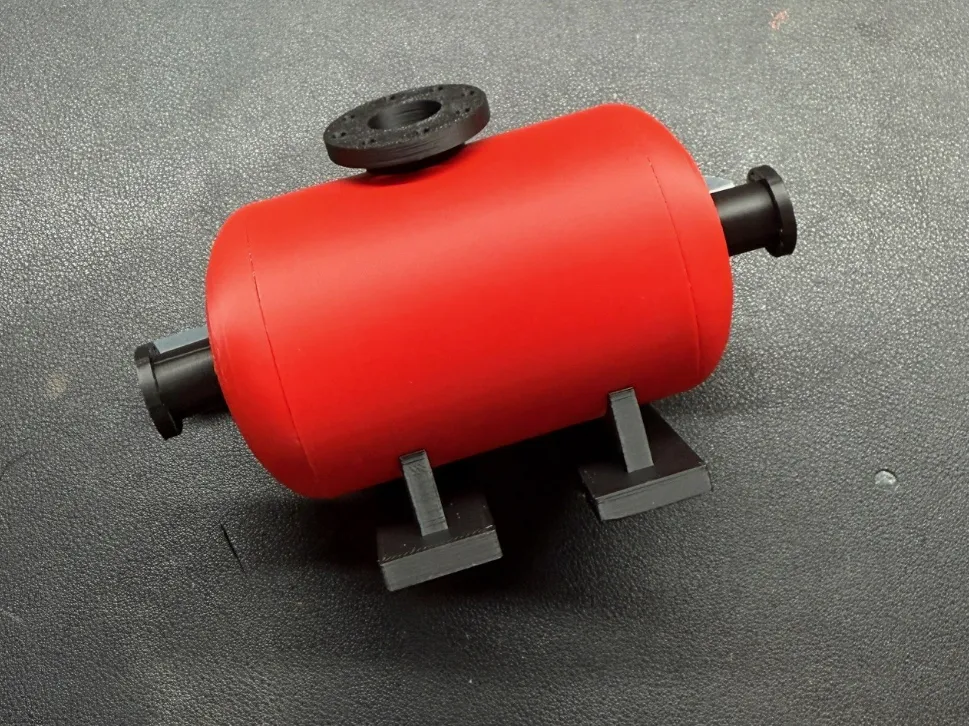

Very simple model of an ASME pressure vessel. Gives an idea of the most common parts when they are manufactured for use in a wide range of industries, from breweries to chemical plants. This is a rough, quick print model and assembly is pretty straight forward. You may need to use a file on the nozzle installation holes, they are meant to be a tight fit so they will stay in place while you glue. Use a very very fine line or even scattered drops on the head to shell connections, and do so on the inside edge. (so when you push them together the glue doesn't come out the visible edge. Enjoy and if you know anyone in the industry, you can even use the text tool in Bambu to add their name, title or even company. (do not forget to embed at least 1mm or the edges wont wrap into the cylinder side).
