Improved Activated Carbon Filter for P1S and X1C
Print Profile(1)
Description

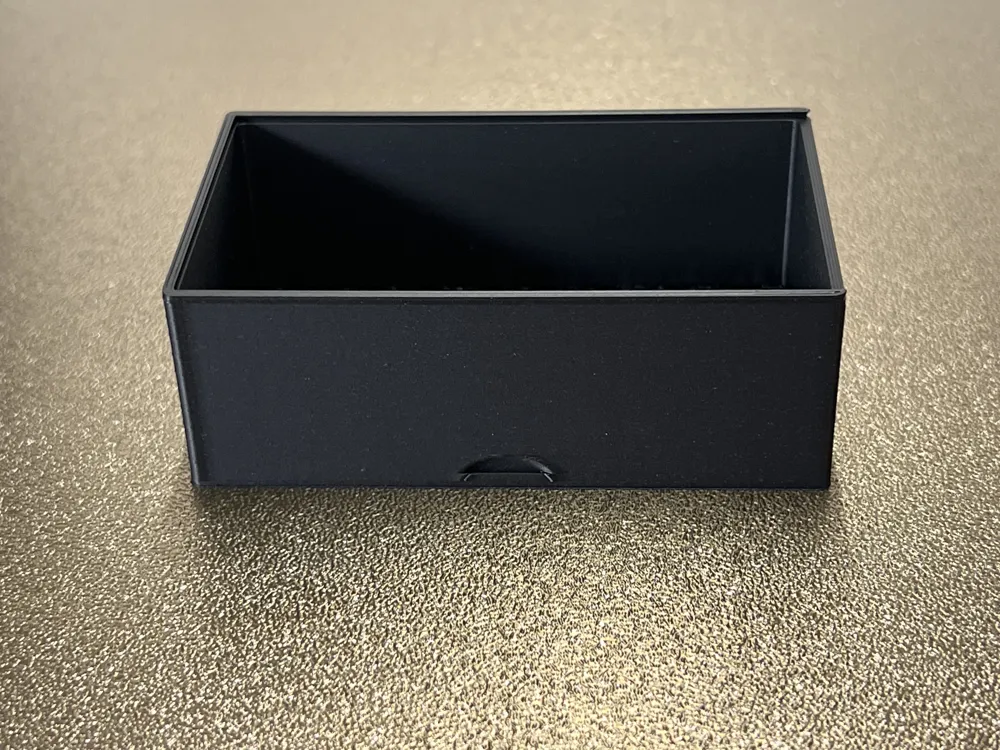

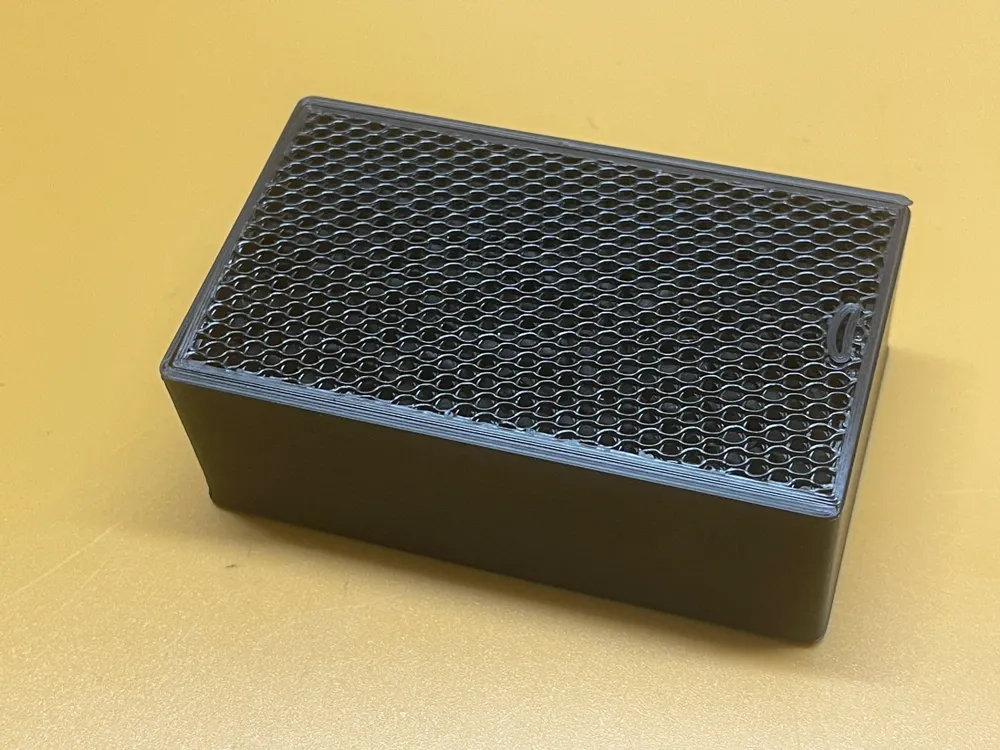

Refillable Carbon Filter Box

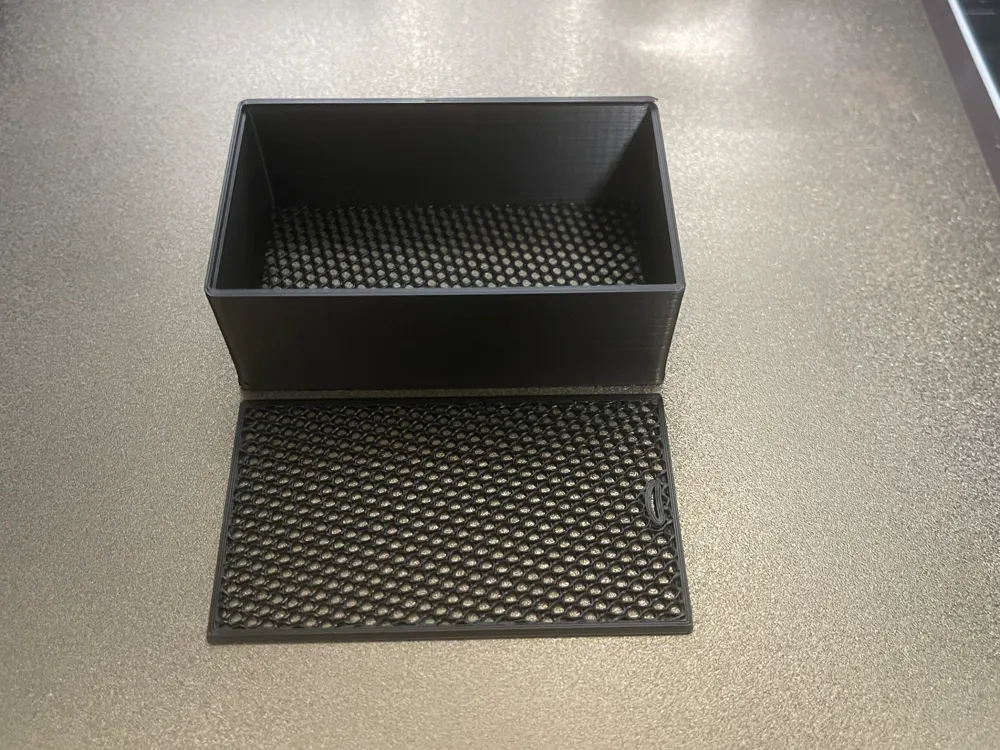

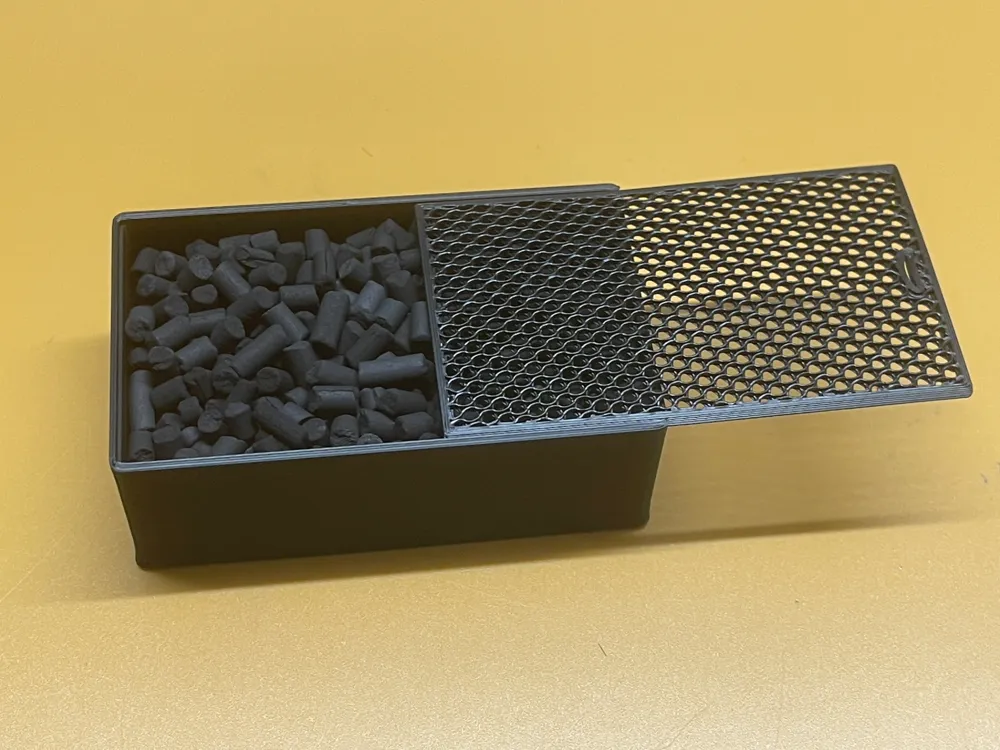

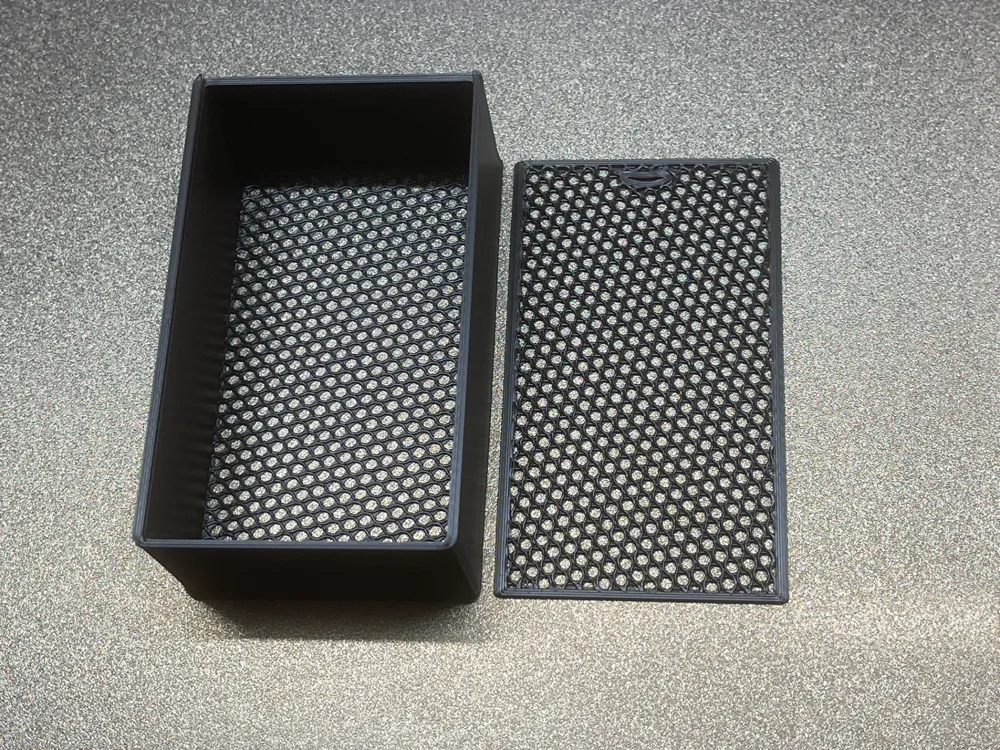

Designed with a sliding lid and a fingernail slot for easy opening, and now updated with a side recess for easier removal when installed.
This filter box is optimized to hold the maximum amount of activated carbon, effectively reducing odors and harmful fumes when 3D printing plastics.
- Print in ABS, PETG or other higher temp. filaments.
- 0 (Zero) top & bottom layers, choose your infill and density. photo is set to 30% honeycomb.
- Unchecked infill combination, and optional only 1 wall on top surface.
- Use acid-free activated carbon.

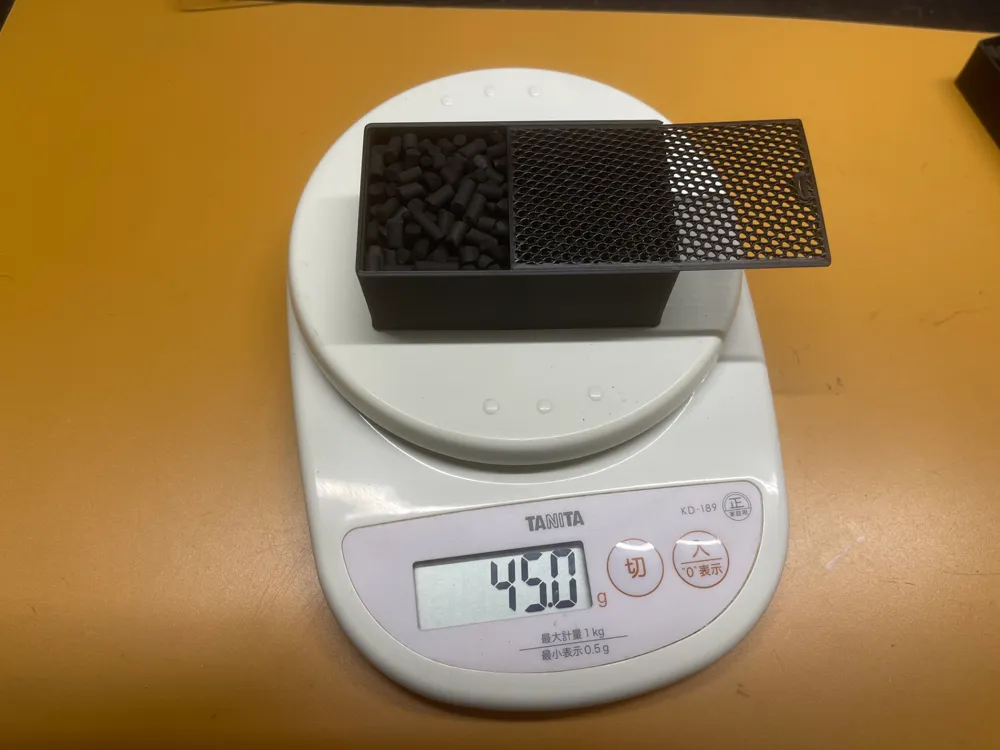

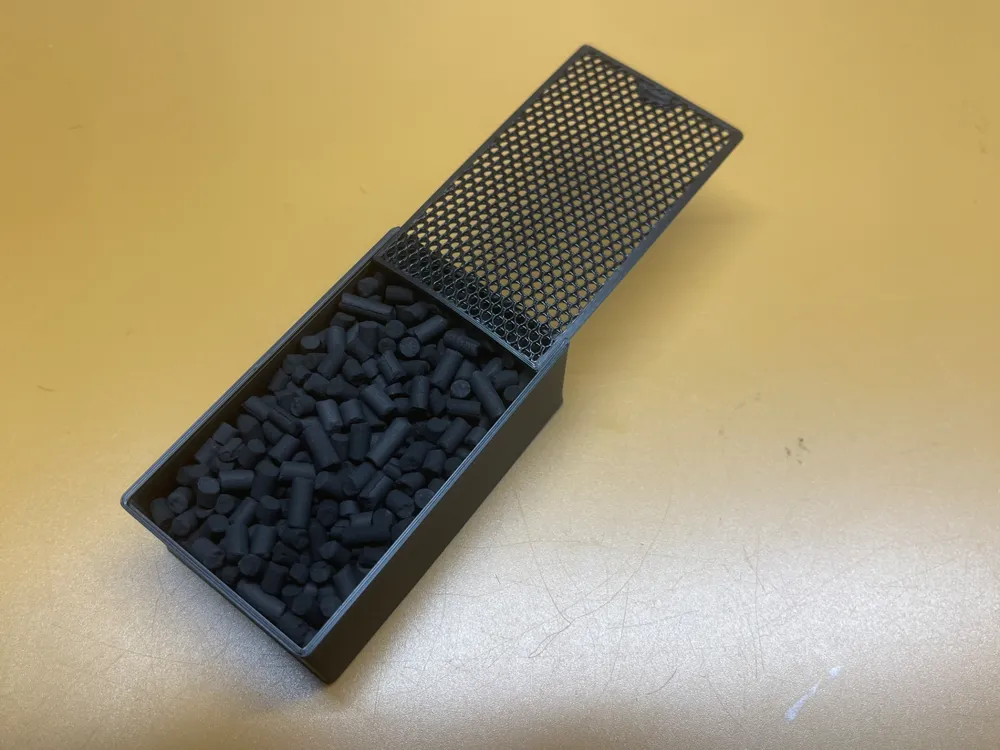

- Box capacity is 45g of activated carbon 4mm pellets. Refill after 600 hrs, or if it starts to smell of plastics.
