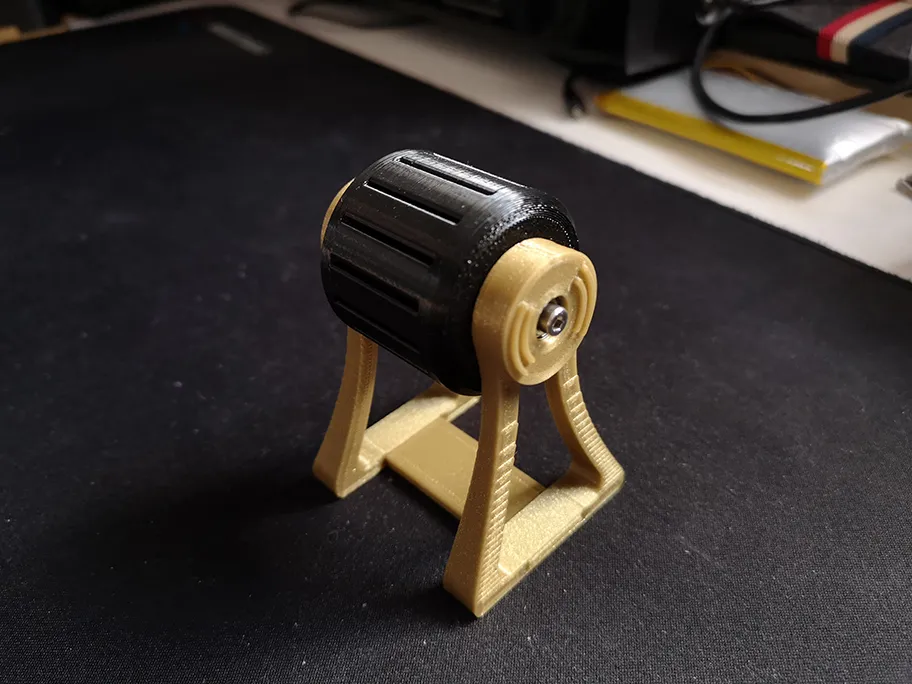

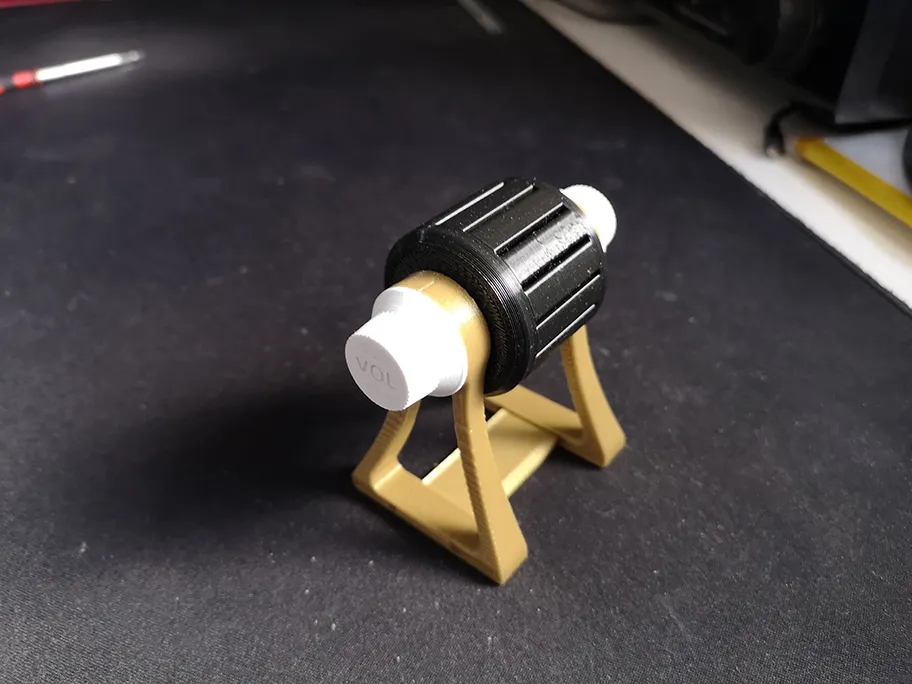

Guitar Pick Rolodex

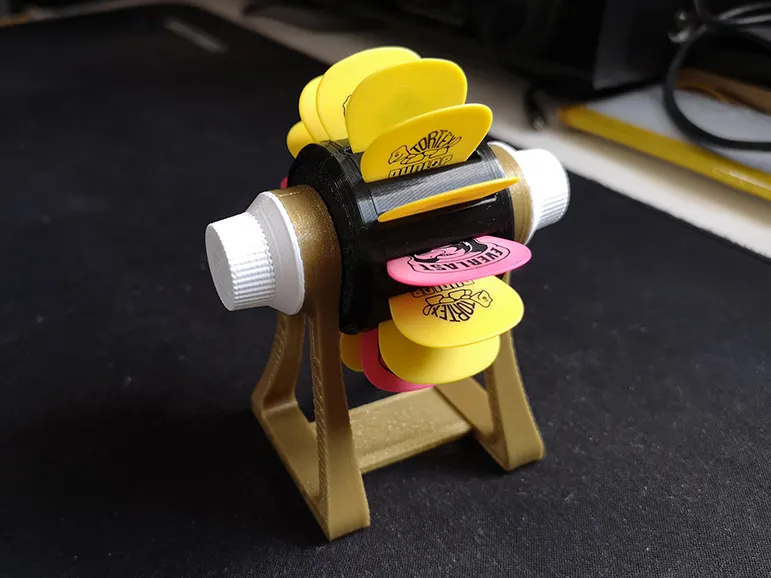

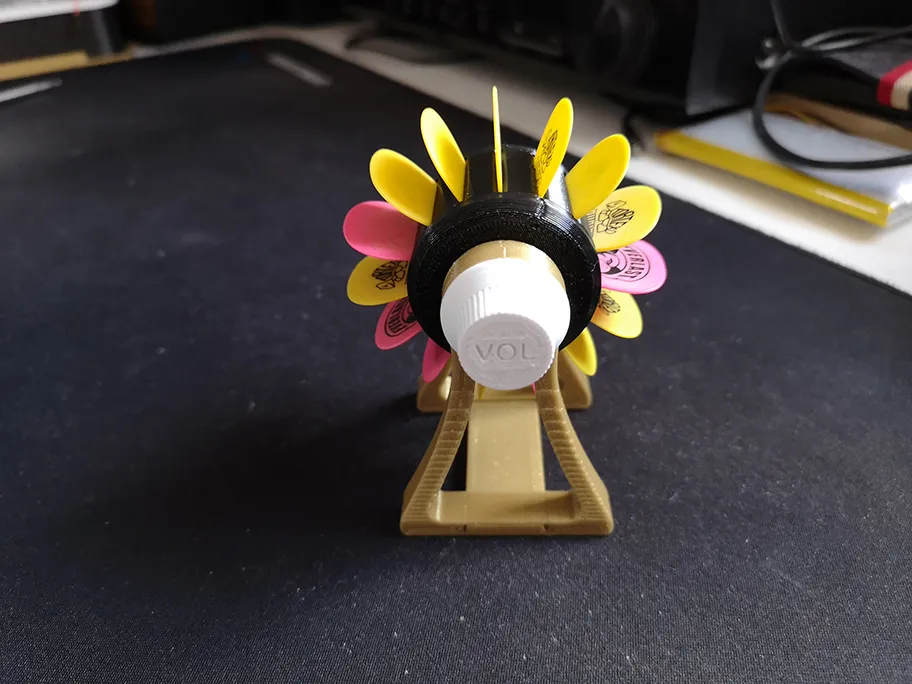

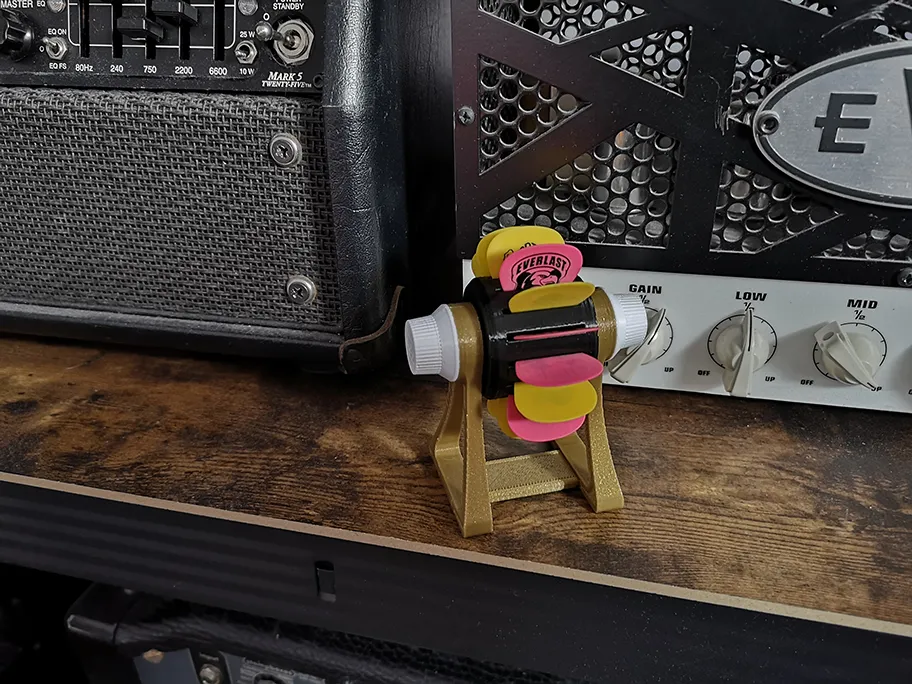

Rolodex style plectrum holder. Holds 15 picks.

Multiple STL's are included for the tumbler section which go from 0.6mm to 1.2mm. 2 options for the tumbler are included, one which takes M3 heat inserts, the other has an M3 bolt screw directly into the plastic.

I recommend printing the included size gauge first to determine which slot size gives the best fit. The gauge starts at 0.6mm on the chamfered side, going up by 0.05mm each slot until 1.2mm. The gauge should be printed on its side with the slots aligned vertcally as this is the same orientation the tumbler should be printed in. When printing the tumbler section, set the seam so that it avoids the slots as any auto setting tends to try and use the edge of the slot, which can cause that slot to be a little tight.

An optional end cap is included, which should be glued on.

2 small bearings are required, these go into the hole on the legs. The size is 3x9x4mm, also listed as MR93ZZ.

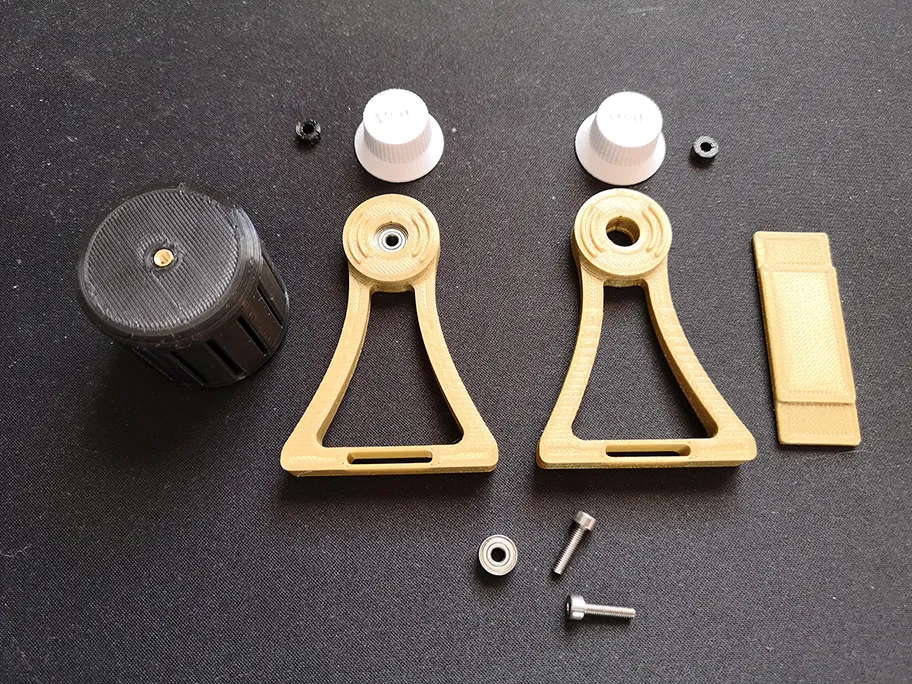

Parts:

1 x Tumbler.stl

2 x Leg.stl

2 x Spacer.stl

1 x Brace.stl

2 x Knob.stl (Optional)

2 x MR93ZZ bearing

2 x M3x12mm bolts
