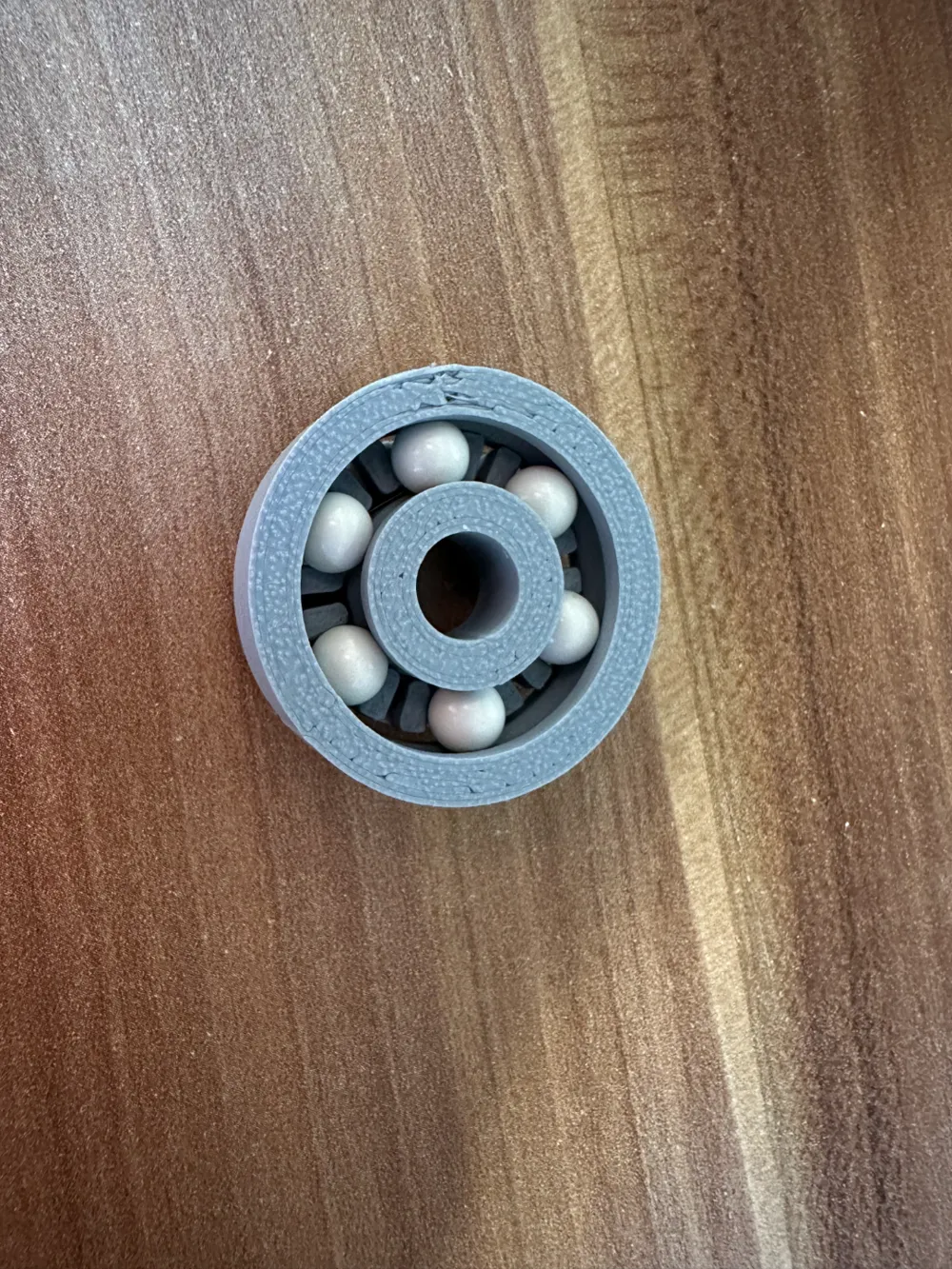

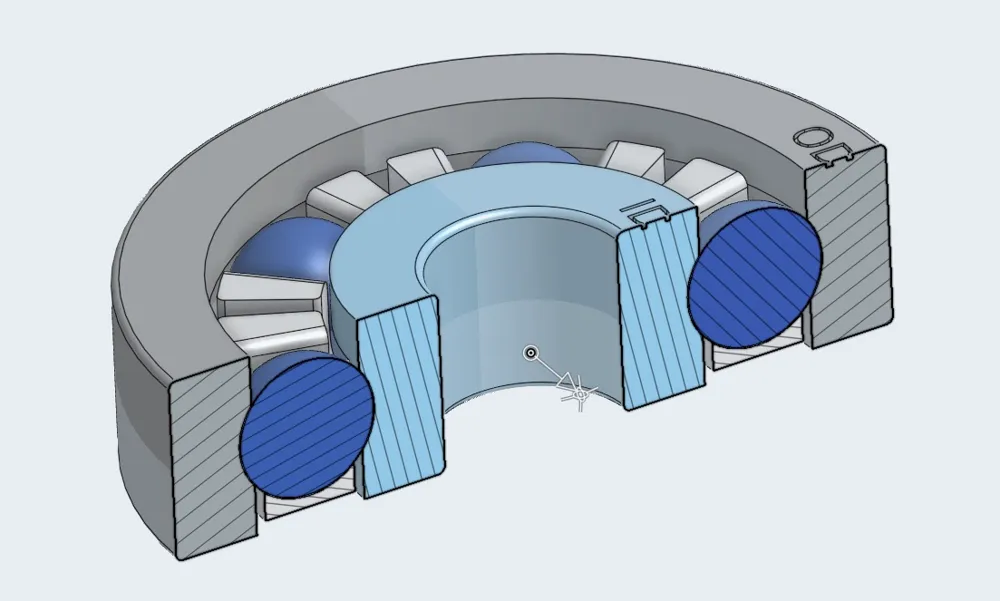

Ball bearing ID 5.0 - 12.0 / OD 28.0 - 35.0 / Width 8

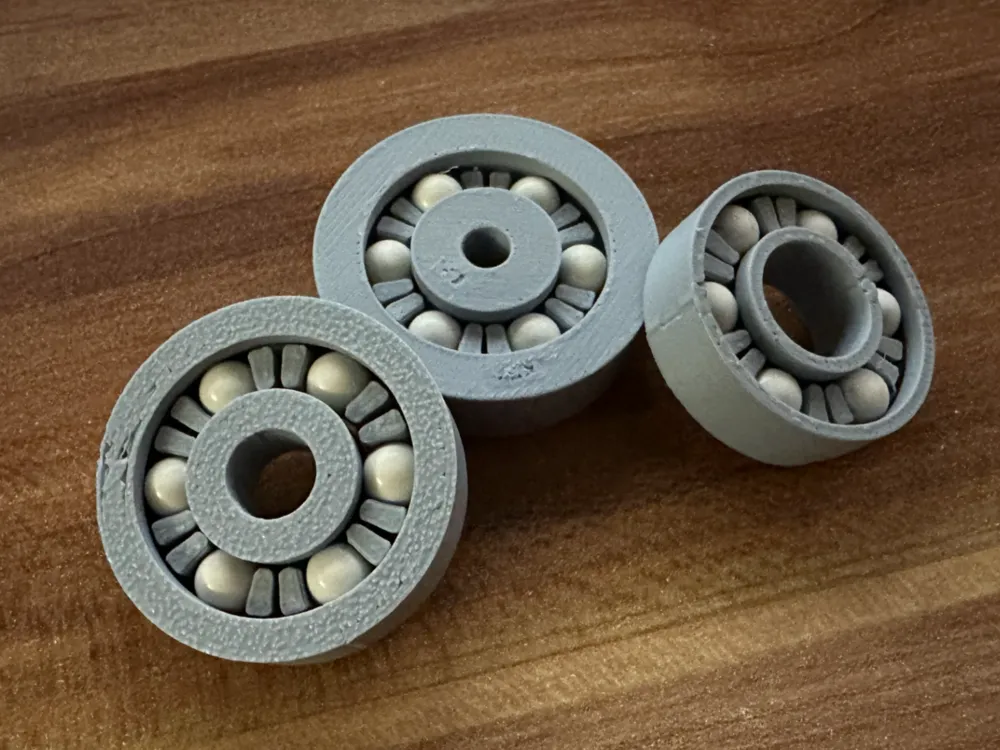

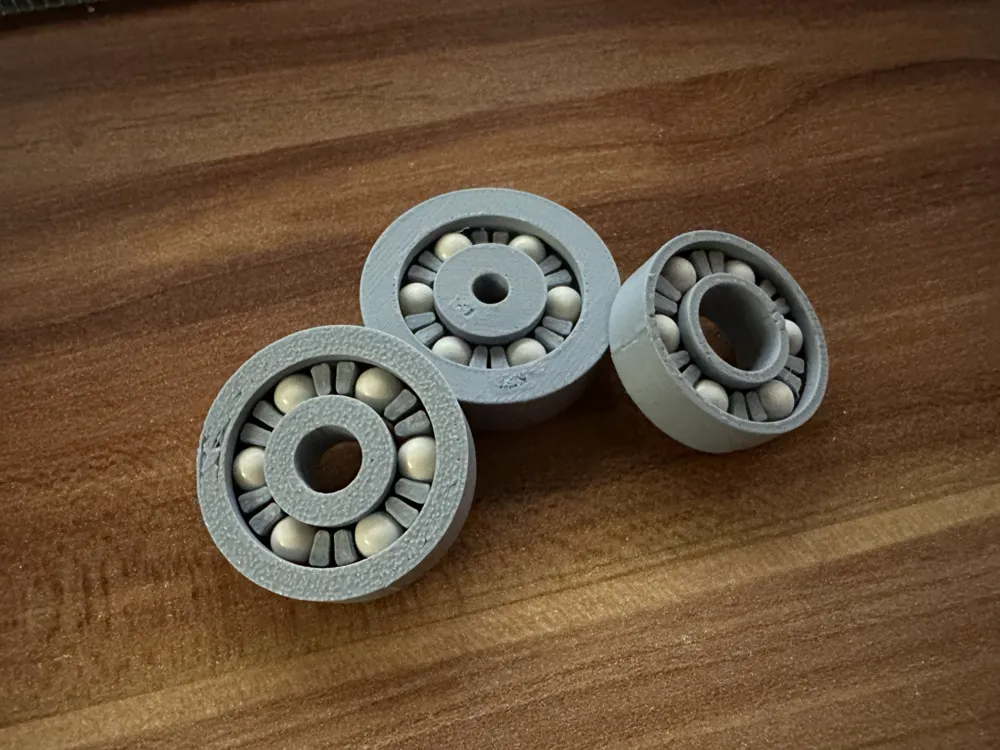

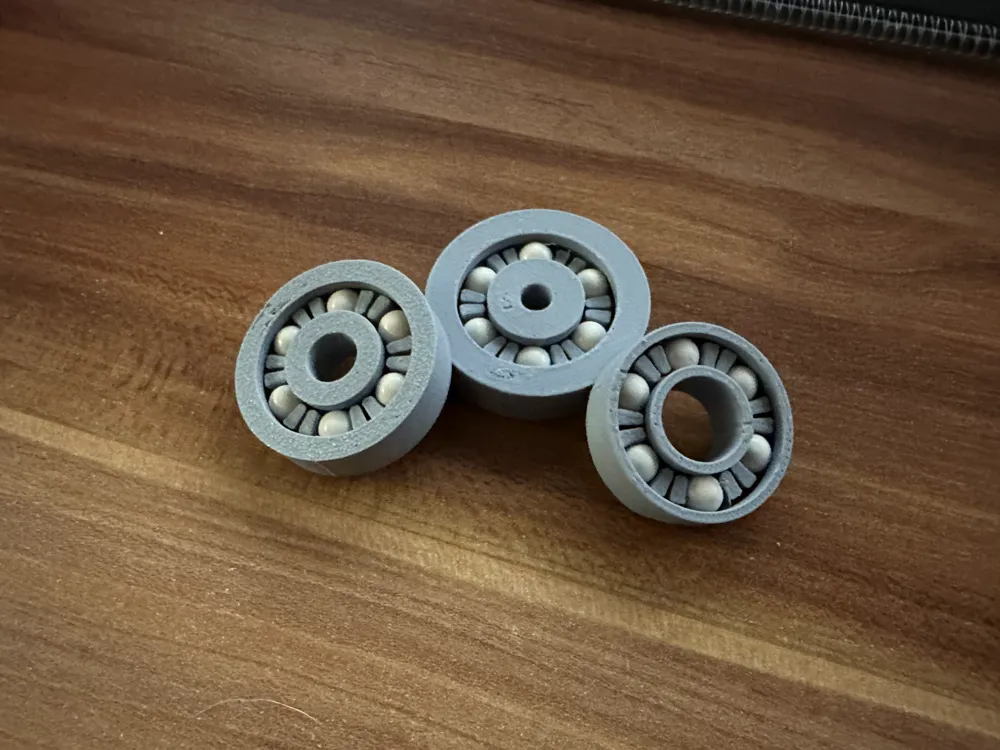

Ball bearings featuring diverse internal and external diameters

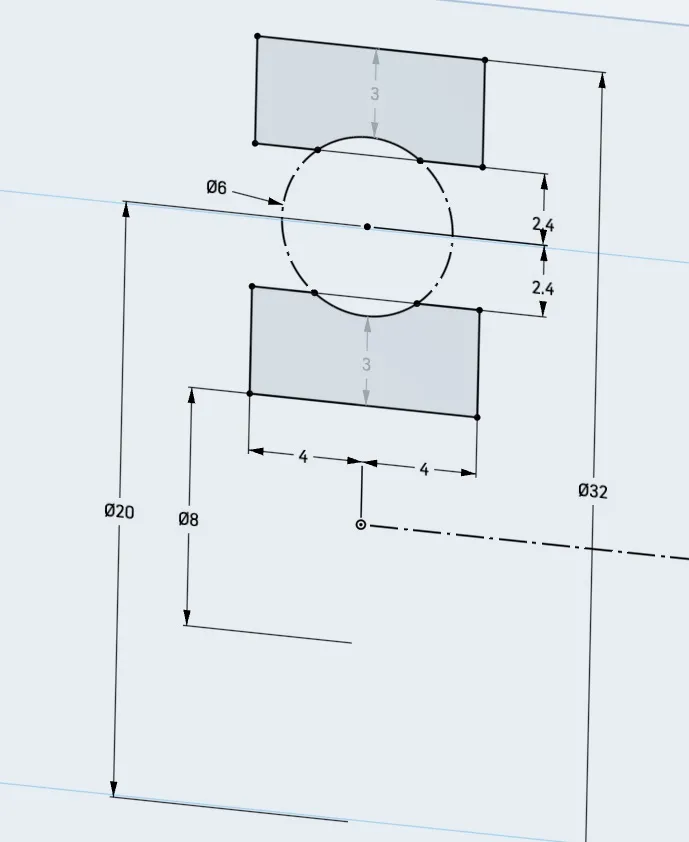

The spheres utilized are 6mm Airsoft BBs

Distinct models for both inner and outer rings are provided as STL files

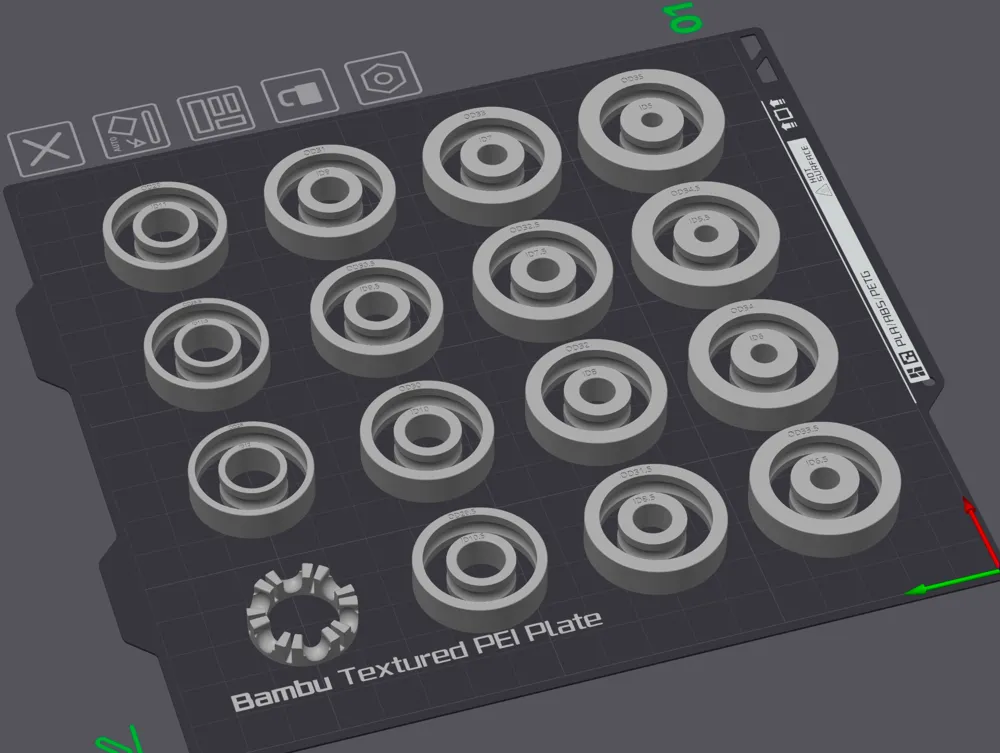

The print profile encompasses all ring configurations. Kindly remove any unnecessary elements

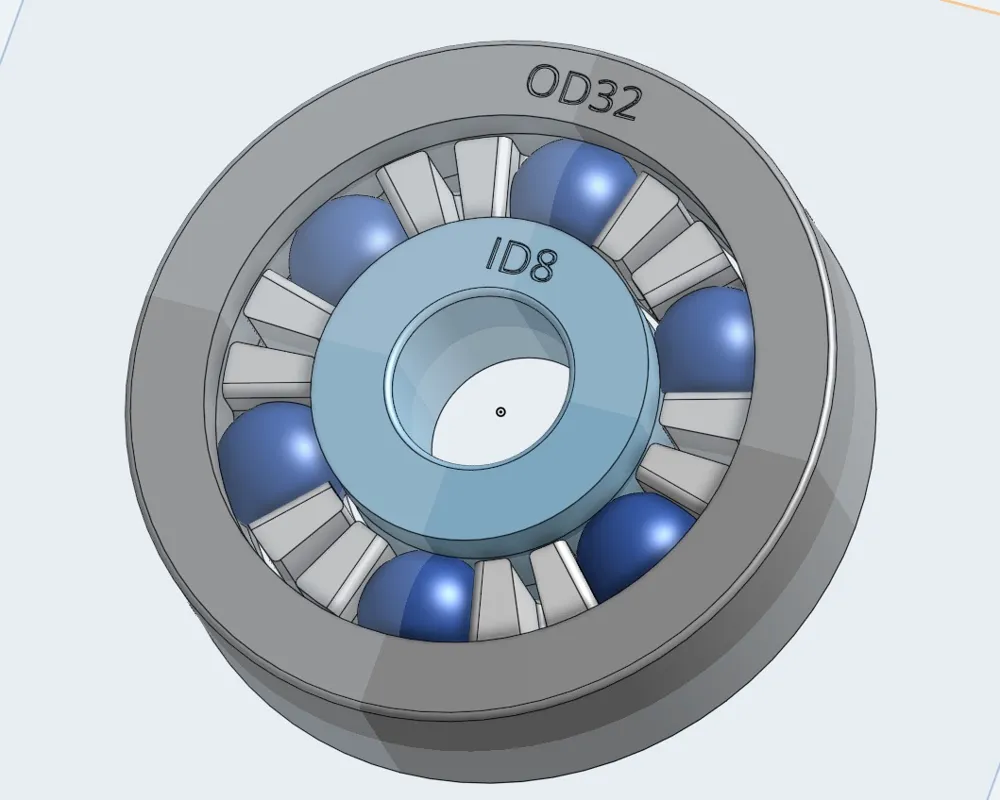

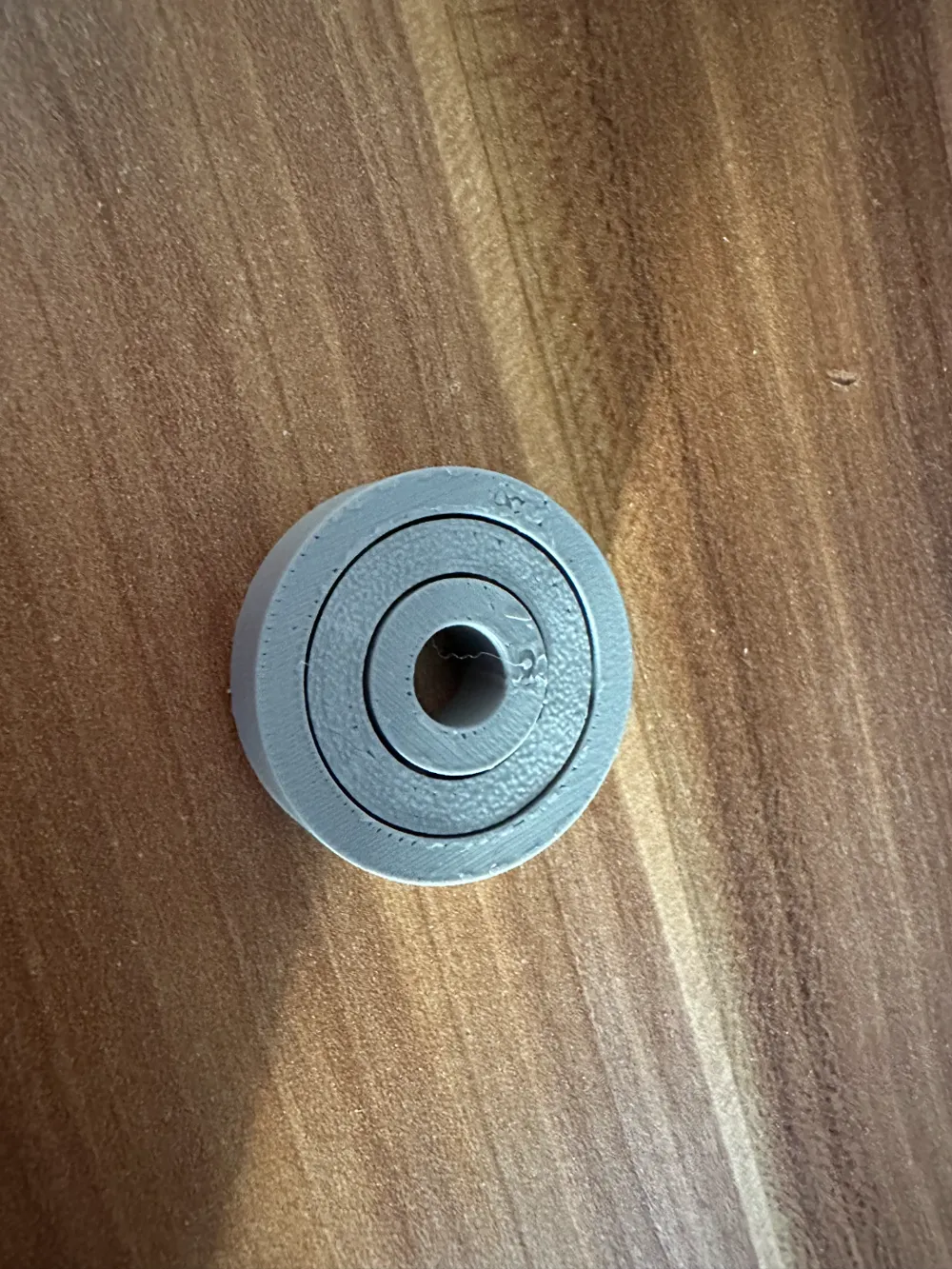

Each ring is meticulously inscribed with its respective internal and external measurements

For exceptionally small rings, the text may become illegible subsequent to printing

Consequently, it serves solely as a guide for selection

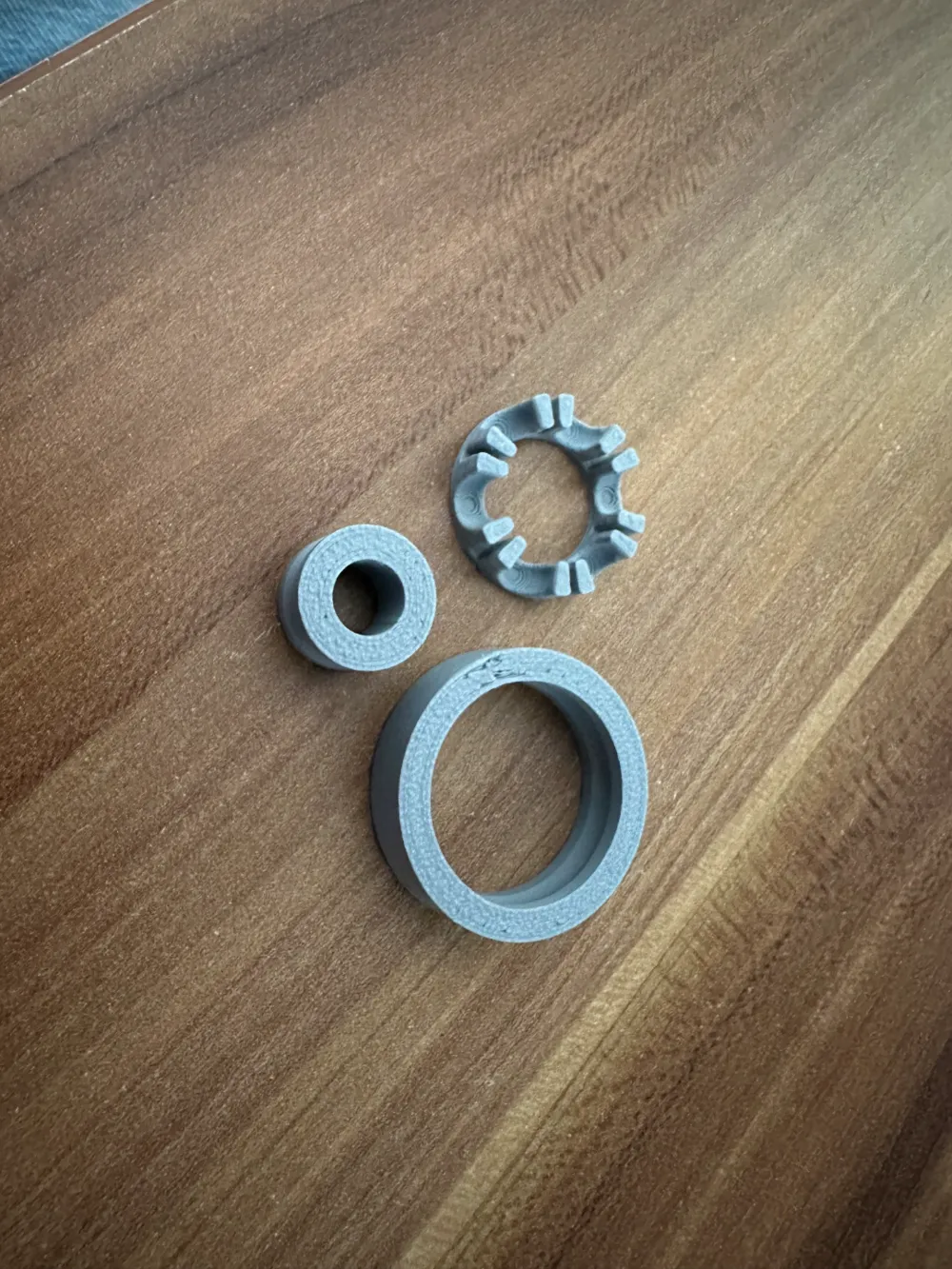

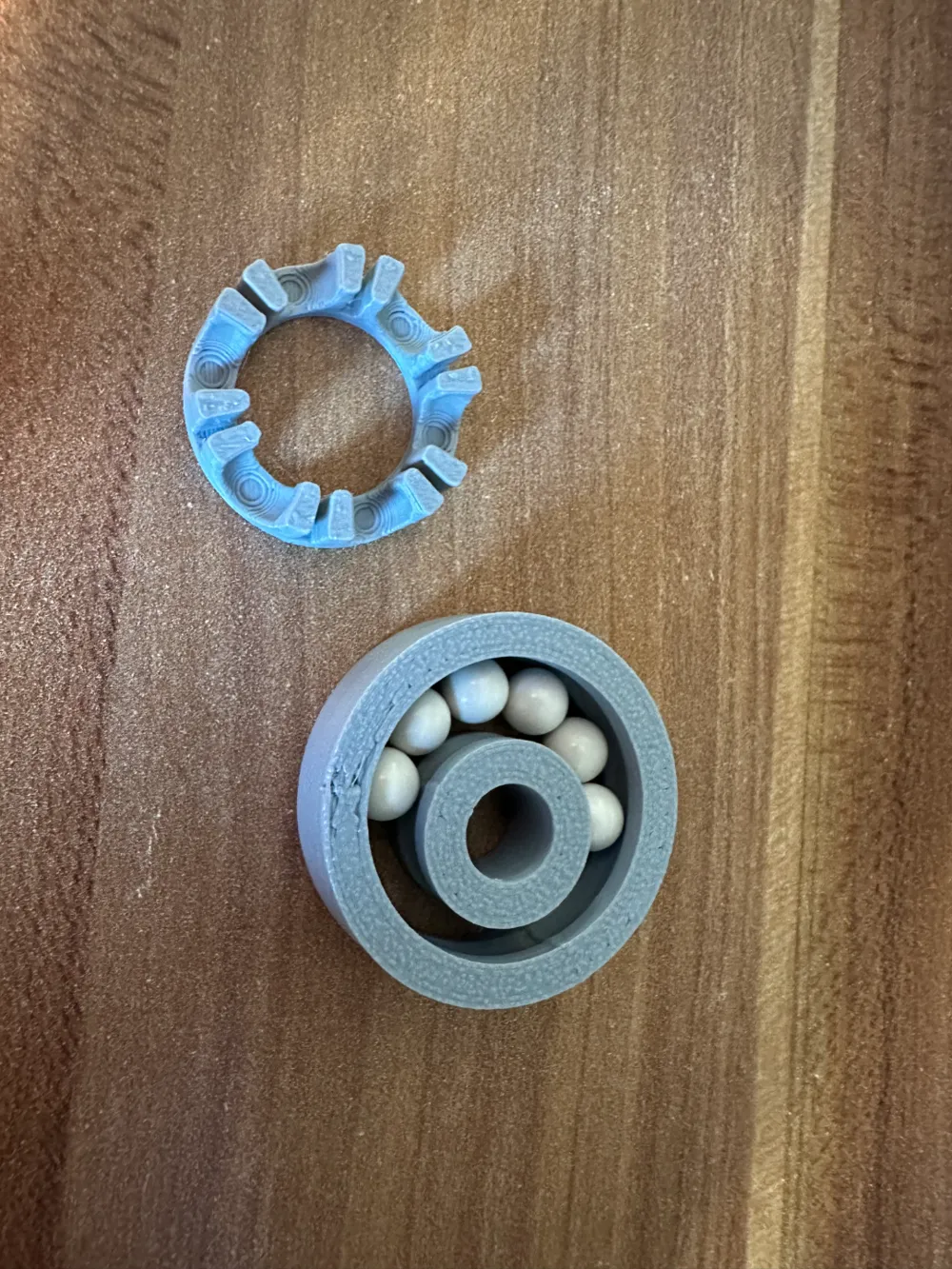

Inner and outer rings may be freely interchanged. However, the centering ring for the spheres remains constant

Internal diameters range from 5.0mm to 12.0mm

External diameters extend from 28.0mm to 35.0mm

Incremental steps are set at 0.5mm

The width measures 8.0mm

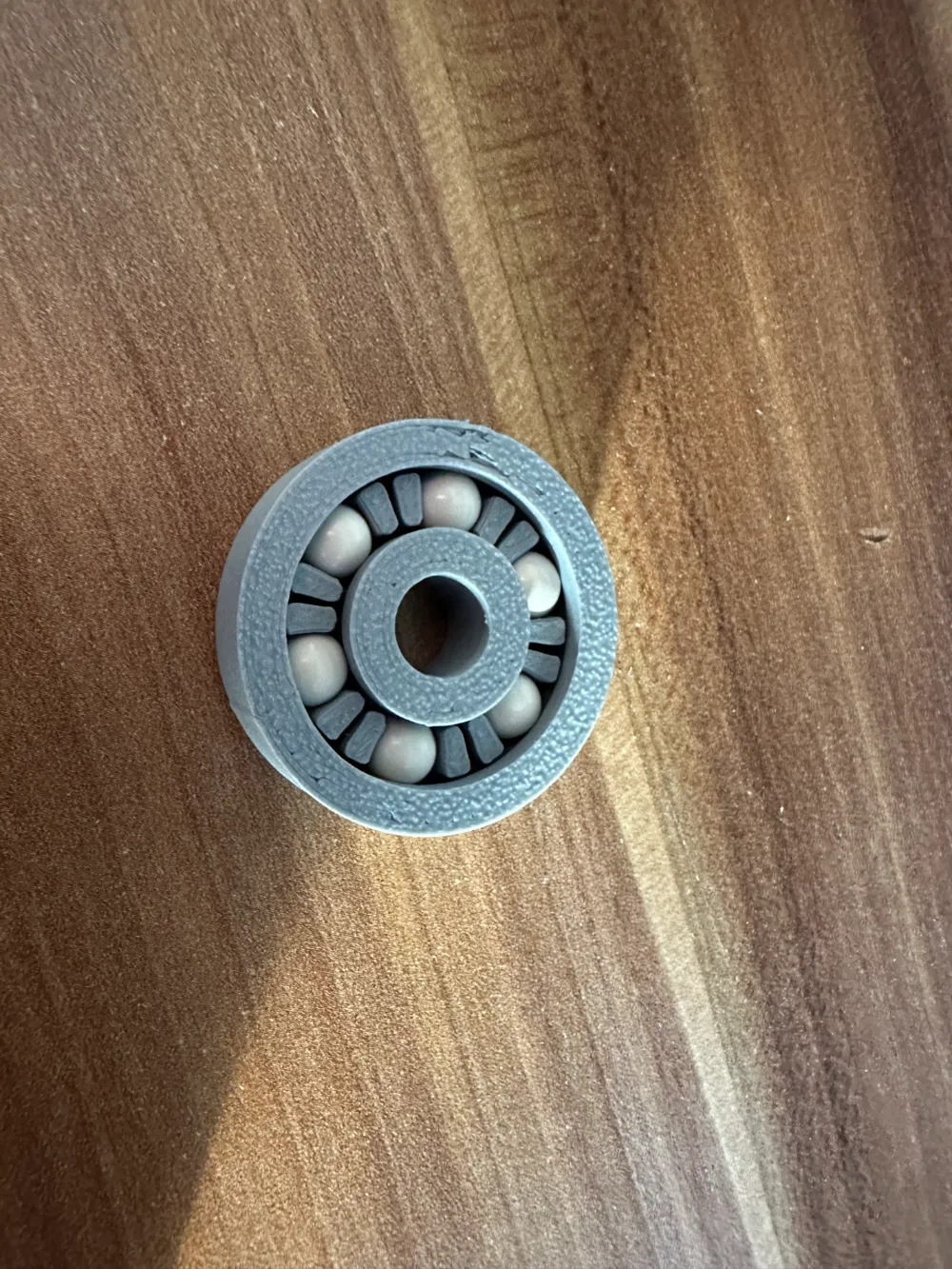

A crucial note: Six 6mm Airsoft BBs are requisite for each bearing assembly
