Activated Carbon Filter Creality K1-K1C
Print Profile(1)
Description

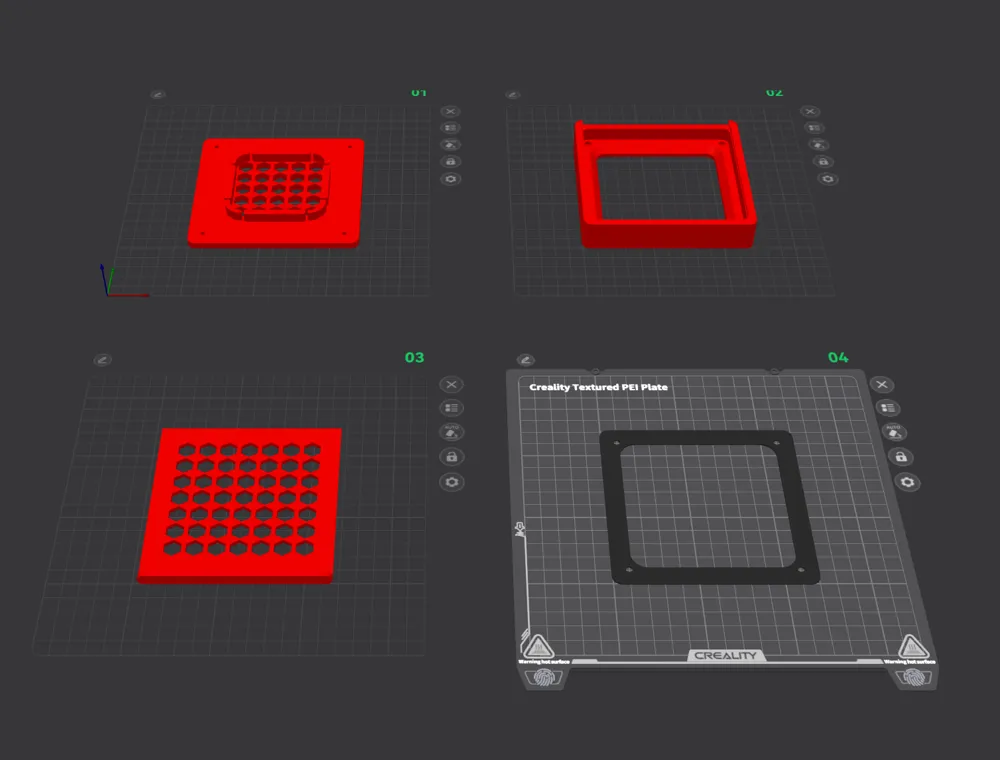

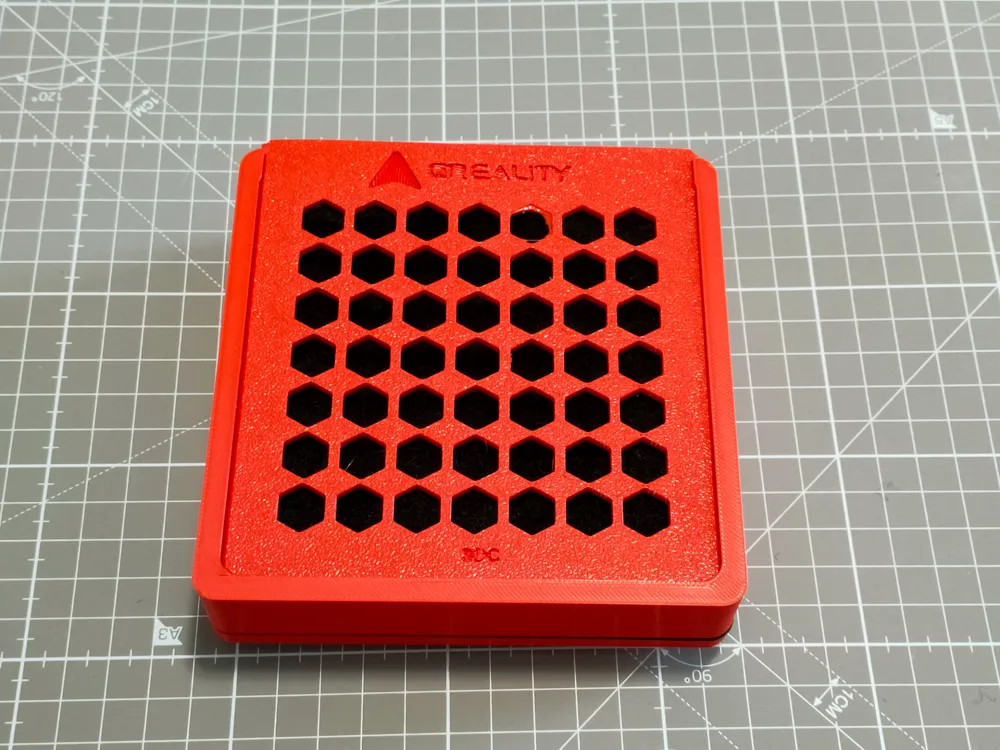

Printed in PETG with a TPU gasket using Creality Print 6..
Used 4 M3 nuts to be inserted on the base with a pause at layer 20.
No Supports.

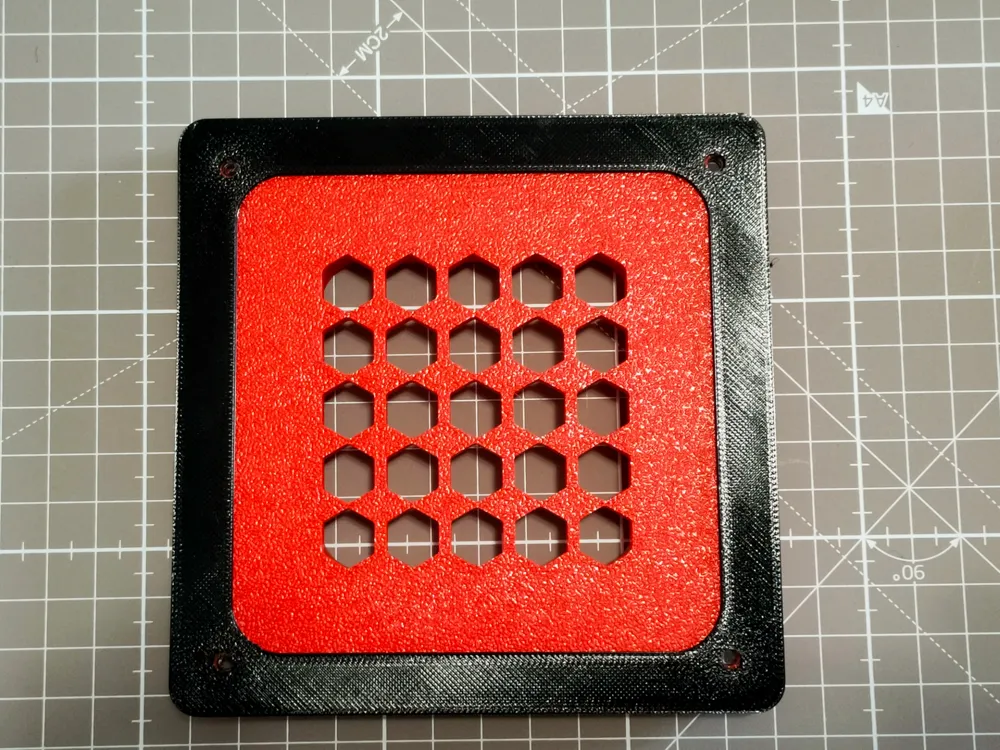

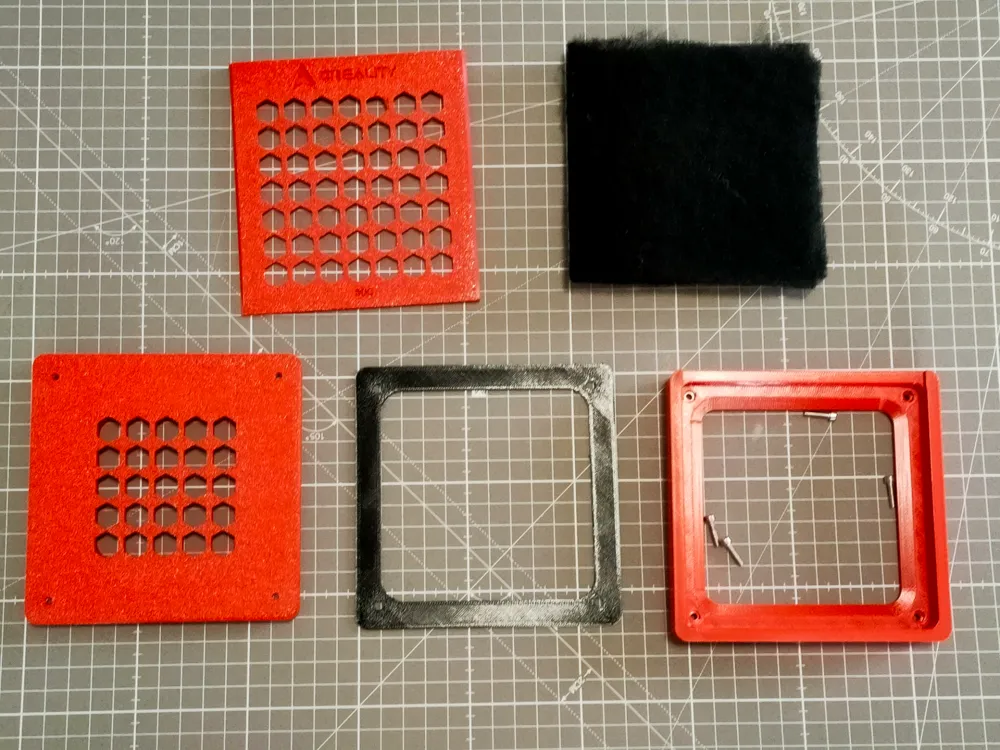

Attach the base to the rest of the body with 4 M3x12 screws, inserting the gasket between the two objects.

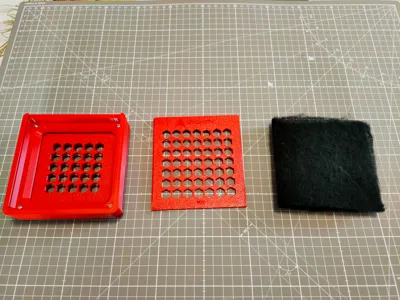

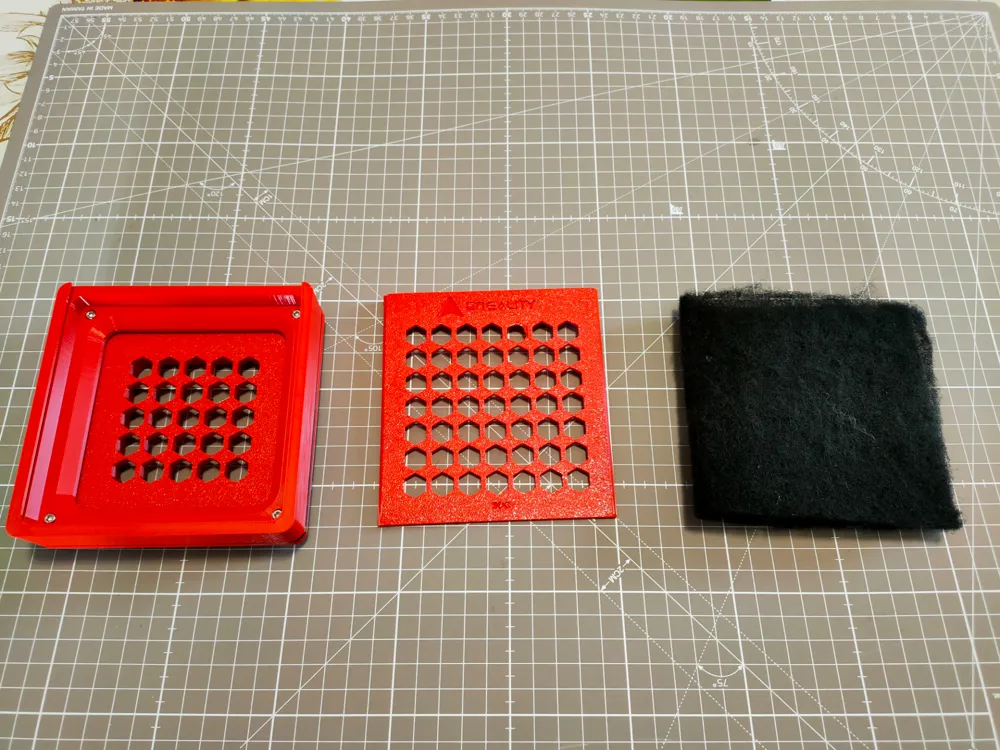

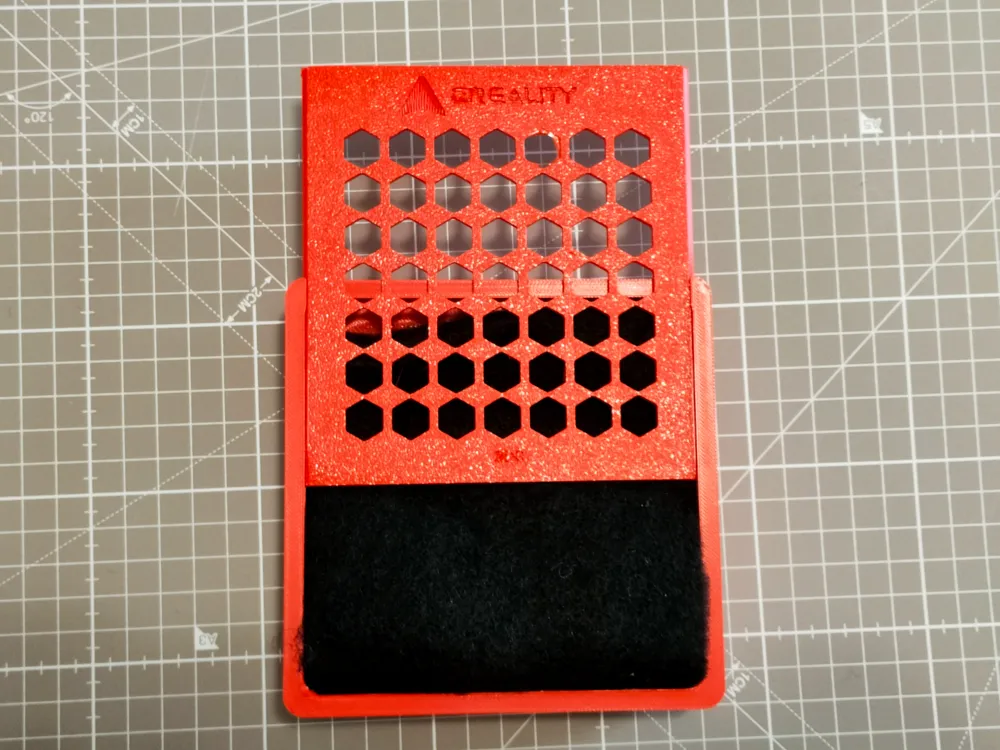

I used a sheet of active carbon cut and doubled inside the filter.

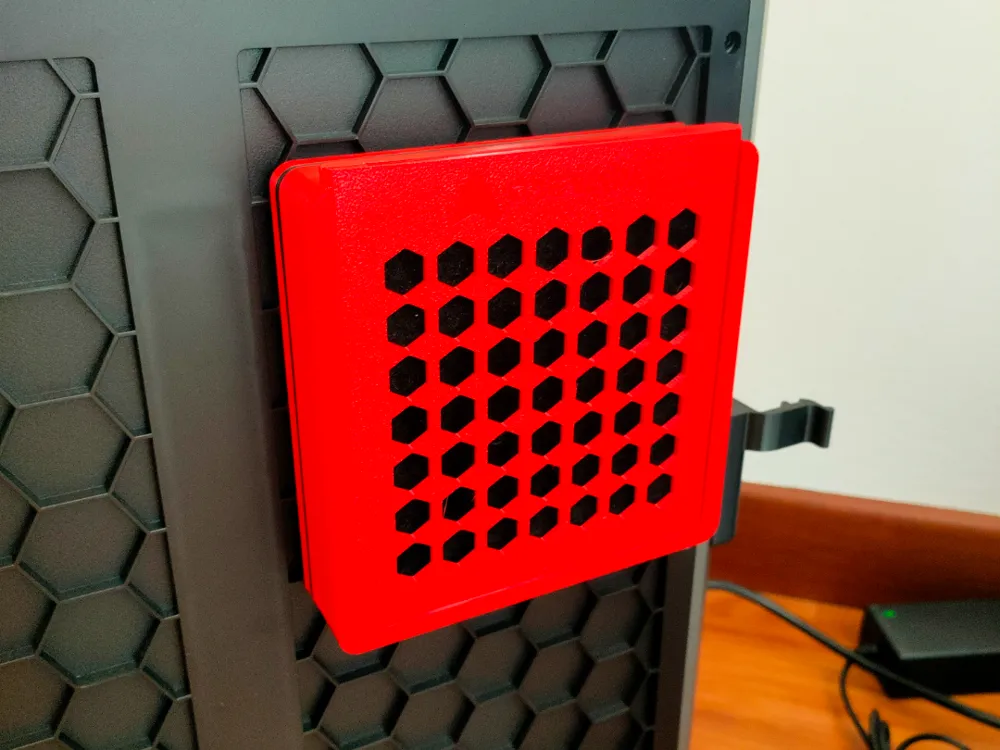

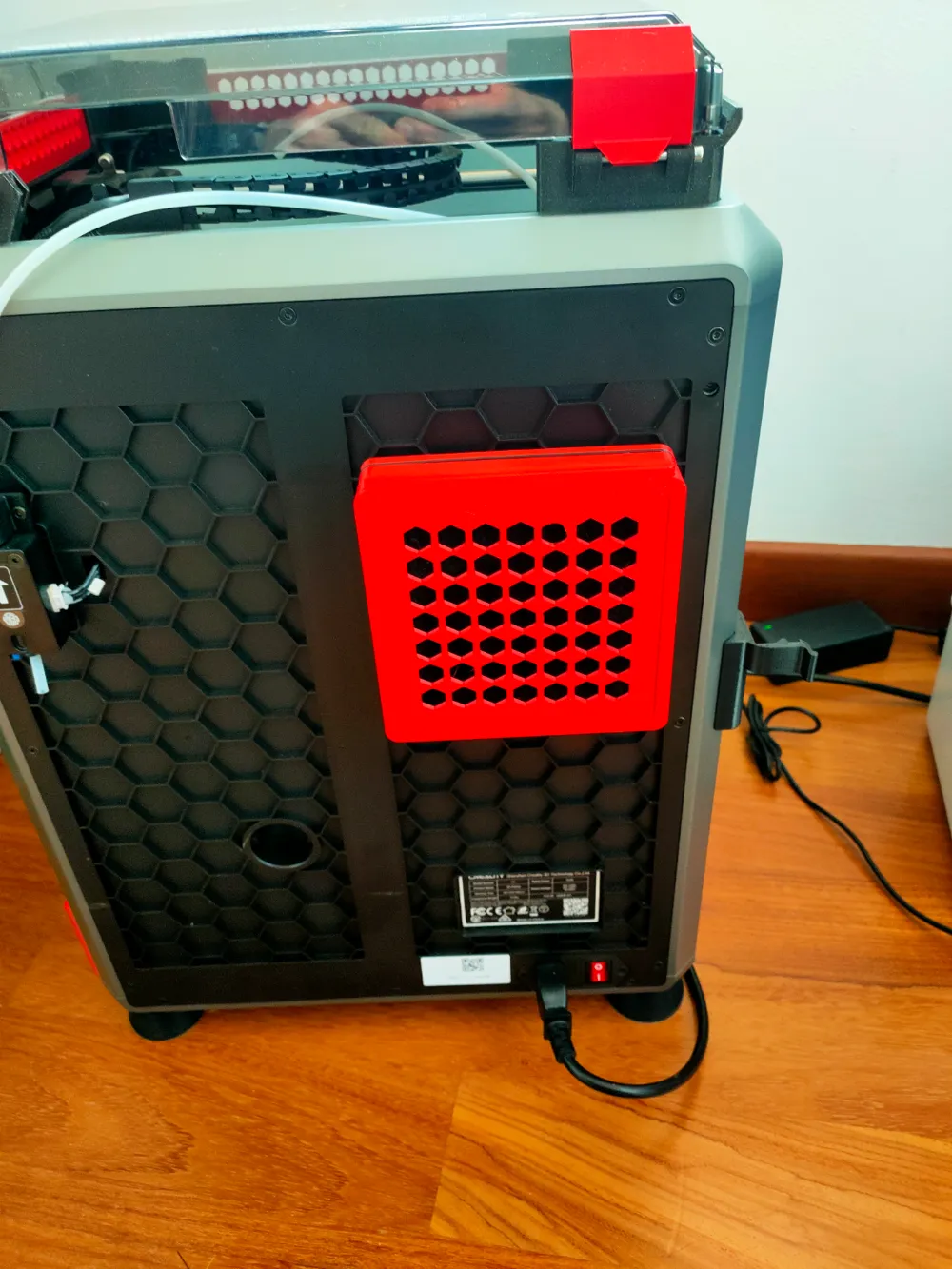

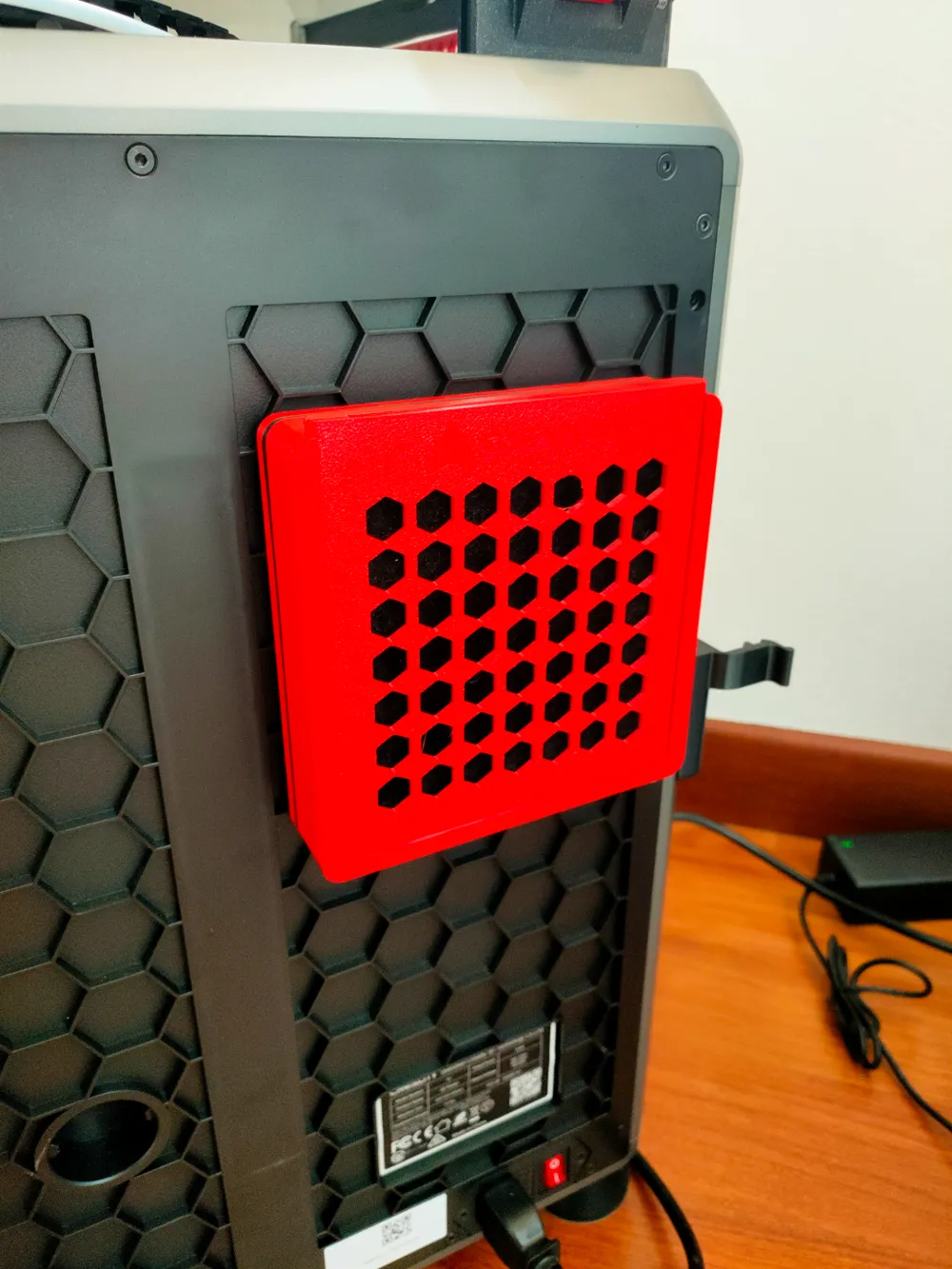

Once everything is assembled, insert it into the back of the printer.
Be careful, the fitting has a correct direction to enter.
