5-inch IPS HDMI Display Enclosure (New Year Edition)

This model is created by Image to Keychain
Make Your Model

Print Profile(1)

All
P1S
P1P
X1
X1 Carbon
X1E
A1
A1 mini
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 5 walls, 15% infill
0.2mm layer, 5 walls, 15% infill
Designer
9.7 h
6 plates

Open in Bambu Studio
Boost
6
9
0
0
15
5
Released

Description

Content has been automatically translated.
Show original

Introduction: I recently created a 5-inch IPS HDMI display enclosure with a resolution of 800*480.

All connection points have a diameter of 2.5MM and can be connected and fixed using M3 self-tapping screws.

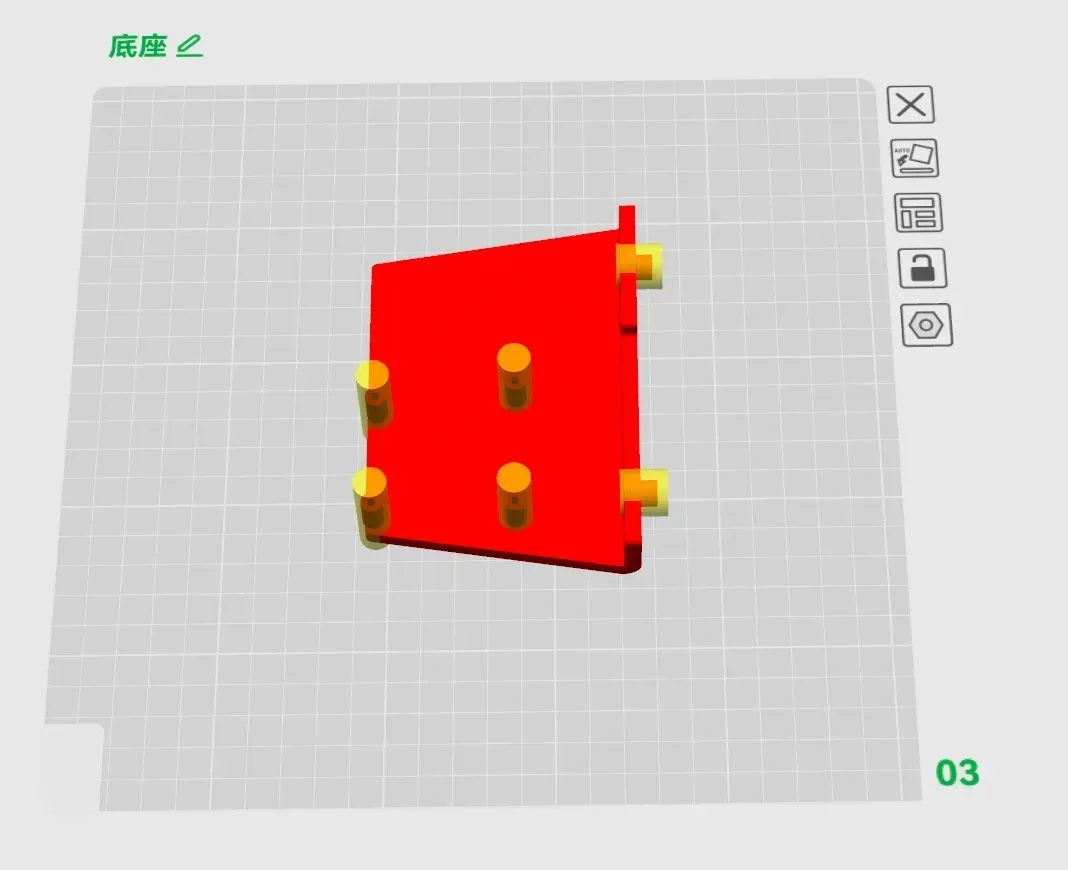

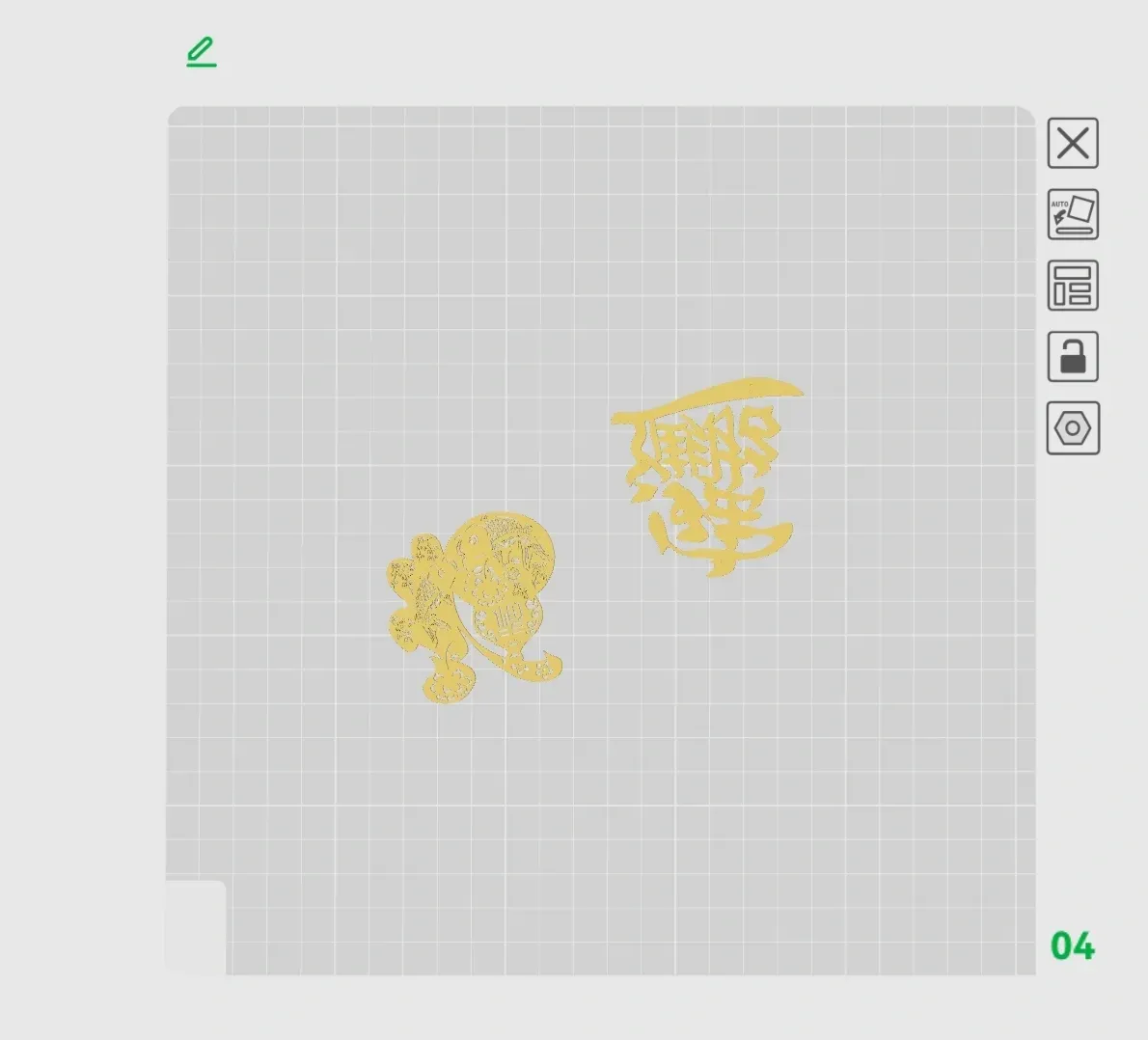

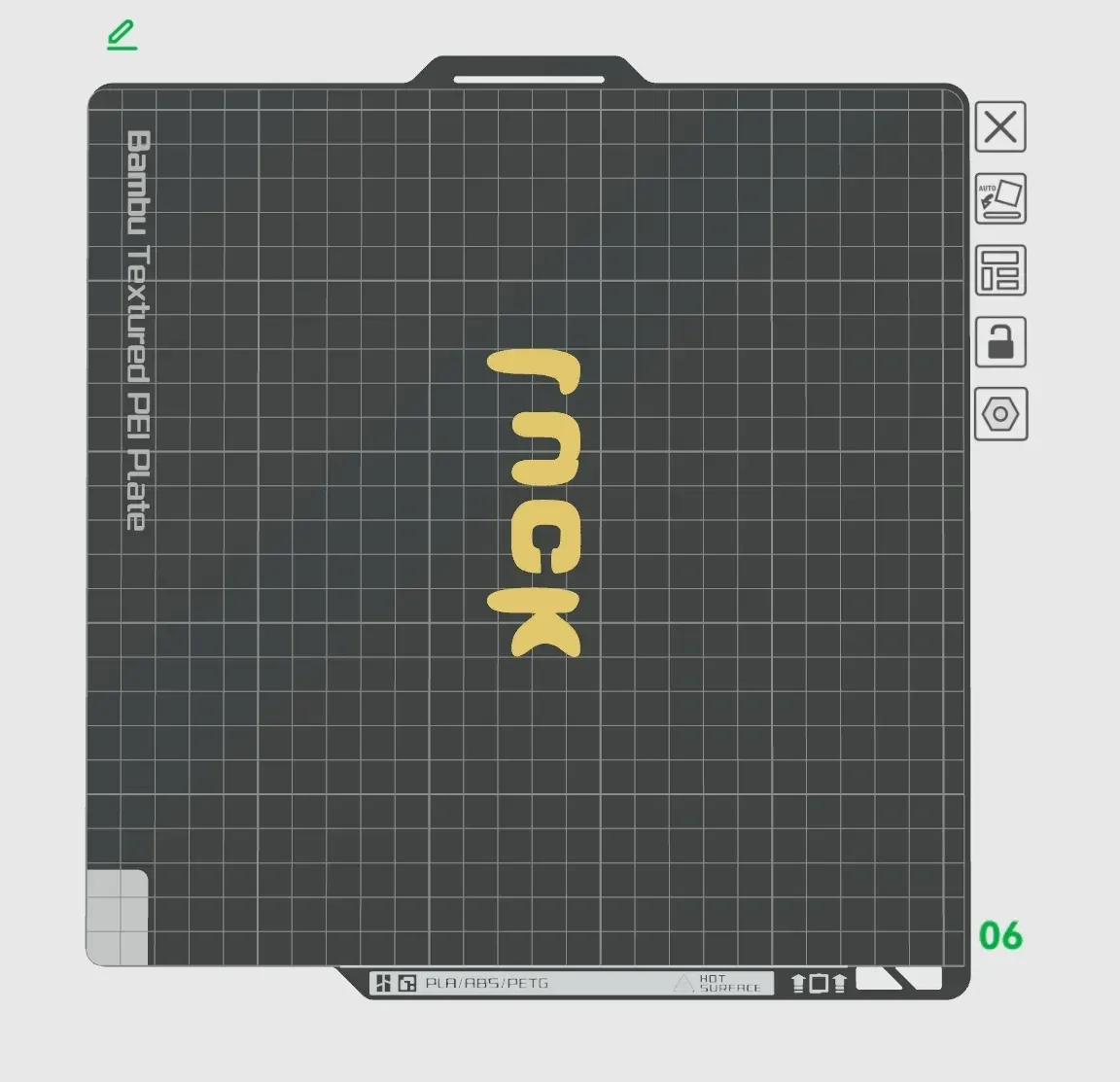

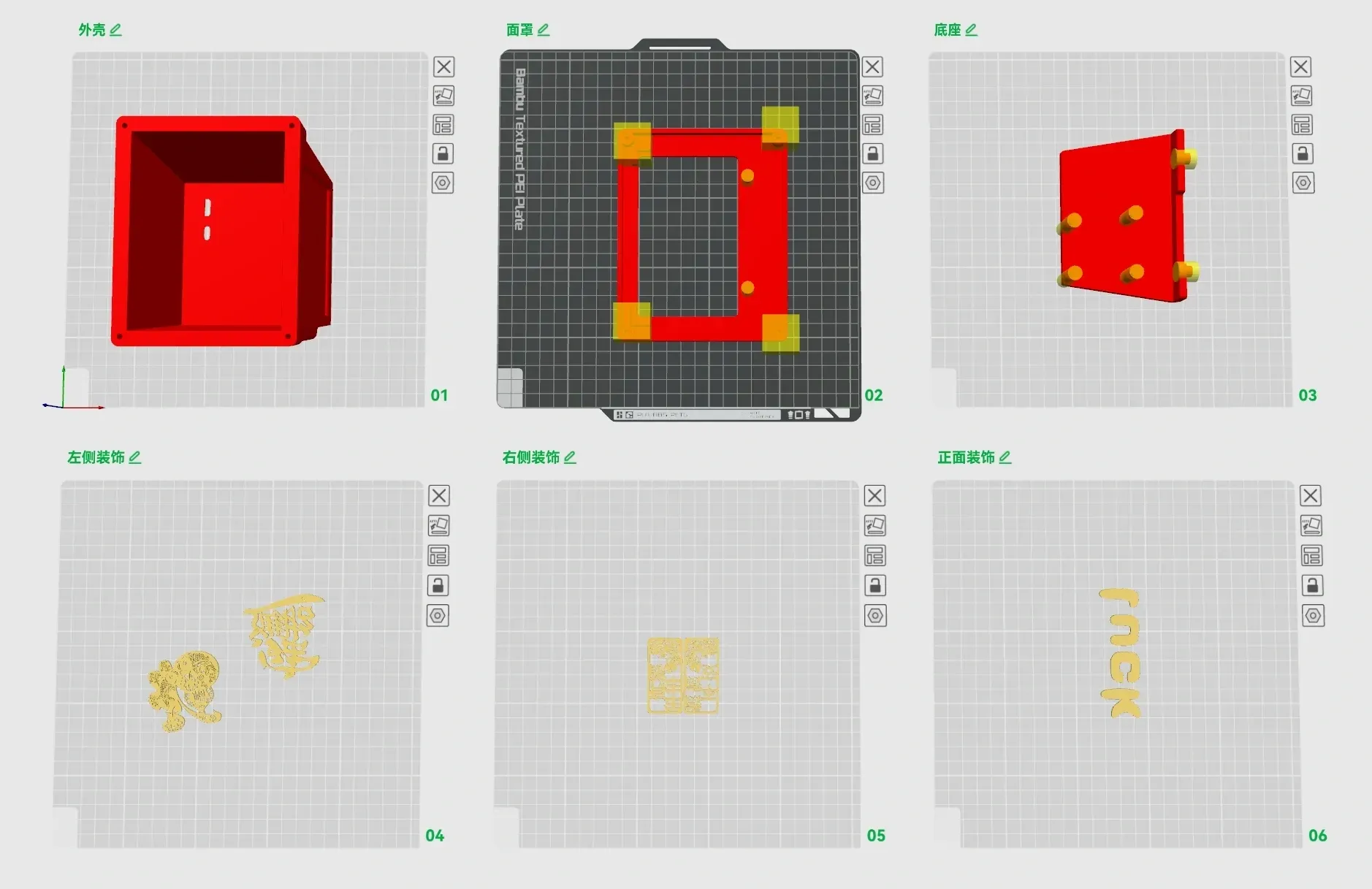

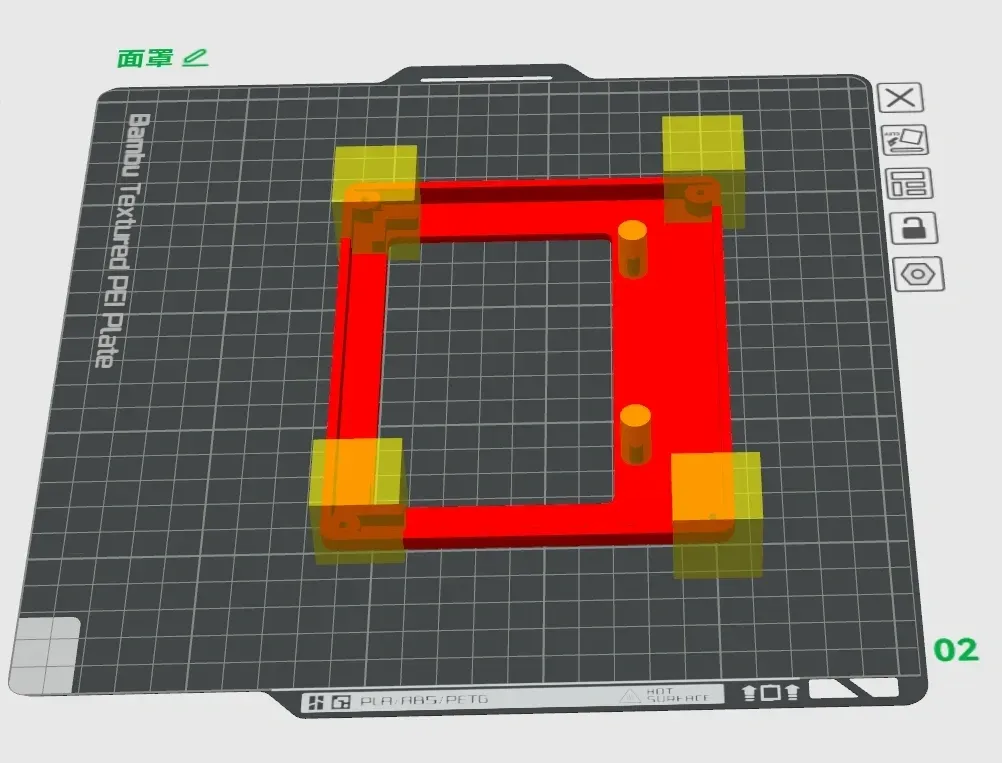

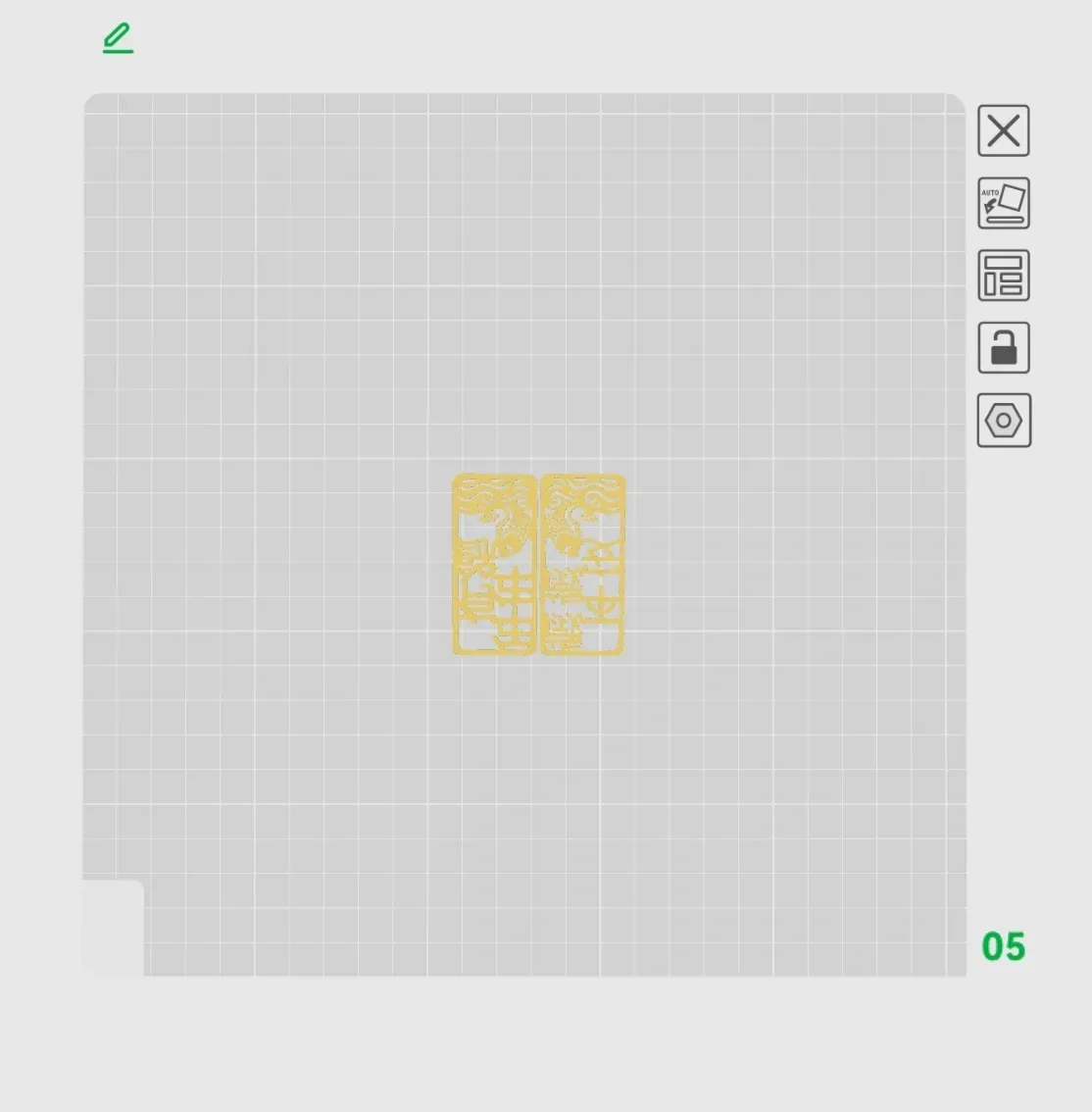

In the preset, I have also individually increased the strength of the connection points (50% density spiral body printing), hoping that it will not be easily damaged. You can also increase the strength again if needed. Some decorative elements have been added to this design, taken from other masters' designs. 502 glue can be used for adhesion. The size and color of these elements have been set in the print file. You can also set them as needed before printing.

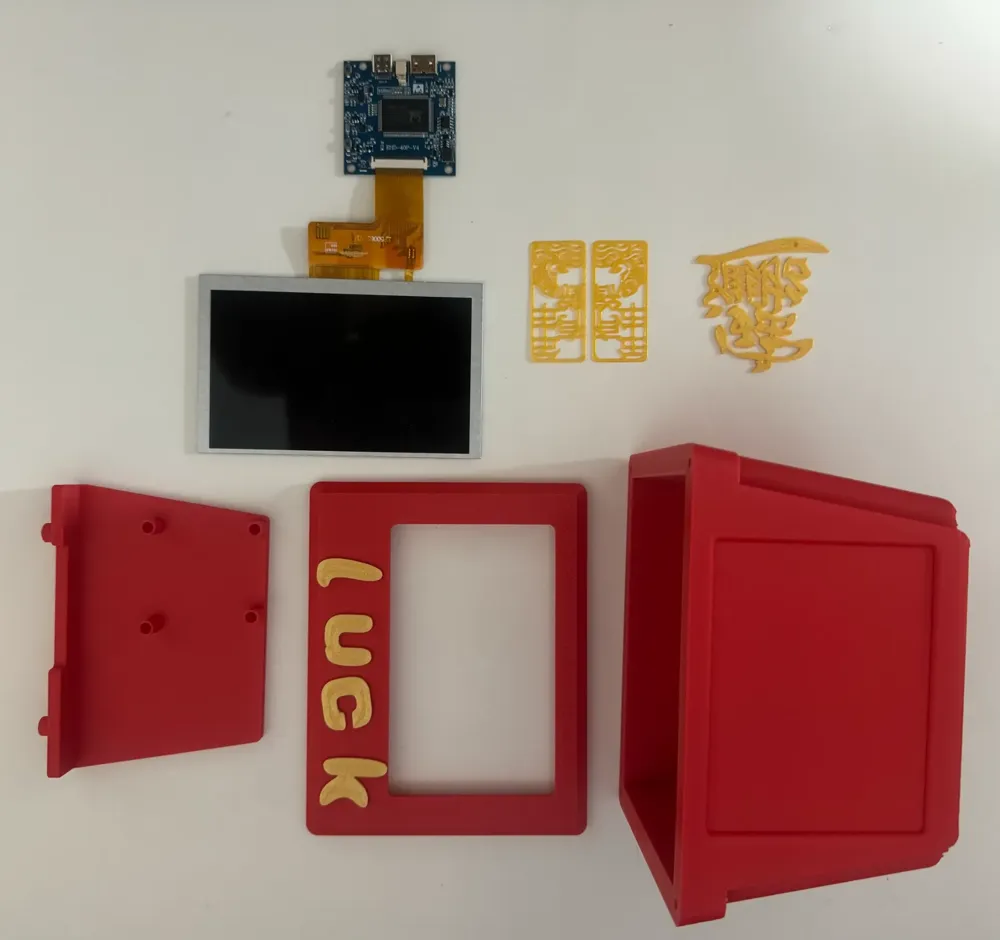

Required materials and kits:

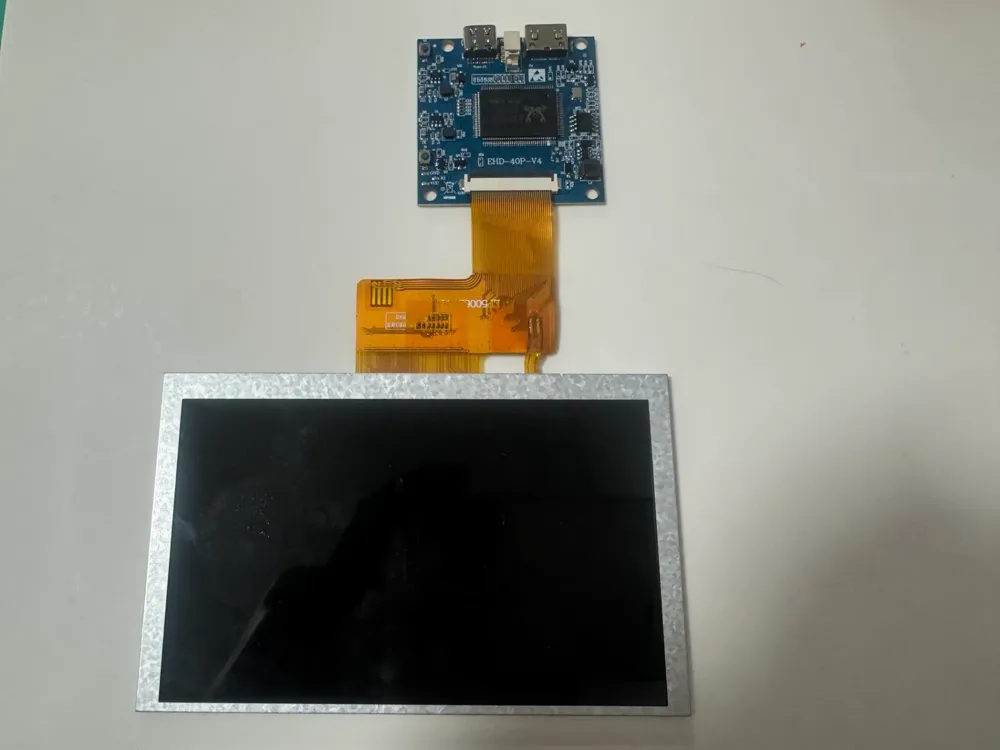

Screen kit link: http://e.tb.cn/h.T2SRBYbJK6o40Zo?tk=ZLac3u4VzVX (Purchase 5-inch IPS 800*480 without touch, Package Nine, not an advertisement)
4pcs M3X8 cross self-tapping screws, 4pcs M3 washers for connecting the base and IPS board
4pcs M3X16 cross self-tapping screws for assembling the bezel and enclosure
502 glue for decorative adhesion
