Space 1999 Eagle Pilot

Space 1999 Eagle Pilot

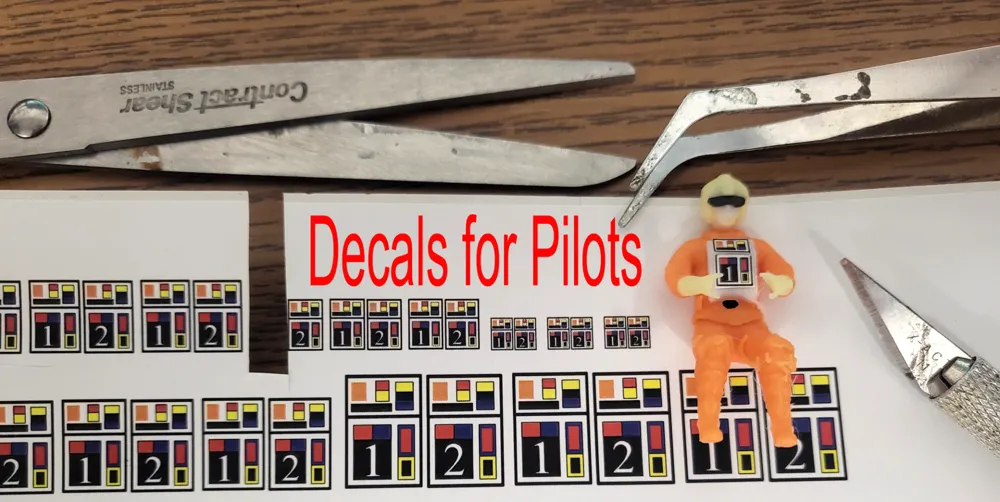

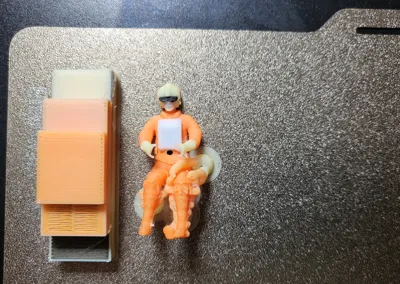

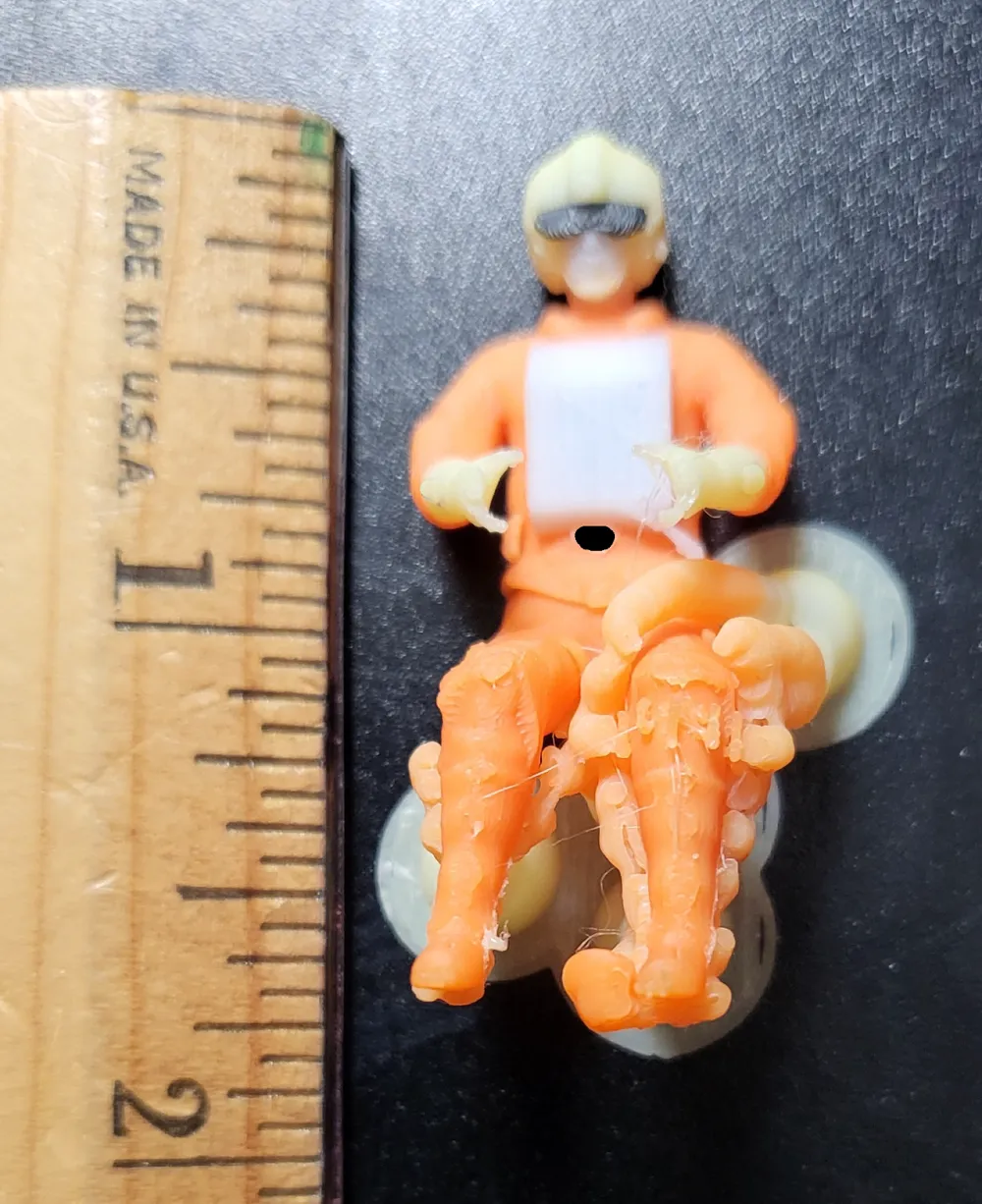

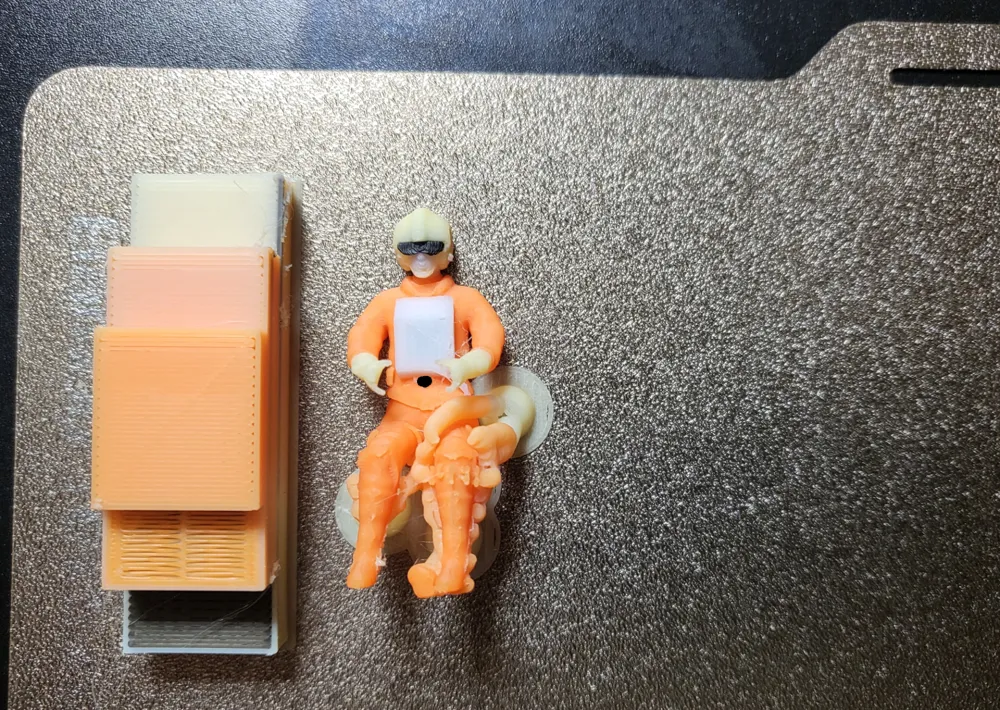

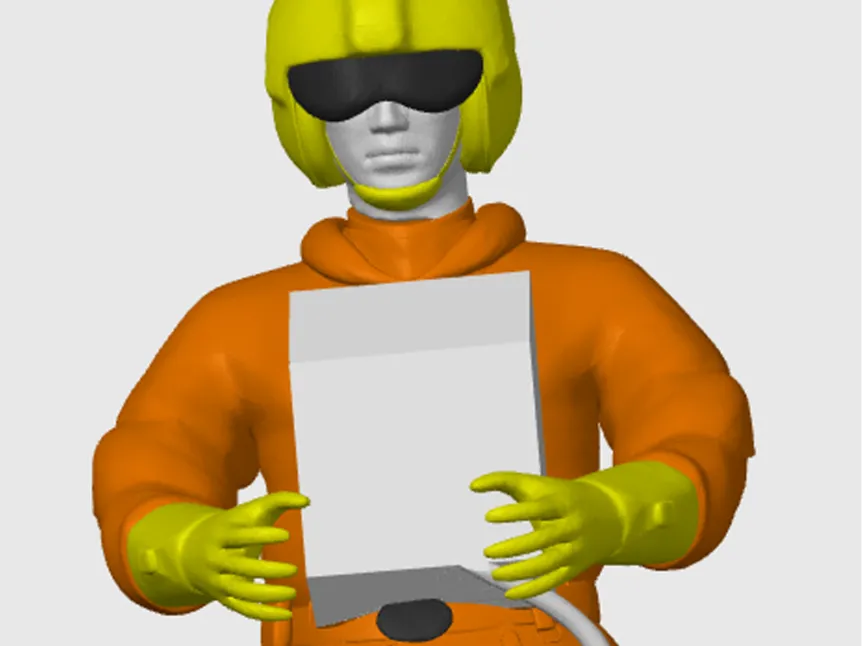

I am currently 3D-Printing a 32”, 1:32 Scale Space 1999 Eagle Transporter from GamBody and was looking for a free Eagle Pilot for the Cockpit and could not find one, so I decided to create my own. I found and used Luke Skywalker from Star Wars. I bent his knees 90° so that he can now sit down on the Eagle’s Cockpit Chair. I then created the Chest Instrument Box that each Pilot wears and embedded that into his chest. I also created Decals for the Pilot’s Chest Instrument Box.

Now I know that it’s not perfect, but it works for me and you can size this Pilot up, or down to fit your Model. If you have a Printer that has an AMS for different color Spools, you can download this 3MF File and Print the Pilot in Color.

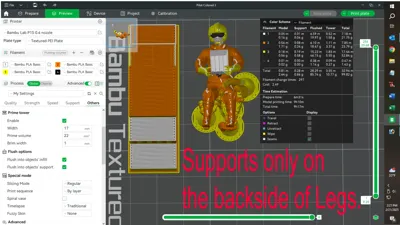

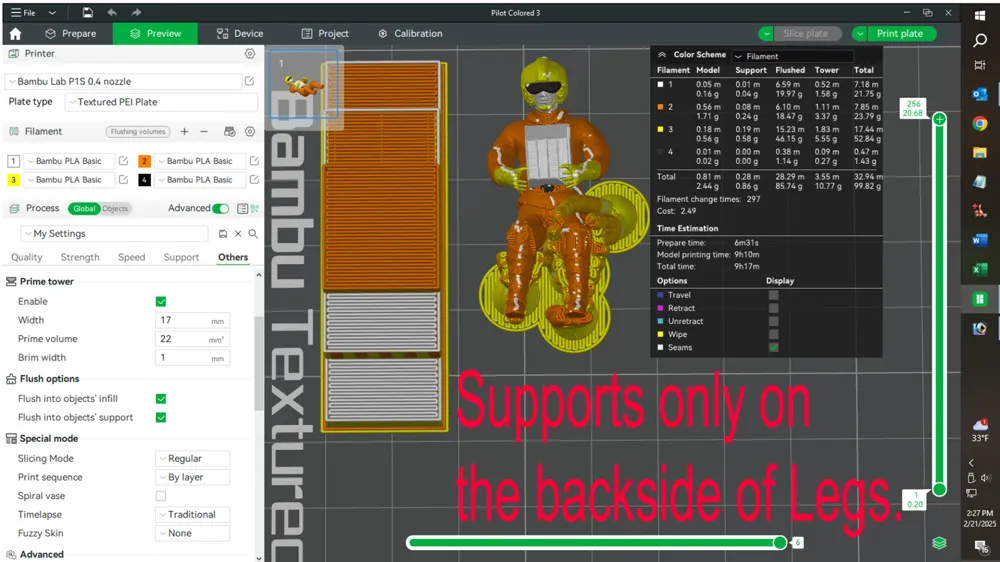

Bambu Studio Settings for less Waste and Time:

1. Quality, Layer Height = 0.08mm.
2. Strength, Sparse Infill, Sparse Infill Density = 100%.
3. Strength, Advanced, (check all 3 Boxes); Infill Combination, Detect Narrow Internal Solid Infill, and Ensure Vertical Shell Thickness.

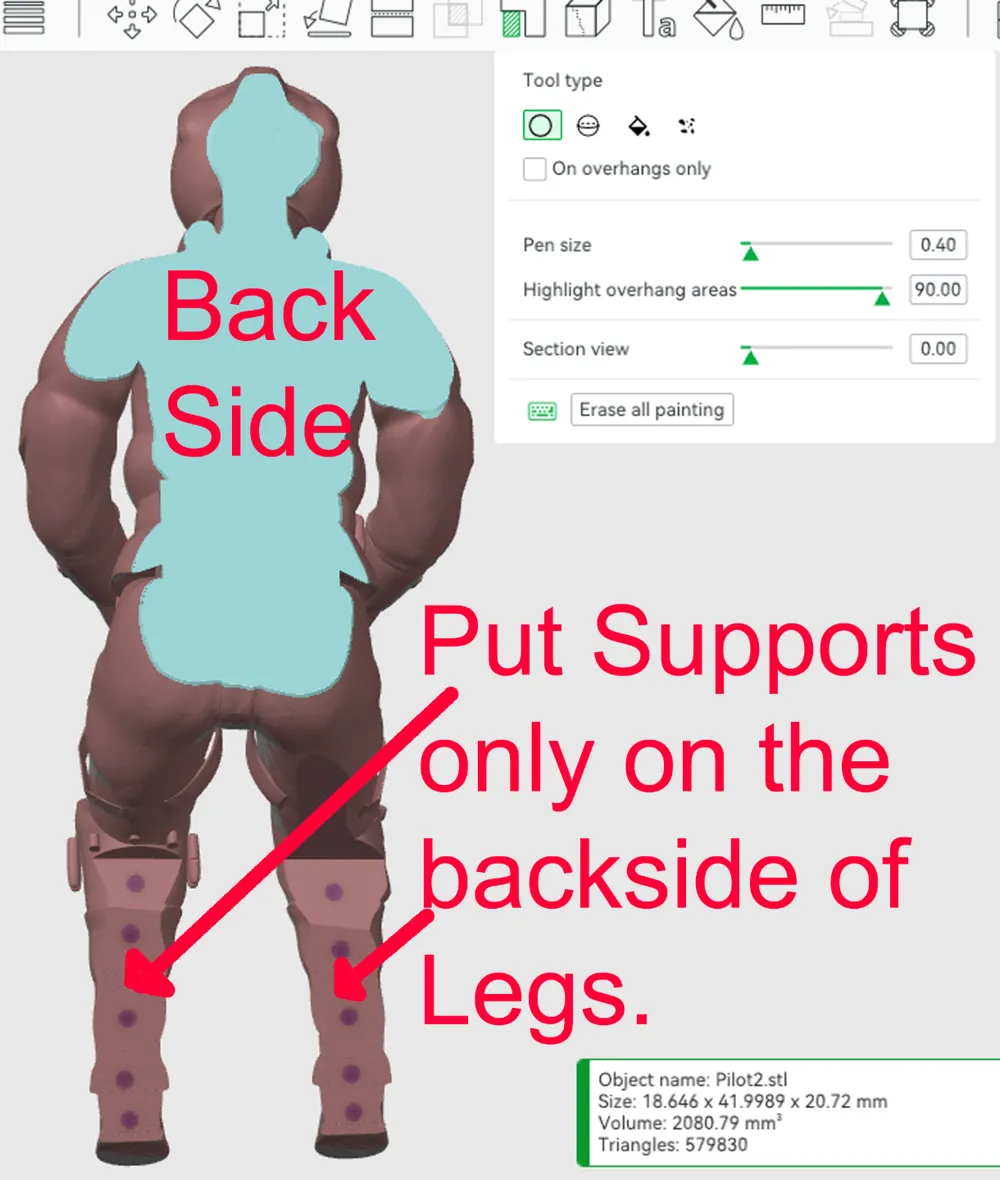

4. Support, Advanced, Top Z Distance = 0.275.
5. Other, Prime Tower check (Enable), Width =17mm, Prime Volume = 22mm, Brim Width = 1mm.
6. Flushing Volumes (at the top of the screen) Multiplier = 0.75.
