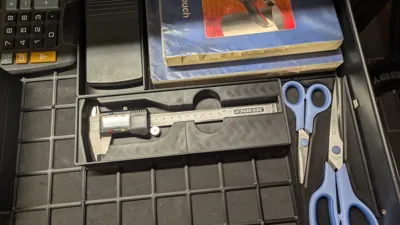

Gridfinity container for calipers. The insert is designed generously enough that most (digital) calipers should fit. The caliper should not exceed a maximum height of 20 mm to remain stackable
Another version for (analog) calipers with a maximum height of 8 mm can be found in my uploads

Newly added:

Lid
uncut version

Boost Me (for free)

I would be very happy about a boost
