Description

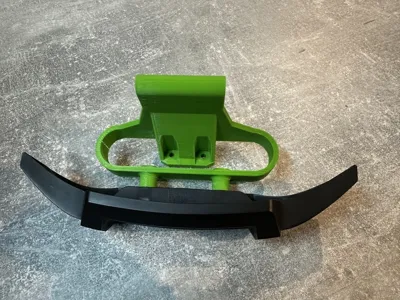

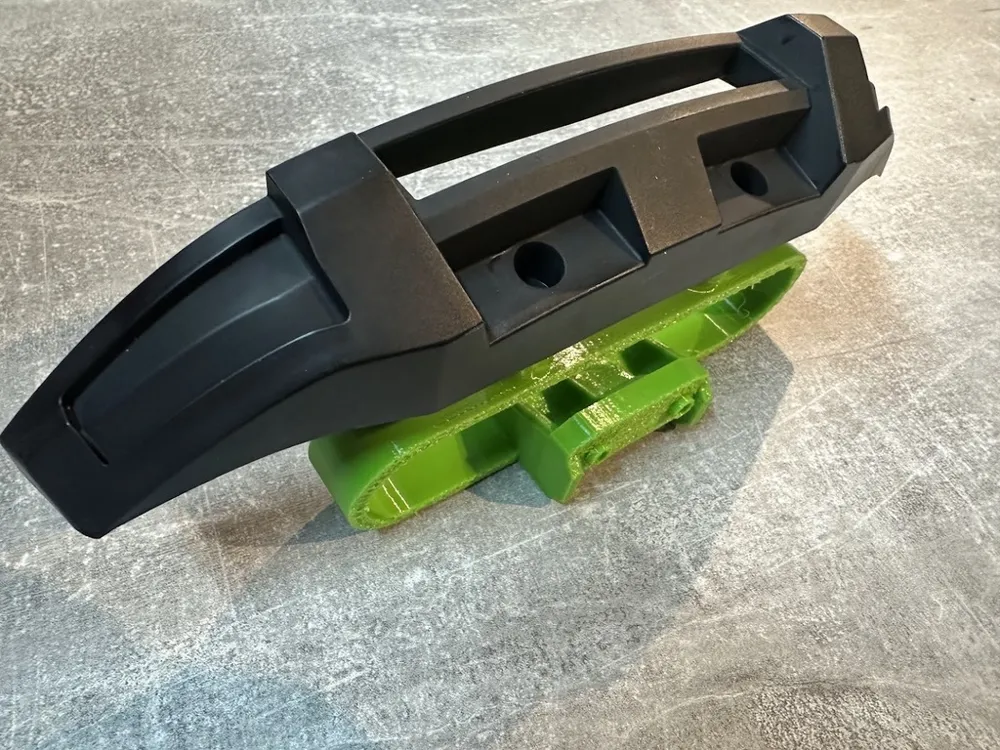

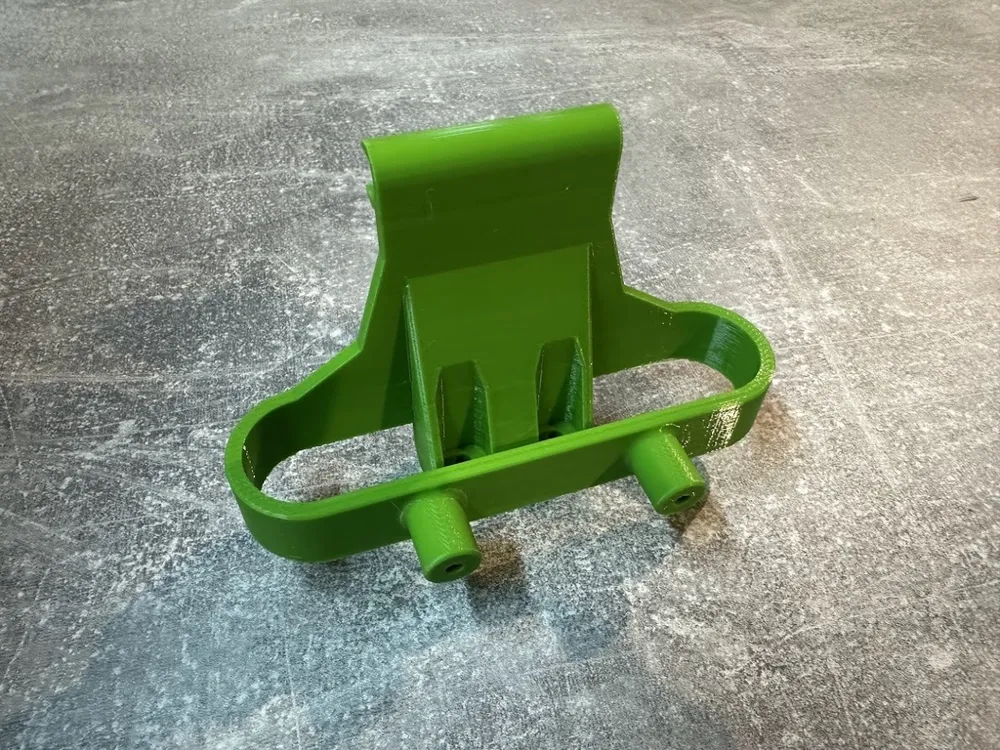

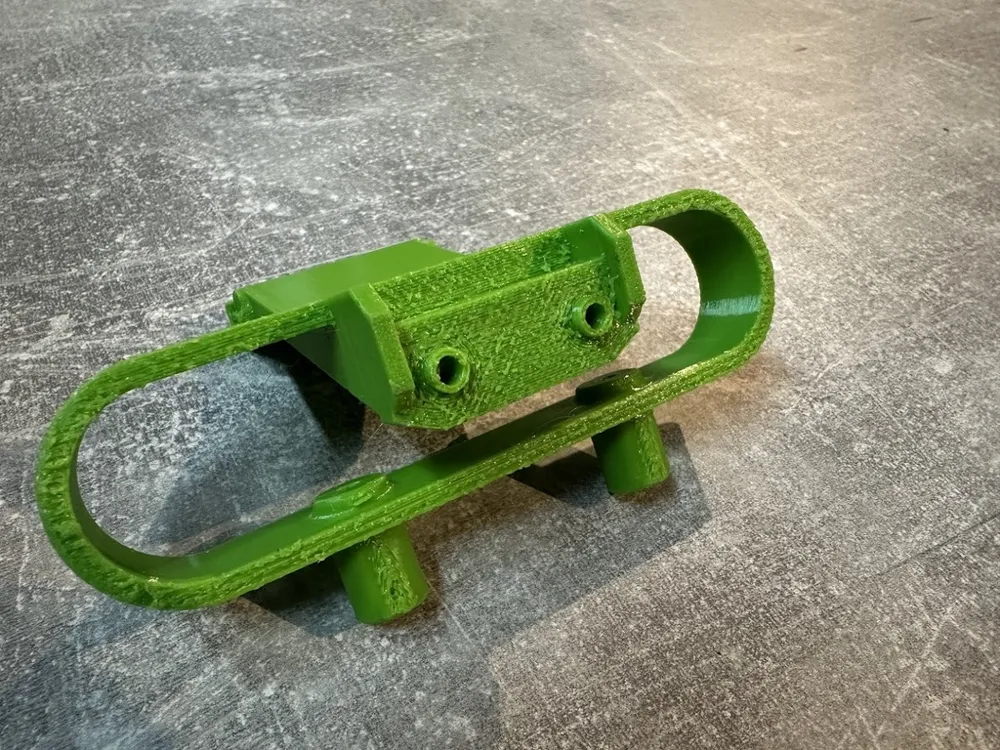

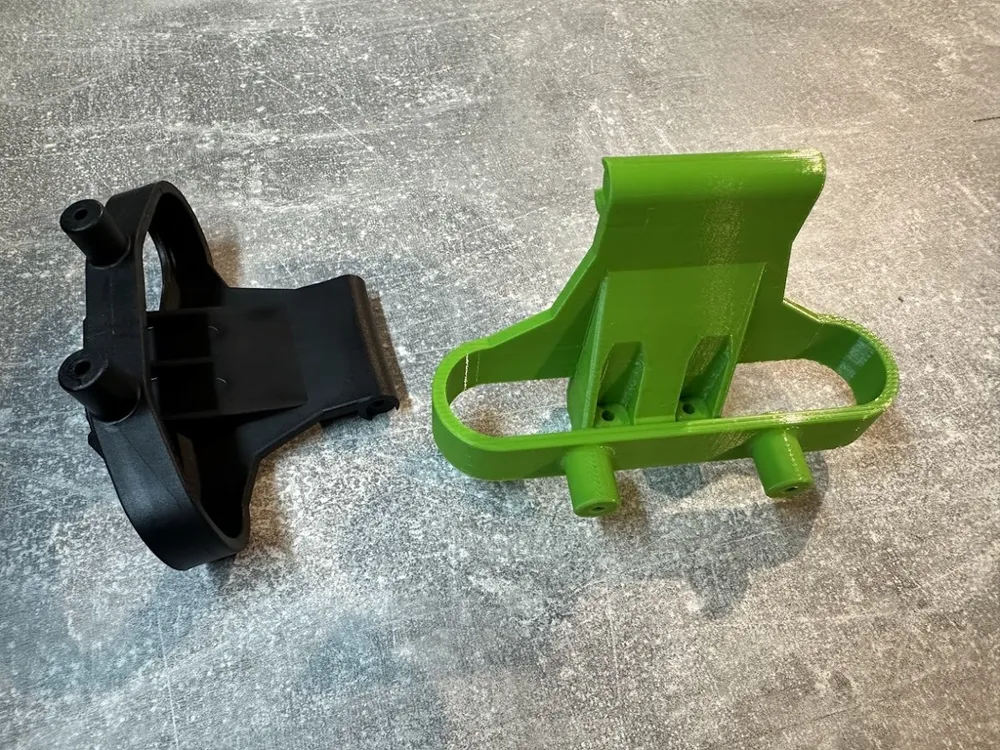

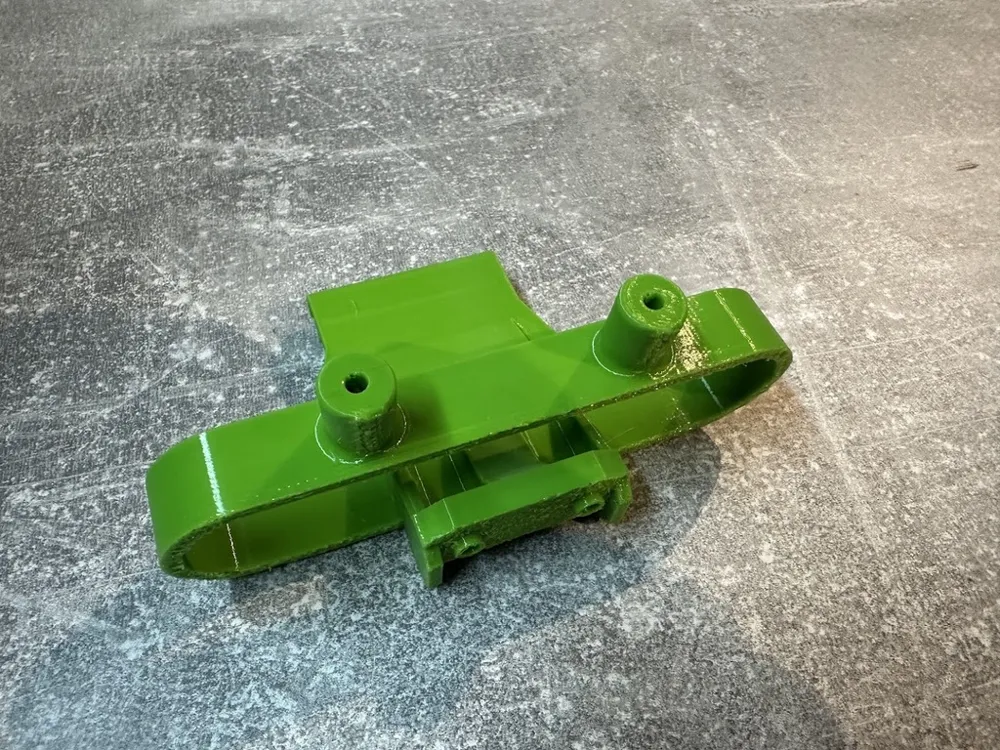

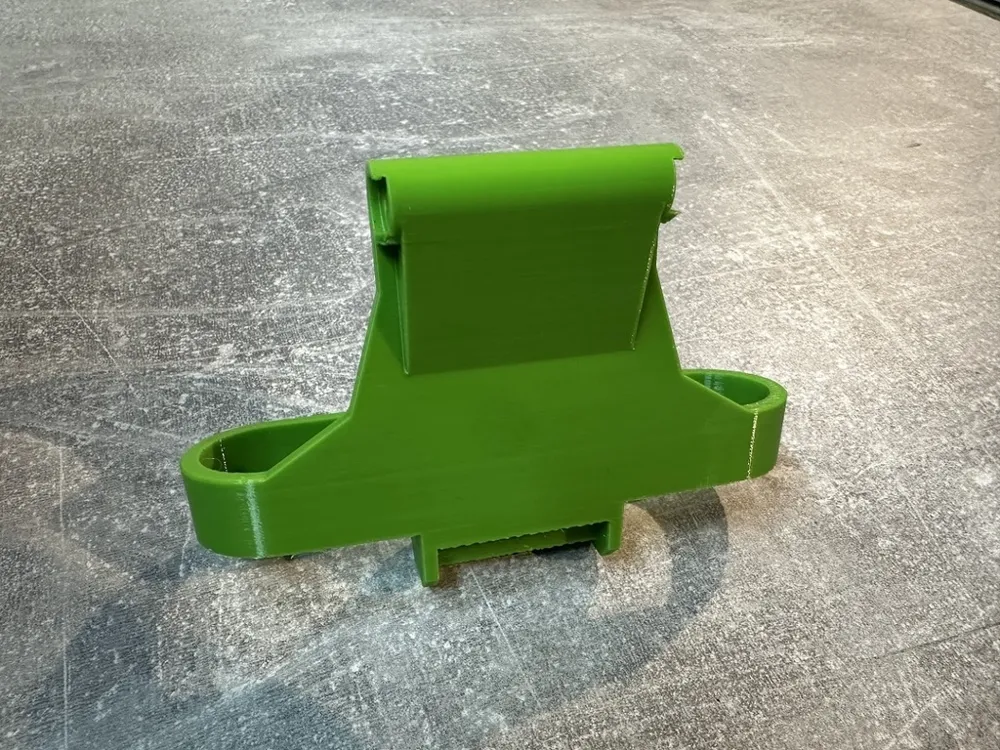

When you let your little one “drive for a while” your XRT, you must have a spare front bumper mount (at least). That happened to me and I had to wait a couple of days for the delivery - that's why I've decided to recreate that part to at least have something to continue driving.

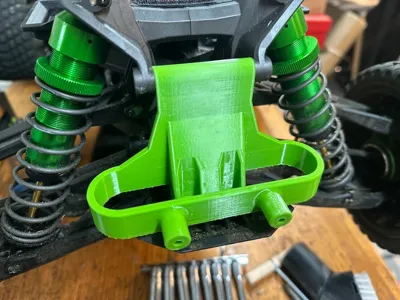

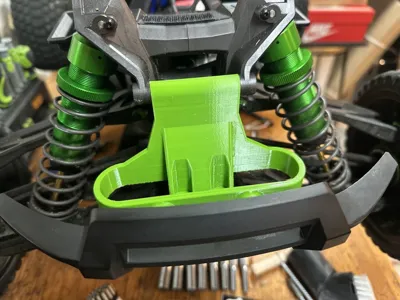

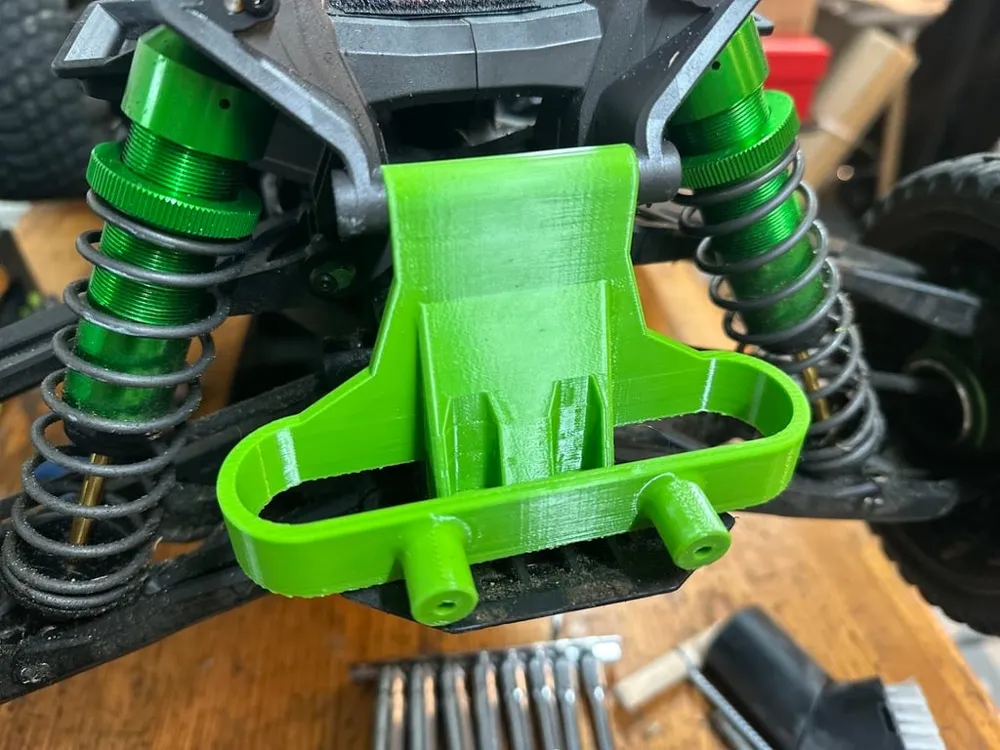

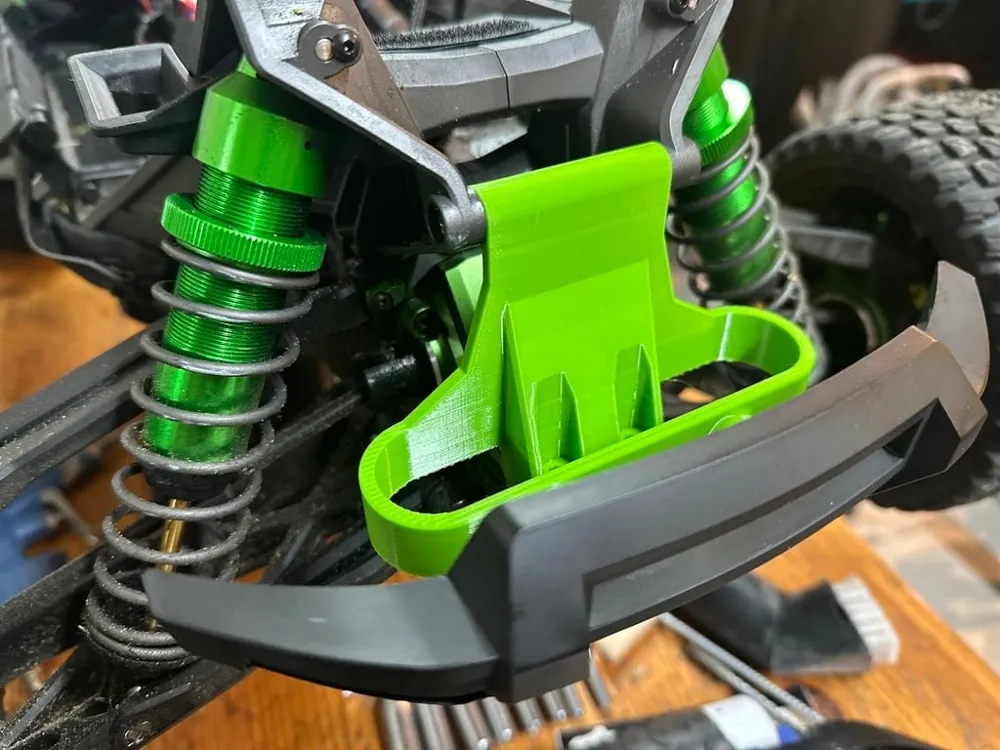

This is the first version, fits perfectly in place. If you print it with about 10 walls(perimeters) and 25-35% of gyroidal infill, using PETG/PCTG material, it should survive most of the little crashes.
In the next version, I plan to beef up a bit the spring/loop to make it more stiff and to add the TPU inserts.

For now, it is as good as it can be out of the 3d printer - that's why the model is free. ;)

How to print:

material: PETG / PCTG / ABS (if you have some of those with GF / CF addon - it could be better),
layer height: as low as you can; I've used 0.12mm,
wall loops / perimeters: 8+ (for 0.4 nozzle),
infill: 25%+ gyroidal
support: YES; I've used the “tree” type.
Happy printing!
