3M-15 - HTD Timing belt pulley 32 and 44 teeth
IP Report
Print Profile(2)
44 teeth, 0.2mm layer, 2 walls, 15% infill
Designer
1 h
1 plate
32 teeth,0.2mm layer, 2 walls, 15% infill
Designer
45 min
1 plate
Open in Bambu Studio
Boost
58
94
8
3
217
58
Released
Description

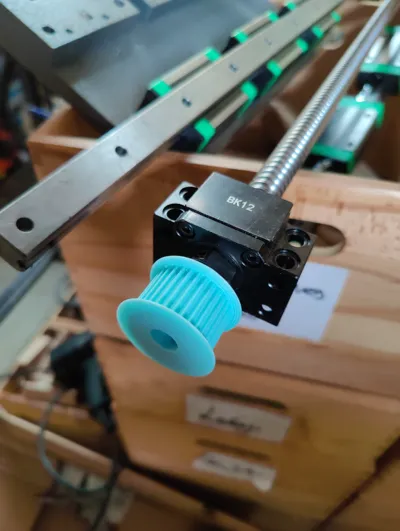

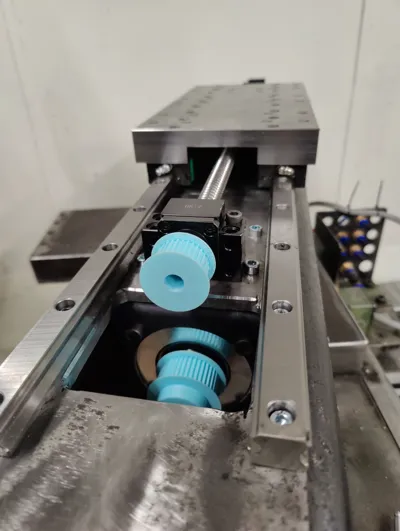

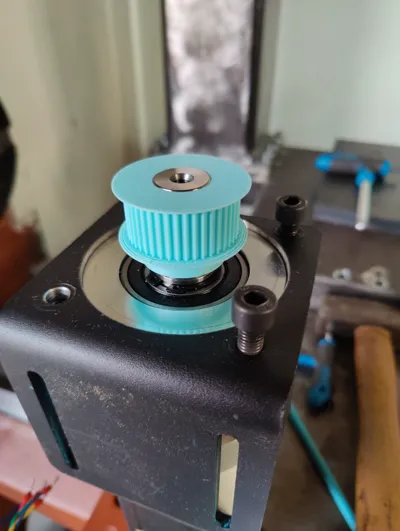

Just modeled precise 3M-15 - HTD Timing belt pulleys for 3d printing
It's the exact model that BEA sells, just flatten at outside flanges for printing as they are so thin and at the angle in the original that they don't print well.
-This is for 15mm width belts.
One with 32 teeth and a 10mm hole
Second 44 teeth and 20mm hole.
.iges provided
Drop me a message if you need anything else of any size.
Calculate your pulley size, diameter, and belt length with this calculator
