ERCF Filament Stress Sensor
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 8% infill
Designer
1.2 h
1 plate
Open in Bambu Studio
Boost
1
8
2
3
10
1
Released
Bill of Materials
List other parts
- Omron SS-5GL-FT Mikroschalter x 2:
- PC4-M5_Schnellkupplung x 1: optional
- Festo_Schlauchverbinder_4mm x 1:
- FYSET_ECAS04 x 1:
Description
Content has been automatically translated.

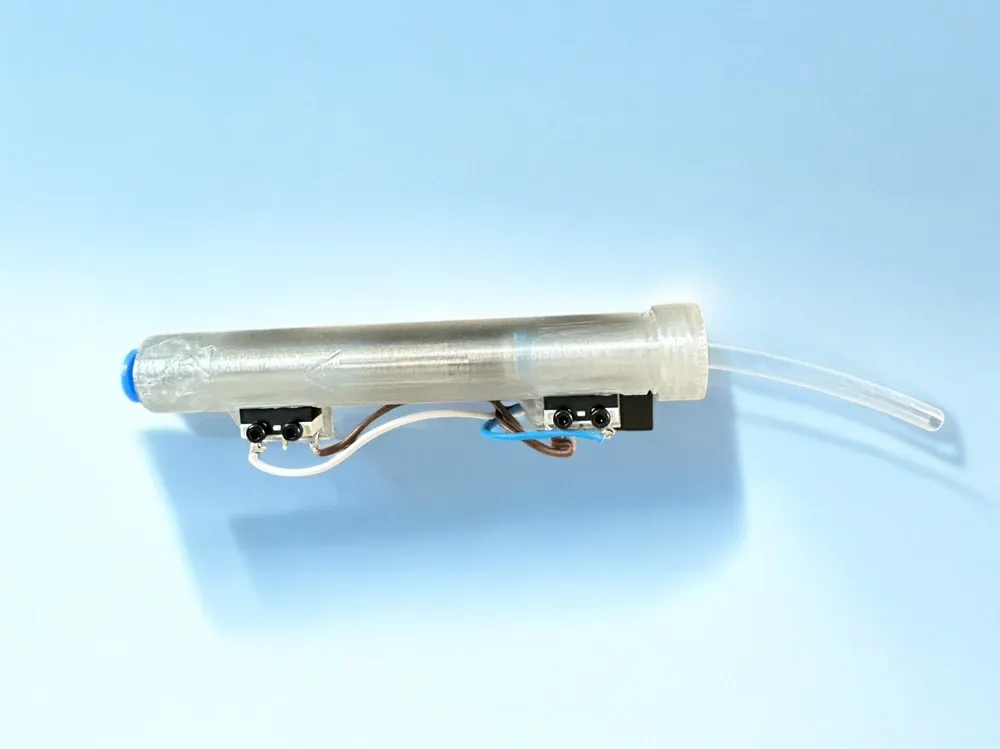

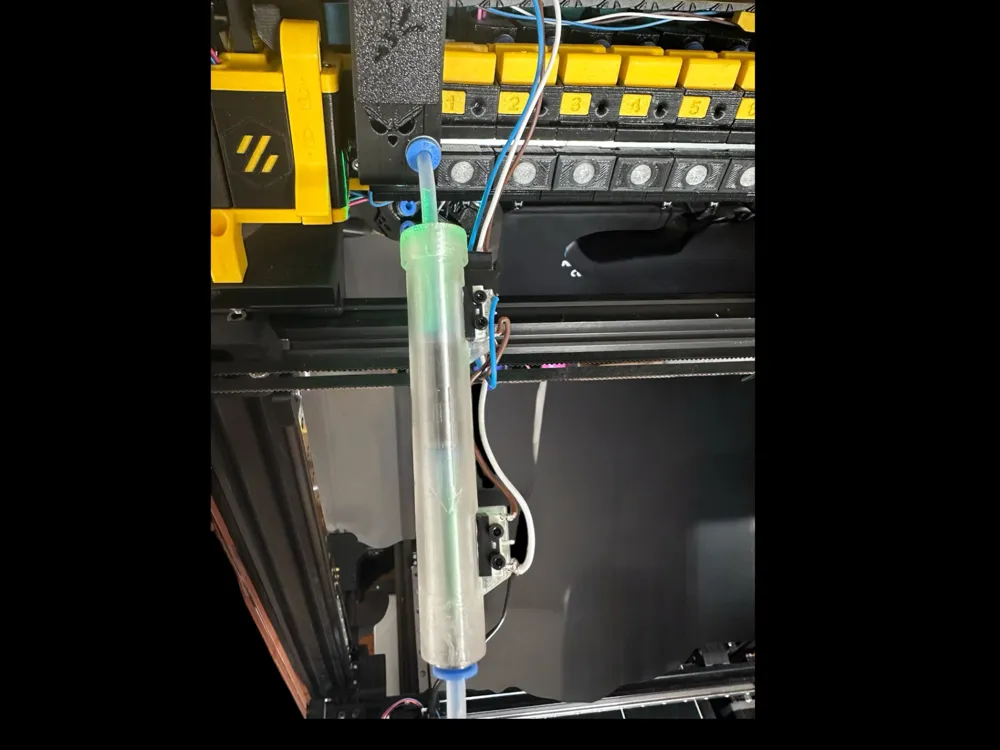

Easy and quick to print sensor holder for ERCF. This makes it possible to synchronize the ERCF unit with the extruder

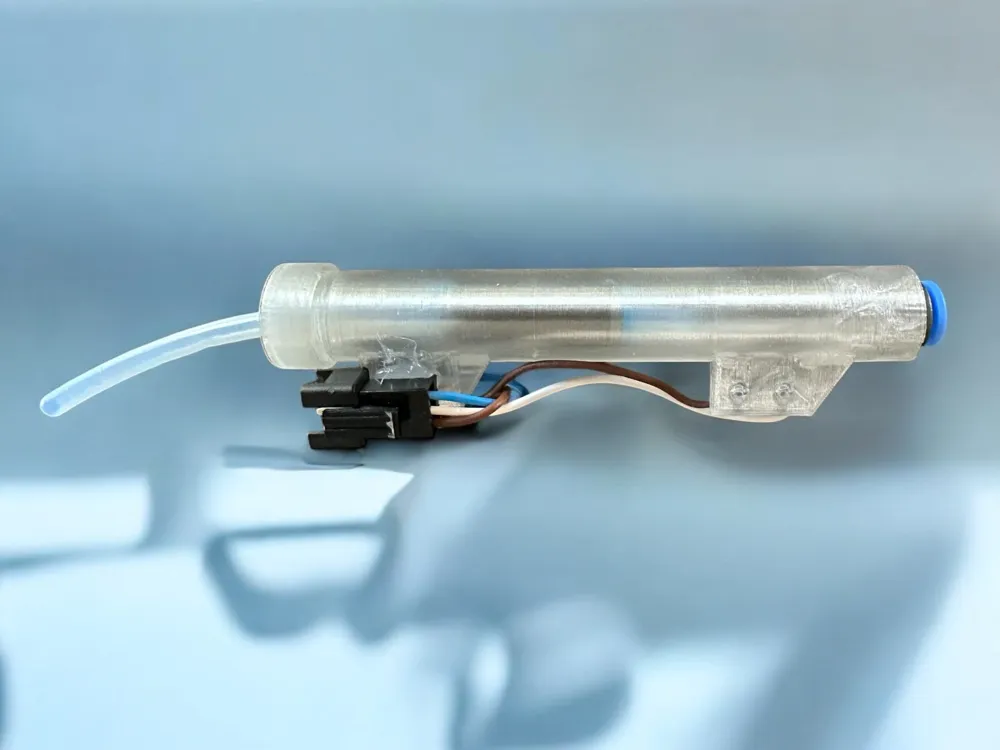

The file consists of two objects. The main body and the lid. The lid can simply be screwed onto the main body after the Festo tube connector or a PC4-M5 pneumatic quick connector has been inserted. This allows for quick opening and closing if necessary. The tube connector is connected to the ERCF. The Bowden tube to the extruder is attached to the Ecaps04
Two microswitches “Omron SS-5GL-FT microswitch” are mounted on the main body. These are connected to the MMU board, for example
In Klipper, the pins still need to be defined
sync_feedback_tension_pin:
sync_feedback_compression_pin:
