Roborock Qrevo [MaxV PLUS Master PRO S] Dust Bin
Print Profile(1)
Description
Boost Me (for free)
What started as a small idea has gradually become a passion. More and more often, I receive requests from users asking if I can design containers for other models as well – yes, I'd love to! Please support me with a Boost for the test prints. Thank you very much!
Dust Bin for the Roborock Q Revo [PLUS] [MASTER] [PRO] [MAXV] [S]

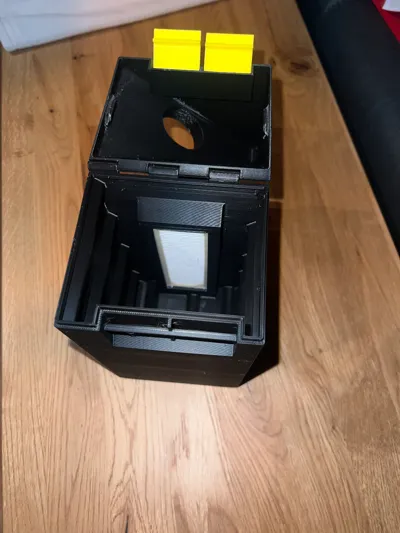

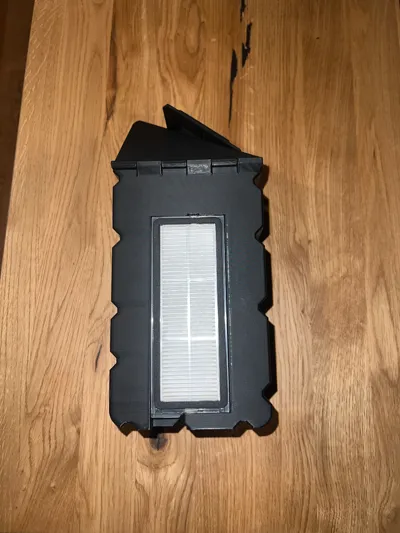

This reusable dust bin replaces disposable filter bags and allows for easy emptying
- The two halves are connected with a 1.75 mm filament piece that serves as a hinge

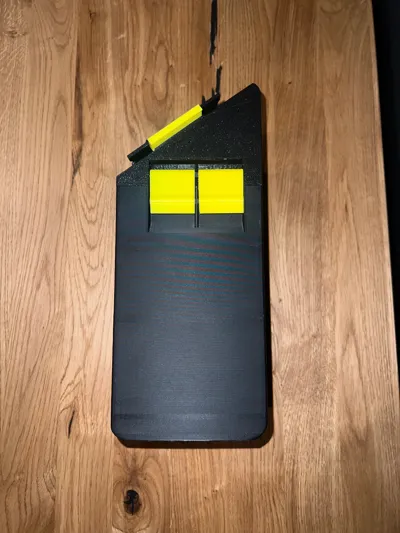

- Two clips securely close the container and allow for easy opening and emptying
- The seal is glued into the designated recess
- The filter used corresponds to that of the robot's original dust bin
- The container has been optimized and tested for easy use
- Note: The support on the small part must be removed very carefully to avoid damaging the clip's bridge
- The filter fits extremely precisely – when replacing it, it should be removed gently to avoid damage
Material recommendation:
- Printed from PLA, which in my experience is completely sufficient (The seal is made of TPU)
‼️ Important note: To make removal easier, one of the clips can be opened. Additionally, a handle has been added to the adapter piece to safely remove the container
⚠️ Disclaimer: The use of this dust bin is at your own risk. I assume no warranty or liability whatsoever for damages that may arise from its use
👉 See also my dust bin
❤️ A big thank you to Blacklion89 and to FilamentForce!
They have agreed to help me provide the dimensions and test the model with test prints

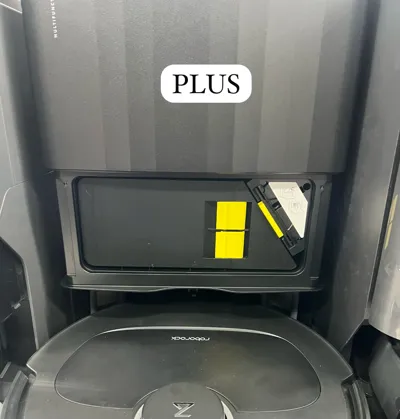

| PLUS | ✅ | pknocku |
| Master | ✅ | FilamentForce |
| Pro | ✅ | Dean |
| Slim | ✅ | pknocku |
| S | ✅ | Rabauke1986 |

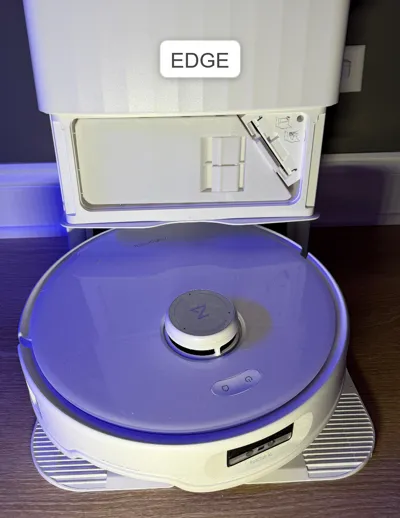

| Edge | ✅ | LivBigSki |
| MaxV | ✅ | pknocku |
| QV 35A | ✅ | danshti |
| QV 35S | ✅ | pknocku |
| QR 598 | ✅ | pknocku |
| L | ✅ | PortakalFrog |

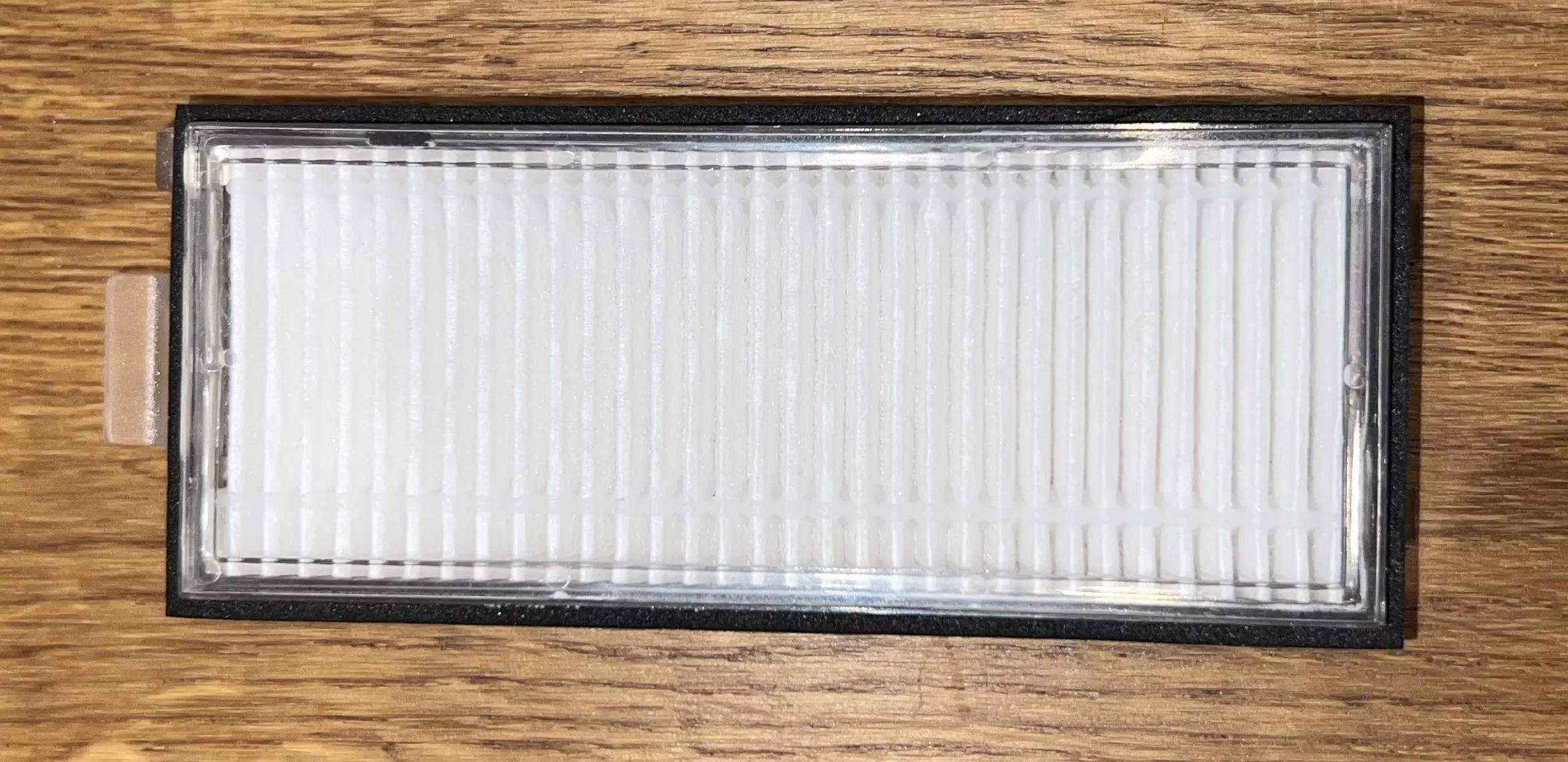

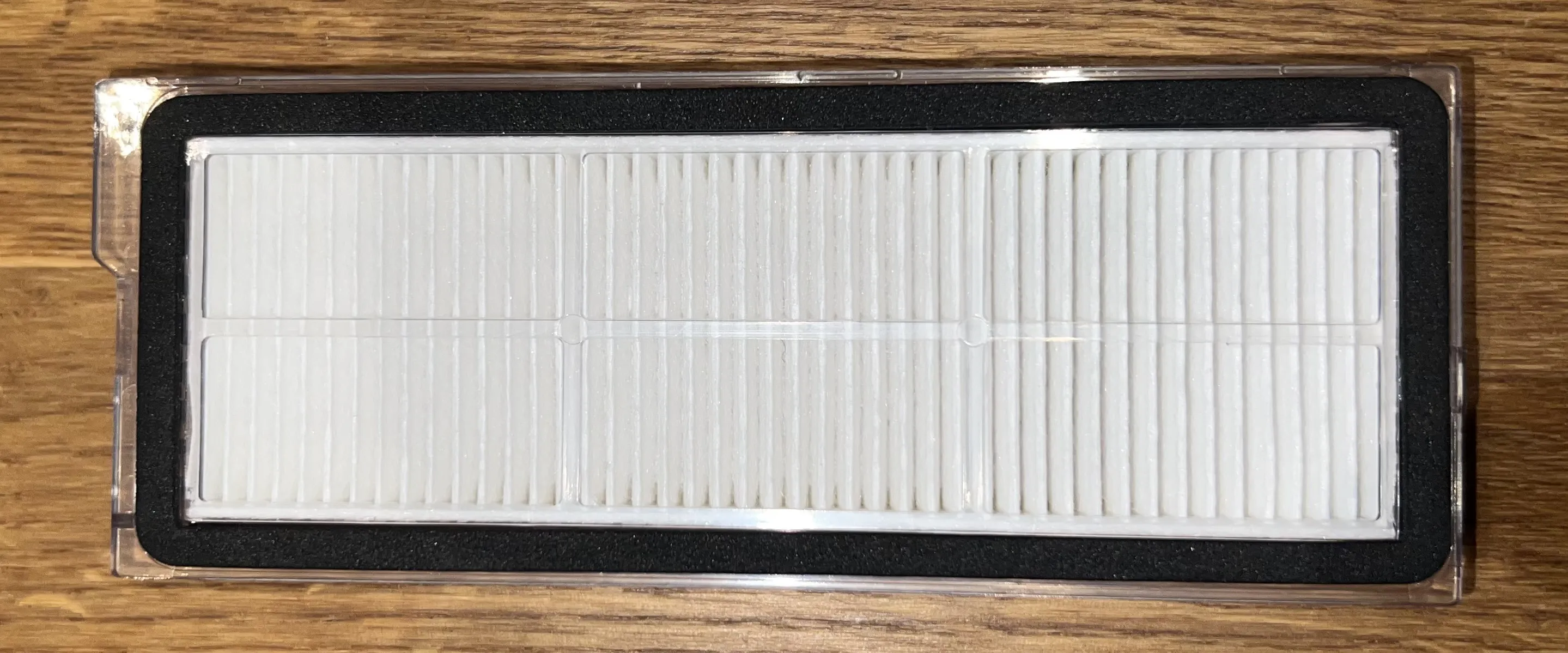

The two plates (or models) differ only in the filter. Please compare which filter is installed in your vacuum cleaner before printing
| Plate 1 |  |
| Plate 2 |  |
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
