Thor's Hammer Fidget Spinner and Clicker
Print Profile(12)
Bill of Materials
- Ball bearing 687 (inner diameter: 7mm, outter diameter: 14mm, width: 3.5 or 5.0 mm) x 1: not required for fixy version
- Mechanical keyboard switch x 2:
Description
This is a fidget spinner/clicker designed after Thor's mighty hammer Mjölnir.
The head of the hammer spins around the shaft.
Both sides of the hammer head contain clicky mechanical keyboard switches.
It a simple design which does not require any tools (or avengers) to assemble. All parts snap together. Of course you can apply some glue to make it extra durable.
There are four versions:
- Spiny Multi Color: The described design (clicky and spiny). Separated objects for multi-color print.
- Spiny Single Color: The described design (clicky and spiny). Indented decorations for single color print.
- Fixy Multi Color: The shaft is fixed to the hammer head (clicky only). Separated objects for multi-color print.
- Fixy Single Color: The shaft is fixed to the hammer head (clicky only). Indented decorations for single color print.

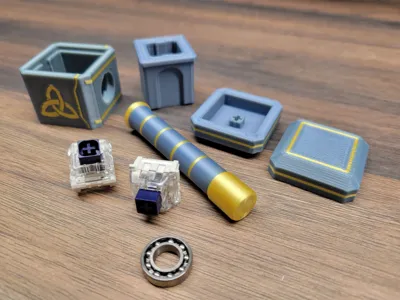

Required Parts:
- 1x Ball bearing 687 (inner diameter: 7mm, outter diameter: 14mm) (not required for fixy version). Supported bearing width:
- 3.5 mm (default design)
- 5.0 mm (print profile “Base Inside for a 5mm wide bearing”)
- 2x Mechanical keyboard switches (I used Kailh Box Navy switches)
Assembly:
No tools needed
If you want a bigger version, checkout the BigBoiEdition:
Changes:
- 20-Feb-2025: Added 0.4 indent to the decorations on both single color models
- 21-Feb-2025: Added print profiles for every version
- 21-Feb-2025: Added Profile "KeySwitchHammer_base_spiny_inside_5mm_bearing" for a 687 W5 bearing (5mm instead of 3.5)
- 27-Feb-2025: Added Profile “Heavy Duty version of the Shaft for the spiny version”
- 03-Mar-2025: Added keychain version to profile “Heavy Duty version of the Shaft for the spiny version”
Have fun printing. Leave a like, comment if you have any issues and if you feel generous leave a boost.
