Battery Teststand for AA-Batteries
Print Profile(1)
Bill of Materials
- 10 Ohm Resistor x 1: only needed if you don't have a multimeter with a battery test mode
Description

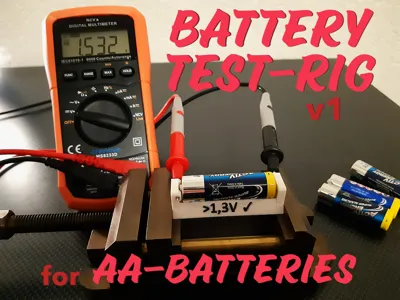

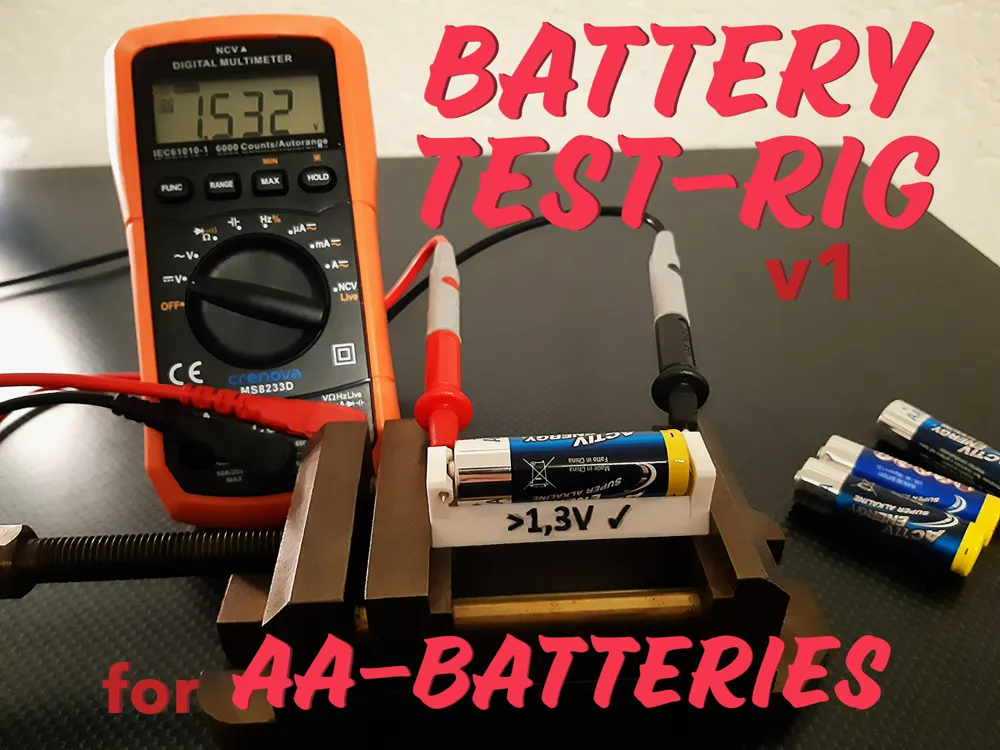

I am glad to present to you the first generation of the Battery Test-Rig for AA Batteries.
Check out the second generation of the Battery Test-Rig here:

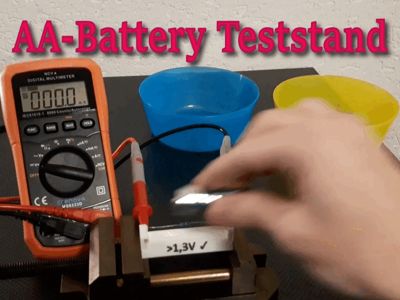

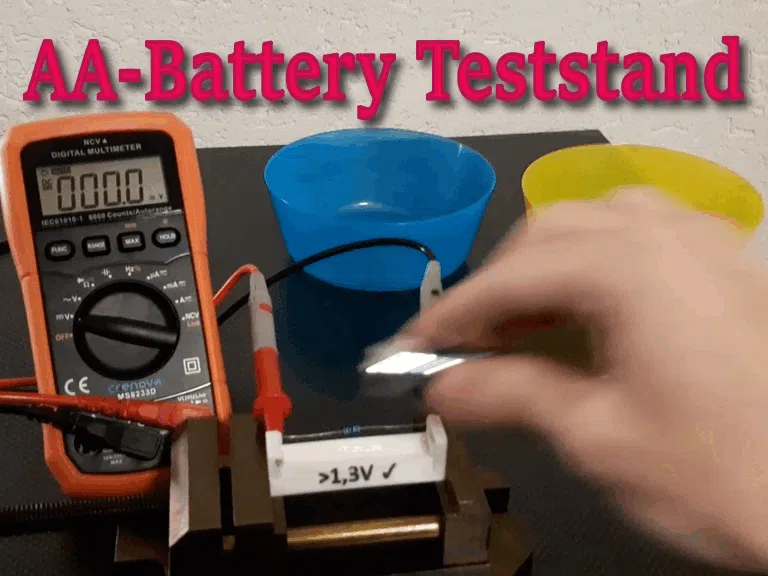

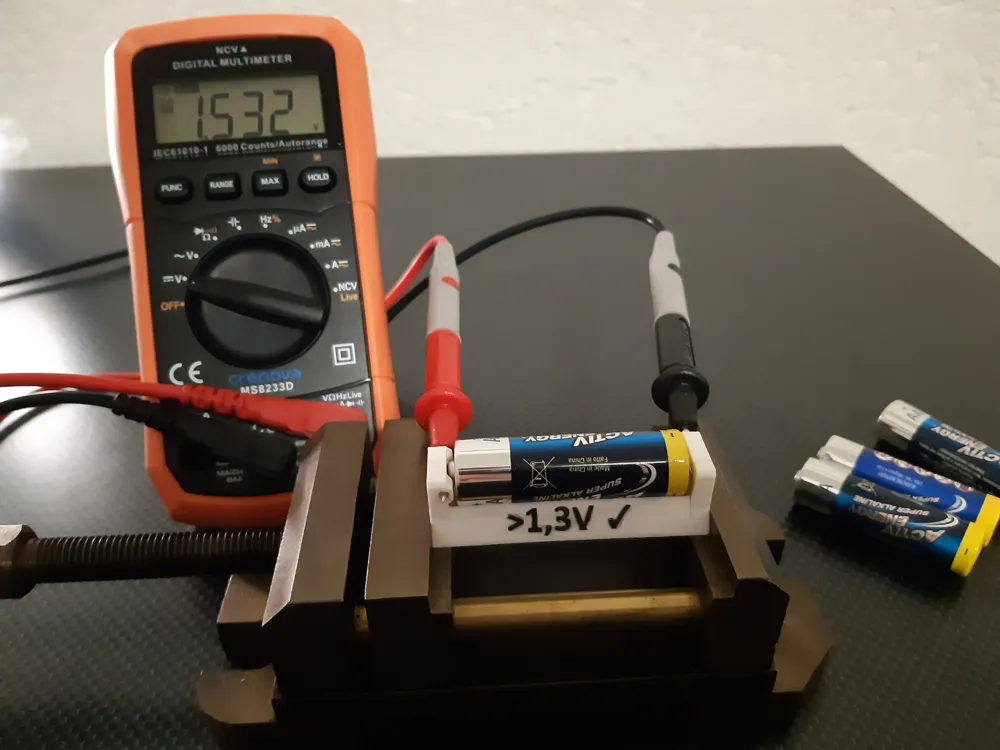

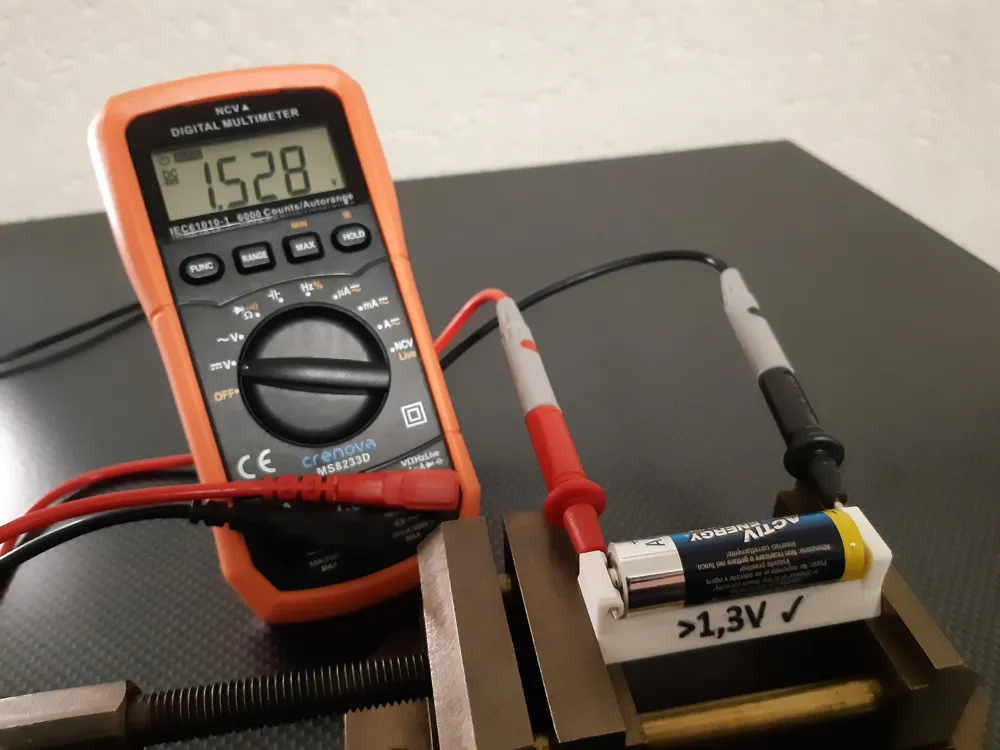

This little stand uses just your multimeter to clamp and hold batteries for you to measure them properly. If you measure a Voltage above or equal to 1.3V, it's good.

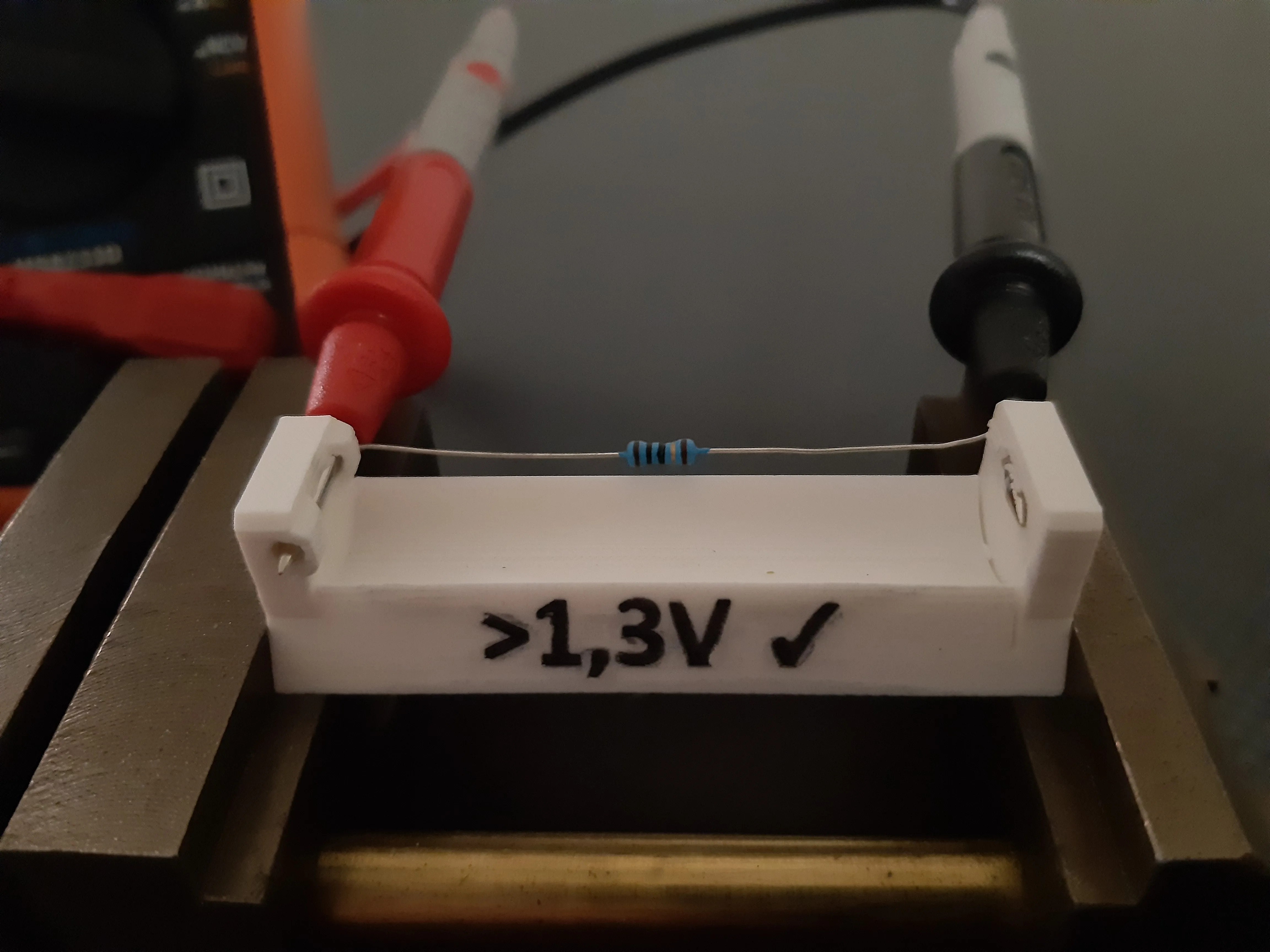

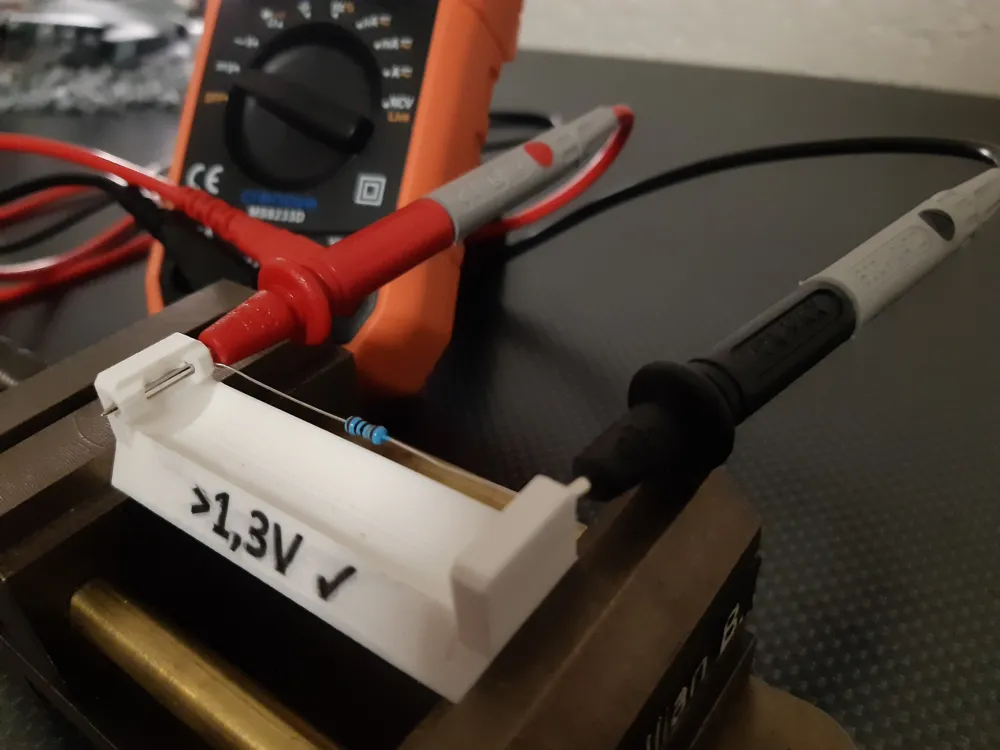

If you don't have a multimeter with a battery test function (usually signed with a 1.5V or 9V sign), you'll need to put a 10 Ohm resistor between the test probes, as shown in the picture below.
The reason for this resistor is to measure the battery under load, because empty batteries can still show 1.5V of voltage when measured without load.
Boost Me (for free)
If you like my design, please leave me a Boost here. Thanks❤️
