Florence Pugh is the latest addition to my ongoing series of actress HueForges.

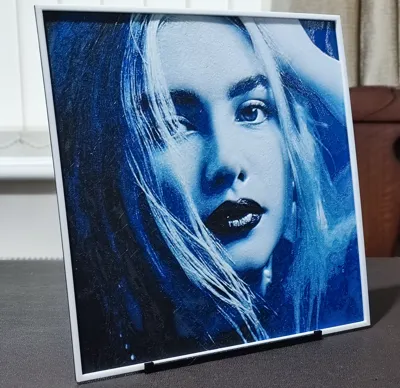

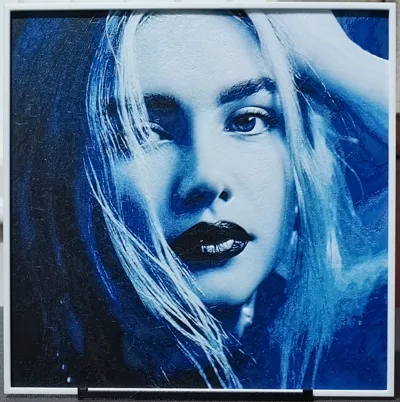

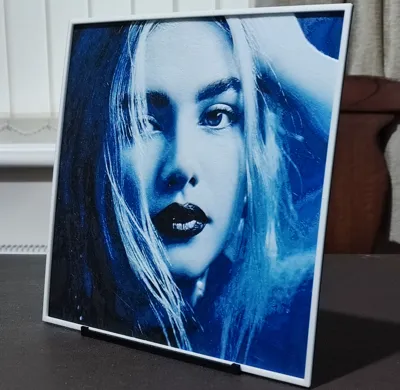

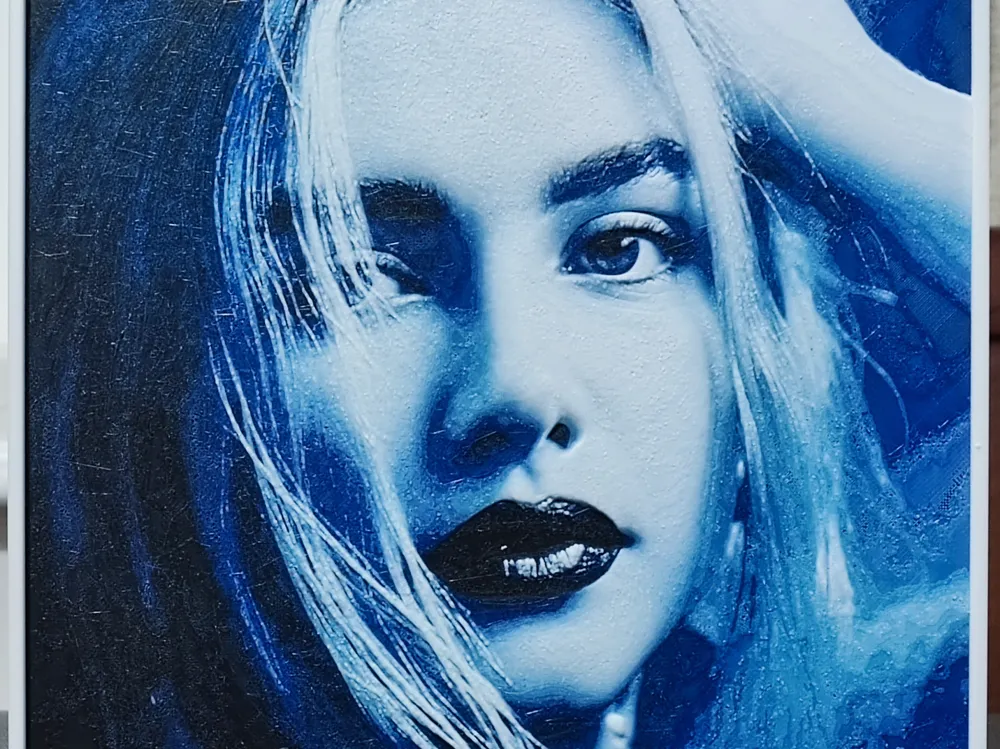

When I'm looking for HueForges to print, nothing annoys me more than people using high resolution inkjet or downloaded photographs to illustrate their HueForge rather than the HueForge itself.  As such, any HueForge I produce will only have images of the actual HueForge printed with the settings below - this way, you'll always know what to expect.


As with all Hueforges, the transmission distance (TD) of the filaments used is pretty crucial.  I use filament from readily available manufacturers in the UK, so as much as possible, please stick to the filaments listed, or check the TD of any you substitute (especially the white).

As with many of my designs, this one uses a 0.04 layer height.  This allows for much greater detail, but does have the side effect that it takes much longer to slice, and adds to the print time.  I prefer quality over speed, so I think it's very much worthwhile.

Before printing, make sure your plate is clean.  I often have adhesion issues with larger prints (especially flatter ones like HueForges) - they are nearly all solved by cleaning the plate.  I've also started using 3Dlac - it's not cheap, but a little goes a long way and I recommend it highly.

If you're going to resize this in the slicer, please don't touch the Z axis!  This is vitally important!  Only resize the X & Y axes, and realise that your results may vary from what is intended in my print profile.



If you like any of my designs, please leave a review or a comment.  I'm always open to constructive criticism and view it as the best way to improve.  If you have any requests, please ask and I'll see what I can do.

Print at 100% infill with a layer height of 0.04mm with a base layer of 0.16mm

The Model is 200x200mm in size
You may print at higher layer heights below the Min Depth of 0.72mm
The Max Depth is 2.2mm and the Actual Depth is 2mm

Filaments Used:
    PLA Deeplee Black Transmission Distance: 0.8
    PLA Bambu Basic Blue Transmission Distance: 3.2
    PLA Elegoo Sky Blue Transmission Distance: 4
    PLA Deeplee White Transmission Distance: 5.6
This print uses 4 unique filaments

Swap Instructions:
    Start with Black
    At layer #19 (0.88mm) swap to Blue
    At layer #23 (1.04mm) swap to Sky Blue
    At layer #27 (1.2mm) swap to White for the rest.
