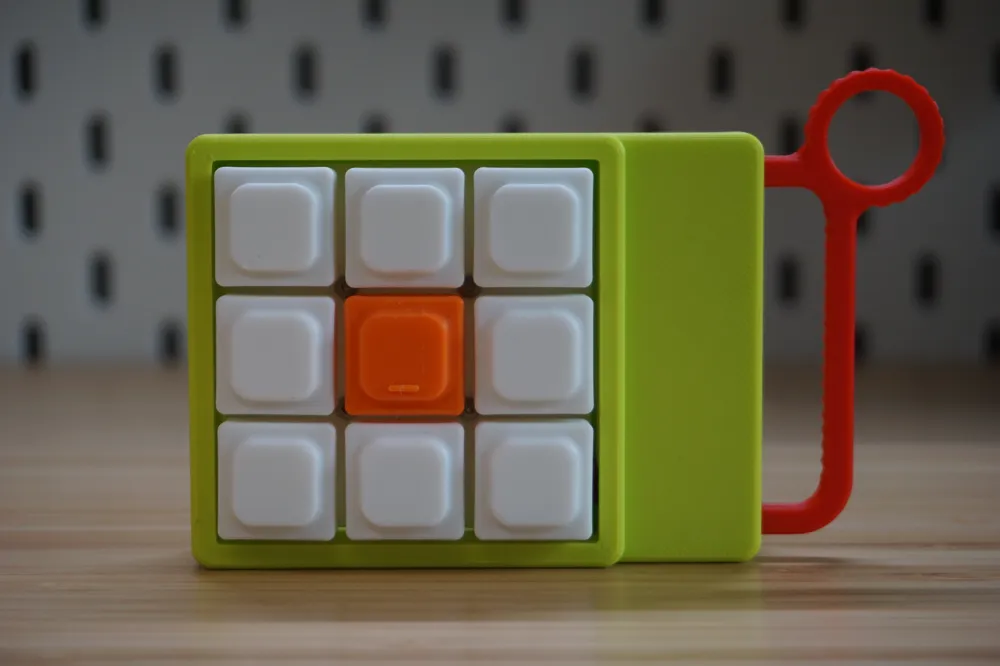

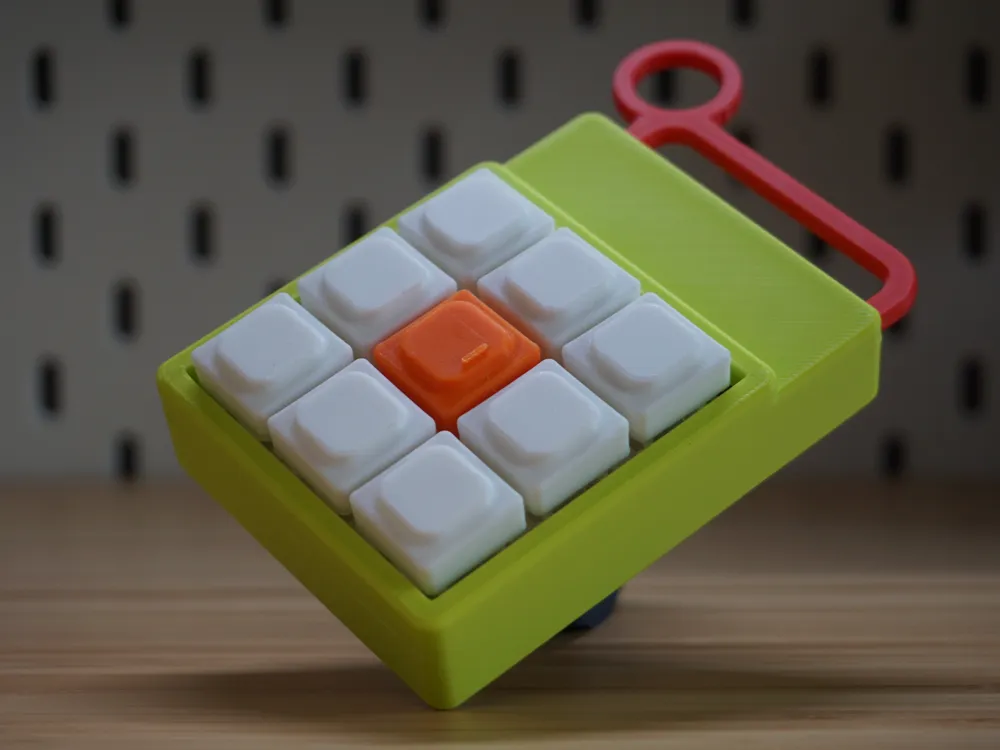

3x3 Hand-wired macro pad
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 10% infill
Designer
1.8 h
4 plates
Open in Bambu Studio
Boost
34
69
1
1
52
26
Released
Description
Components:
- 4 pcs of m2 heated insert (3mm height, 3.2mm width)
- 4 pcs of m2 female-male standoff (5mm length, (8 mm total length))
- 4 pcs of m2 countersunk screws (6mm total length)
- 1 pc of 4mm simple m3 screw

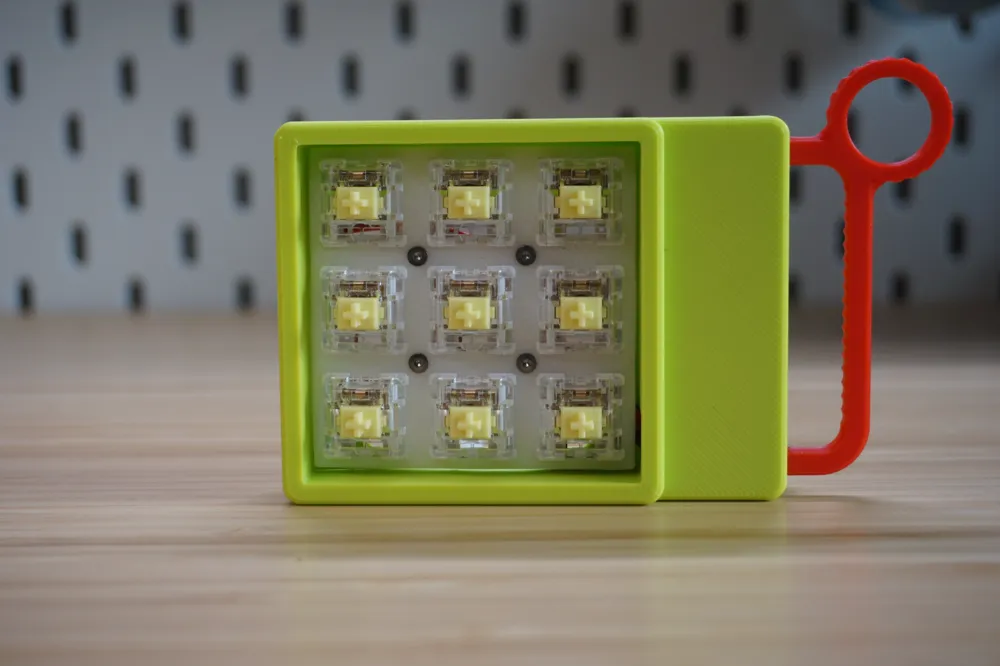

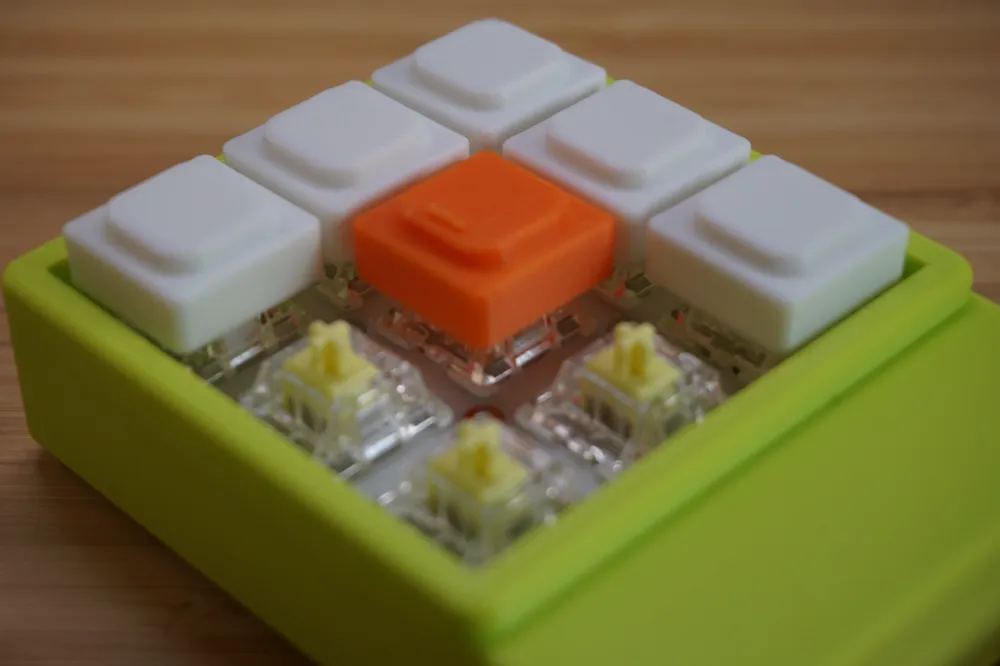

- 9 pcs of full size mx style switches

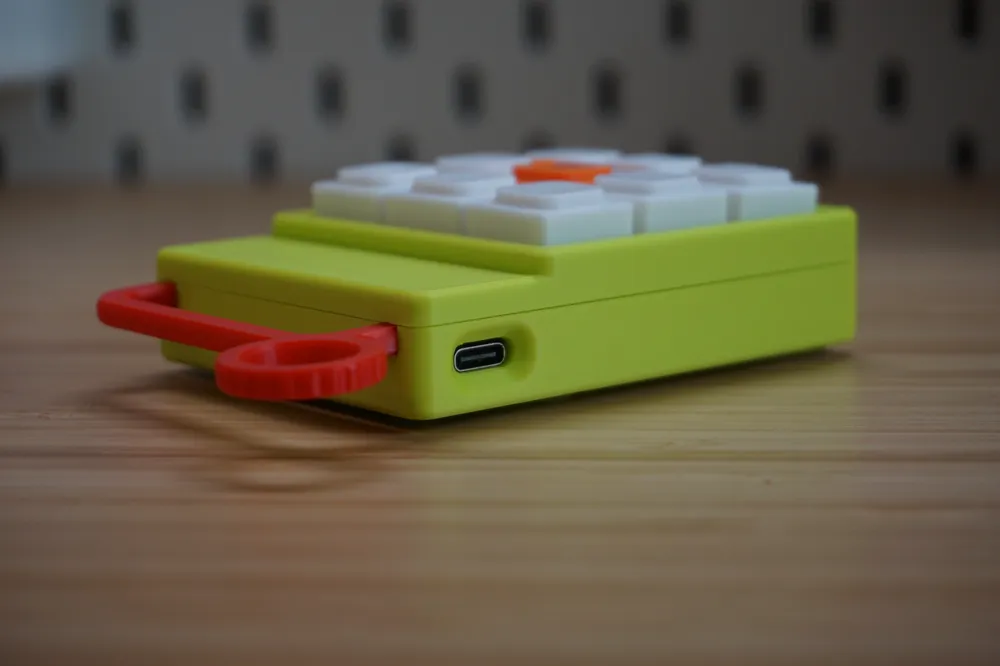

- 1 pc of usb-c pro micro

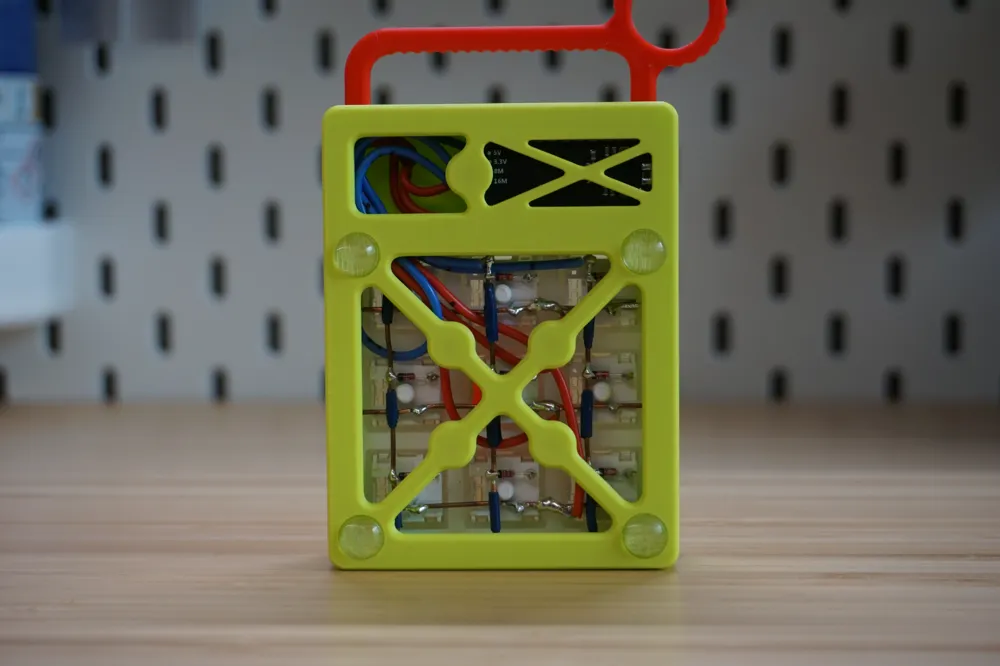

- 9 pcs of diodes (1N4148 for example)

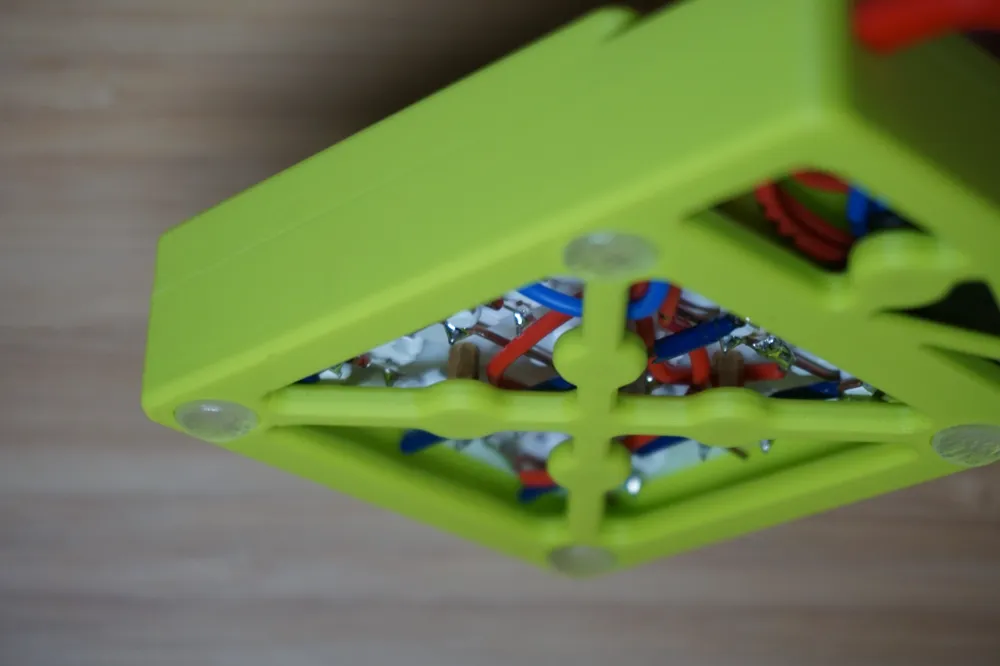

- 4 pcs of 8mm rubber feet/cabinet bumpers
- wires
I followed this guide to make the "guts" of the macropad:
Assembly of the case:
- Install the inserts into the bottom of the case.
- Screw in the standoffs.
- Install the pro micro with the m3 screw.
- Secure the plate with the m2 crews.
- Install the hanger.
- Snap on the top of the case.
Keycaps: https://makerworld.com/en/models/1121322#profileId-1119833
