Dillon tool head for 650 / 750

This is a tool head for the Dillon Precision reloading machines XL650 and XL750.

Please note that this is a plastic tool head. It is not a aluminium or steel tool head. Its plastic.

When reloading range pic you have a variety of makes of brass where the primer is fitted unequally hard leading to different need of force to decap the brass. As I found it disrupting decaping in the same move as adding powder and seating a bullet I found myself looking for a solution to decap my 9mm brass in a separate operation stage. Doing it in a single press took forever and investing in a Armanov or a original toolhead just for the decap tool were a bit steep. Drawing my own were the solution.

Please note that this is a plastic tool head. It is not a aluminium or steel tool head. Its plastic.

With a LEE universal decap tool it will decap 9mm without any problem. I doubt that it will stand the pressure of decaping and resizing, at least not over time. I also doubt that it will hold up for bullet seating but if you are looking to design your own case trimmer it just might work.

Please note that this is a plastic tool head. It is not a aluminium or steel tool head. Its plastic.

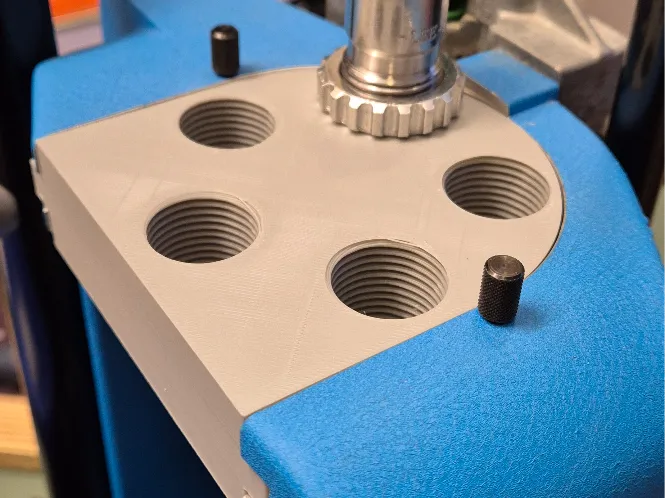

The die hole has a really snug fit, i had to use a wrench to mount the decap tool. I guess a thread tap would have cleaned the threads and made it easier to thread in the tool but now i know its firmly mounted. The tool head does not have the extra hole for the Dillon Precision Powder Check System because this tool head is intended for case preparation, it's not intended to replace a aluminium tool head. Pleas use a aluminium tool head if you intend to reload ammunition.
