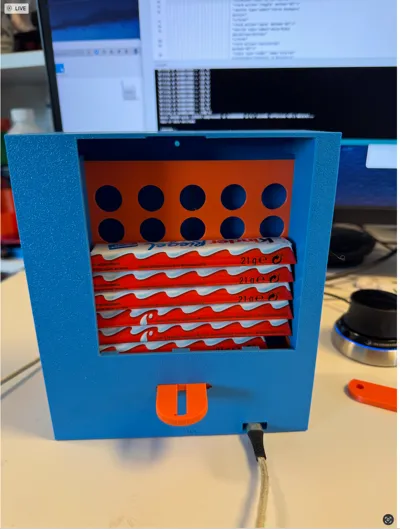

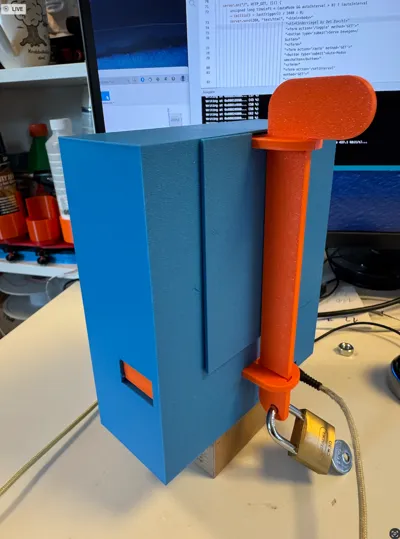

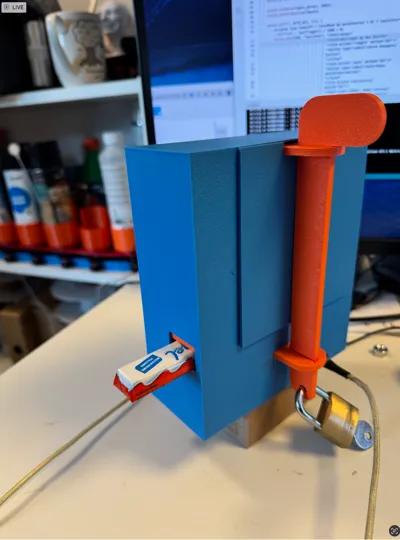

Kinder Surprise Dispenser – Smart Chocolate Delight at the Touch of a Button!

**Duplo works too, though it's a bit trickier due to stacking challenges***

With the Kinder Surprise Dispenser, you can enjoy your favorite chocolate even smarter! Thanks to modern Wi-Fi control, you can conveniently operate the dispenser via your smartphone, tablet, or even voice command. Simply open the app or web server, press a button – and the dispenser releases a delicious Kinder Surprise.

Whether as a highlight in your own home, a gag in the office, or an eye-catcher at parties – this dispenser provides plenty of fun and sweet surprises!

Automatic dispensing via Wi-Fi control
Operation via smartphone, tablet, or voice control
Perfect for home, office & events
Optional manual button control (in preparation)

MQTT already integrated, but the program must be recompiled with the broker IP

Experience chocolate the smart way – technology meets indulgence! 🍫📱✨

This project is for everyone – from absolute beginners with no experience in 3D printing or functional models to experienced 3D printing enthusiasts wishing to expand their knowledge in the area of microcontroller and servo control. It combines an easy introduction with exciting possibilities for further development and invites you to experiment creatively. Whether you are just venturing into the world of technology or already deeply immersed in it – this project offers an exciting challenge with plenty of room for your own ideas. 😊

If you have any questions about programming or servo control, feel free to contact me. I'm happy to help!


Documentation (1)

Assembly Guide (1)
anleitung1_3.maerz.pdf

Comment & Rating (25)

(0/1000)

I just saw you also have a version with a button ... are the print files for that already available too ? in principle just for the button...which is connected to D2 ;) , there are these touch buttons then one wouldn't need files but just to touch a surface here :) cool idea...
The designer has replied
Show original
0
Reply
Which touch button do you mean, no print file exists for that, I assumed a small button, and a hole was quickly drilled, if you tell me the dimensions, and where,.. As for the button, did I provide it as a .bin file, or can you compile it yourself, I'm currently on the go and can't access Github (haven't worked on the project for 6 months)
Show original
1
Reply
Replying to @Deffel63 :
I mean something like this then you also don't need to drill a hole... https://de.aliexpress.com/item/1005006246380749.html
Show original
0
Reply
Replying to @kral84 :
OK but what exactly do you want now
Show original
0
Reply
Top support with 24/7 assistance ;-)
Show original
0
Reply
Boosted
Cool idea, but how does the voice control work
The designer has replied
Show original
0
Reply
You need a home automation system capable of MQTT protocol communication, such as ioBroker, Home Assistant, or Node-RED
Show original
0
Reply
Everything worked so far, my servo hums a little after returning to the 0 position. I'll have to check if the angle isn't exactly 100% correct
The designer has replied
Show original
0
Reply
I've modified the software; the servo now shuts off after one second, eliminating any potential buzzing
(Edited)
Show original
0
Reply
Boosted
Unfortunately very cool. Keep it up Deffel63
Show original
0
Reply
Awesome piece. Highly addictive
Show original
0
Reply
Print Profile
0.2mm layer, 4 walls, 25% infill
Funktioniert super
0
Reply
Boosted
Mega!
0
Reply
Boosted
Great idea
Show original
0
Reply
Boosted
A very cool idea, I will definitely print it
Show original
0
