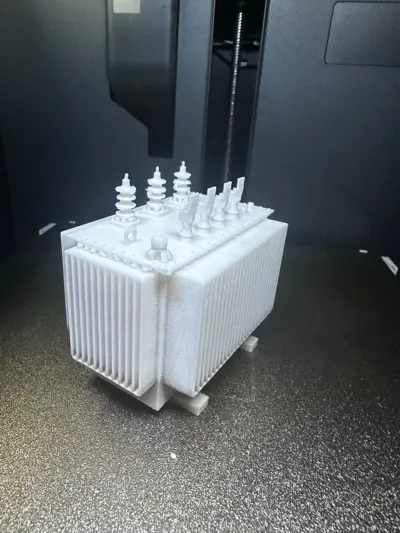

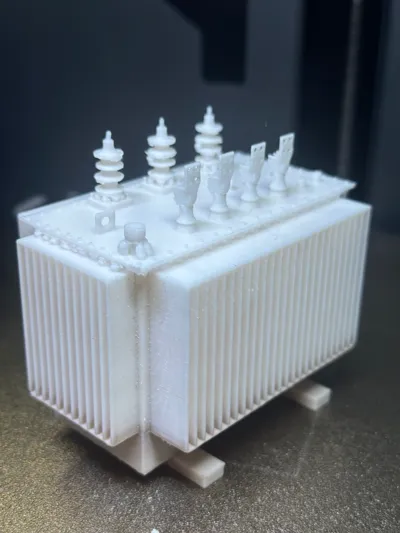

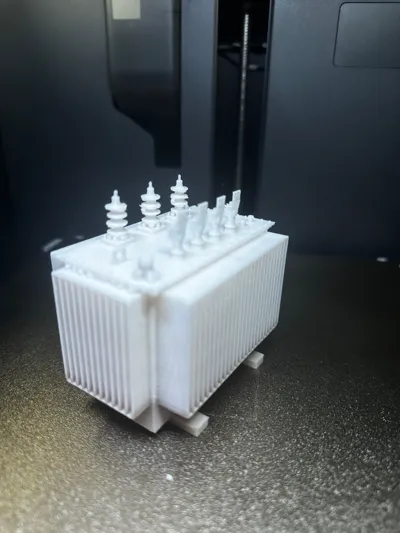

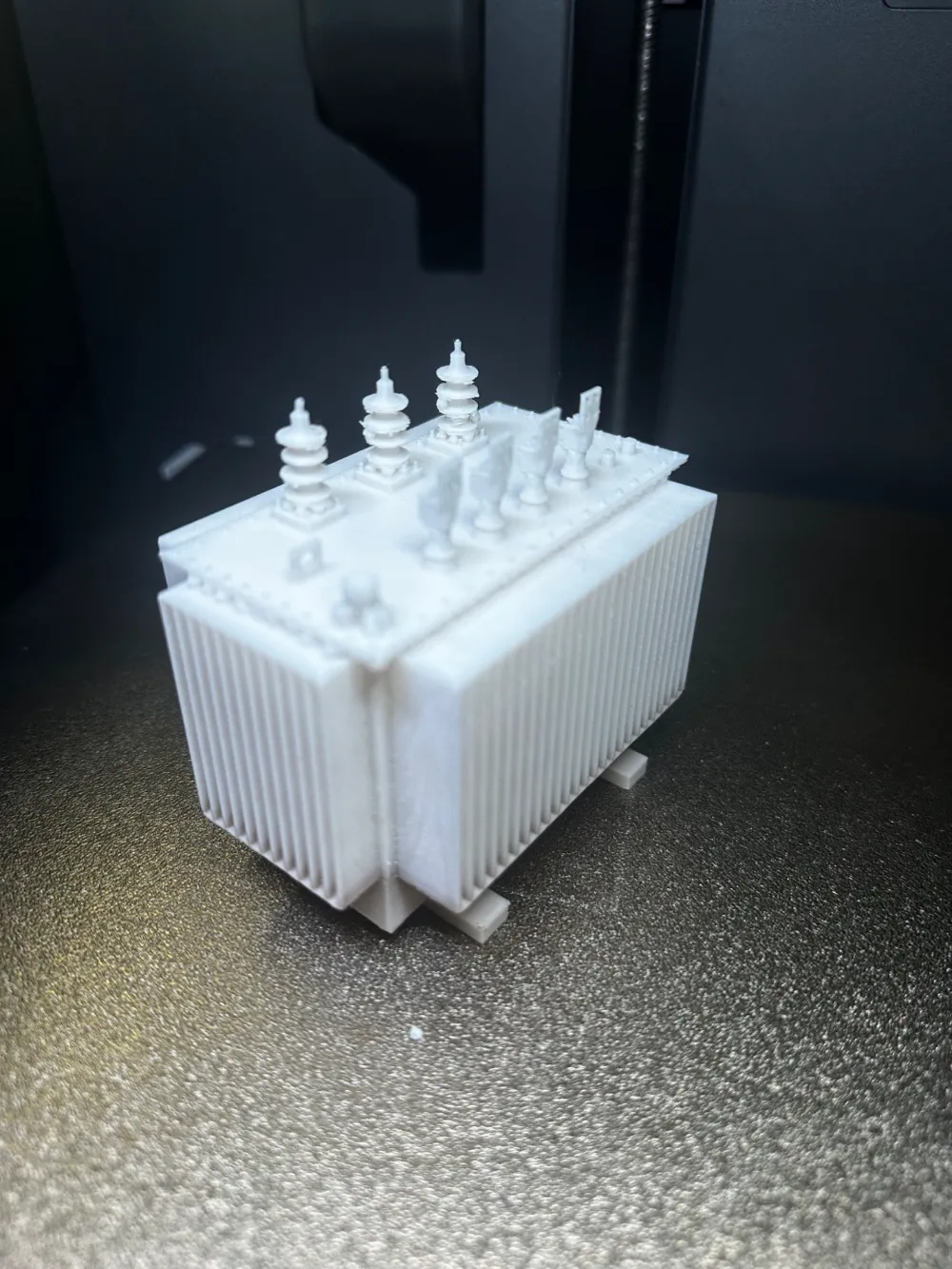

10kV/20kV Transformer 3D Model
Print Profile(1)
Description
10kV/20kV Transformer 3D Model for precise printing with Bambu Lab printers
Boost Me (for free)
Enhance your 3D printing experience with this intricately detailed 3D model of a 10kV transformer, meticulously crafted for Bambu Lab printers This model faithfully represents a real-world medium-voltage transformer and is ideally suited for engineering projects, electrical simulations, scale models, and educational purposes
Key Features:
1. Realistic Industrial Design
* Precisely modeled to resemble a genuine 10kV power transformer, featuring key details such as:
• Cooling fins for heat dissipation
• Bushings and insulators for high-voltage connections
• Mounting plate for realistic installation
• Terminal blocks for input and output cables
2. Optimized for 3D Printing
* Fully compatible with Bambu Lab X1, P1P & P1S 3D printers
• Designed for smooth FDM printing with minimal supports
• High detail resolution for crisp edges and realistic textures
3. Scalable & Customizable
• The model can be scaled up or down without losing detail
• Available in multi-part or single-part versions, easy to print and assemble
• Can be customized with logos, labels, or additional details for specific projects
4. Versatile Applications
* Engineering & Technical Education – Perfect for illustrating transformer functions
• Dioramas & Scale Models – Suitable for architectural and industrial installations
• Prototype Testing – Useful for initial designs in the simulation of power systems
• Hobby & Model Making – Ideal for collectors and model enthusiasts who want to recreate realistic electrical infrastructures
Technical Specifications:
* File Format: STL, OBJ (Ready to slice in Bambu Studio)
• Print Compatibility: FDM & Resin (Optimized for Bambu Lab printers)
• Recommended Layer Height: 0.2mm (Fine details possible with 0.1mm)
Print Size: Customizable depending on project needs
• Assembly: Multi-part or single-part options available
Bring industrial power infrastructure to life with this detailed 3D model of a 10kV transformer – perfect for professionals, hobbyists, and educators
