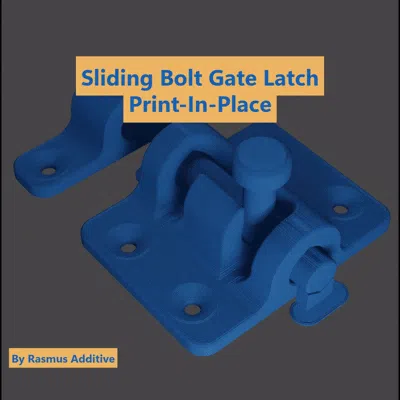

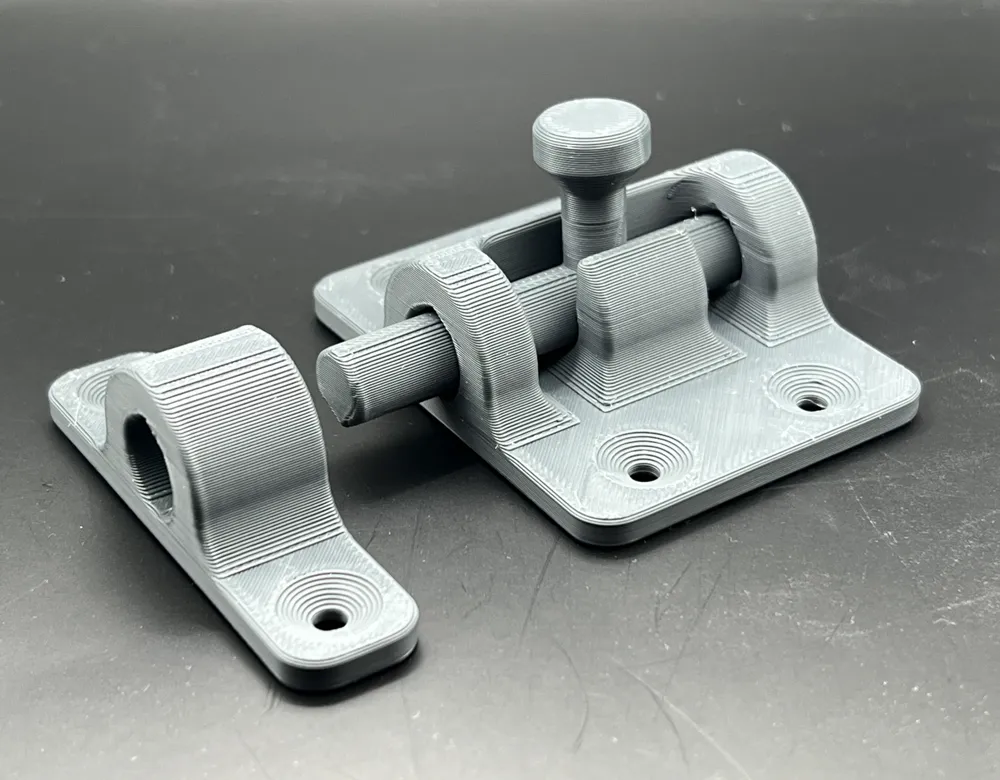

This is a Print-in-place version of a sliding bolt garden gate latch.

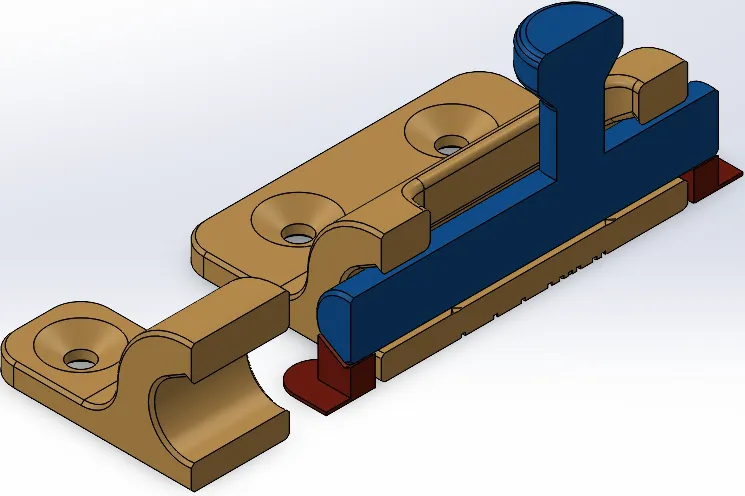

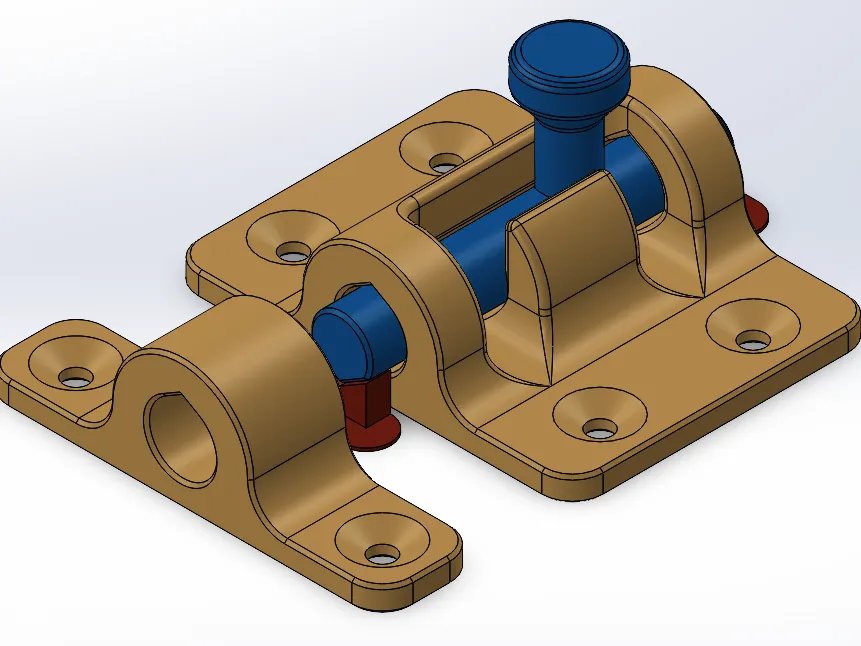

The design has two small built-in support pieces that must be removed before installation!!! (Marked with red in the pictures)

If you have any feedback to my design feel free to leave a comment with suggestions for changes.

Change log:

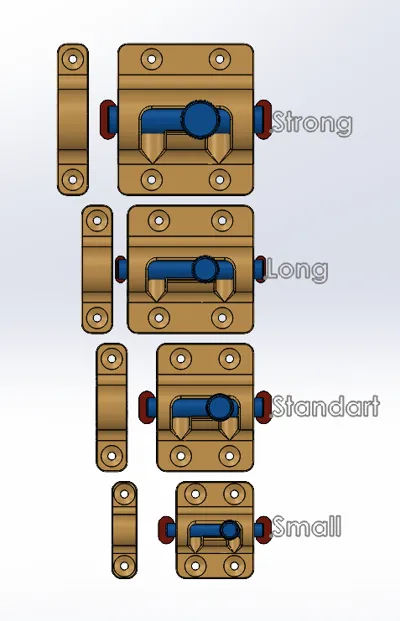

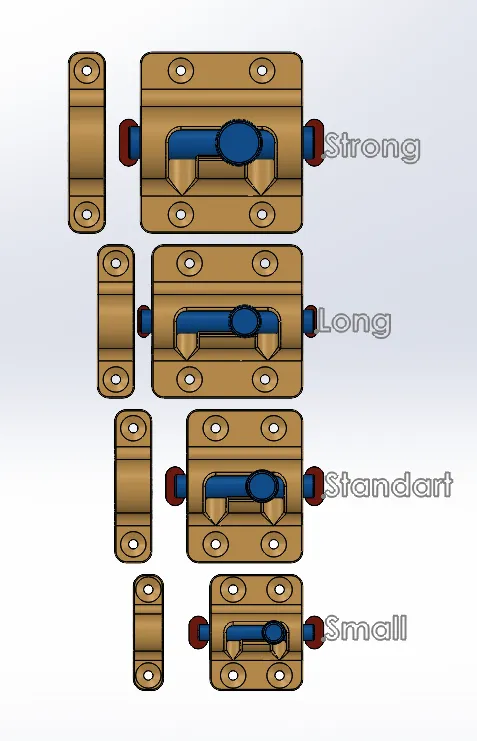

13-03-2025 3 new sizes added!
