Description

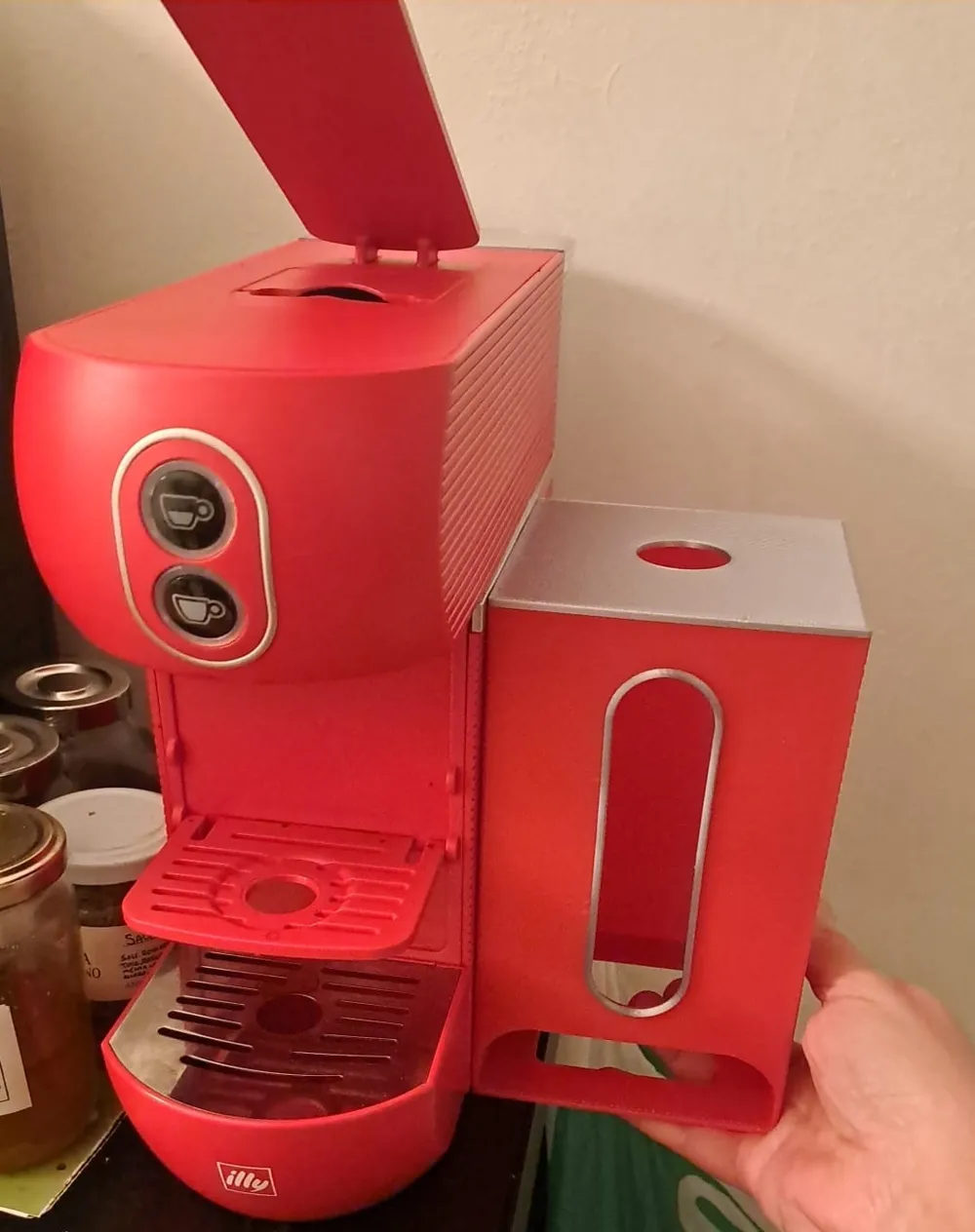

This is a coffee pod dispenser for ESE 44 standard pods (44mm diameter paper pods).
Designed to match the stile of the Illy coffee machine.

First version, subject to improements.. maybe :)

Materials used: Sunlu PLA+ red (beware the stringing) and Sunlu Silk Silver (configured as generic PLA Silk prints fine).



Disclaimer:

  • It's a first version, take care and check the print profiles carefully

Instructions:

  • Main body doesn't really need support on the top arch, it will be covered by the ring. You just need support on the bottom opening. In the project it is painted and set as tree (manual) to avoid support sticking on the printed base.

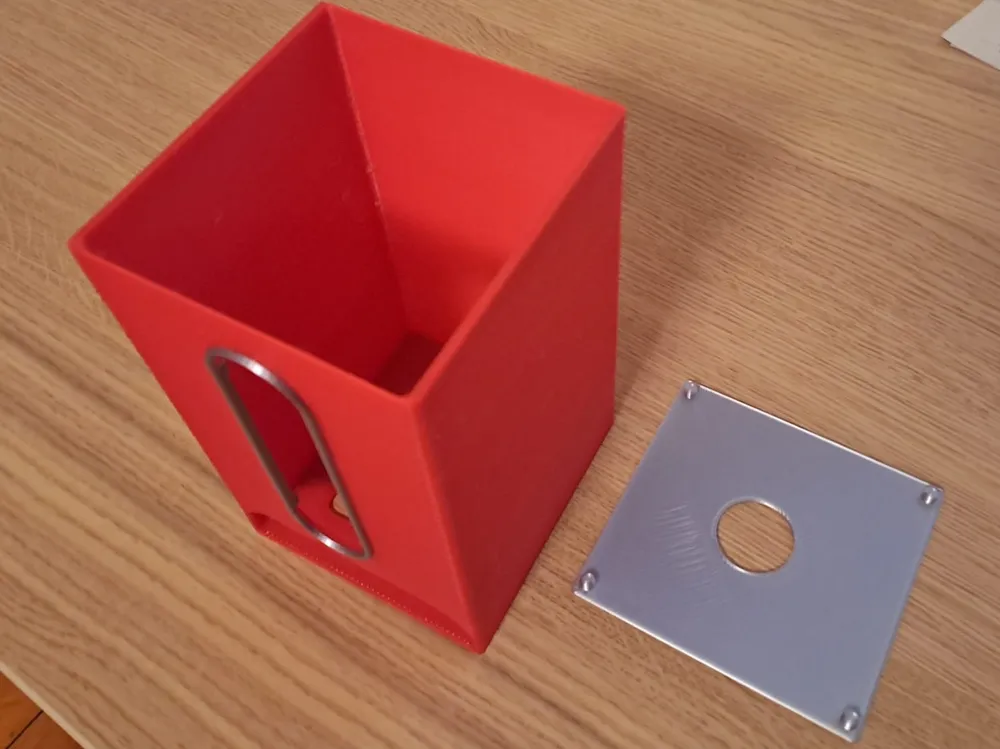

  • Print is on 3 beds for the 3 parts. The ring should be printed 0.12 or lower layer height, open the project in Bambu Studio and check as it is my first print of this kind published here.

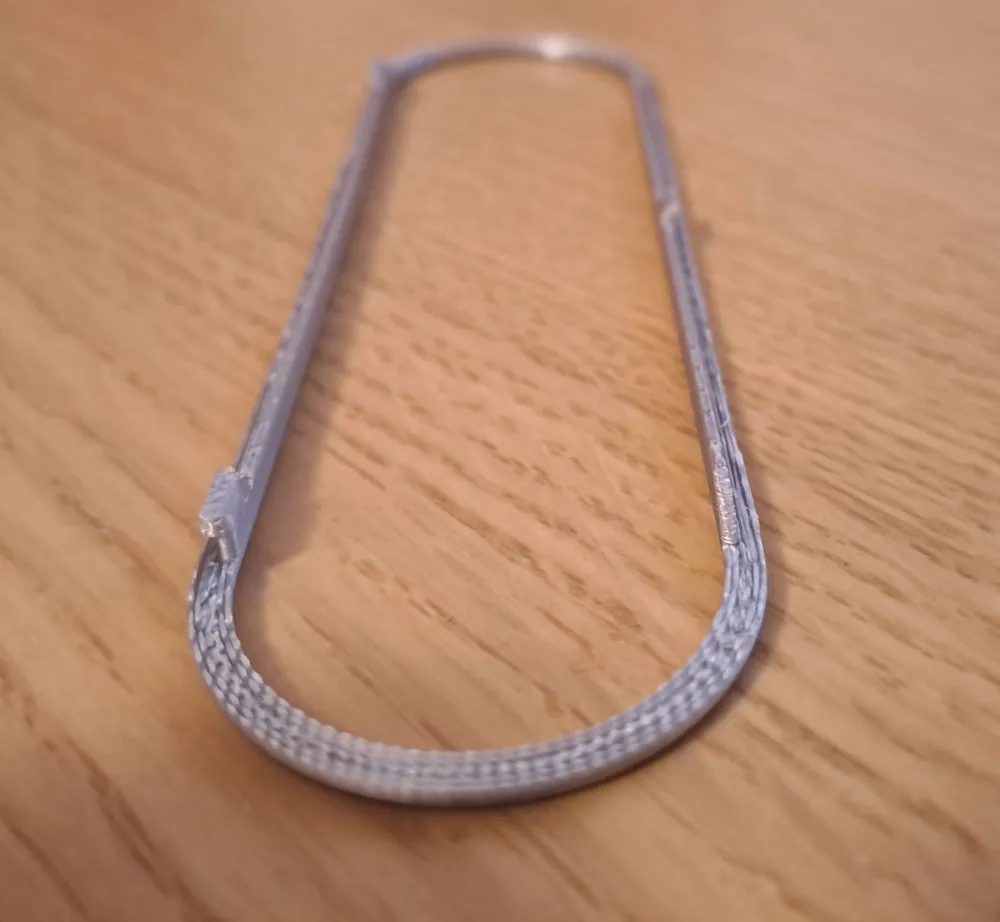

  • The ring has clips (see picture) to attach to the dispender. It is a bit fragile, be ready to remove a lot of support and be careful when removing it to avoaid damaging the 3 clips (2 on one side before the arches, 1 on the middle on the other side). It fit nicely, however a bit of glue can help as well.
  • It prints, it is functional. It accomodates larger pod bags as well so depending on your brand of pods you may find it a little bit large inside.
  • Take care as the model generates lot of stringing due to the micro overhangs on the sid e decoration. Calibrate your material / test it to avoid a lot of cleaning afterwards.
