Modular 120mm film scanner for Mamiya 645

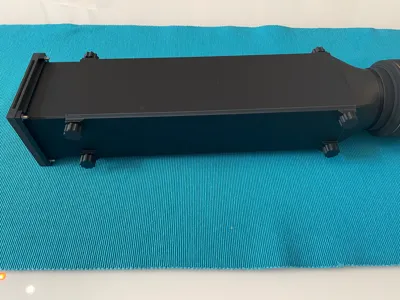

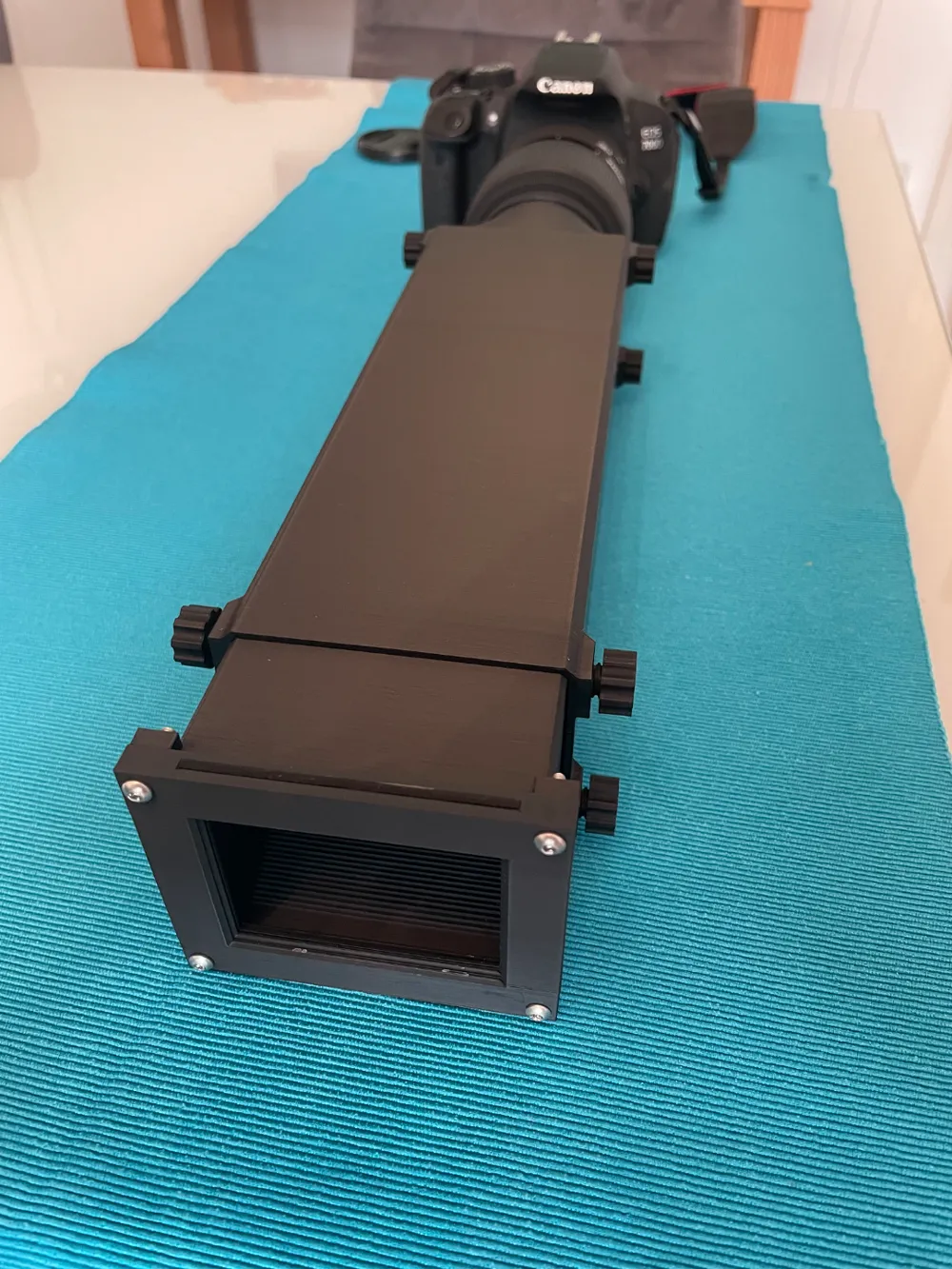

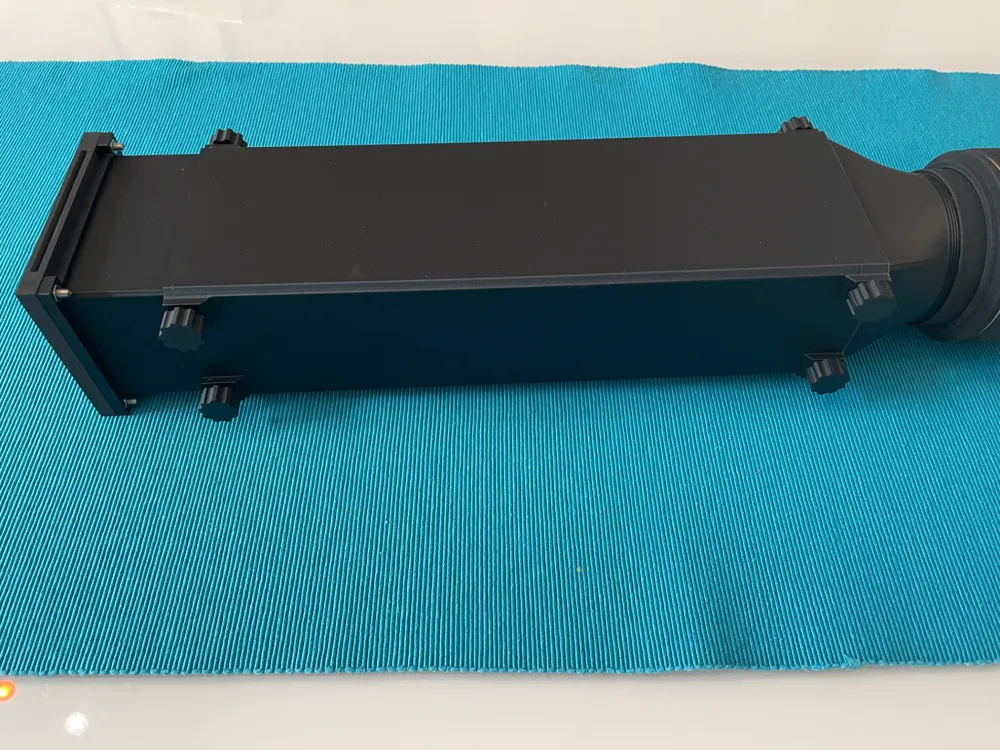

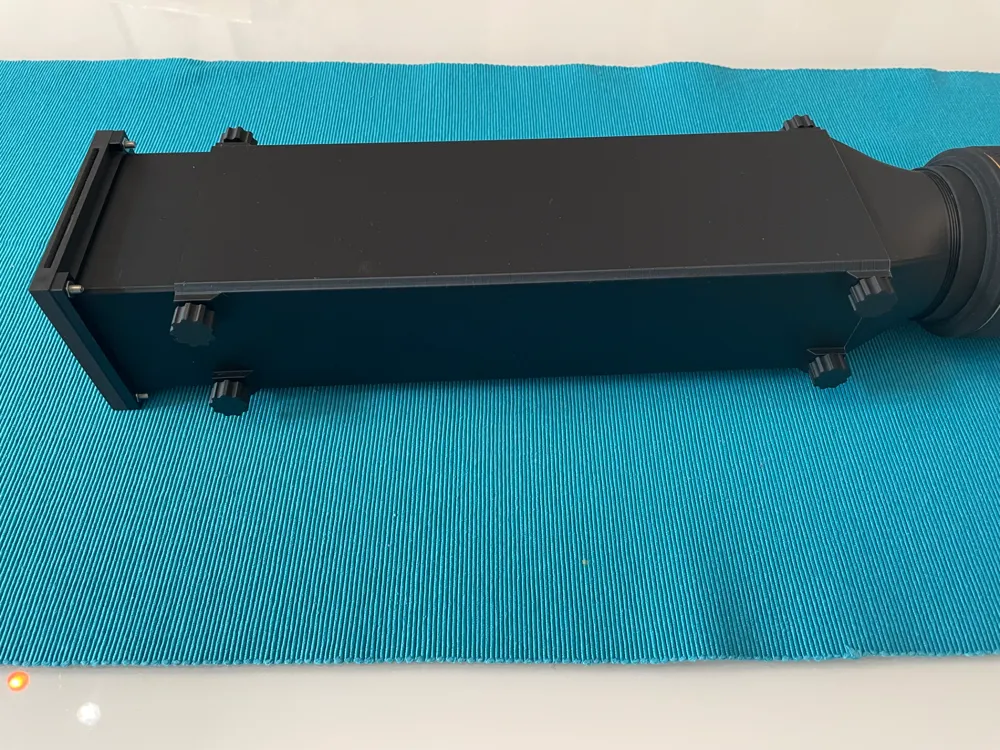

This film scanner is designed to digitalize 120mm film shot on a Mamiya 645 middle format camera with the use of a macro lens and a digital camera. The 35mm film scanner from FruitieX was adjusted so that it can be used with 120 mm film from middle format cameras. (For more information about the exact digitalization process, please refer to the original model from FruitieX.)  The frame was fitted to the films from the Mamiya 645 1000S camera. Extender and lens coupler were adjusted for a Sigma 95mm Macro lens.

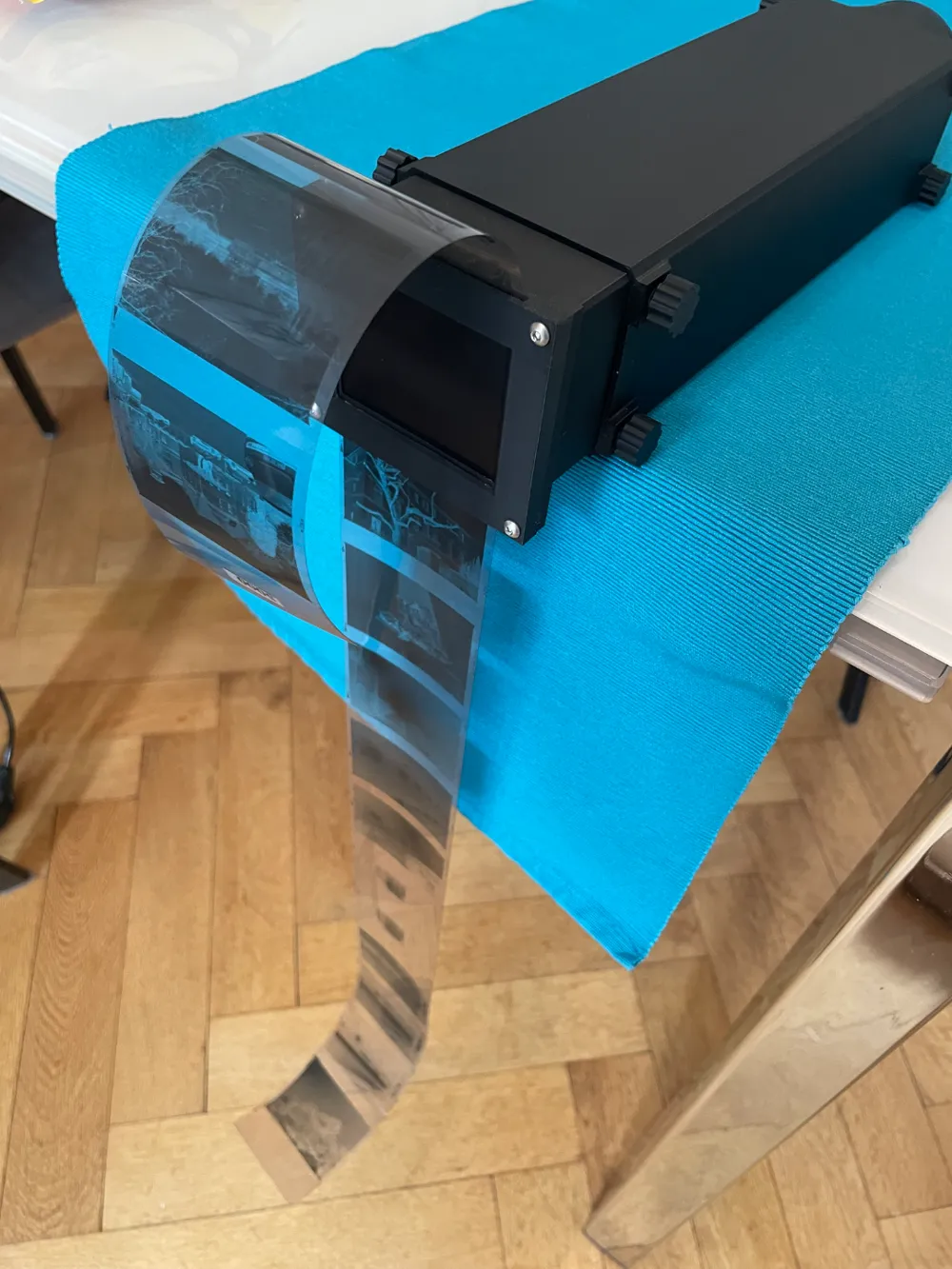

As the 120mm film has no hole pattern for forwarding, this must be done manually.

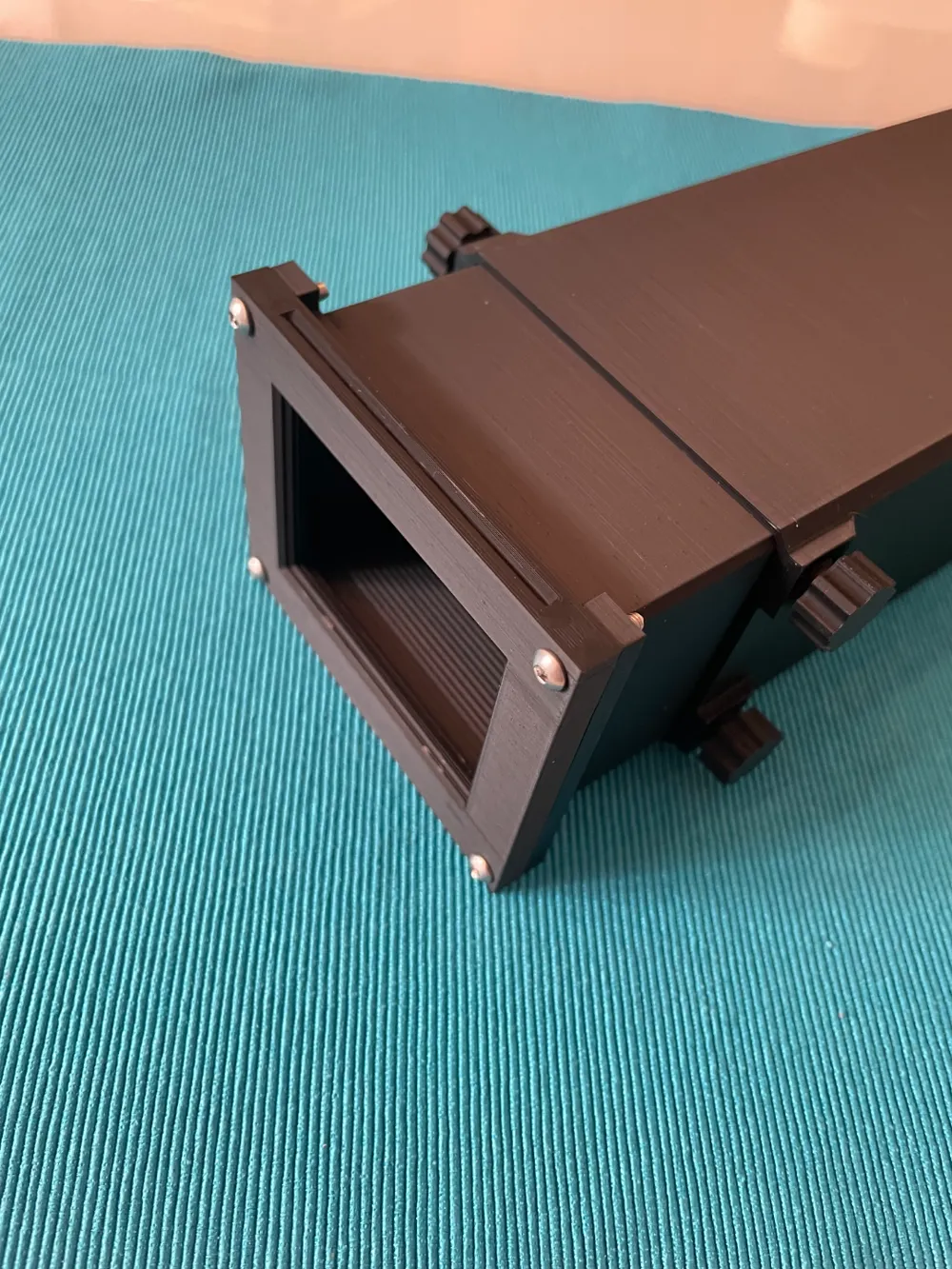

As the frame for holding the film was specifically designed to fit the 645 format of the Mamiya 645 and the extender for my Sigma 95mm macro lens, that's why it is so long in size.

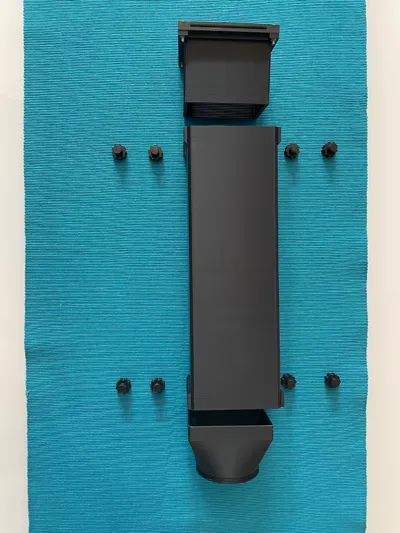

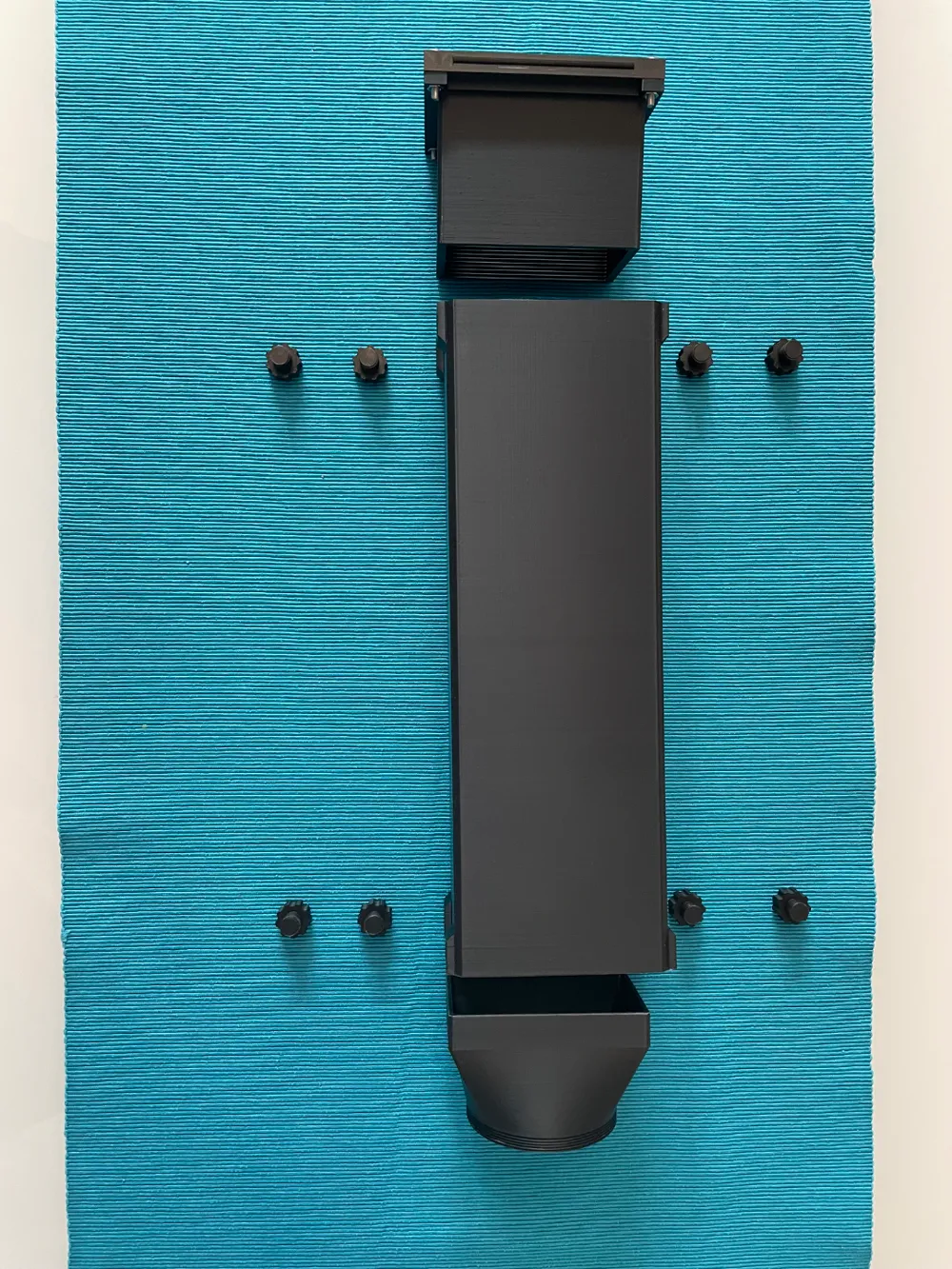

Update: I added additional lens couplers (39, 52, 55, 62, 67 mm diameter) and several extenders with different lenghts (5, 10, 15, 20 cm) to fit it for several macro lenses.

Update 2: I added modified STL files for 77x83mm landscape films (Extender 24mm, Lens Couplers 52, 58, 62, 67mm, Frame, Frame Coupler).

However, other formats and lengths can readily be designed. Just get in contact with me :)
