20m Cable/Hose Reel
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
8.5 h
2 plates
Open in Bambu Studio
Boost
23
90
2
1
122
50
Released
Description

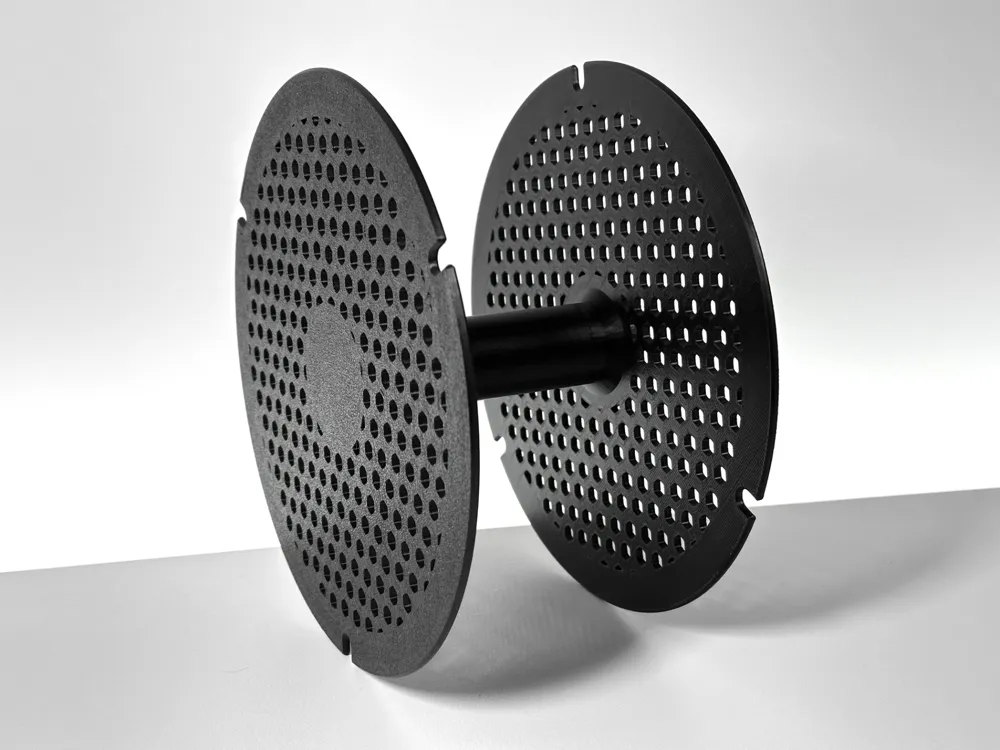

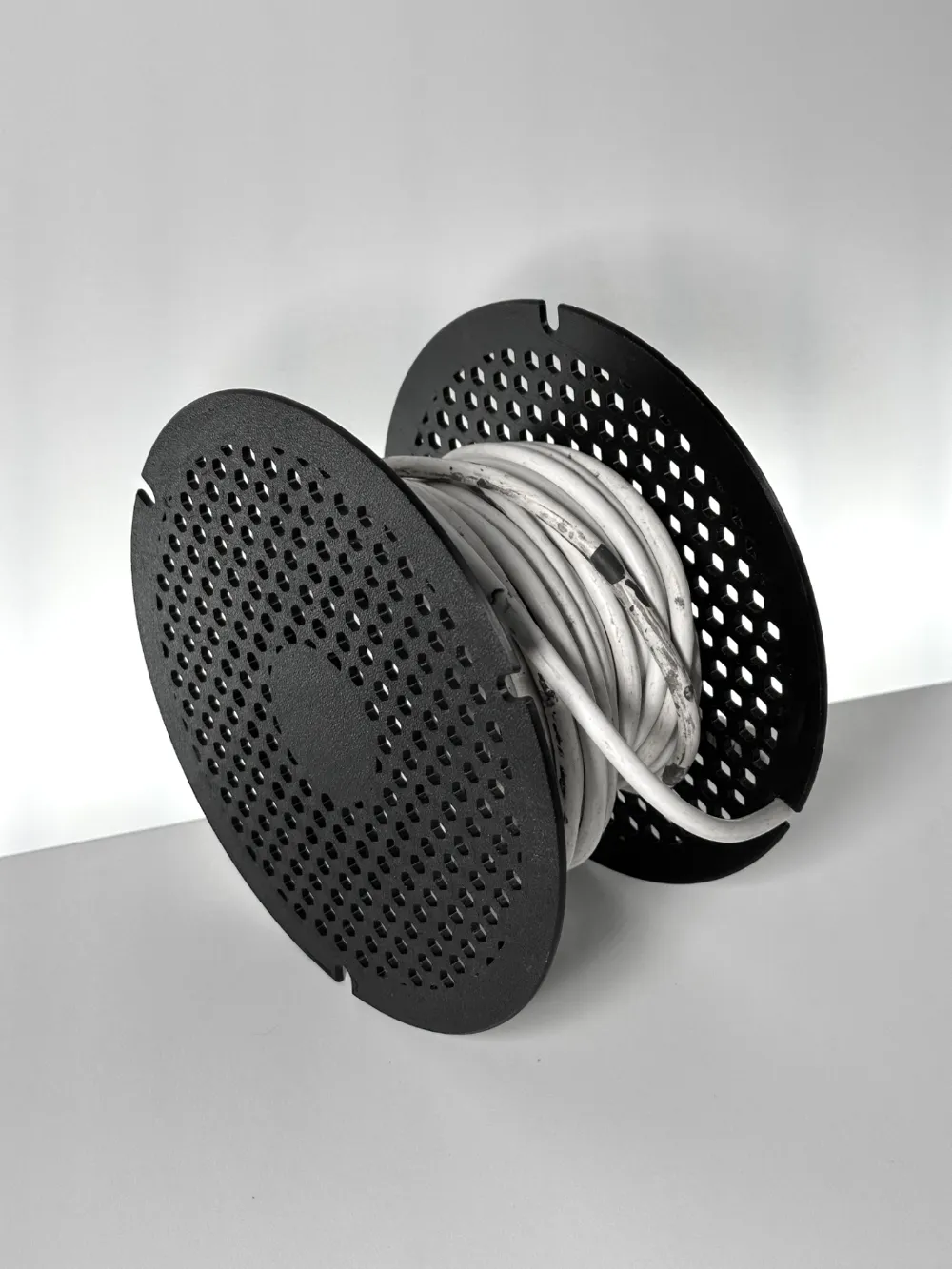

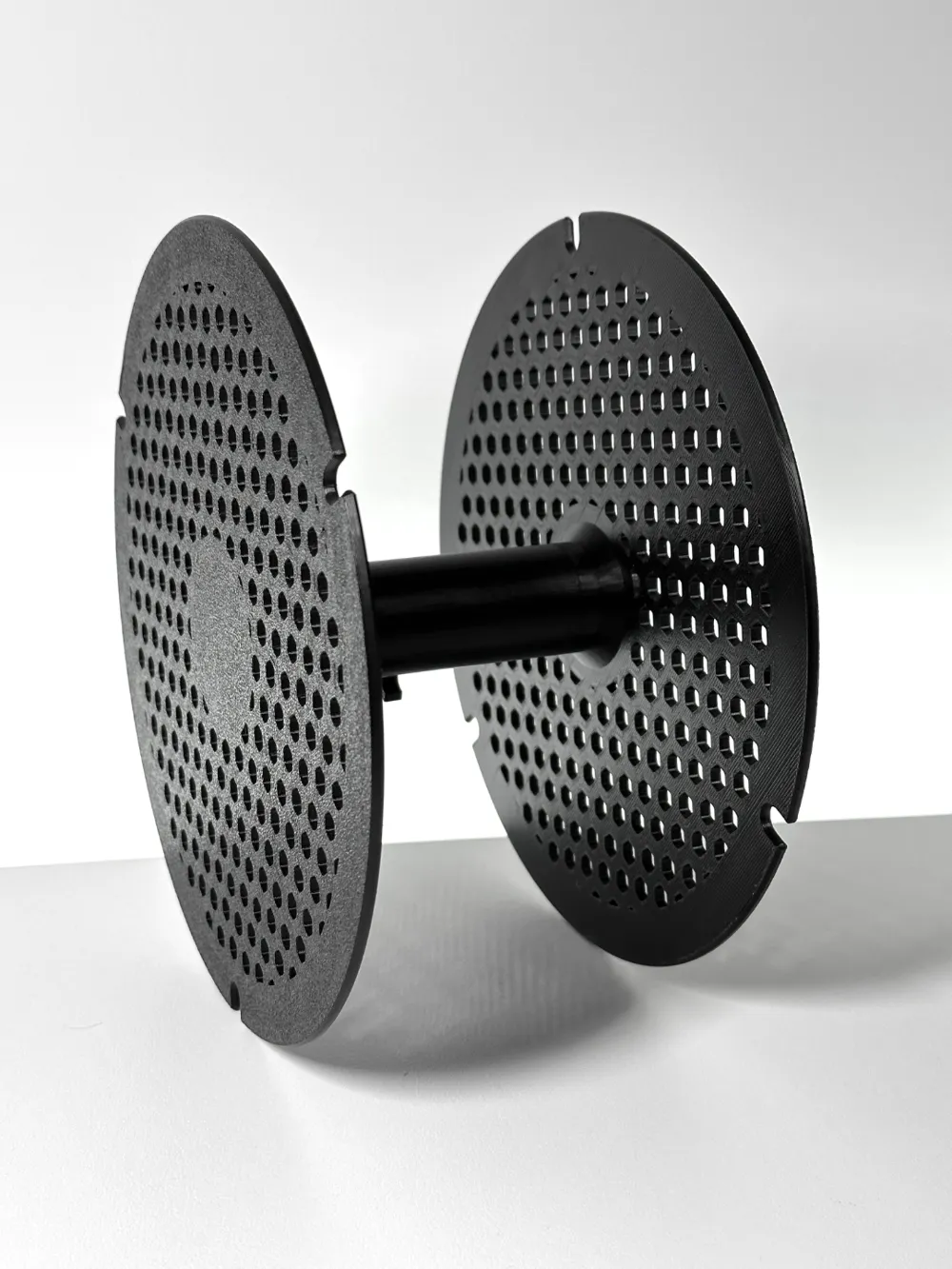

An organised way to store things like hoses or electrical extension cables in a small 200mm diameter footprint. My example is fitted with a 20mm extension cable with more room to spare.

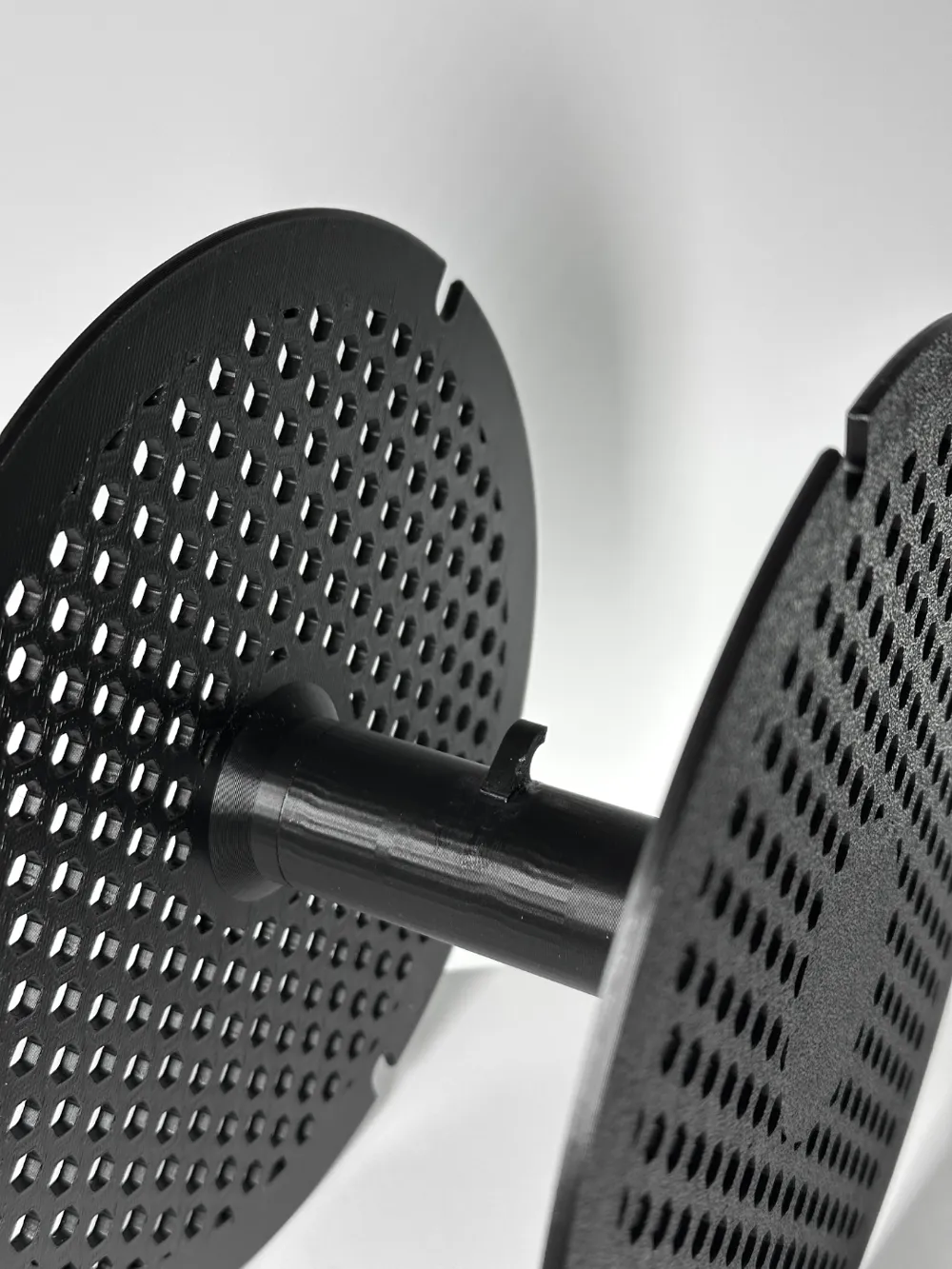

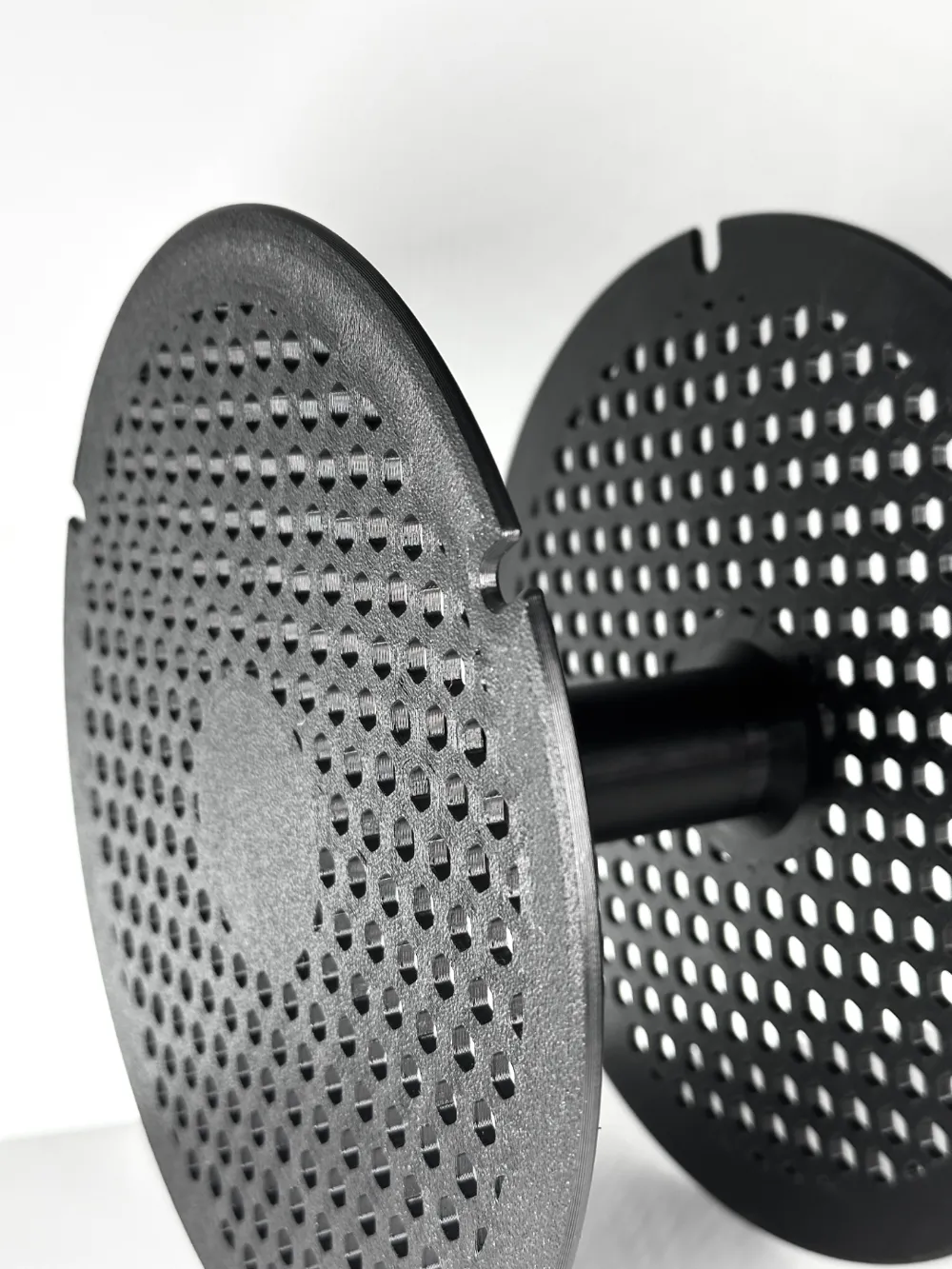

Each side piece is 3mm thick and when printed in PETG, is strong yet flexible. The roll has 3 notches around each side to terminate the end of the cable. The 3 main bodies press fit but for more strength, super glue in place. The model also includes a small hook if you need to latch the start of of a cable on the roll.
If you like this model, leave a comment or boost!
