Modular Monitor Risers– Adjustable Height

Overview

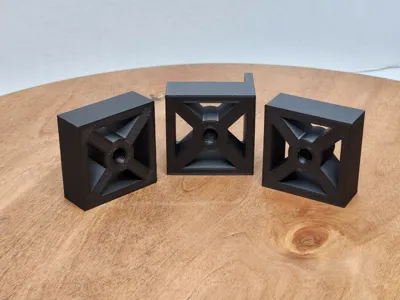

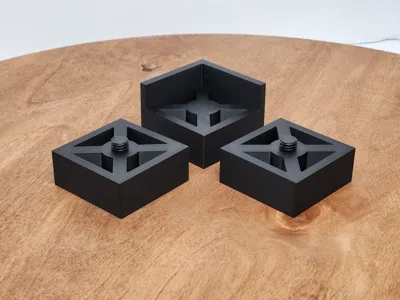

These modular monitor riser standoffs allow you to easily raise your monitor to the desired height while providing clearance underneath for storage or cable management. Designed for square and rectangular monitor bases, each standoff fits under the corners of the stand for a stable and secure lift. The system is fully customizable—simply screw together additional leg pieces to achieve your preferred height.

Print Instructions

Example: If you would like your monitor to stand 60mm taller, you would print the following since each leg and top piece provides 20mm of height:

• (x8) Leg pieces
• (x4) Top pieces

Printing the above quantities would provide a set of (x4) monitor risers providing 60mm of total riser height (2 legs and 1 top piece per corner).

Features

• Customizable Height – Stack multiple leg pieces to increase the height in 20mm increments.
• Modular & Expandable – Each leg piece features a threaded stud and hole, allowing you to extend the height as needed.
• Secure Fit – The top piece includes two walls to keep the monitor stand from shifting.
• Compact & Strong – A sturdy yet minimal design that supports most monitor stands.

Specifications

• Leg Piece Lift Height: 20mm
• Top Piece Lift Height: 20mm
• Threaded Connection: Standard screw-fit between leg pieces and top piece
• Compatible Monitor Stands: Square and rectangular bases

Suggested Print Settings

• Material: PLA or PETG
• Layer Height: 0.2mm
• Infill: 15%
• Supports: Not required
