Description

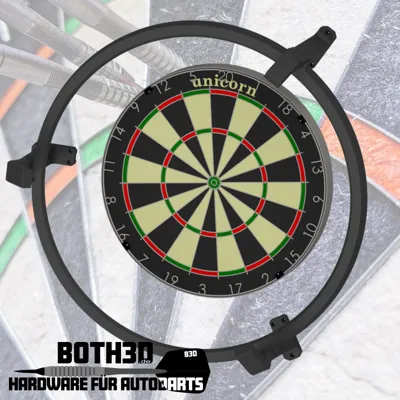

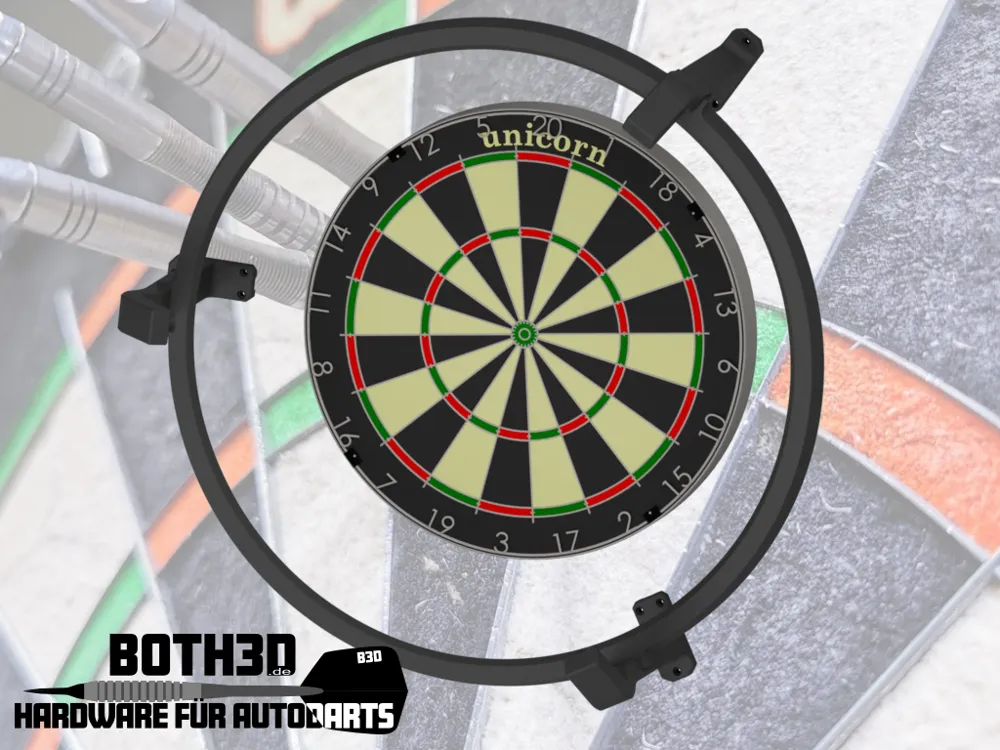

The new edition of the B3D-Autodarts-Automatic-Score System is finally available.
Automatic dart recognition? With Autodarts & Co. No problem. But how or what recognizes the darts? For this, you need a set like this, for example, to perfectly align cameras to the dartboard. The software does the recognition.
Further improved, designed differently to stand out even more from others.

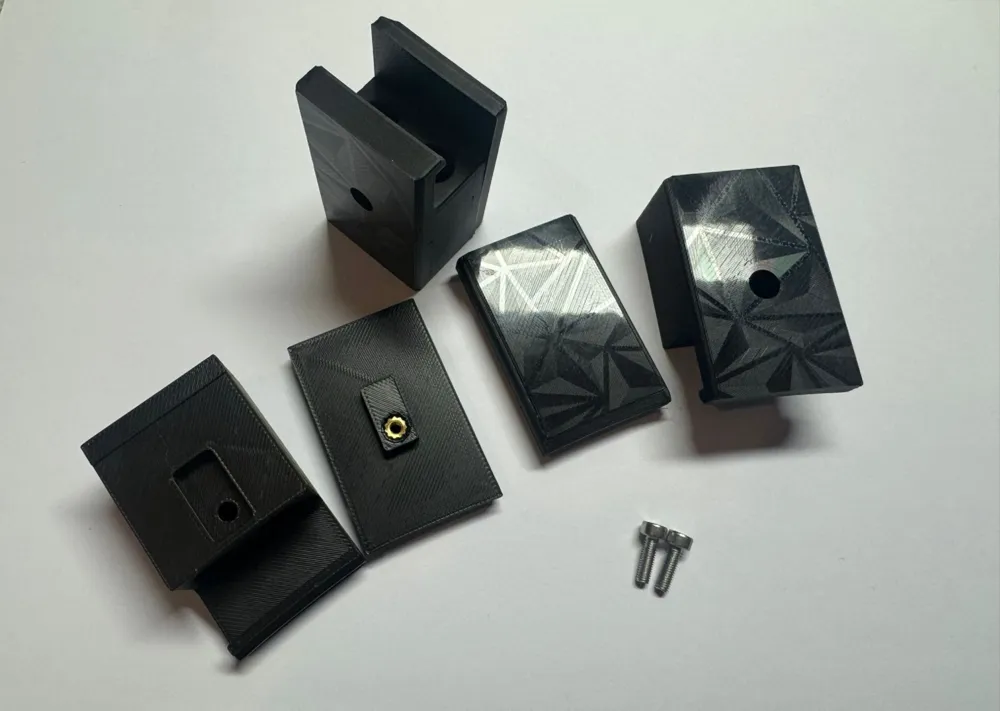

The pluggable design achieves a much cleaner and more homogeneous look, and yet it remains stable as it is additionally screwed.
The drilling distance has been uniformly coordinated with other designers. Designers Viperman, RuppiLab3D, Ben Engelen and I believe that only collaboration offers real added value for the DIY community.
I advocate that everyone should use what they want. If there is also a standard for the mounting holes, not only the end-user benefits, but also us makers, producers, and sellers.
This package contains all important files, parts lists, and instructions.

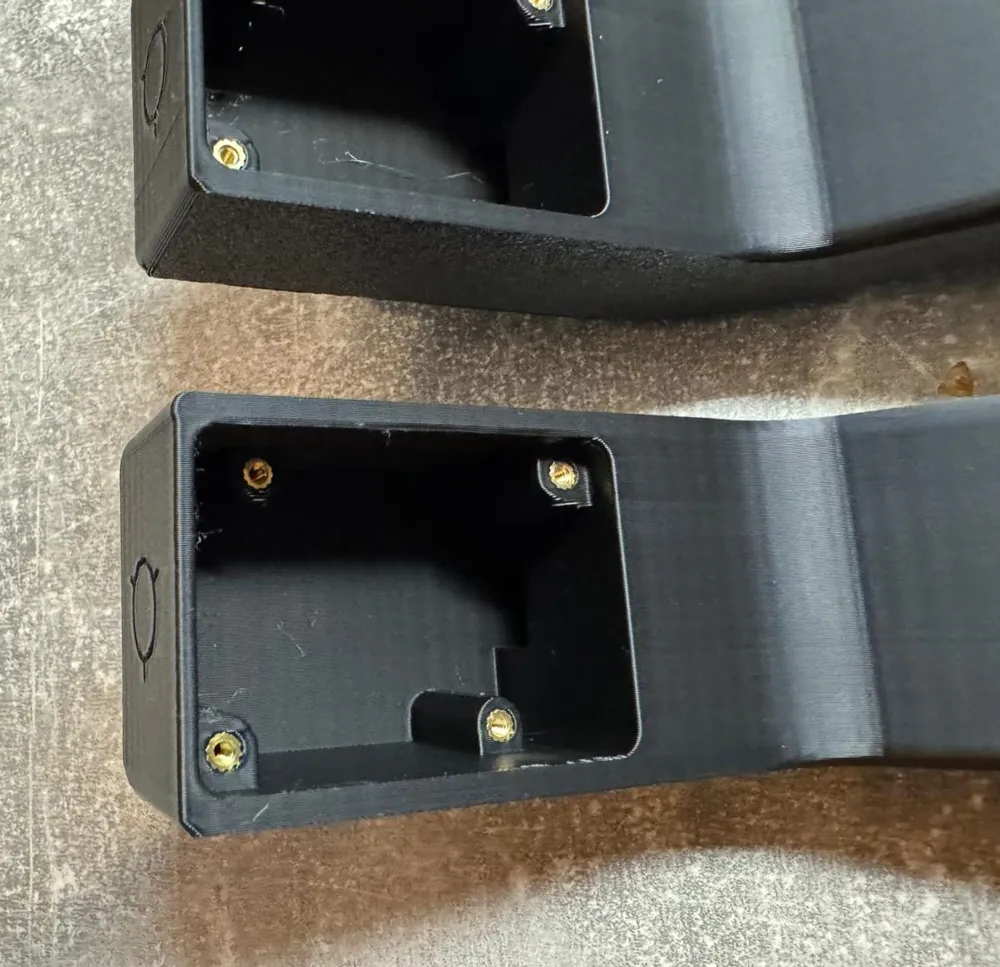

*NEW* now with a small list of links for CAMs, LED strips, and heat-set inserts.

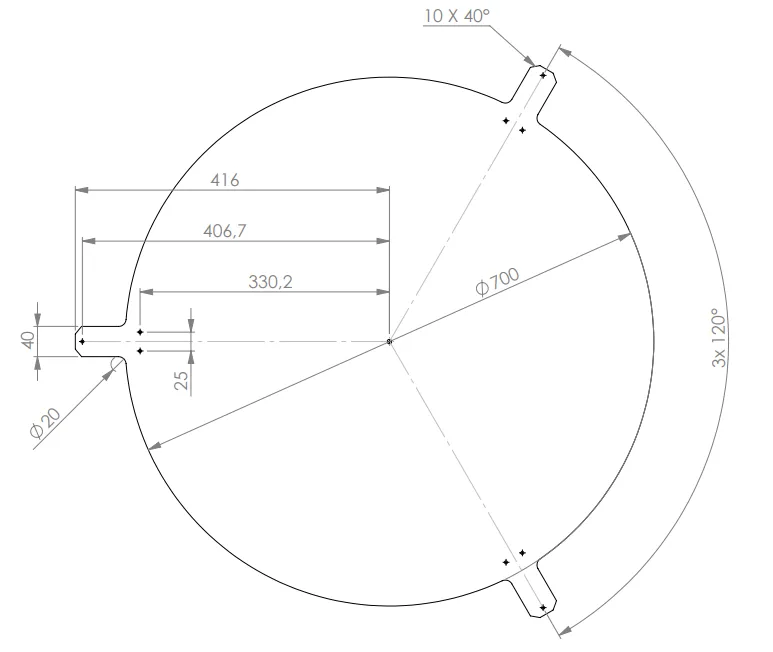

A drilling template, no frills and no compromises, is included. Because all drilling points can be marked at once, it is even more precise and user-friendly!
Info:
MDF base plates for this drilling pattern can also be ordered in quantities of 1 from Schreinerei Gebrüder Schuster. *
https://www.schuster-treppen.de/
https://0a5a92-2.myshopify.com/
Variants:

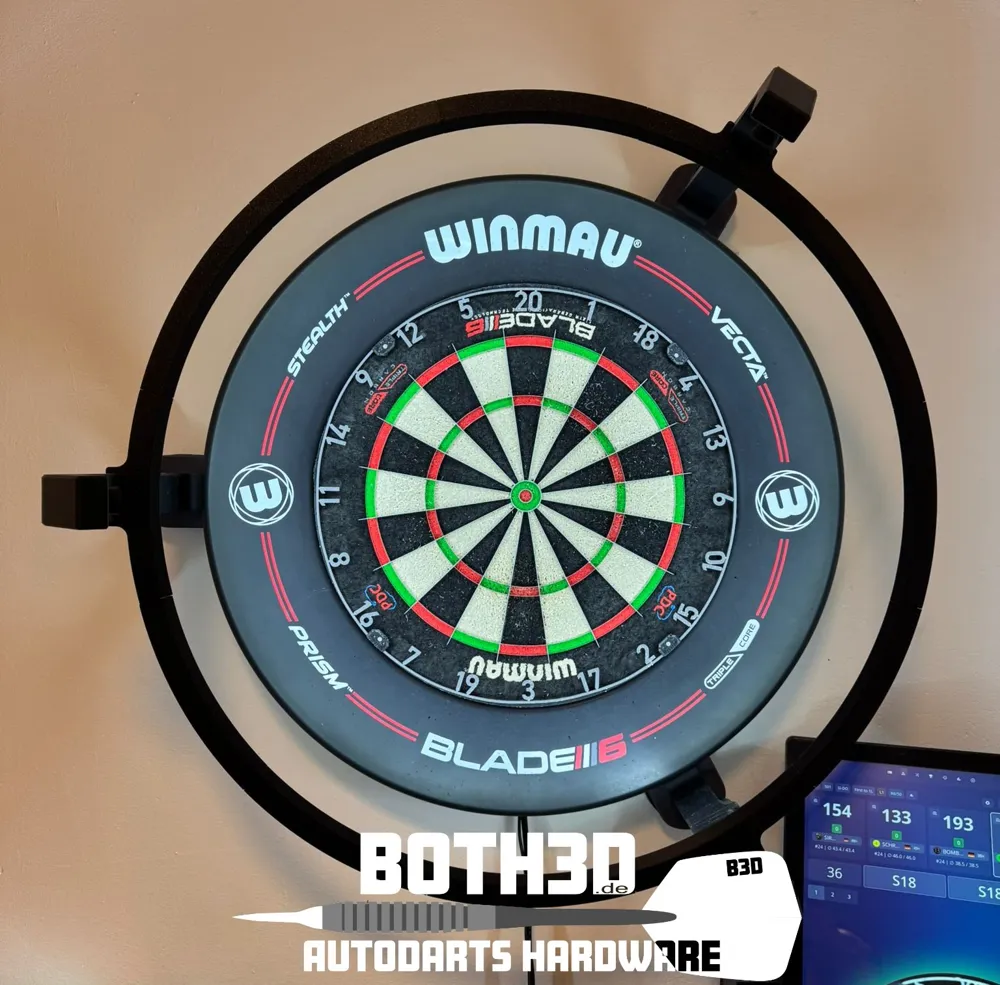

- Winmau Plasma: The arms are screwed directly to the Winmau Plasma
- Target Corona: Holders for the Corona LED ring are included in the package and must be printed separately

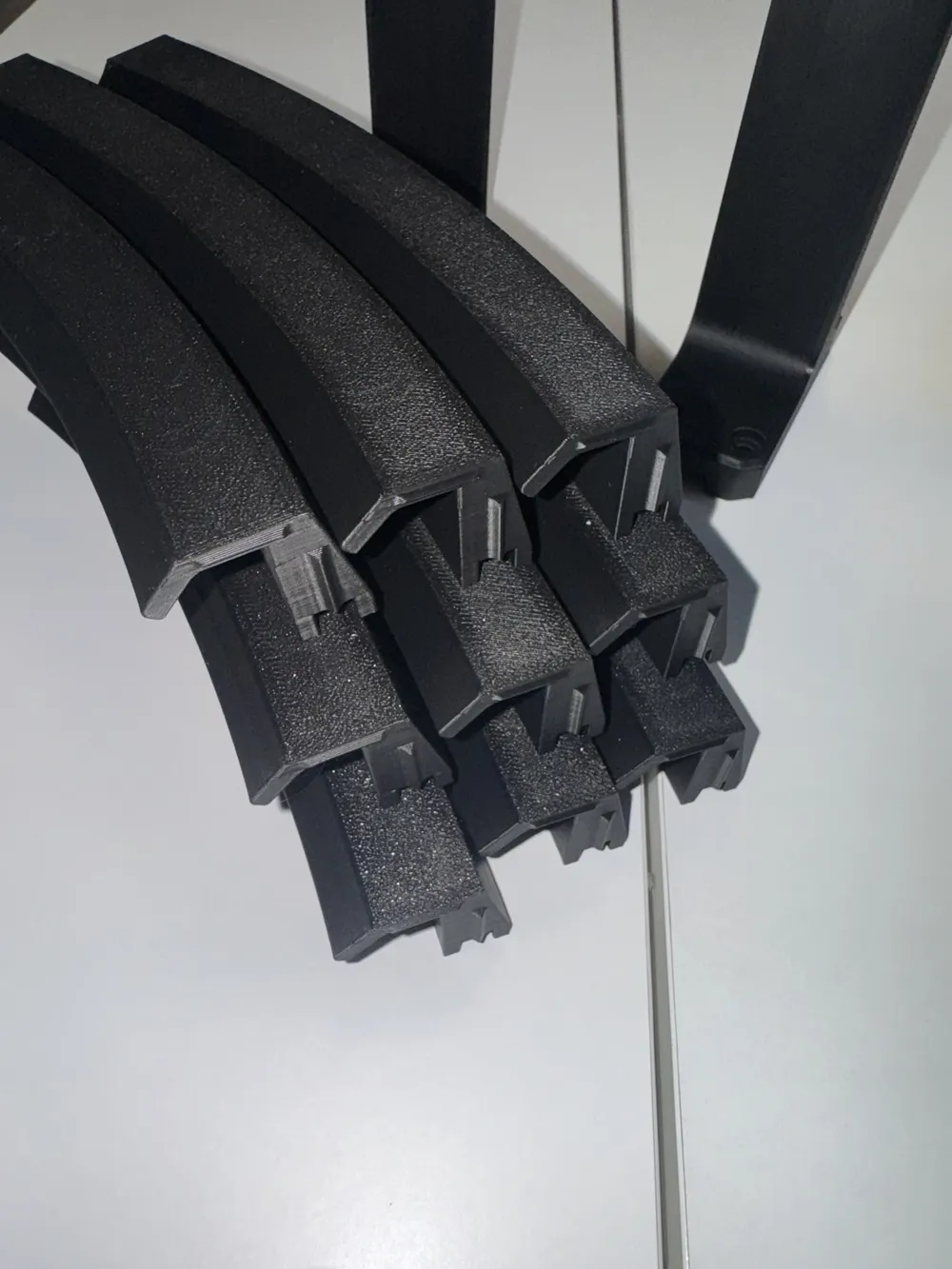

- 3D-printed ring: If no LED ring is available, the entire LED ring must be printed, which is screwed directly to the arms.
Recommended Cameras:
- HBVCAM OV2710 2MP
- HBVCAM OV9730 1MP
- HBVCAM IMX179
- GXIVISION OV9732 1MP
- GXIVISION IMX179
All cameras must have a 100° lens.
Note:
For indoor use, I recommend PLA+ as long as there is no direct sunlight.
For direct sunlight or outdoor use, I recommend PETG.
The files are subject to the PU license. However, the dimensions for the drilling pattern and the PDF with the drilling points (dimensions) are completely free and may also be used commercially.
Boost Me (for free)
You can make me happy with a boost. Thank you very much for your support
If you don't have a printer, I can print it for you:
http://www.both3d.de
3D Print Settings
Walls: 3
Layer height: 0.2mm
Infill: 20-30%
Material: PLA+ / PETG

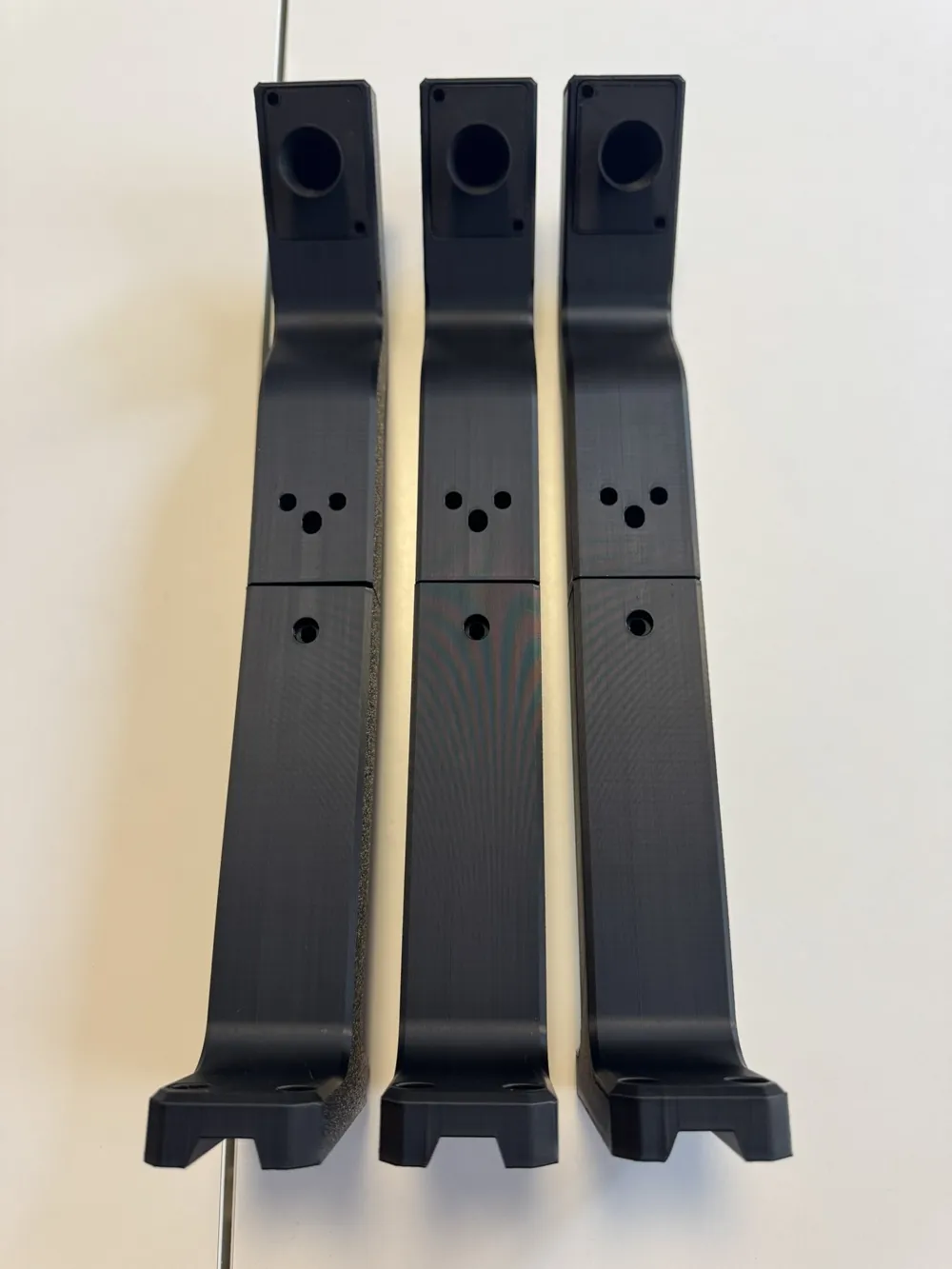

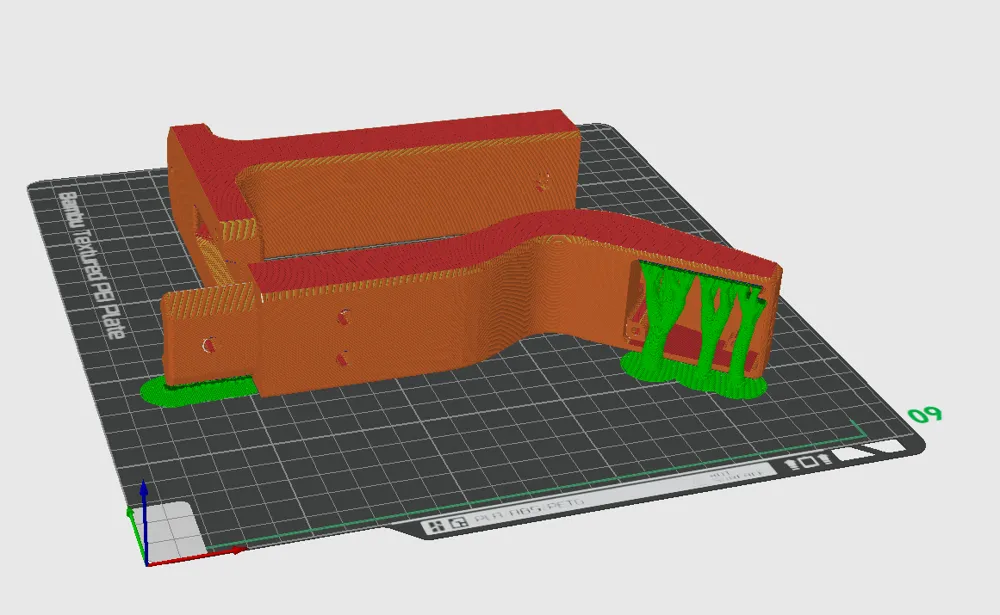

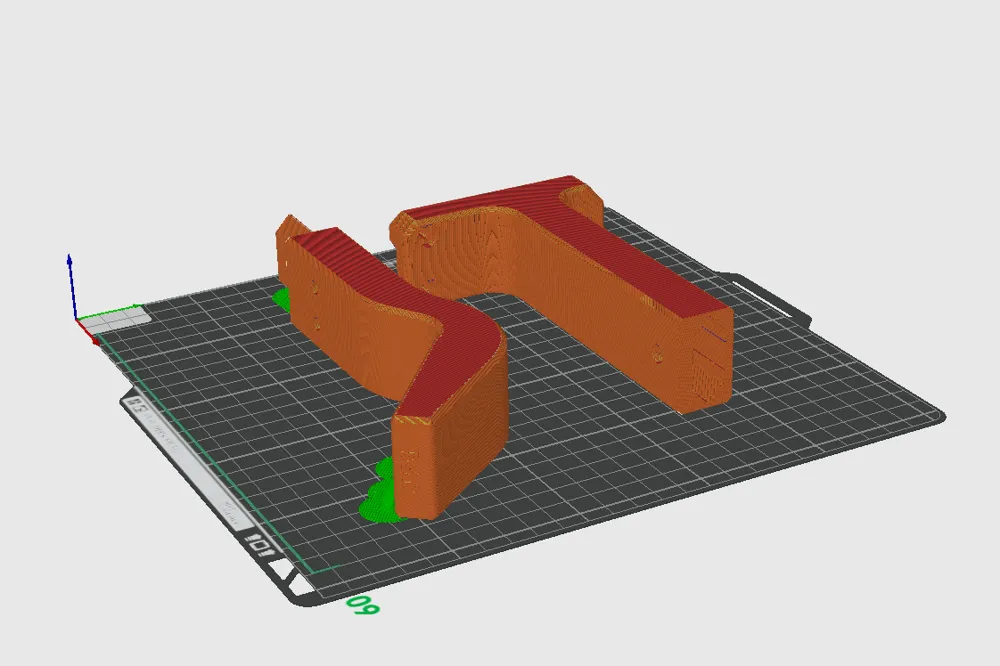

SUPPORT: Only on the arm and as shown in the pictures!
*) I do not receive any commission or other compensation for the mention.
All mentioned brands, trademarks, and product images are the property of their respective owners. They are used on this website exclusively for the identification and description of the offered products, without any intention of infringing intellectual property rights.
Update:
13.02.2026 - New LED Ring X, new documentation
24.01.2026 - Current base plate, Winmau Plasma foot added, constructive supports added to the arms
