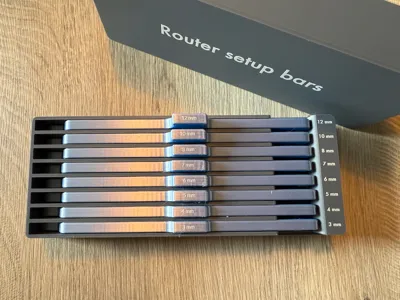

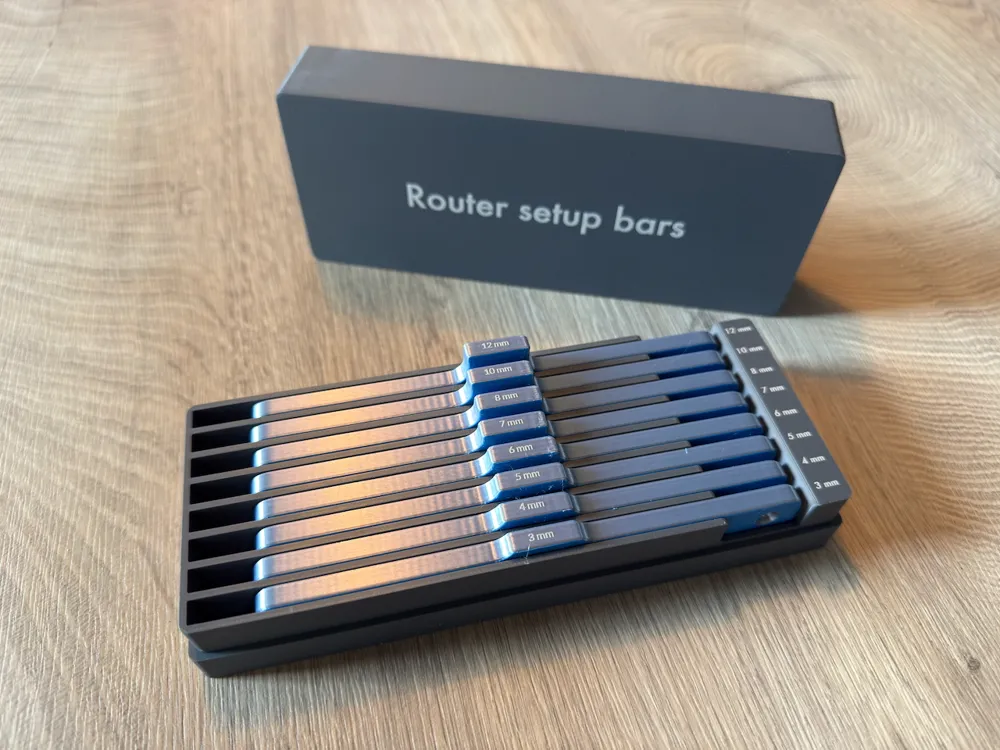

Router setup bars

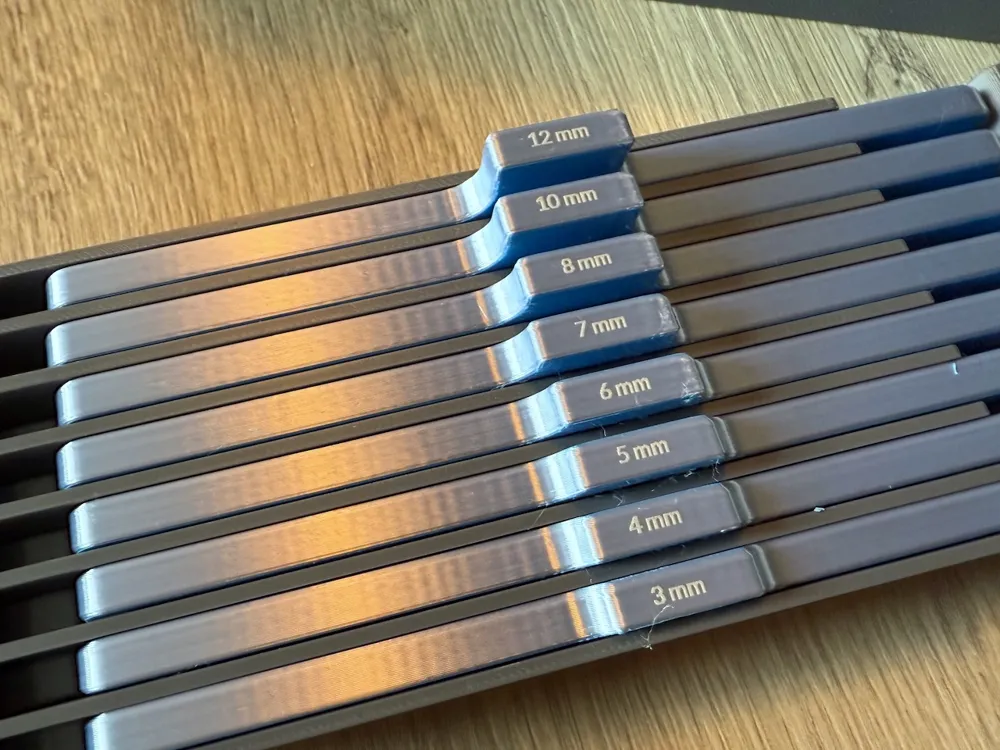

Router setup bars in metric systems : 3, 4, 5, 6, 7, 8, 10, 12mm

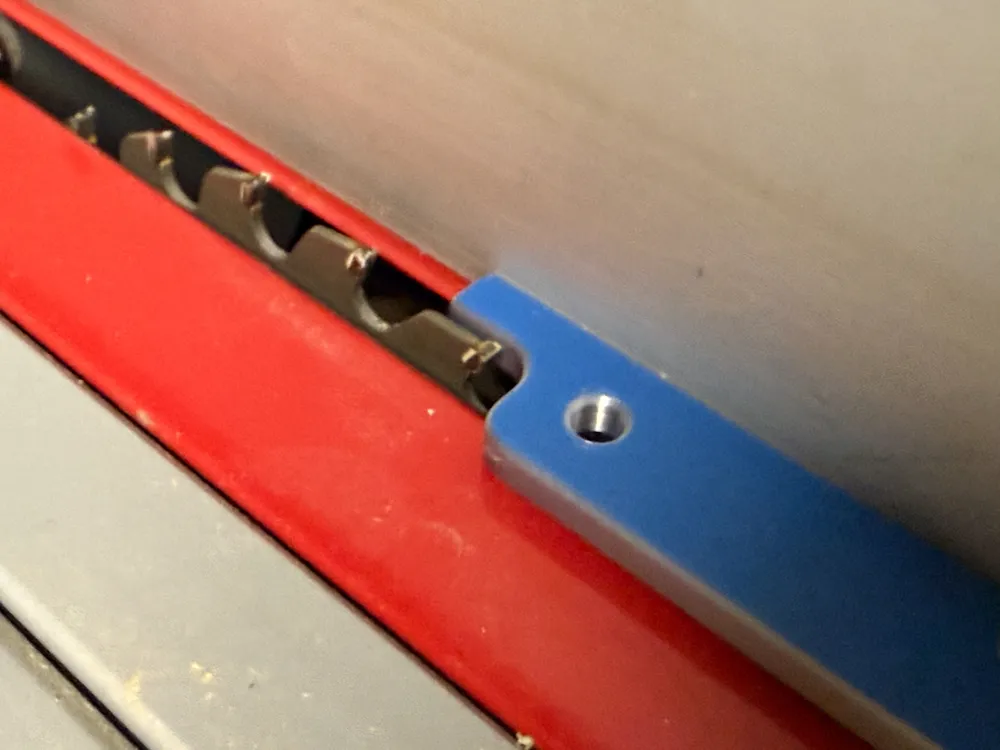

Can also be used to setup circular saw blade height and guide distance to the blade.

Filament used in my model :

• PLA Matte Marine Blue
• PLA Silk Silver
• PLA Basic Dark Gray (box)

Each individual stl file contain the 3D printed dimension on one side but you can delete this text using the .3MF and then export again as single STL without the dimension

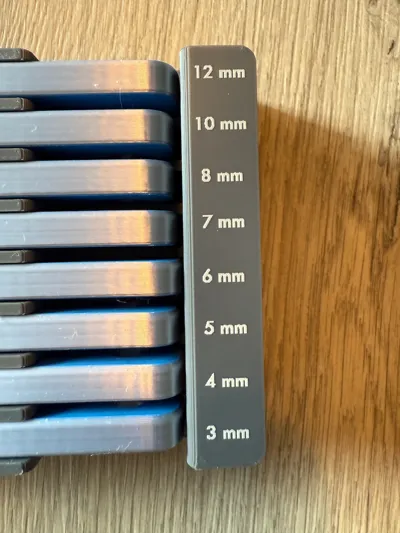

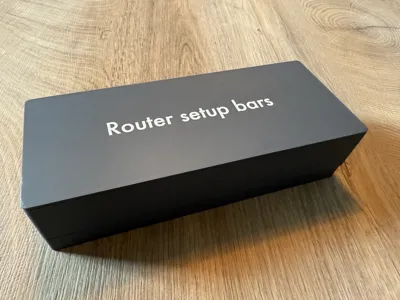

The box cover text and the dimensions on the box are laser engraved with the XTool F1 Ultra fiber laser : power 60%, speed 1000mm/s, lpc 100, 1 pass.

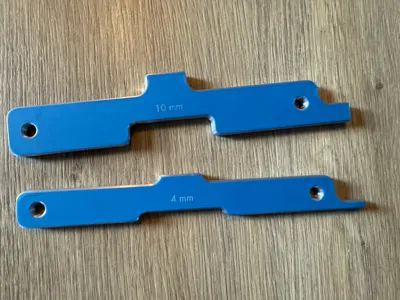

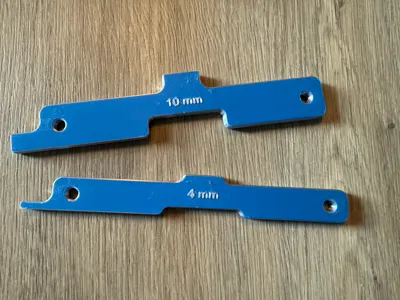

The dimension on the silver part is laser engraved with the XTool F1 Ultra fiber laser : power 100%, speed 1000mm/s, lpc 100, 1 pass.
The dimension on the silver part is laser engraved with the XTool F1 Ultra fiber laser : power 100%, speed 500mm/s, lpc 160, 1 pass)
