Logitech X56 Throttle Collective Conversion

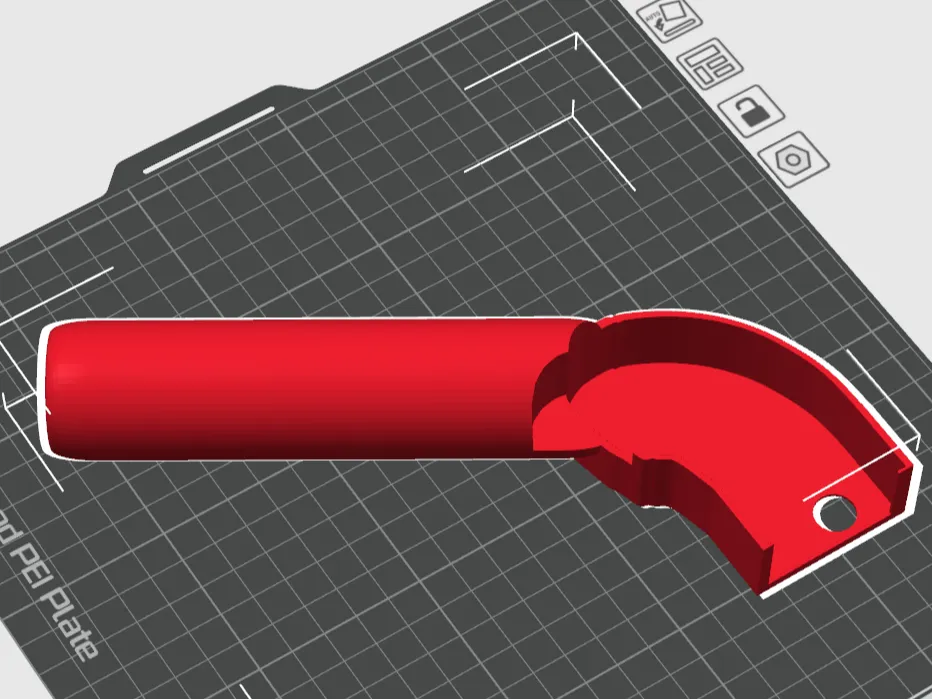

A cheap and cheerful way of converting your Logitech X56 throttle to a heli collective.

To install:

1. Release the locking pin on the left-hand throttle quadrant.
2. Split the throttles by pushing the left-hand throttle fully forward and the right-hand throttle fully back.

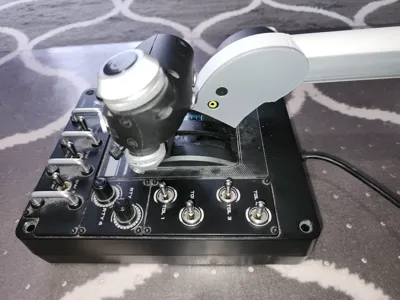

3. Slide the collective onto the left-hand quadrant (see pic).
4. Align both the throttles and push in the locking pin.
5.  Enjoy flying helis in your flight sim of choice!

I use the knob on top of the right-hand throttle as the heli throttle (if you are flying twin engine helis you could use the knob under the right-hand throttle as well, or just use a single throttle for both).

I have also made remix for adding a gamepad to the end of the collective to add more functionality. Look for “Logitech X56 collective conversion with gamepad”.

Cheers. 👍
